Home / apollo-6500 / Hpe Proliant Apollo Xl270D Gen10 Server Chassis | P00392-B21
SKU: P00392-B21

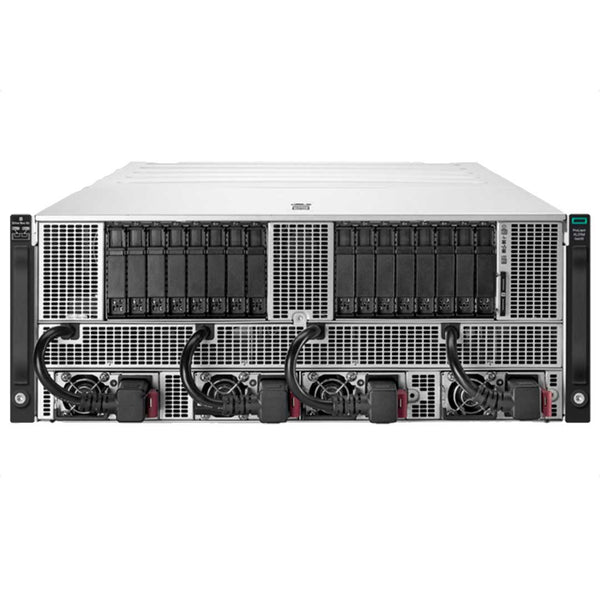

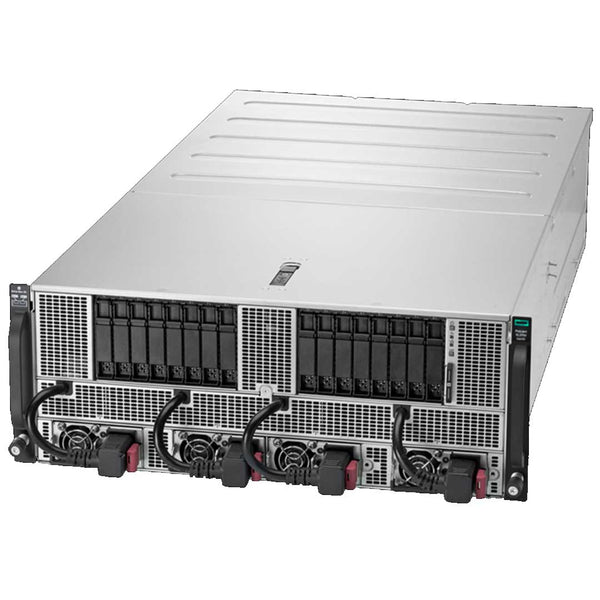

Hpe Proliant Apollo Xl270D Gen10 Server Chassis | P00392-B21

HPE

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.

Warranty | Return Policy

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs
What's New for Apollo 6500 Gen10
  • (1) XL270d Gen 10 Trays | P00392-B21
  • (2) Intel Xeon 1st or 2nd Gen Scalable Processors Per Tray
  • (24) 2933MT/s DDR4 DIMMs
  • (16) SFF Drives
  • Up to (4) NVMe Drives Supported
  • (1) PCIe Slots Per XL270d Tray
  • Embedded 4 x 1GbE Network Adapter
  • Support for FlexibleLOM Adapters
  • Support for Type-A Smart Array Controllers
  • Supports (2) GPU Module Options (SMX2 or PCIe)
  • (8) GPUs Supported Per GPU Module
  • *(12) T4 GPU can be supported (PCIe GPU Module only)
  • (4) PCIe Slots Per GPU Module
  • Support for NVLink with the latest NVIDIA GPU
  • HPE iLO 5
Other Versions:

(Click to View)

Ideal for:
  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Data Analytics
  • Deep Learning (DL)
  • High-Performance Computing (HPC)
  • Language Model
  • Machine Learning (ML)

The HPE Apollo 6500 Gen10 Server is specifically designed for HPC, AI, Deep Learning (DL), and Machine Learning (ML) applications. It features the robust 6500 chassis, which integrates the XL270d Gen10 system board with a GPU module stacked on top, ensuring optimal performance for intensive computational workloads.

The server supports up to 16 drives on its 2-socket, 24-DIMM system tray, allowing for extensive storage and memory capacity. The Apollo Power Distribution Unit (PDU) houses the midplanes, efficiently connecting the entire system to deliver seamless integration and exceptional power management for demanding workloads.

Looking to Customize?

Configure your APOLLO-6500 — drives, RAID, rails, and warranty.
Talk to a sales expert today.

Build Your Refurbished APOLLO-6500 →

Specs 1

Software overview

Feature
Description
OS and virtualization software support for ProLiant Servers 1

  • Red Hat Enterprise Linux (RHEL) (64-bit) (Includes KVM) - 7.3 w/ Errata 3.10.0-514.6.1, 7.4

  • SUSE Linux Enterprise Server (SLES) (64-bit) (Includes KVM) - 12SP3, 15

  • Canonical Ubuntu 16.04.3 - HWE kernel 4.10

  • CentOS 7.4

  • Windows Server 2016 (Most recent version)

Software RAID 2
HPE Smart Array S100i SR Gen10 software RAID
NOTE:
  1. Windows Server support will be available in future releases

    Click here to view more information on Server OS and Virtualisation Software .

    Click here to access HPE Servers Support & Certification Matrices for latest information .


    • HPE Smart Array S100i SR Gen10 software RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the legacy mode settings part, 758959-B22.
    • HPE Smart Array S100i SR Gen10 SW RAID is OFF by default and must be enabled.
    • The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser.
    • The S100i supports windows only.
    • For Linux users, HPE offers a solution that uses In-Distro Open-Source software to create a Two-Disk RAID 1 boot volume:

      Click here to access the Software Delivery Repository for Implementing Linux Software RAID1 on HPE ProLiant Servers .

top

Physical specifications

Specifications
Description
Dimensions (L x W x D)

  • 17.5 x 43.9 x 85.1 cm (6.9 x 17.3 x 33.5 in)

  • 4U Form factor

Weight (Approximate)
Maximum: 59.0 kg (130.0 lb)
Minimum: 25 kg (55 lb)

top

Electrical specifications

Specifications
Description
Rated line voltage
200 - 240 V ac
Rated Steady-State power (Per power supply)
For 2200 W power supply: 2200 W (At 230 V ac / 240 V dc and 115 V ac)
BTU Rating (Maximum)
For 2200 W power supply:  7507 BTU/hr (At 200 - 240 V ac)

top

Environmental specifications

Specifications
Description
System inlet temperature
Standard operating temperature

  • 10° to 35°C (50° to 95°F) At sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft)

  • Above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight

  • Maximum rate of change is 20°C/hr (36°F/hr)

  • The upper limit and rate of change may be limited by the type and number of options installed

  • System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)

Extended ambient operating temperature

  • For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

  • System performance may be reduced if operating in the extended ambient operating range or with a fan fault

Non-Operating:

  • (-30°) to 60°C ((-22°) to 140°F)

  • Maximum rate of change is 20°C/hr (36°F/hr)

Relative humidity (Rh) (Non-Condensing)
Operating:

  • 8% to 90% - Rh

  • 28°C (82°F) Maximum wet bulb temperature

Non-Operating:

  • 5% to 95% Rh

  • 38.7°C (101.7°F) Maximum wet bulb temperature

Altitude
Operating:

  • 3050 m (10,000 ft)

  • This value may be limited by the type and number of options installed

  • Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Non-Operating:

  • 9144 m (30,000 ft)

  • Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Acoustic noise
-
Entry
Typical
LWAd - Idle
7.2 B
7.8 B
LpAM - Idle
57 dBA
62 dBA
LWAd - Operating
8.5 B
8.6 B
LpAM - Operating
70 dBA
71 dBA
