-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
- Product Name: EMC VNX5500 Disk Processor Enclosure (DPE)
- Form Factor: 3U, Block Only 4U | File Only 7U, 9U | Unified 8U, 9U
- Chassis Options: 15 x 3.5", 25 x 2.5"
- Max Drives: 500
- Drive Types: SAS, NL-SAS, Flash (SSD)
- RAID Levels: 0, 1, 3, 5, 6, 10
- Protocols Supported: iSCSI, FCoE, Fibre Channel (FC), NFS, CIFS, MPFS, pNFS
- Data Movers: 1–2 with Intel Xeon 4-core 2.13GHz, up to 6GB RAM
- Control Stations: Installed in File or Unified configuration.
-

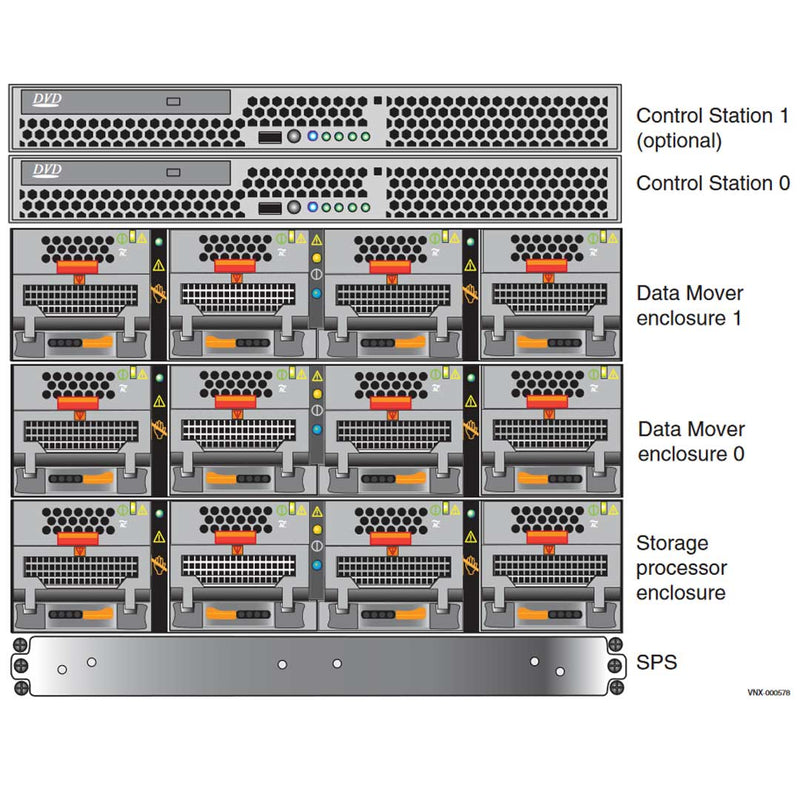

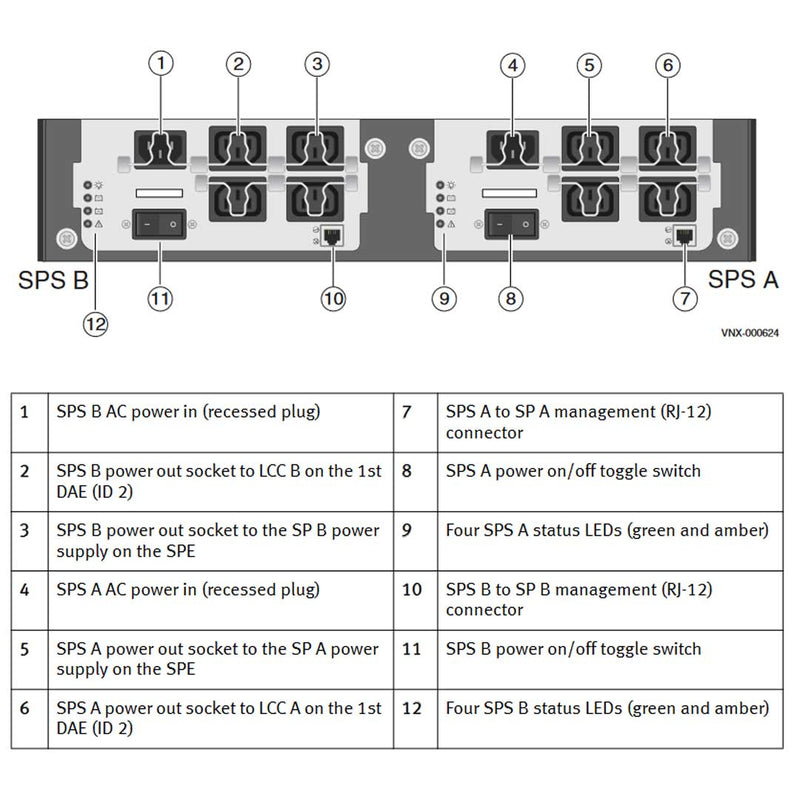

Standby Power Supply: 1U 1.2KW or 2U is a 2.2 KW
Performs the same function whether it’s a 1U or 2U. - Supported DAEs: 4U 3.5” x 60, 3U 3.5” x 15, 2U 2.5” x 25
VNX Gen 1 Controllers:
- VNX5100
- VNX5300
- VNX5500
- VNX5700
- VNX7500
- Corporate IT
- Data Analytics
- Database
- Virtual Desktop Interface (VDI)
- Virtualization
Includes a 3U disk processor enclosure (DPE), a 1U 1.2 KW standby power supply (SPS), and 2U or 3U disk-array enclosures (DAEs) for holding hard disk drives that are integrated to facilitate Fibre Channel, Fibre Channel over Ethernet (FCoE), and iSCSI Block services to Windows® and UNIX ® hosts.
Adds the 2U Data Mover enclosure (DME) and 1U Control Station (CS) to the 3U DPE, 1U SPS, and 2U, 3U, or 4U DAEs to facilitate file services to CIFS/NFS clients.
Uses the same hardware as the File-only configuration but adds FC, iSCSI, and FCoE I/O connectivity to provide Block services to host simultaneously so as to provide File services to clients.

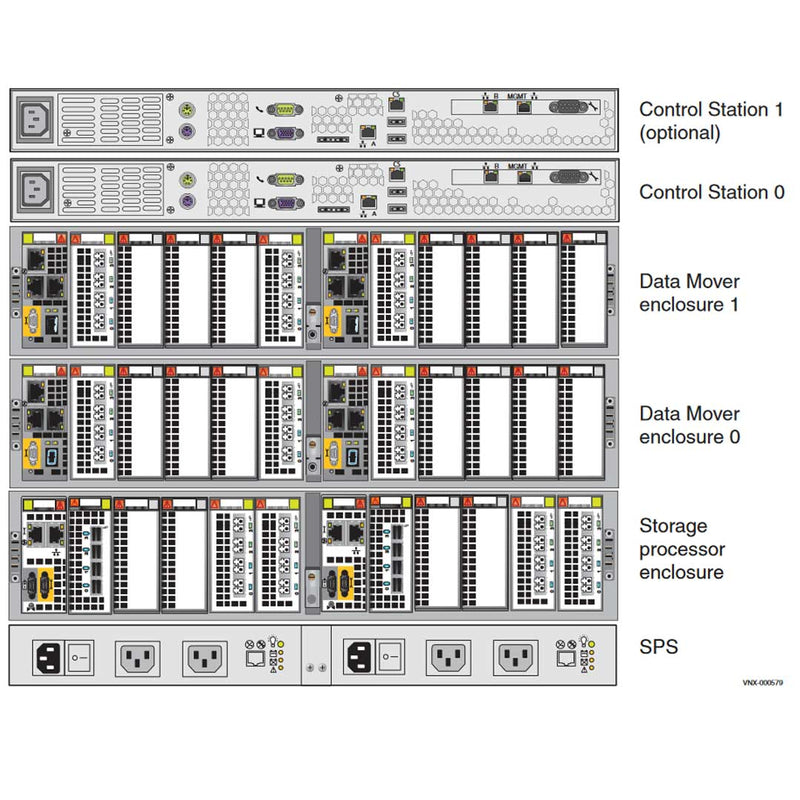

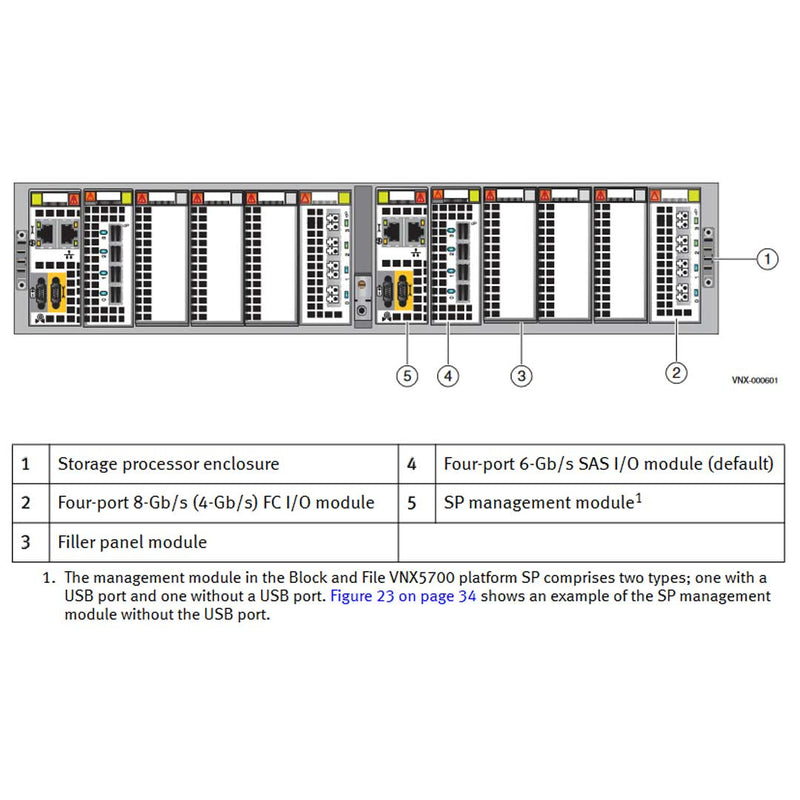

Five PCI Gen 2 x4 I/O module slots supporting a combination of the following five UltraFlex ™ I/O modules:
- Four-port 6-Gb/s SAS (slot 0 only)
- Two-port 10-Gb/s optical or active Twinax 4 (iSCSI protocol)
- Two-port 10-Gb/s optical or active Twinax Fibre Channel over Ethernet (FCoE)
- Four-port 1-Gb/s copper iSCSI
- Four-port 8-Gb/s optical Fibre Channel (running at 2, 4, or 8-Gb/s)
With the File or Unified configuration this VNX5700 can support 1, 2, or 4 Data Movers.
One module consists of one Intel Xeon 4-core 2.40-GHz processor. Six DDR3 synchronous dynamic RAM (SDRAM) slots supporting 2, 4, or 8-GB SDRAM for up to 12 GB per CPU module. Each Data Mover has Five PCI Gen 2 x4 I/O module slots supporting a combination of the following four UltraFlex I/O modules:
- Four-port 8-Gb/s optical (running at 2, 4, or 8 Gb/s); in slot 0
- Two-port 10-Gb/s optical or active Twinax 7
- Four-port 1-Gb/s copper
- Two-port 1-Gb/s copper plus two-port 1-Gb/s optical

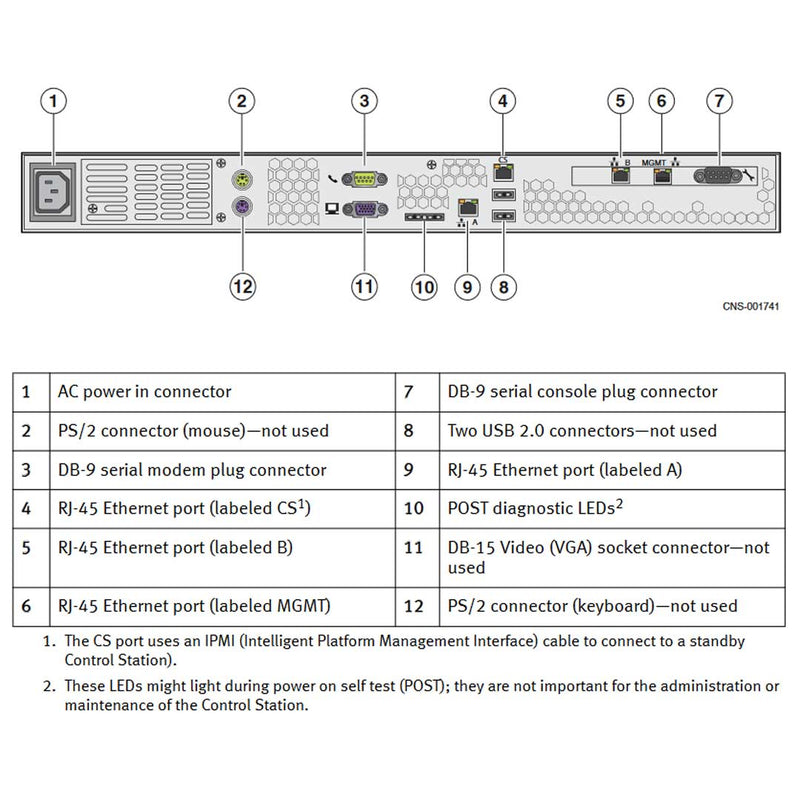

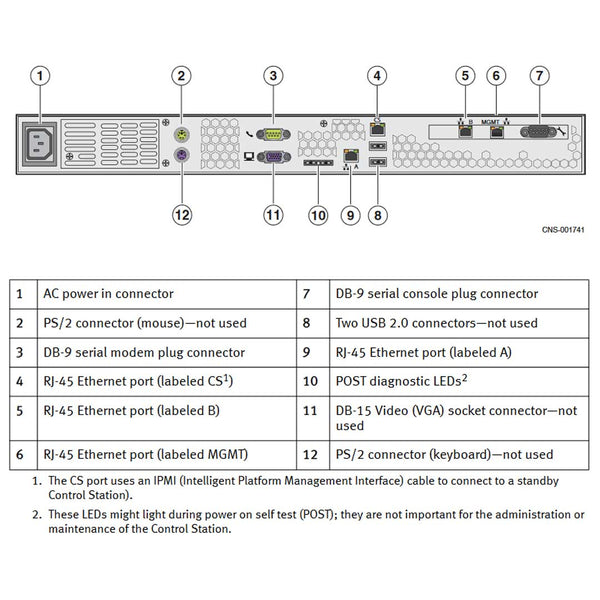

If the VNX5700 is configured in the File or Unified configuration. Then you will need the Control Station. One to two Control Stations. Each Control Station consists of the following features:
- Intel 2.0 GHz single-core Celeron processor
- 2 GB of RAM
- One 250-GB SATA hard drive
- One DVD-ROM drive
- Four RJ-45 10BASE-T/100BASE-TX/1000BASE-T network interface connectors
(located on the rear panel)
Max DAE's: 7 | Max Drive: 420
- VNX6GSDAE60
- VNX6GSDAE60P
Max DAE's: 33 | Max Drive: 495
- VNX6GSDAE15
- VNX6GSDAE15F
- VNX6GSDAE15P
- VNX6GSDAE15PF
Max DAE's: 20 | Max Drive: 500
- VNX6GSDAE25
- VNX6GSDAE25F
- VNX6GSDAE25P
- VNX6GSDAE25PF
