HPE ProLiant Apollo 6500 Server (G10+) CTO

HPE

| CTO Servers |

HPE-APOLLO-6500-G10-PLUS-CTO



Configure for Pricing

Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

HPE Chassis

The 6500d Chassis holds 1 XL675d or 2 XL645d. The Full-width XL675d has 2 processors while the half-width XL645d node server holds 1 CPU Per node.

HPE Processors

Supports Up to 2 CPUs.

XL675d Air Cooled

Processeors for Air Cooled
Supports up to 2 Processors

XL675 Liquid Cooled

Processeors for Direct Liquid Cooled
Supports up to 2 Processors

XL645d Air Cooled

Processeors for Air Cooled
Supports up to 2 Processors

XL645d Liquid Cooled

Processeors for Direct Liquid Cooled
Supports up to 2 Processors

GPU XL675d Modular (Optional)

One of the following GPU types must be selected. This Modular GPU or the PCIe GPU Acclerator Tray below.
Mixing GPU is not supported

GPU XL675d PCIe (Optional)

One of the following GPU types must be selected. This PCIe GPU or the Modular GPU Acclerator Tray above.
Mixing GPU is not supported

GPU XL645d Modular (Optional)

One of the following GPU types must be selected. This Modular GPU or the PCIe GPU Acclerator Tray below.
Mixing GPU is not supported

GPU XL645d PCIe (Optional)

One of the following GPU types must be selected. This PCIe GPU or the Modular GPU Acclerator Tray above.
Mixing GPU is not supported

Drive Options

System holds 16 Drives. For 16 Drives you must install two kits. Mixing is allowed.
System supports NVMe drives. XL645d Node supports 6 NVMe drives Per Server .

Cable Kit XL675d (Optional)

One kit required for use with Embedded SATA using AHCI
One kit will support up to two drive bays

Cable Kit XL645d (Optional)

One kit required for use with Embedded SATA using AHCI
One kit will support up to two drive bays

HPE Memory

Depends on the Node server you installed.
The Full-Width XL675d Node Server holds 32 DIMMs
The Half-Width XL645d holds 8 DIMMS Per Node.

HPE SFF Drives SAS (2.5in) (Optional)

You will need a Smart Array to support SAS Drives.

HPE SFF Drives SATA (2.5in) (Optional)

HPE NVMe (Optional)

The XL645d Supports 6 NVMe per node.

Networking / InfiniBand Adapters XL675d (Optional)

Networking / InfiniBand Adapters XL645d (Optional)

Storage Controller XL675d (Optional)

Flexible Smart Array controllers do not consume a PCIe slot
All performance RAID controllers are supported by the HPE Smart Storage Battery (782961-B21), which supports multiple devices and is sold separately.

Storage Controller XL645d (Optional)

All performance RAID controllers are supported by the HPE Smart Storage Battery (782961-B21), which supports multiple devices and is sold separately.

iLO Server Management (Optional)

NS204i-p is for the XL675d
NS204i-t is for the XL645d

Power Cable Kits (Optional)

Power Supply Unit (PSU) PCIe (Optional)

For PCIe GPU Support - AMD Instinct™ MI100 / NVIDIA PCIe A100
Contains (2) P24681-B21 – 12v 3000W Power Supplies.
For Nonredundant power, select (1) of these kits. For Redundant power, select (2).

Power Supply Unit (PSU) Modular (Optional)

For Modular GPU Support - Air Cooled HGX™ A10
Contains (1) P24681-B21 – 12v 3000W Power Supply & (2) P25875-B21 – 54v 3000W Power Supplies.
For Nonredundant power, select (1) of these kits. For Redundant power, select (2).

Power Supply Unit (PSU) Individual Replacements (Optional)

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

What's New

  • Apollo d6500 Gen10 Plus Chassis | P19674-B21
  • (2) Node Options | XL645d & XL675d
  • (2) AMD 2nd and 3rd Gen EPYC™ Series Processors
  • (32) 3200 MT/s DDR4 DIMMs
  • (16) SFF Drives
  • Up to (12) NVMe Supported
  • Up to (16 PCIe) or (8 SXM4) GPUs Supported
  • Up to (6) PSUs
  • HPE NS204i Boot Supported
  • Direct Liquid Cooling System fully integrated
  • AMD Instinct™ MI00 with 2nd Gen Infinity Fabric™ Link
  • NVIDIA H100 and AMD MI210 PCIe GPU support
  • HPE iLO 5
Other Versions
  • HPE ProLiant Apollo 2000 G9 | G10
  • HPE ProLiant Apollo 4200 G9 | G10 | G10+
  • HPE ProLiant Apollo 4500 G9 | ---
  • HPE ProLiant Apollo 6500 G9 | G10 | G10+
  • HPE ProLiant Apollo pc40
  • HPE ProLiant Apollo sx40

(Click to View)

Ideal for:

  • Artificial Intelligence (AI)
  • Big Data Analytics
  • Data Analytics
  • Deep Learning (DL)
  • High-Performance Computing (HPC)
  • Language Model
  • Machine Learning (ML)

The HPE Apollo 6500 Gen10 Plus chassis is a 6U platform designed for extreme performance and scalability, purpose-built to support demanding workloads like HPC, AI, and deep learning. It houses up to two server nodes and supports flexible GPU configurations, enabling the integration of either PCIe or SXM GPU architectures. The chassis offers advanced cooling solutions, including Direct Liquid Cooling (DLC), which enhances power efficiency and ensures optimal thermal management even under intense computational loads.

The HPE ProLiant XL675d Gen10 Plus node is a dual-socket system optimized for maximum GPU density and performance. It supports up to 8 NVIDIA HGX A100 GPUs in the SXM configuration or up to 10 double-wide PCIe GPUs, making it a powerhouse for deep learning, AI training, and complex HPC simulations. Powered by dual AMD EPYC processors with up to 64 cores each, it delivers exceptional processing power paired with support for up to 4 TB of DDR4 memory.

The HPE ProLiant XL645d Gen10 Plus node is a single-socket system designed for flexible and scalable GPU deployments. It supports up to 8 single-wide or 4 double-wide PCIe GPUs, making it well-suited for machine learning inference, data analytics, and virtualized environments. With a single AMD EPYC processor offering up to 64 cores and support for up to 2 TB of DDR4 memory, the XL645d provides a balanced mix of performance and efficiency.

Chassis & Tray Options

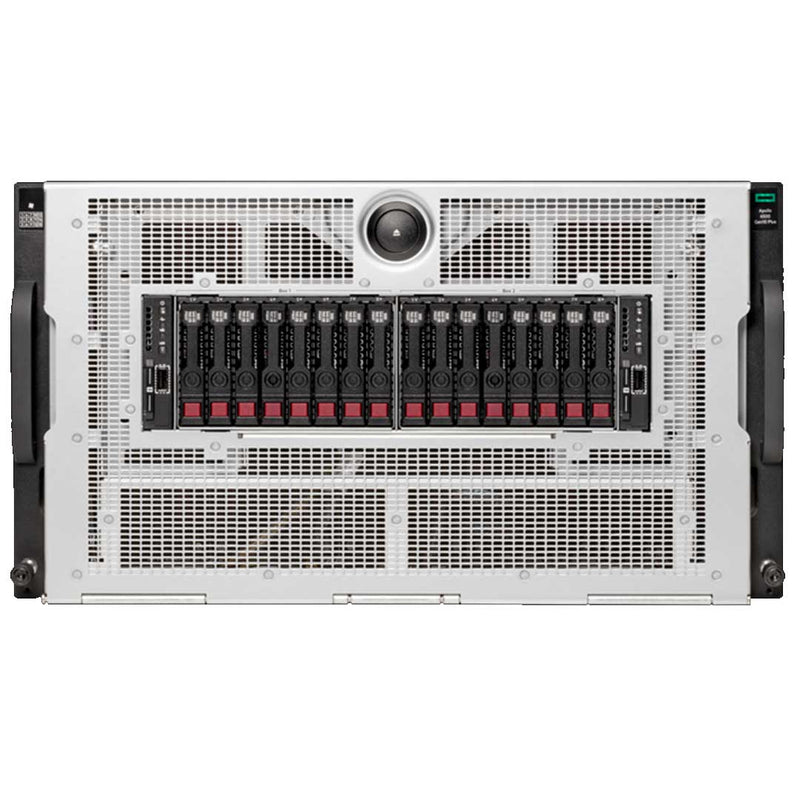

HPE Apollo 6500 Gen10 Plus Rack Server Chassis
HPE Apollo 6500 Gen10 Plus 6U Chassis
  • (16) Drives over (2) Drive bays
  • Supports up to (6) PSUs
  • Supports (1) Full-Width XL675d Node
  • Supports (2) Half-Width XL465d Node
  • Support for (4, 8, 10, or 16) GPUs
  • Support for SXM4 & PCIe GPUs



Different GPU types cannot be mixed

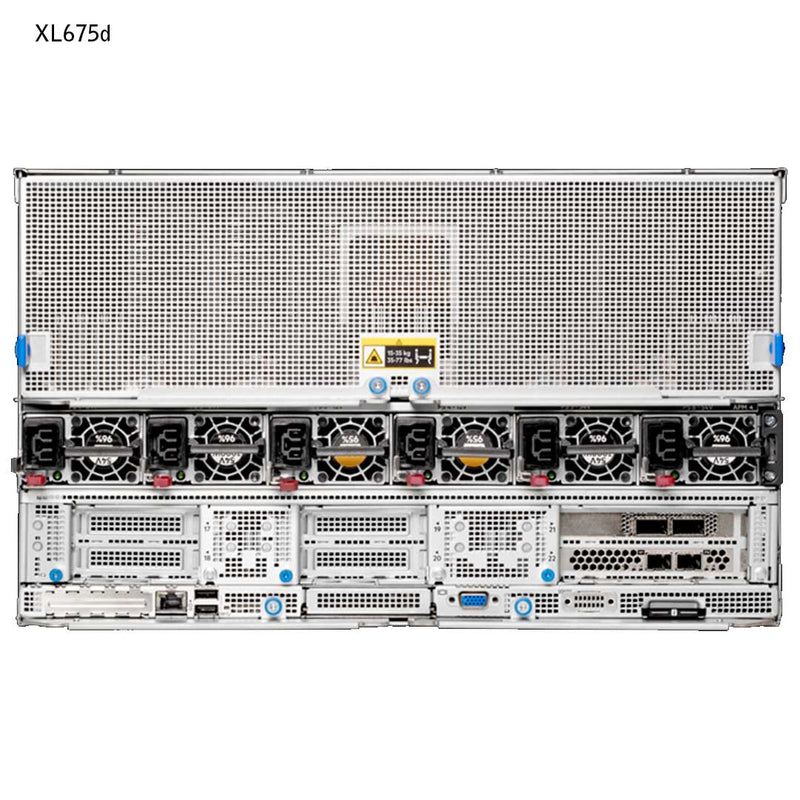

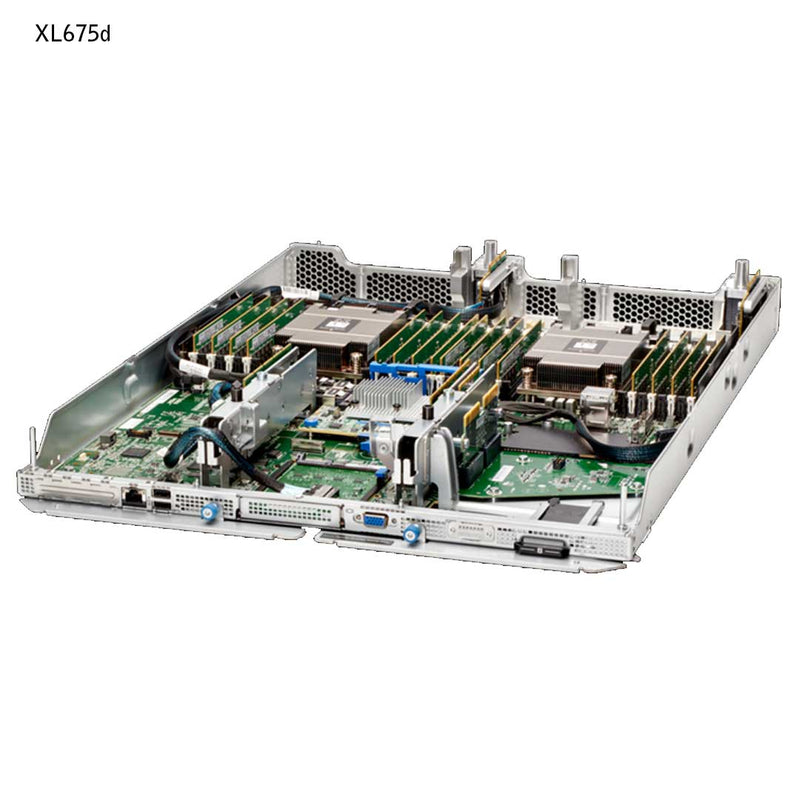

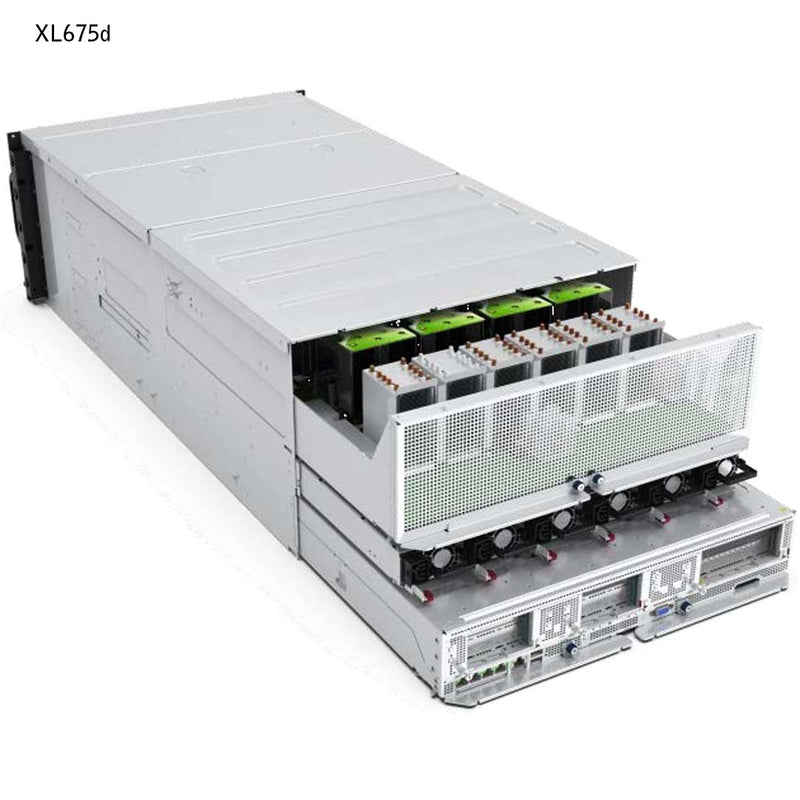

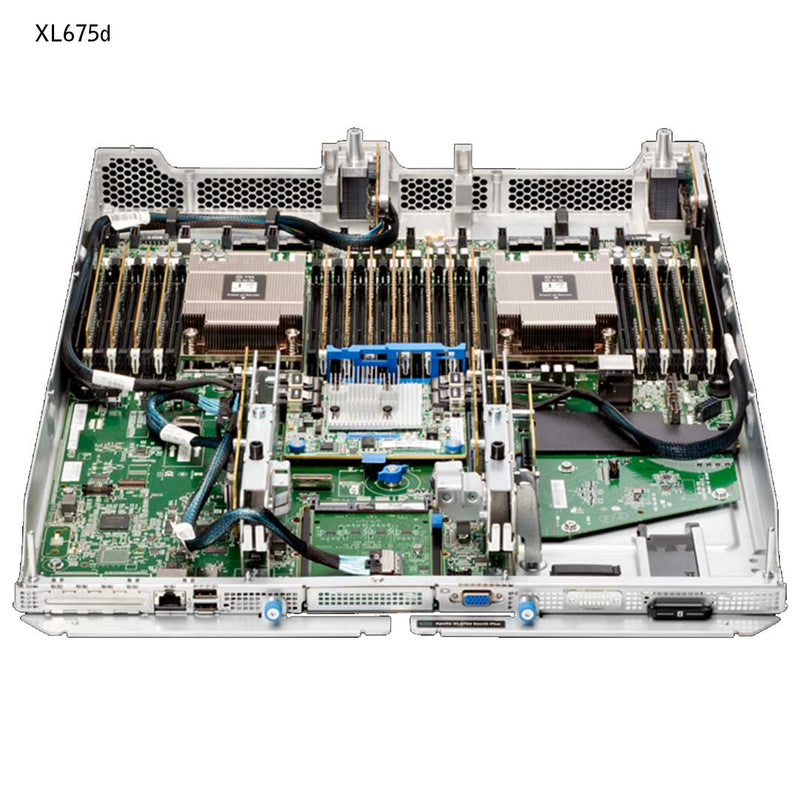

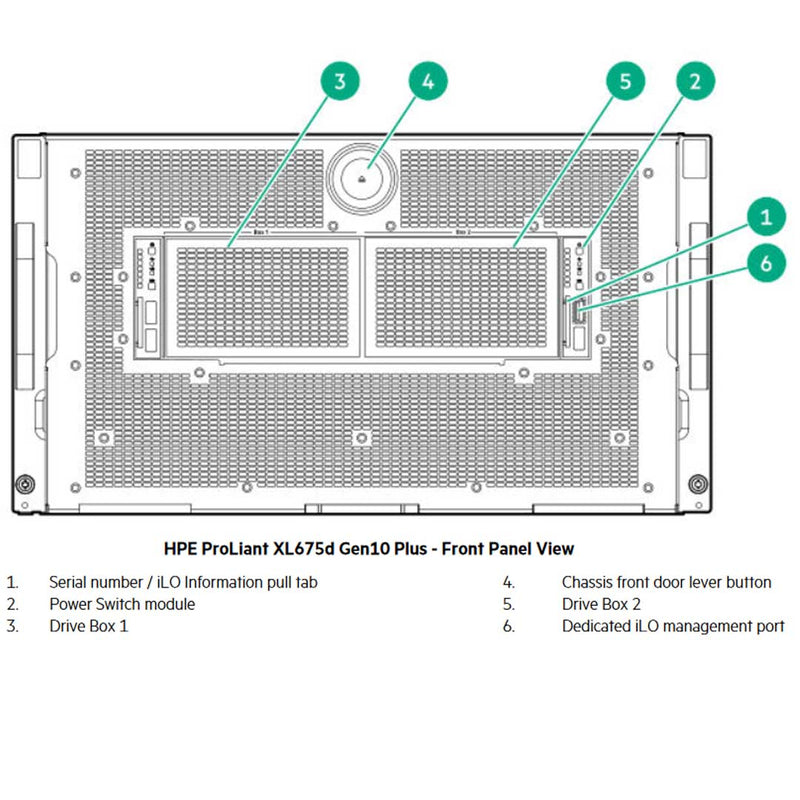

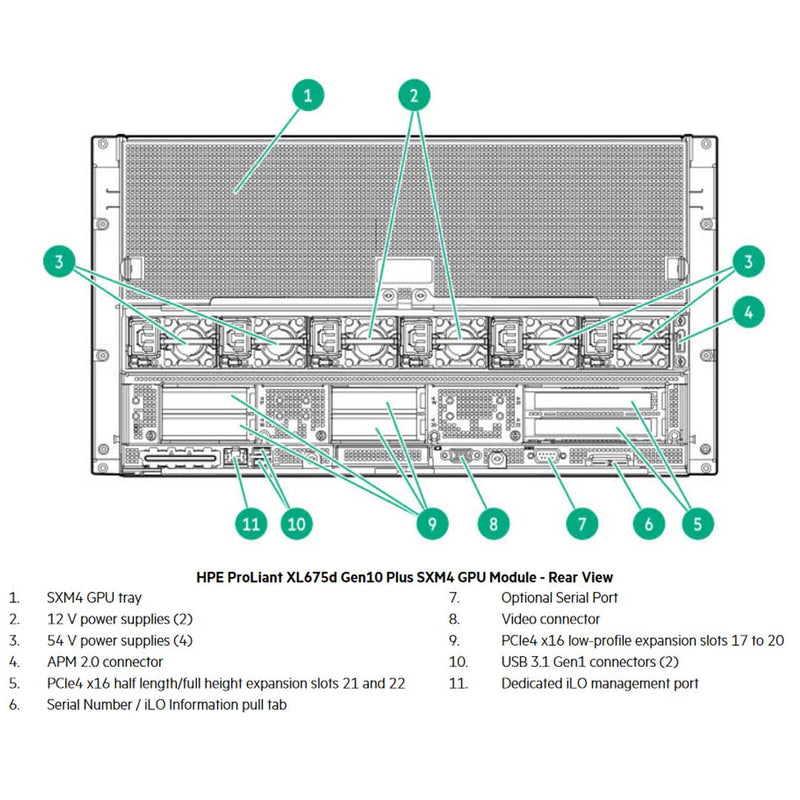

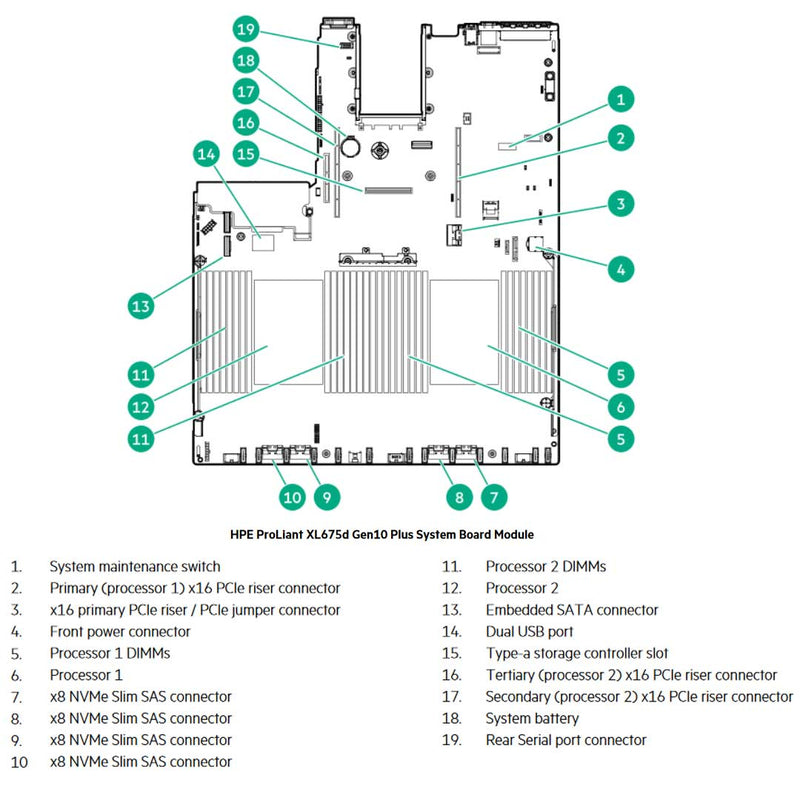

HPE Apollo 6500 Gen10 Plus Font of the System HPE XL675d Full Width Node P19725-B21

Apollo 6500 Supports (1)

(2) AMD 2nd or 3rd Gen EPYC

(32) DDR4 3200 MT/s DIMMs

(1) OCP 3.0 Dedicated Slot

(6) PCIe 4.0 Slots

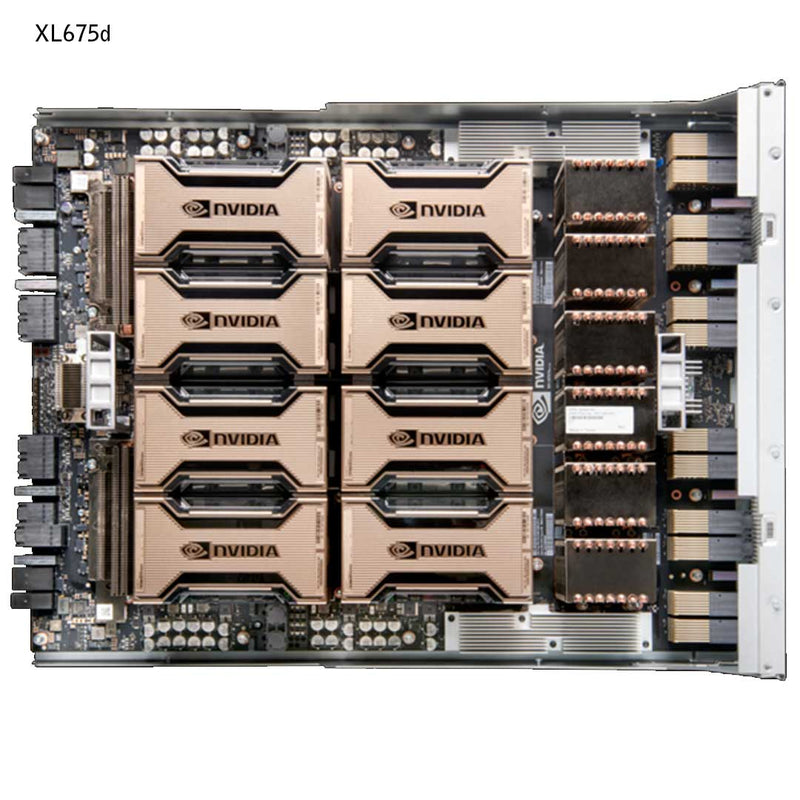

  • Support for (10 DW, or 16 SW) PCIe GPUs
  • Support for (8) SXM4 GPUs
  • HPE ProLiant XL675d Service Guide

    HPE ProLiant XL675d Service Guide

  • HPE ProLiant XL675d User Guide

    HPE ProLiant XL675d User Guide

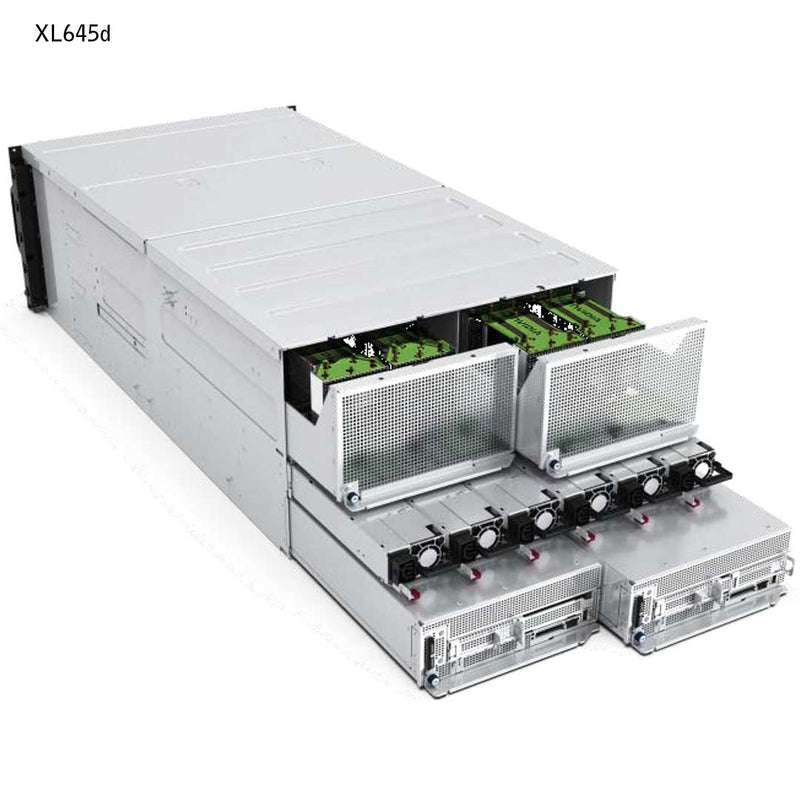

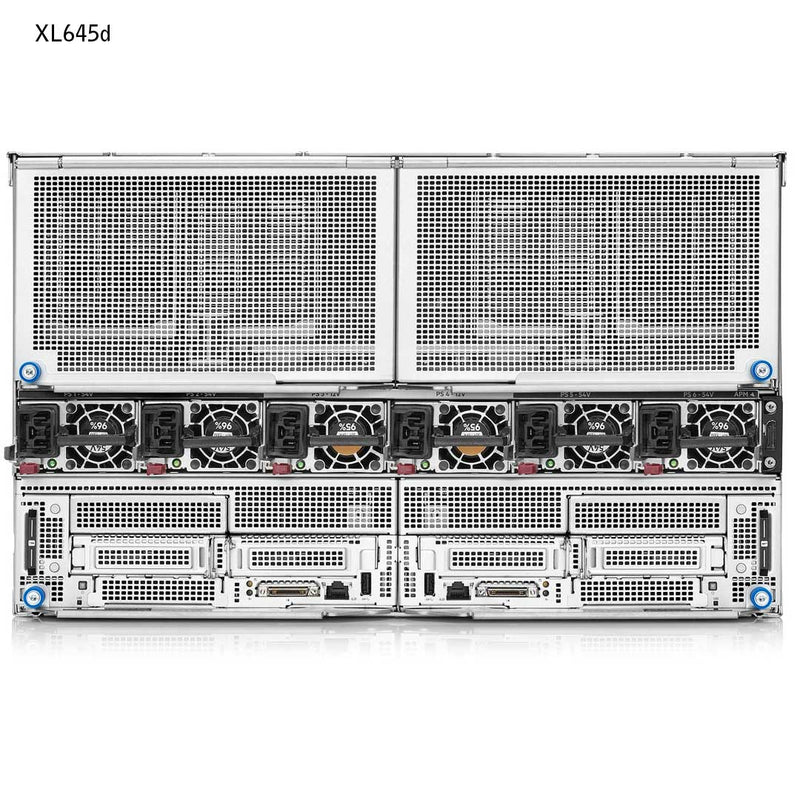

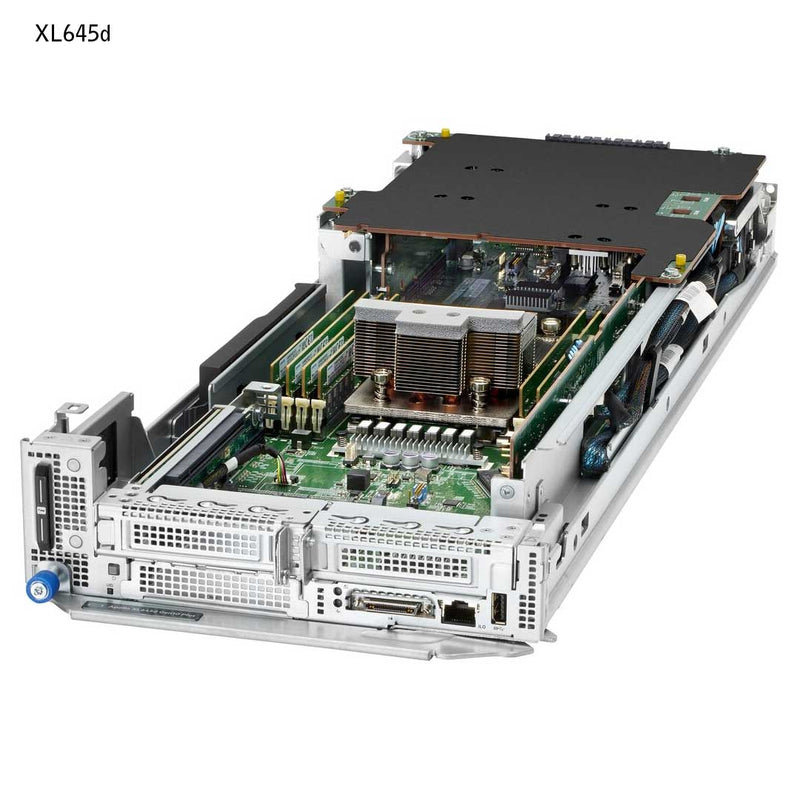

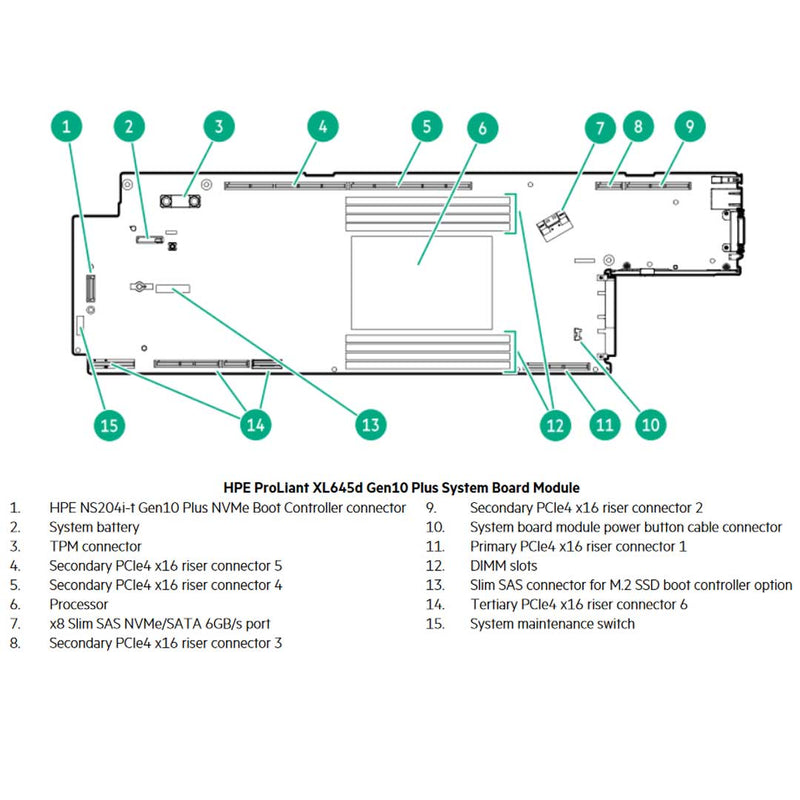

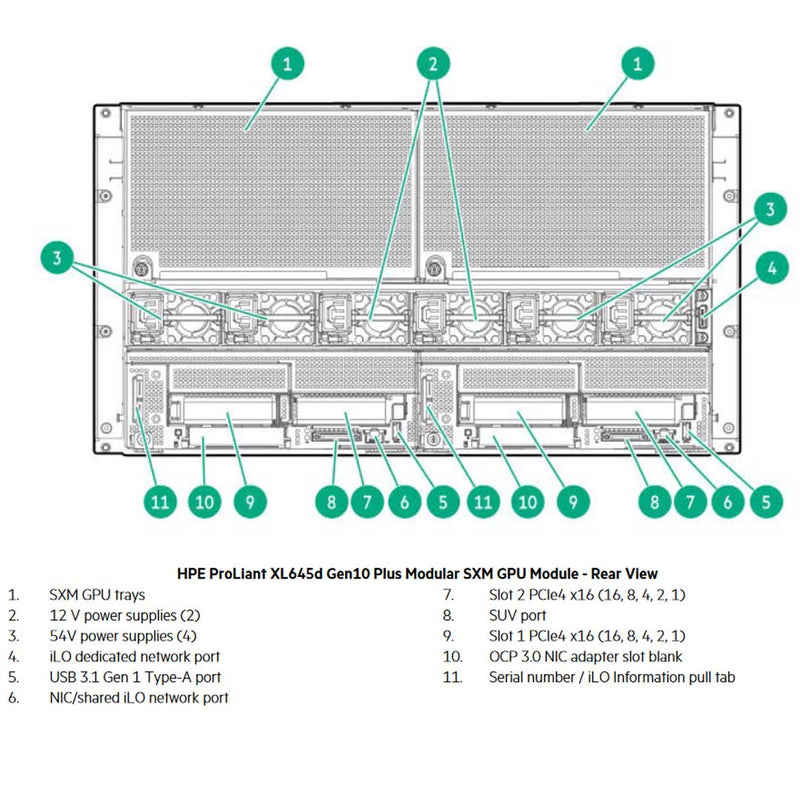

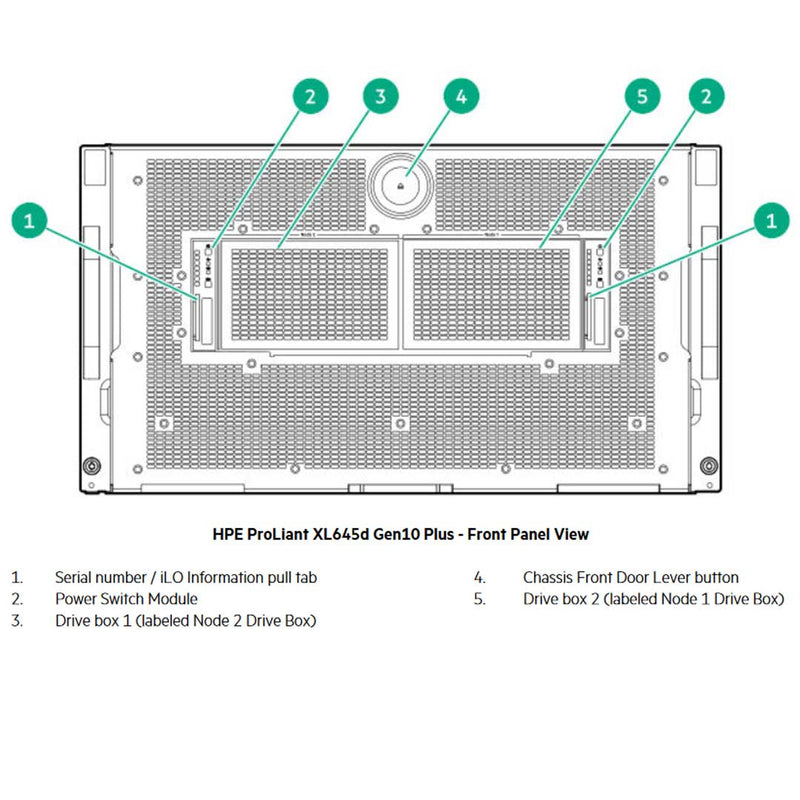

HPE Apollo 6500 Gen10 Plus XL645d Half Width Node HPE XL645d Half Width Node P19726-B21

Apollo 6500 Supports (2)

(1) AMD 2nd or 3rd Gen EPYC

(16) DDR4 3200 MT/s DIMMs

(1) OCP 3.0 Dedicated Slot

(2) PCIe 4.0 Slots

  • Support for (4 DW, or 8 SW) PCIe GPUs
  • Not Suppored SXM4 GPUs
  • HPE ProLiant XL645d Service Guide

    HPE ProLiant XL645d Service Guide

  • HPE ProLiant XL645d User Guide

    HPE ProLiant XL645d User Guide



Storage Controllers

HPE Apollo 6500 Gen10 PLUS Maximum Internal Storage

Drive Type XL675d Capacity XL645d Capacity
Hot Plug SFF SATA HDD 16 x 2 TB = 32 TB 8 x 2 TB = 16 TB
Hot Plug SFF SAS HDD 16 x 2 TB = 32 TB 8 x 2 TB = 16 TB
Hot Plug SFF NVMe PCIe SSD 16 x 15.36 TB = 245.76 TB 16 x 15.36 TB = 245.76 TB
Hot Plug SFF SATA SSD 16 x 7.68 TB = 122.88 TB 8 x 7.68 TB = 61.44 TB
Hot Plug SFF SAS SSD 16 x 15.3 TB = 244.8 TB 8 x 15.3 TB = 122.4 TB

HPE Storage Controllers are a bit different for these Node serves. The XL645d does not support Flexible Smart Array cards in its Half-Width Node Server. But the XL675d does support a Flexible Smart Array. Both Support the optional M.2 Boot Device although a different card same outcome. Below will be a list of the Cable kits required for each Hard Drive configuration.

HPE ProLiant XL675d Storage Controller Cable Kits
HPE Storage Configuration Main Cable Kit Addt. Cable Kit Main Backplane Addt. Backplane
8 Embedded SR100i SATA P31480-B21 P25877-B21
+ Up to 8 NVMe - Switch Direct Attached P31480-B21 P31491-B21 P25877-B21 P25879-B21
8 SAS/SATA (AROC) P27764-B21 P25877-B21
8 SAS/SATA (AROC) + Up to 8 NVMe - Switch Direct Attached P27764-B21 P31491-B21 P25877-B21 P25879-B21
16 SAS/SATA (AROC) P31490-B21 P25877-B21 P25877-B21
Up to 8 NVMe – Switch Direct Attached P31491-B21 P25879-B21
2 Embedded SATA + 6 NVMe - Switch Direct Attached P39951-B21 P25879-B21
2 SAS/SATA (AROC) + 6 NVMe - Switch Direct Attached P39952-B21 P25879-B21
2 Embedded SATA
+ 6 NVMe - CPU Direct Attached P27283-B21 P25879-B21

HPE Apollo 6500 Gen10 Plus XL675d Cable Kits:

  • HPE XL675d Gen10 Plus 8SFF CPU Connected x4 NMVe Cable Kit (P27279-B21)
  • HPE XL675d Gen10 Plus 8SFF CPU Connected x4 NMVe and 8SFF Switch Connected x4 NVMe Cable Kit (P27280-B21)
  • HPE XL675d Gen10 Plus 2SFF Smart Array SAS and 6SFF CPU Connected x4 NVMe Cable Kit (P27281-B21)
  • HPE XL675d Gen10 Plus 2SFF Embedded SATA and 6SFF CPU Connected x4 NVMe Cable Kit (P27283-B21)
  • HPE XL675d Gen10 Plus 8SFF Smart Array SAS Cable Kit (P27764-B21)
  • HPE XL675d Gen10 Plus 8SFF Smart Array SR100i SATA Cable Kit (P31480-B21)
  • HPE XL675d Gen10 Plus 16SFF Smart Array SAS Cable Kit (P31490-B21)
  • HPE XL675d Gen10 Plus 6SFF Switch Connected x4 NVMe Cable Kit (P31491-B21)
  • • HPE XL675d Gen10 Plus 2SFF Embedded SATA and 6SFF Switch Connected x4 NVMe Cable Kit (P39951-B21)
  • HPE XL675d Gen10 Plus 2SFF Smart Array SAS and 6SFF Switch Connected x4 NVMe Cable Kit (P39952-B21)
HPE ProLiant XL645d Storage Controller Cable Kits
HPE Storage Configuration (Per Node) Cable Kit Enablement Card Backplane M.2 Cable Kit M.2 Enablement Card
8 Embedded SATA P31487-B21 P25877-B21
8 SAS/SATA (Smart Array) P31488-B21 HPE Smart Array P25877-B21
2 Embedded SATA + 2 x4 NVMe P31483-B21 P25879-B21
2 Embedded SATA + 6 x4 NVMe P31482-B21 P25879-B21
2 SAS/SATA (Smart Array) + 2 x4 NVMe P31486-B21 HPE Smart Array P25879-B21
No SFF Drives + NS204i-t M.2 Boot Device P31481-B21 P20292-B21
8 Embedded SATA + NS204i-t M.2 Boot Device P31487-B21 P25877-B21 P31481-B21 P20292-B21
8 SAS/SATA (Smart Array) + NS204i-t M.2 Boot Device P31488-B21 HPE Smart Array P25877-B21 P31481-B21 P20292-B21
2 SAS/SATA (Smart Array) + 4 x4 NVME P31484-B21 HPE Smart Array P25879-B21
8 x4 NVMe Gen4 P25883-B21 P25879-B21
6 x4 NVMe + NS204i-t M.2 Boot Device P25879-B21 P48120-B21 P20292-B21
8 SAS/SATA (Smart Array) + 6 x4 NVMe + NS204i-t M.2 Boot Device P31488-B21 HPE Smart Array P25879-B21 P48120-B21 P20292-B21
2 x4 NVMe + NS204i-t M.2 Boot Device P25879-B21 P59752-B21 P20292-B21

HPE Apollo 6500 Gen10 Plus XL645d Cable Kits:

  • HPE XL645d Gen10 Plus 2SFF Smart Array SR100i SATA and 2SFF CPU Connected x4 NVMe Cable Kit (P31483-B21)
  • HPE XL645d Gen10 Plus 2SFF Smart Array SAS and 2SFF CPU Connected x4 NVMe Cable Kit (P31486-B21)
  • HPE XL645d Gen10 Plus 8SFF Embedded SATA Controller Cable Kit (P31487-B21)
  • HPE XL645d Gen10 Plus 8SFF Smart Array SAS Cable Kit (P31488-B21)
  • HPE XL645d Gen10 Plus M.2 Cable Kit (P31481-B21)
  • HPE XL645d Gen 10 Plus 8SFF Embedded SATA Controller x4 NVMe Cable Kit (P25883-B21)
  • HPE XL645d Gen 10 Plus 2SFF Smart Array SAS/SATA and 4SFF CPU Connected x4 NVMe Cable Kit (P31484-B21)
  • HPE XL645d Gen 10 Plus 2SFF Smart Array SATA and 6 Switch Connected x4 NVMe Cable Kit (P31482-B21)
  • HPE Apollo 6500 Gen10 Plus M.2 2 x 4NVMe Cable Kit (P59752-B21)
HPE Apollo 6500 Gen10 PLUS PCI Risers
HPE Proliant XL675d PCIe Fabric Riser - Primary, Secondary, or Tertiary Riser
Slot # Technology Bus Width Connector Width Slot Form Factor Supported CPU
17 PCIe 4.0 x16 x16 Half-height, half-length slot Processor 1
18 Processor 1
19 Processor 1 or 2
20 Processor 1 or 2
21 Processor 1 or 2
22 Processor 1 or 2
XL675d PCIe GPU Riser
Slot # Instinct™ MI100 GPU with 4x4 bridge HGX™ A100 GPU with 2x2 bridge PCIe Double Wide PCIe Single Wide Supported CPU
1 P P** P P Processor 1
2 P P P P Processor 1
3 P P P P Processor 1
4 P Processor 1
5 P P P P Processor 1
6 P Processor 1
7 P P P P Processor 1
8 P Processor 1
9 P P P P Processor 1 or 2
10 P Processor 1 or 2
11 P P P P Processor 1 or 2
12 P Processor 1 or 2
13 P P P P Processor 1 or 2
14 P Processor 1 or 2
15 P P P P Processor 1 or 2
16 P P** P P Processor 1 or 2
Notes Single Wide and Double Wide GPUs are not able to be installed together. Different GPU types cannot be mixed.
Instinct™ MI100 with Infinity Flex 4x4 Bridge for HPE will follow the placement configuration: First set of four Bridged GPUs: GPU2, GPU3, GPU5, GPU7; Second set of four Bridged GPUs: GPU9, GPU11, GPU13, GPU15.
** The optimal configuration for the NVLINK bridges is 8 GPUs instead of 10, with the bridges installed in the following slot pairs: 2-3, 5-7, 9-11, and 13-15.
Unbridged GPUs can still be installed in PCIe1 and PCIe16 when we have linked GPUs in the other slots
HPE Apollo 6500 Gen10 PLUS GPUs
HPE Apollo 6500 Gen10 Plus Rack Server XL645d GPU options HPE ProLiant XL645d GPU Options

Supports (2) Half Width

Does Not Support SXM4 GPUs

Supports PCIe GPU bridging (4 per Bridge)

Max (4) DW (8) SW GPUs

Mixing of GPUs is not allowed

Air Cooling only

HPE Apollo 6500 Gen10 Plus Rack Server XL675d GPU options HPE ProLiant XL675d GPU Options

Supports (1) Full Width

Support SXM4 & PCIe GPUs

Supports PCIe GPU bridging (4 per Bridge)

Max (10) DW (16) SW PCIe GPUs

Max (8) SXM4 GPUs

Mixing of GPUs is not allowed

Air Cooling & Liquid Cooling

HPE Apollo 6500 Gen10 PLUS Cooling

15 - 80mm dual rotor hot pluggable chassis fans. These systems also have support for Air or Liquid cooled parts like the GPU and the CPU. There is no redundancy for the fans they all come standard in the 6500 Chassis.

HPE Apollo 6500 Gen10 Plus Rack Server Fan Numbering
HPE Apollo 6500 Gen10 PLUS Flex Slot your power!

It supports up to six 3000W Platinum hot-pluggable power supplies, providing full redundancy and scalability for various configurations. This system ensures reliable power delivery, even under peak loads. For GPU configurations, the power requirements vary depending on the type of GPU used. PCIe GPUs such as the NVIDIA A100 and AMD Instinct MI100 typically require up to 300W-350W per GPU and are powered through standard PCIe power cables. In contrast, SXM4 GPUs, such as the NVIDIA HGX A100, can demand up to 500W per GPU, necessitating direct liquid cooling (DLC) for thermal management and specialized power cabling integrated with the SXM GPU tray. The chassis design also incorporates shared power infrastructure at the node level, ensuring efficient power distribution across CPUs, GPUs, and other components.

HPE Apollo 6500 Gen10 Plus Rack Server Power Supply Units

Current Configuration

(List below serves as quick links to each section)

HPE Chassis

HPE Processors

GPU XL675d Modular

GPU XL675d PCIe

GPU XL645d Modular

GPU XL645d PCIe

Drive Options

Cable Kit XL675d

Cable Kit XL645d

HPE Memory

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE NVMe

Networking / InfiniBand Adapters XL675d

Networking / InfiniBand Adapters XL645d

Storage Controller XL675d

Storage Controller XL645d

iLO Server Management

Power Cable Kits

Power Supply Unit (PSU) PCIe

Power Supply Unit (PSU) Modular

Power Supply Unit (PSU) Individual Replacements

Select Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Add to Cart

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

You may also like
