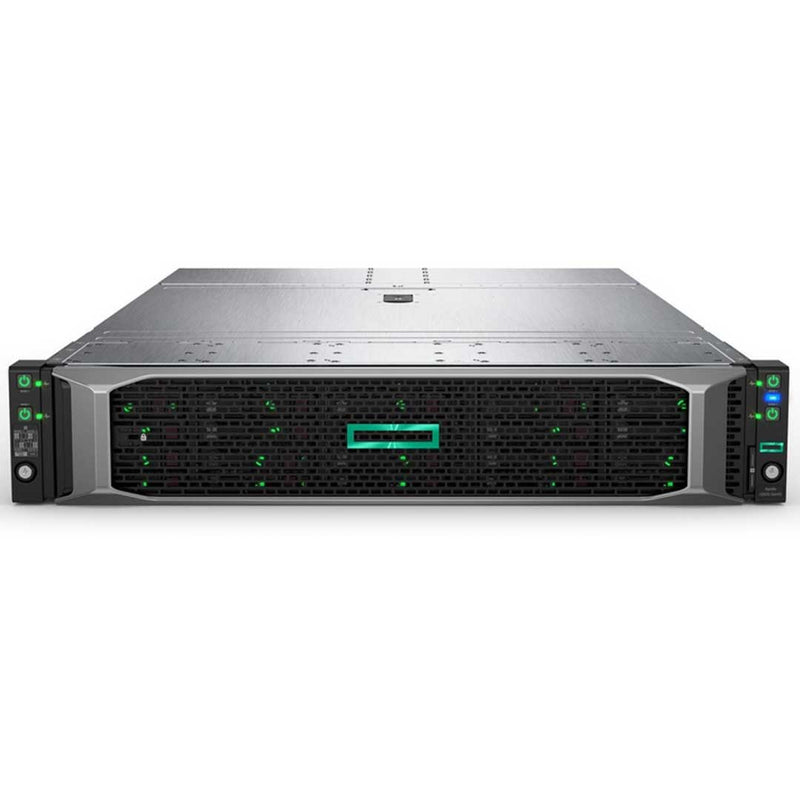

    HPE Apollo 2000 Gen10 CTO Server

    Brand:
    Type:
    CTO Servers
    Condition:
    ECS Refurbished & Tested
    -PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
    -SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

    Multi-Quantity Discounts Available for ALL Line Items

    ** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

    Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

    READ ME

    • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
    • “Submit for Quote” items can be added to your cart and sent to us via the cart page
    • Click the blue bar to close/open a section from view after choosing your options

    HPE Chassis and Trays

    STOP!!!
    This Rack server has to have at least (1) Node Servers installed in the rear.
    Mixing of servers is allowed.
    Each Chassis supports either:
    (4) XL170r 1U Gen 10 Node Servers
    (2) XL190r 2U Gen10 Node Servers

    HPE Processors

    Each tray holds up to 2 Processors.
    Mixing of processor speeds and types is not supported.

    HPE Platinum

    Platinum Gen1/2
    Each tray holds up to 2 Processors.

    HPE Gold

    Gold Gen1/2
    Each tray holds up to 2 Processors.

    HPE Silver

    Silver Gen1/2
    Each tray holds up to 2 Processors.

    HPE Bronze

    Bronze
    Each tray holds up to 2 Processors.

    Bezel, Blanks, Cables, and More (Optional)

    Cables are labeled per Tray. Please read the spec manual or click view item for more information on cable requirments.

    Memory (Optional)

    Based off the CPU you choose, the following applys:
    2nd Generation Intel® Xeon® processors require DDR4-2933 Memory Kits.
    1st Generation Intel® Xeon® processors require DDR4-2666 Memory Kits.
    A max of 2 HPE Persistent Memory DIMMs per processor supported with select 2nd Generation Intel Xeon Scalable Series, require either RDIMMs or LRDIMMs to be configured.
    Minimum 1 DIMMs are required per processor; up to 8 DIMMs per processor. 16 DIMMs total per node server.

    HPE PCIe Risers XL170r Gen10 (Optional)

    Supports up to 2 Risers.
    Please read the Spec Manual Below or View the Spec Manual on the Chassis Page for more details.

    HPE PCIe Risers XL190r Gen10 (Optional)

    Supports up to 2 Risers.
    Please read the Spec Manual Below or View the Spec Manual on the Chassis Page for more details.

    HPE LFF Drives SAS (3.5in) (Optional)

    Must install a Storage Controller for SAS Drives.

    HPE LFF Drives SATA (3.5in) (Optional)

    HPE SFF Drives SAS (2.5in) (Optional)

    Must install a Storage Controller for SAS Drives.

    HPE SFF Drives SATA (2.5in) (Optional)

    NVMe Drives (Optional)

    PCI Riser Options XL170r (Optional)

    Supports up to 2 PCI-e Slots
    Please read the Chassis spec manual for more details on PCI-e slots and cards supported

    PCI Riser Options XL190r (Optional)

    Supports up to 4 PCI-e Slots
    Please read the Chassis spec manual for more details on PCI-e slots and cards supported

    HPE M.2 Drives (Optional)

    HPE XL1x0r Gen10 M2 (NGFF) Riser Kit Must be selected if M.2 SSDs are ordered. Can support two M.2 SSD. Does not consume the PCIe slot.

    Cooling (Optional)

    All Server or PCIe slots must be filled with a blank when not in use for cooling reasons.

    Networking Adapters XL170r (Optional)

    Networking Adapters XL190r (Optional)

    FlexibleLOM Adapter XL170r (Optional)

    If you install a FlexibleLOM Adapter you must have the correct riser and cables.

    FlexibleLOM Adapter XL190r (Optional)

    If you install a FlexibleLOM Adapter you must have the correct riser and cables.

    Host Bus Adapters (HBAs) (Optional)

    Storage Controller (Optional)

    RAID Settings (Optional)

    InfiniBand Adapters (Optional)

    GPU / Accelerators (Optional)

    Can support up to 4 GPUs per Node with the correct PCI-e Riser Installed.

    iLO Server Management (Optional)

    Rail Kit (Optional)

    Power Supply Unit (PSU)

    Supports up to (2) PSUs

    Select Warranty

    Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

    What's New for Apollo 2000 Gen10
    • (4) Chassis Options
    • (2) Node Options
    • Intel Xeon 1st & 2nd Gen Scalable processors
    • Max 8TB DDR4 Memory
    • Embedded dual 10GbE NIC
    • HPE Dynamic Smart Array S100i storage controller
    • Supports NVMe Storage
    • Supports Intel® Optane™ DC persistent memory
    • Supports HPE InfiniBand 200Gb 1-port Adapter
    • HPE's Silicon Root of Trust
    • HPE iLO 5 ASIC
    • GPU Supported

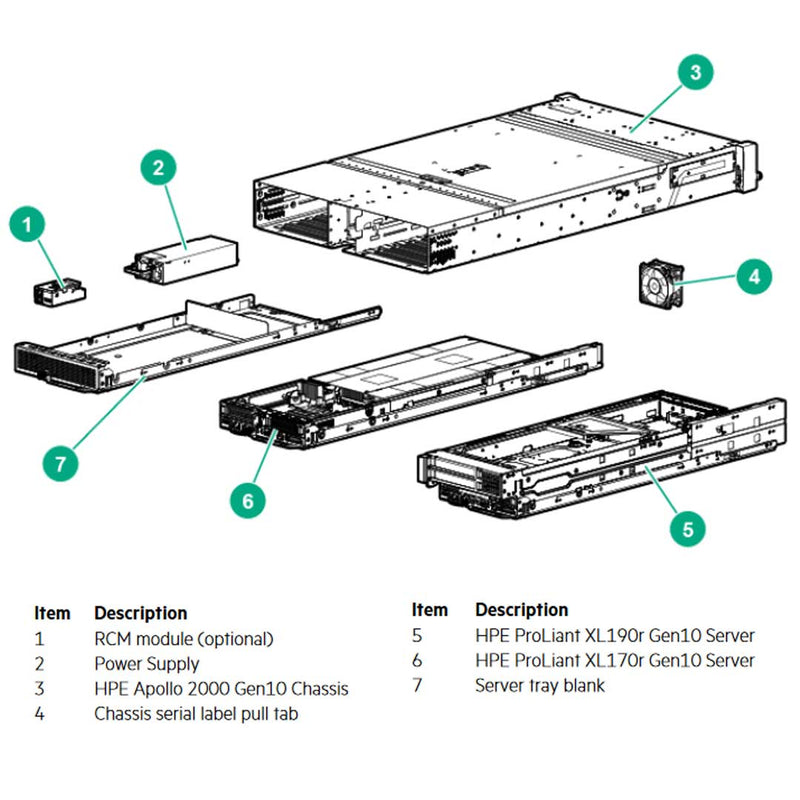

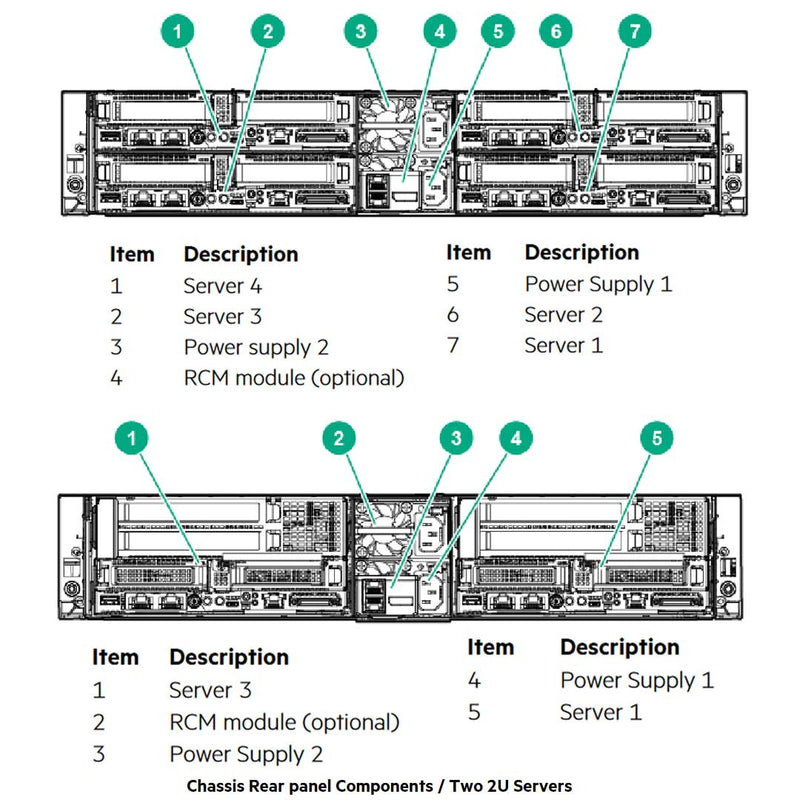

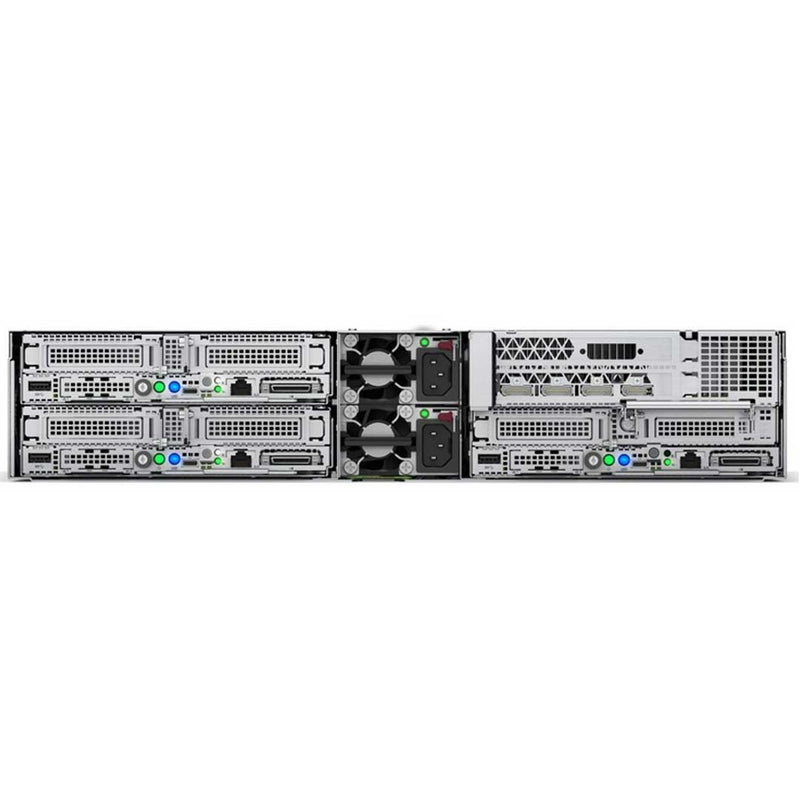

    The HPE Apollo 2000 Gen10 Server is a high-density, 2U platform designed for performance and scalability. It supports up to four hot-plug ProLiant Gen10 servers per chassis, powered by Intel Xeon Scalable processors with up to 26 cores and 1.5 TB of DDR4 SmartMemory. With flexible storage options, including up to 24 SFF SAS/SATA or NVMe drives, and advanced networking like 100 Gb/s InfiniBand, it excels in demanding workloads such as HPC, AI/ML, and big data analytics, making it ideal for scalable enterprise and edge applications.


    A chassis requires that four (4) server tray slots be populated with either the server nodes or an HPE Apollo 2000 Server Tray Blank Kit.


    Supports up to (4) 1U XL170r Node Servers
    Supports up to (2) 2U XL190r Node Servers

    Ideal for:

    • Artificial Intelligence (AI)
    • Big Data Analytics
    • Cloud Servers
    • Data Analytics
    • Deep Learning (DL)
    • High-Performance Computing (HPC)
    • Hyper-Converged infrastructure (HCI)
    • Machine Learning (ML)
    • Financial/Trading Servers
    • Video Analytics
    • Video Streaming
    • Virtual Desktop Interface (VDI)
    • Virtualization
    • Virtual Machines (VM)
    • Web Tech
    • Anything as a service (Xaas)

    CTO Configuration Support

    Need help with the configuration? Contact us today!

    Chassis Options

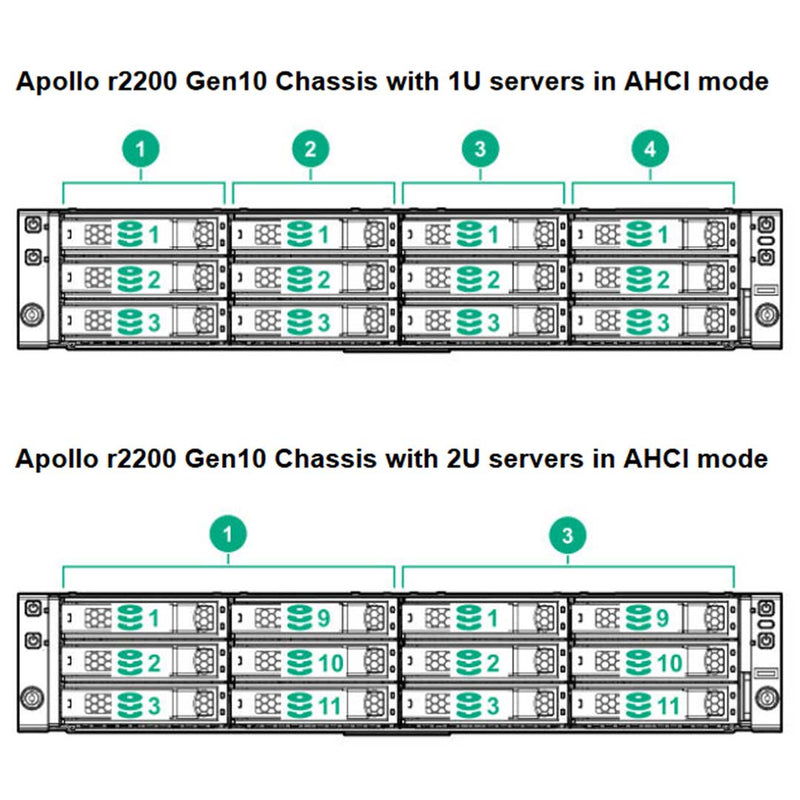

    HPE Proliant Apollo r2200 Gen10 12 LFF Chassis Apollo r2200 G10
    12 LFF
    867156-B21

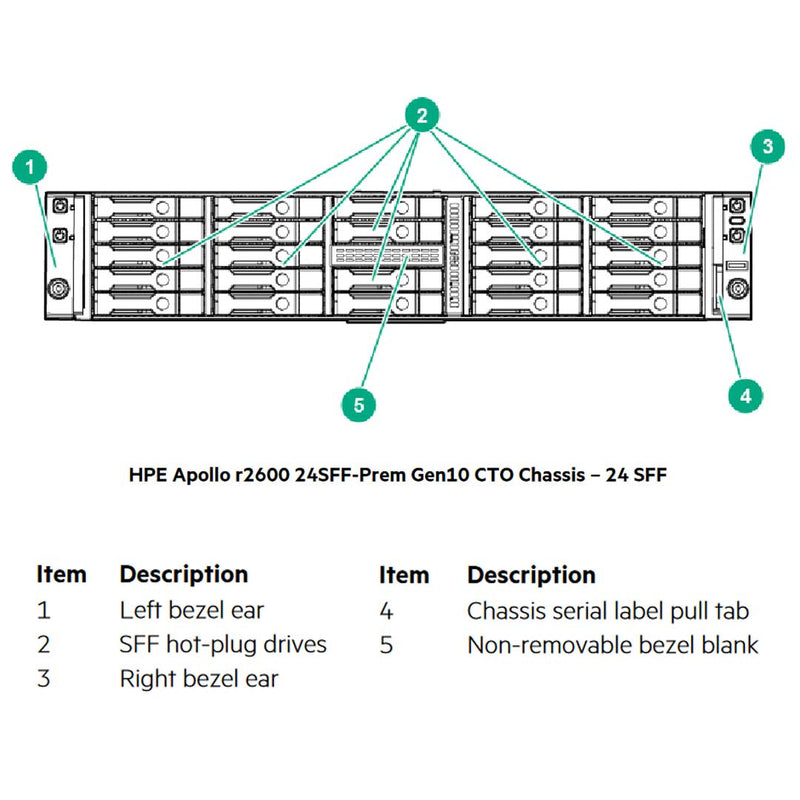

    HPE Proliant Apollo r2600 Gen10 24 SFF Chassis Apollo r2600 G10
    24 SFF
    867158-B21

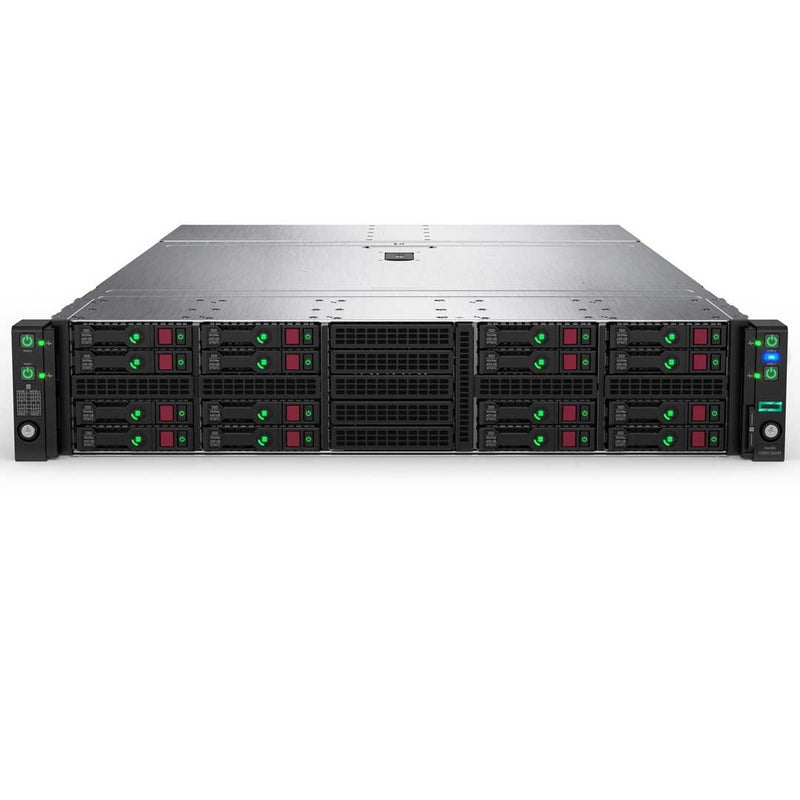

    HPE Proliant Apollo r2800 Gen10 16 SFF w/ NVMe Chassis Apollo r2800 G10
    16 SFF w/ NVMe
    867159-B21 | 874800-B21
    HPE Proliant Apollo r2800 Gen10 24 SFF w/ Expander Chassis Apollo r2800 G10
    24 SFF w/ Exp
    867159-B21 | 874797-B21

    Node Options

    Mixing Server Nodes is Supported

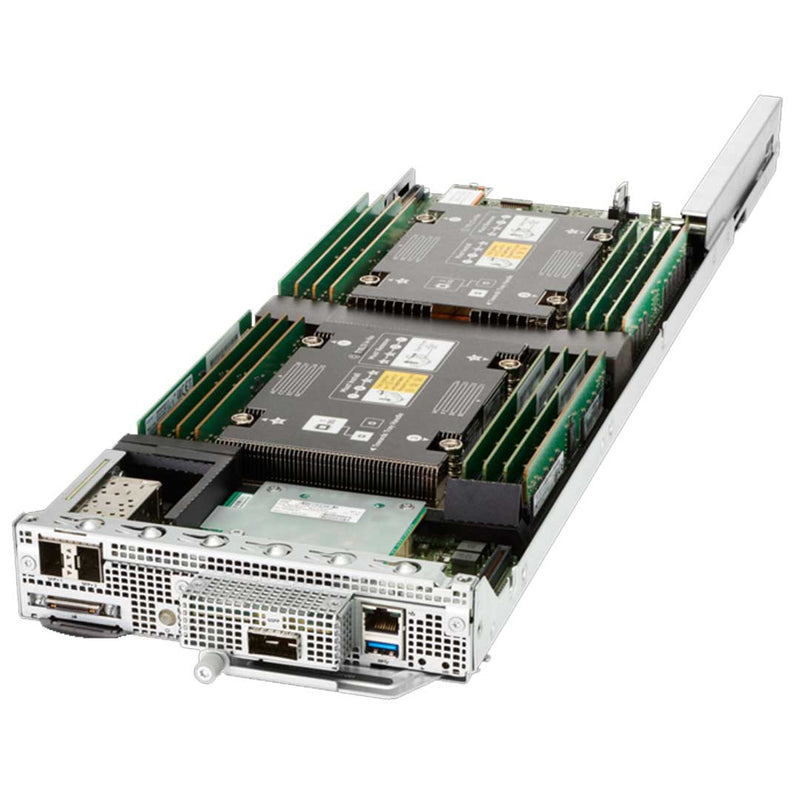

    HPE Apollo 2000 1U XL170r Node Server | 867055-B21 (Max 4) 1U XL170r | 867055-B21 (Max 4)
    HPE Apollo 1U XL170r | 867055-B21 QuickSpecs Manual

    QuickSpecs Manual

    (2) Intel Xeon 1st & 2nd Gen Scalable processors

    (16) 2933MT/s DDR4 DIMM

    (2) PCIe Slots across (3) Riser Options

    Support for FlexibleLOM

    HPE iLO (Firmware: HPE iLO 5)

    GPUs Not Supported

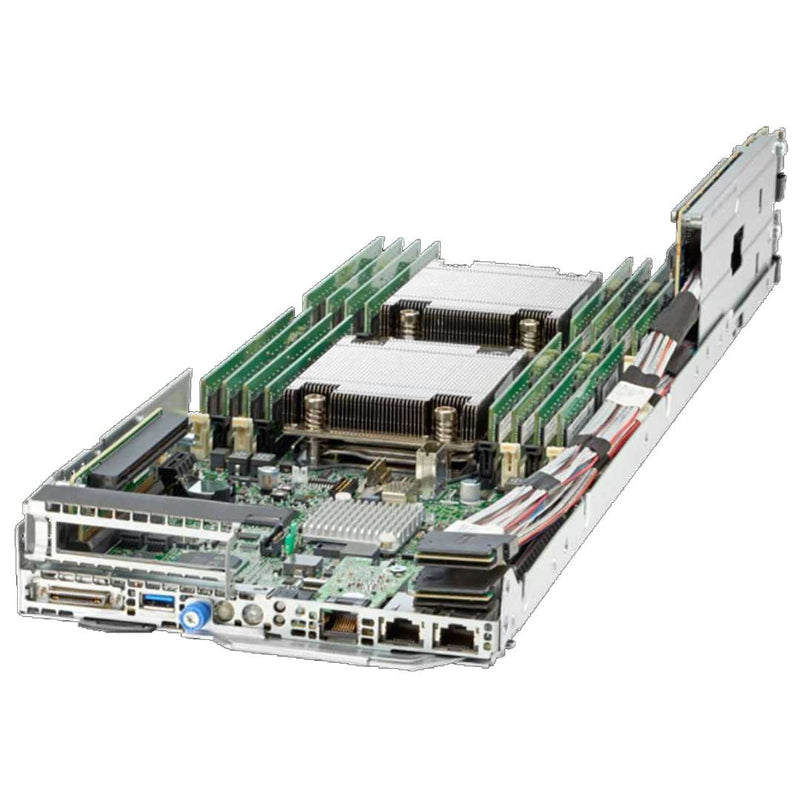

    HPE Apollo 2000 2U XL190r Node Server | 867056-B21 (Max 2) 2U XL190r | 867056-B21 (Max 2)
    HPE Apollo 2U XL190r | 867056-B21 QuickSpecs Manual

    QuickSpecs Manual

    (2) Intel Xeon 1st & 2nd Gen Scalable processors

    (16) 2933MT/s DDR4 DIMM

    (4) PCIe Slots across (Many) Riser Options

    Support for FlexibleLOM

    HPE iLO (Firmware: HPE iLO 5)

    (4) GPUs Supported

    HPE Apollo 2000 Gen10 NVMe Drives

    NVMe drives are supported on two of the Chassis options. The r2600 and the r2800 16NVMe version. In the r2600 the same backplane is used for the 24 SFF or the 16SFF+8NVMe. To support the NVMe you will need to install one of the following Riser Kits:

    NVMe Supported Risers
    • HPE XL170r Gen10 16NVMe P2 LP Riser Kit (874304-B21)
    • HPE XL190r Gen10 16NVMe FLOM Riser Kit (874849-B21)

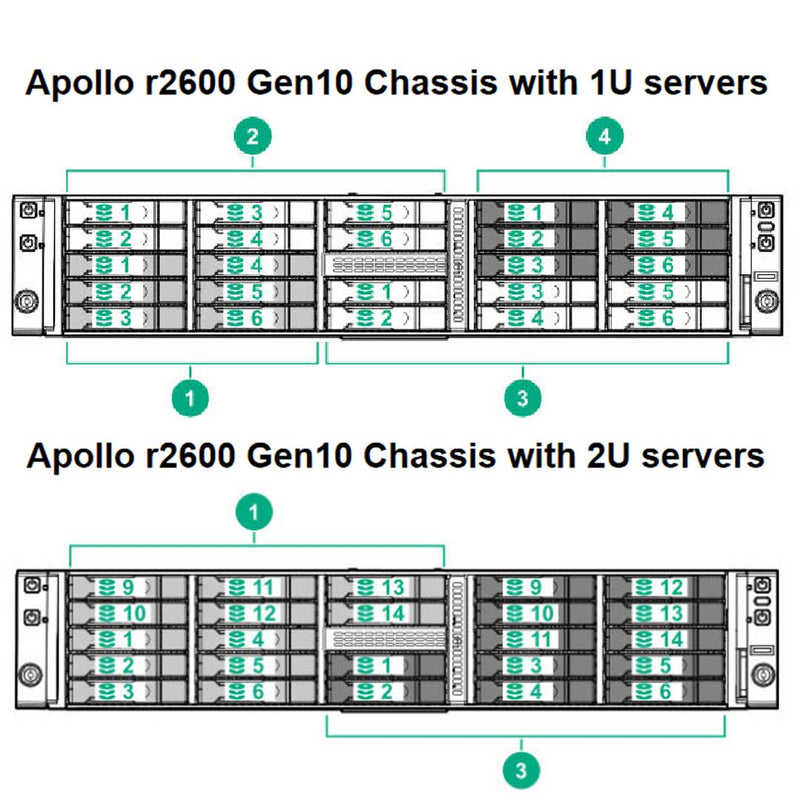

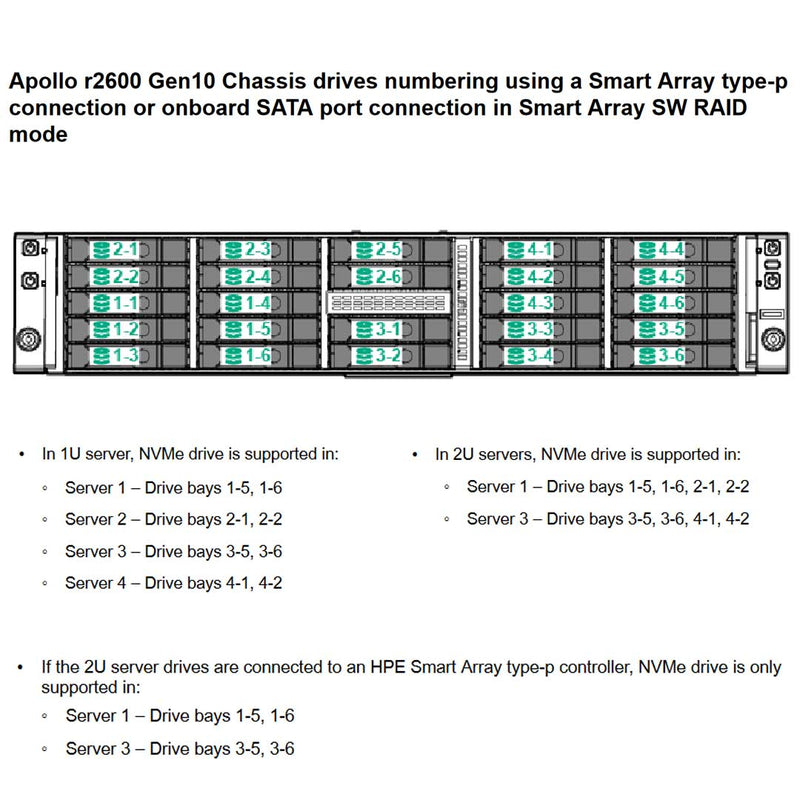

    NVMe Drive Assignment

    The NVMe drives are supported only in certain Drive Bays for both the r2600 and the r2800 chassis.

    Drive Allocation Per Server
    • r2600 8x NVMe - 2x NVMe per XL170r
    • r2600 8x NVMe - 4x NVMe per XL190r
    • r2800 16x NVMe - 4x NVMe per XL170r
    • r2800 16x NVMe - 8x NVMe per XL190r

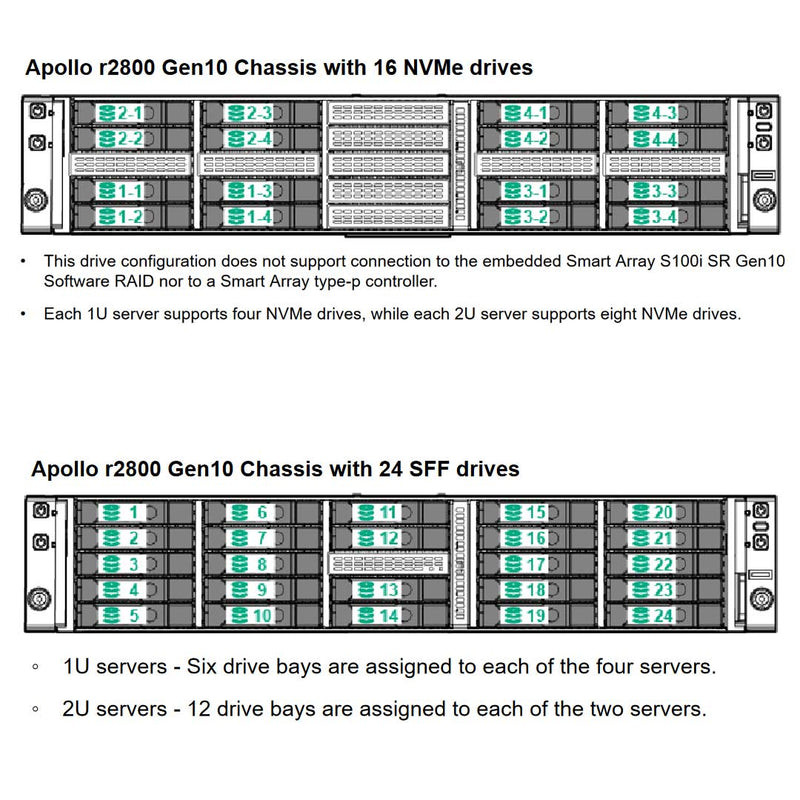

    HPE Apollo 2000 Gen10 NVMe drive numbering

    View all NVMe Configurations

    HPE Apollo 2000 Gen10 PCI Risers

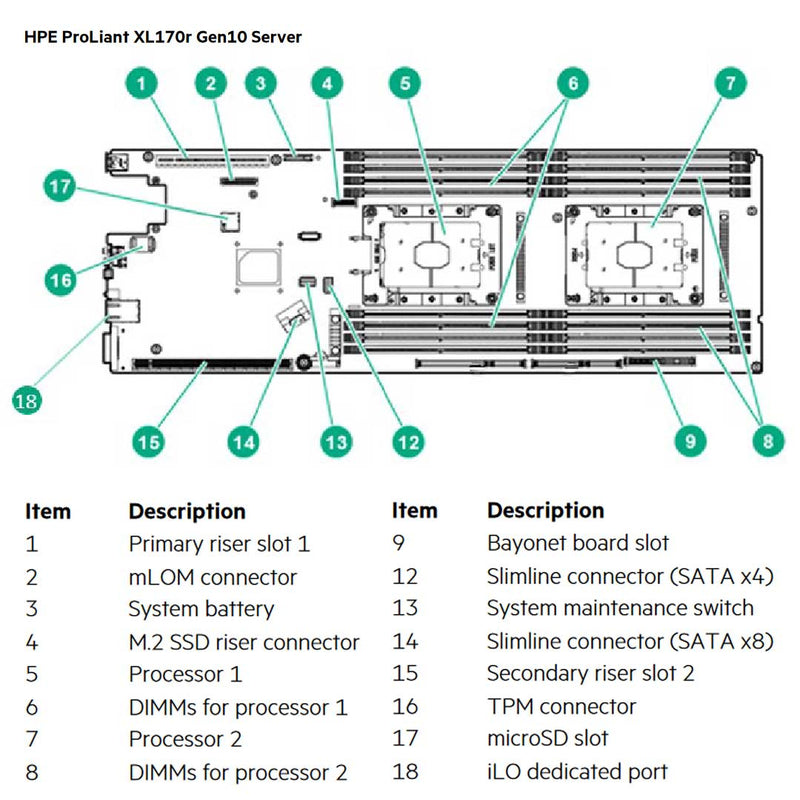

    The HPE XL170r Gen10 has 2 x16 PCI-3 3.0 slots. The second slot can be used either for a Low-Profile PCIe card or for the FlexibleLOM network adapters that are supported.

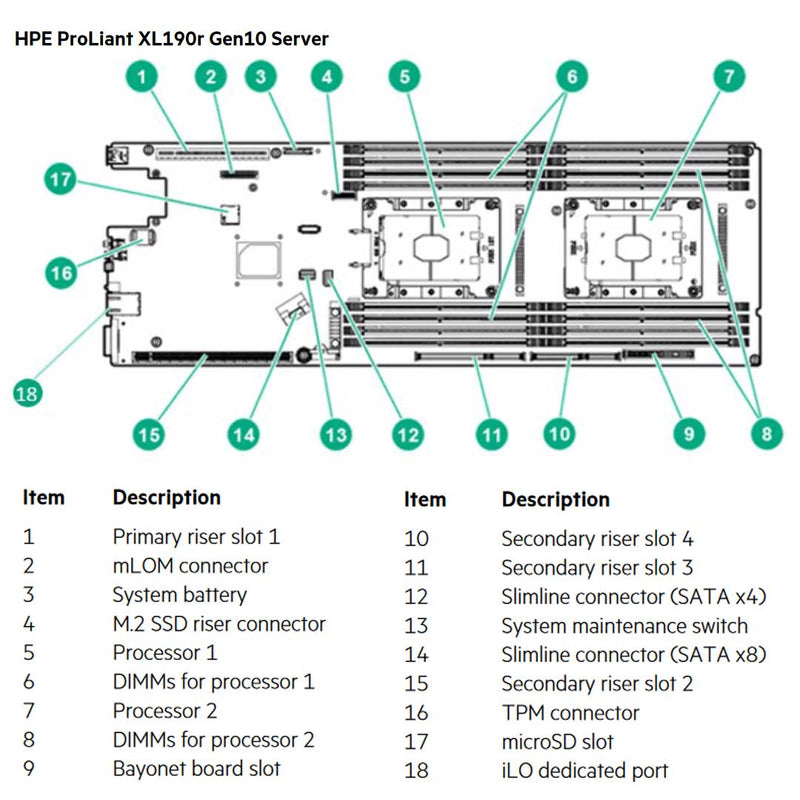

    The HPE XL190r Gen10 server has the same configuration options as the XL170r for CPU and memory but has additional PCIe slots in multiple configurations providing support for additional expansion cards and support for (4) accelerators per XL190r Node server.

    HPE Apollo 2000 Gen10 4 GPU Riser

    View XL190r 4x GPU Riser

    HPE Apollo 2000 Gen10 Cooling

    The HPE Apollo 2000 Gen10 server comes with 4 Rotor fans as standard with the option to install another 4 fans (874308-B21) for redundancy. Dual-rotor fan (882107-001) 9–10 must be installed if the 1800 W–2200 W power supply is installed and these Fans are powered by this power cable (882172-001).

    • Fans 1–4 are the default system fans.
    • Fans 5–8 are available through the redundant fan option kit.
    • The dual-rotor fan 9–10 is required when installing the HPE 1800W–2200W Flex Slot Platinum Hotplug Power Supply.
    HPE Apollo 2000 Gen10 Fan Bay Numbering

    View Fan Bay Numbering

    HPE Apollo 2000 Gen10 Rack Consolidation Module (RCM)

    HP Apollo 2000 Rack Consolidation Module Kit (798211-B21) is an optional RCM (Rack Consolidation Management) module kit that allows iLO aggregation at the chassis level and also has the port for the HPE APM. The RCM Module consists of 2 iLO ports for redundancy. It can also be daisy-chained to connect to a Top of the Rack (TOR) management switch. If using the RCM module iLO port or the dedicated iLO management port module to connect to a network, the network must operate at a speed of 1Gb/s.

    HPE Proliant Apollo 2000 Gen10 RCM Module
    HPE Apollo Platform Manager Kit (APM)

    The HPE Advanced Power Manager (APM) now called Apollo Platform Manager Kit (741192-B21) is an optional rack-level management solution designed to enhance power efficiency and simplify hardware management. It automatically discovers hardware components and provides server-level power control, including power on/off, server metering, dynamic power capping, and configurable power-up dependencies and sequencing. APM consolidates Ethernet access to all resident iLOs, supports asset management, and offers rack-level event logging, RADIUS authentication, and an integrated serial concentrator. Additional features include support for up to 11 local user accounts, a read-only service port, and compatibility with SNMP, SSH, Syslogd, and Telnet protocols.

    Note: If using the RCM module iLO port or the dedicated iLO management port module to connect to a network, the network must operate at a speed of 1Gb/s.
    NOTE: Each HPE APM can connect up to 10 chassis via consolidated chassis management cable

    HPE Proliant Apollo 2000 Gen10 Apollo Platform Manager Kit (APM)
    HPE Apollo 2000 Gen10 Flex Slot your power!

    The HPE Apollo 2000 Gen10 server features a versatile and efficient power system with hot-swappable, redundant PSUs ranging from 500W to 1600W, supported by Advanced Power Management (APM) and Redundant Configuration Management (RCM) for dynamic power distribution and seamless redundancy. These PSUs, available in 80 PLUS Platinum and Titanium efficiencies, require appropriate fan configurations to maintain optimal cooling. Together, these features ensure reliable operation, energy efficiency, and scalability, making the server well-suited for demanding data center environments.

    HPE Apollo 2000 Gen10 Flex Slot your power!
    HPE Lights Out! | iLO 5 ASIC
    Dimensions & Weight

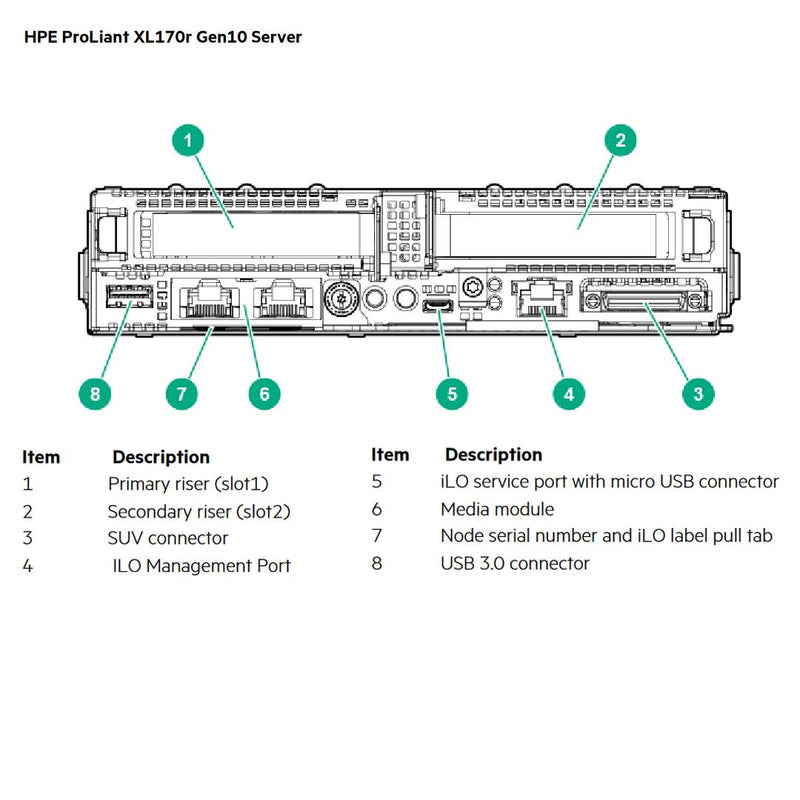

    XL170r Gen10 1U | 867055-B21

    Dimensions (H x W x D):

    • 1.63 x 7.27 x 25.91in
    • 4.13 x 18.45 x 65.80cm

    Weight:

    • Min: N/A
    • Max: 15.23 lb (6.91 kg)

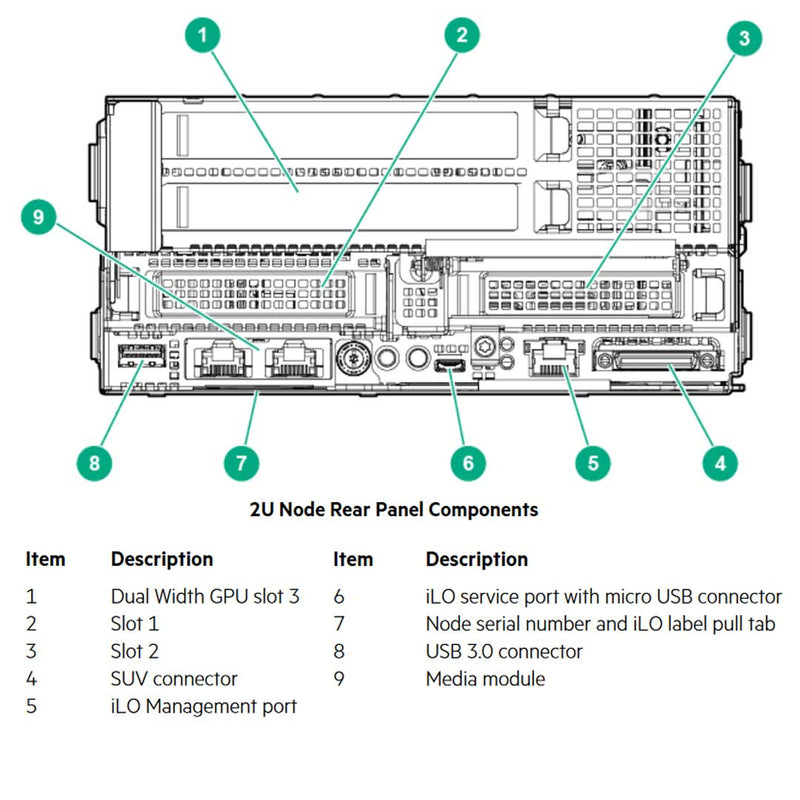

    XL190r Gen10 2U | 867056-B21

    Dimensions (H x W x D):

    • 3.32 x 7.27 x 27.36in
    • 8.43 x 18.45 x 69.47cm

    Weight:

    • Min: N/A
    • Max: 25.1 lb (11.39 kg)
