- (1) d6500 Chassis | 845627-B21
- (1) Power Shelf | 735131-B21
- (2) XL270d Gen 9 Trays | 845628-B21
- (2) Intel Xeon E5-2600 v4 Per Tray
- (16) 2400MT/s DDR4 DIMMs Per Tray
- (8) SFF Drives Per Tray
- (2) PCIe Gen3 Per Tray
- (1) Dedicated Slot for | Smart Array P542D (851508-B21)
- (8) GPUs Supported Per Tray
- HPE Advanced Power Manager Module (APM)
- HPE iLO 4
- HPE ProLiant Apollo 2000 G9 | G10
- HPE ProLiant Apollo 4200 G9 | G10 | G10+
- HPE ProLiant Apollo 4500 G9 | ---
- HPE ProLiant Apollo 6500 G9 | G10 | G10+
- HPE ProLiant Apollo pc40
- HPE ProLiant Apollo sx40
(Click to View)
- Artificial Intelligence (AI)
- Big Data Analytics
- Data Analytics
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Language Model
- Machine Learning (ML)

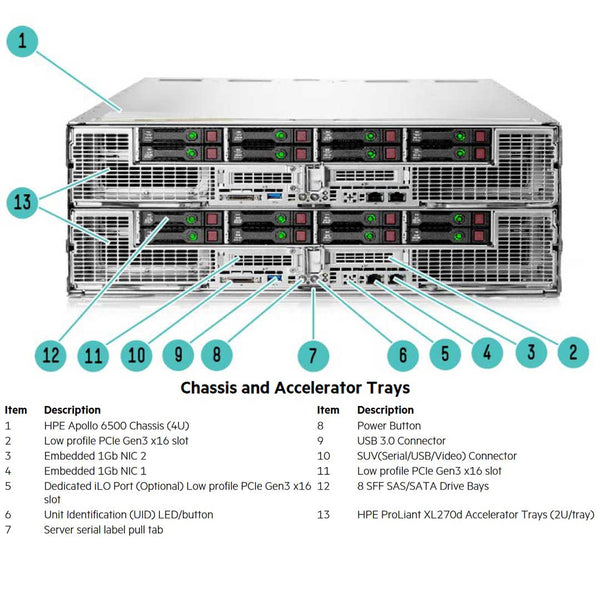

The HPE Apollo 6500 System provides the tools and the confidence to deliver high-performance computing (HPC) innovation. The system consists of three key elements: The HPE ProLiant XL270 Gen9 Accelerator tray, the HPE Apollo 6500 Chassis, and the HPE Apollo 6000 Power Shelf
Two HPE ProLiant XL270 Gen9 Accelerator tray are supported by the 6500 Apollo Server. This tray holds 2 CPUs, 16 DDR4 DIMM's, and up to 8 GPUs. This ProLiant XL270d Tray has 3 PCIe slots with one being dedicated to the recommended RAID controller P542D.
The HPE Apollo 6000 Power Shelf can support up (6) Hot-Swap PSUs in a 1U Rack shelf. Each power ShShelflef can support up to (2 to 4) 6500 Chassis depending on the configuration of the XL270d Tray.
Configure your APOLLO-6500 — drives, RAID, rails, and warranty.
Talk to a sales expert today.
Build Your Refurbished APOLLO-6500 →
Specs 2
Software overview
Feature | Description |
|---|---|
Operating systems and virtualization software support for ProLiant servers |
|
Insight management software |
|
Physical specifications
Specification | Description |
|---|---|
Dimensions (H x W x D) | 17.70 x 44.81 x 96.00 cm (6.97 x 17.64 x 37.79 in) |
Shipping dimensions 29.7 x 59.7 x 108.7 cm (11.72 x 23.51 x 42.80 in) | |
Chassis weight | Empty: 14.92 kg (32.89 lb) |
Maximum: 73.22 kg (161.42 lb) (Approximate) |
Environmental specifications
Specification | Description | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Operating temperature | 10° to 35°C (50° to 95°F) | ||||||||||||||||||
Non-operating temperature | -30° to 60°C (-22° to 140°F) | ||||||||||||||||||
Operating humidity | 10% to 90% Non-condensing | ||||||||||||||||||
Non-operating humidity | 5% to 95% Non-condensing | ||||||||||||||||||
Acoustic noise | Listed are the declared A-Weighted sound power levels (LWAd) anddeclared average bystander position A-Weighted sound pressure levels(LpAm) when the product is operating in a 23°C ambient environment
| ||||||||||||||||||
NOTE: Operating temperature has an altitude derating of 1.8° F (1°C) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70 Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45°C). Altitude maximum for storage is 70 KPa. | |||||||||||||||||||
