-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs

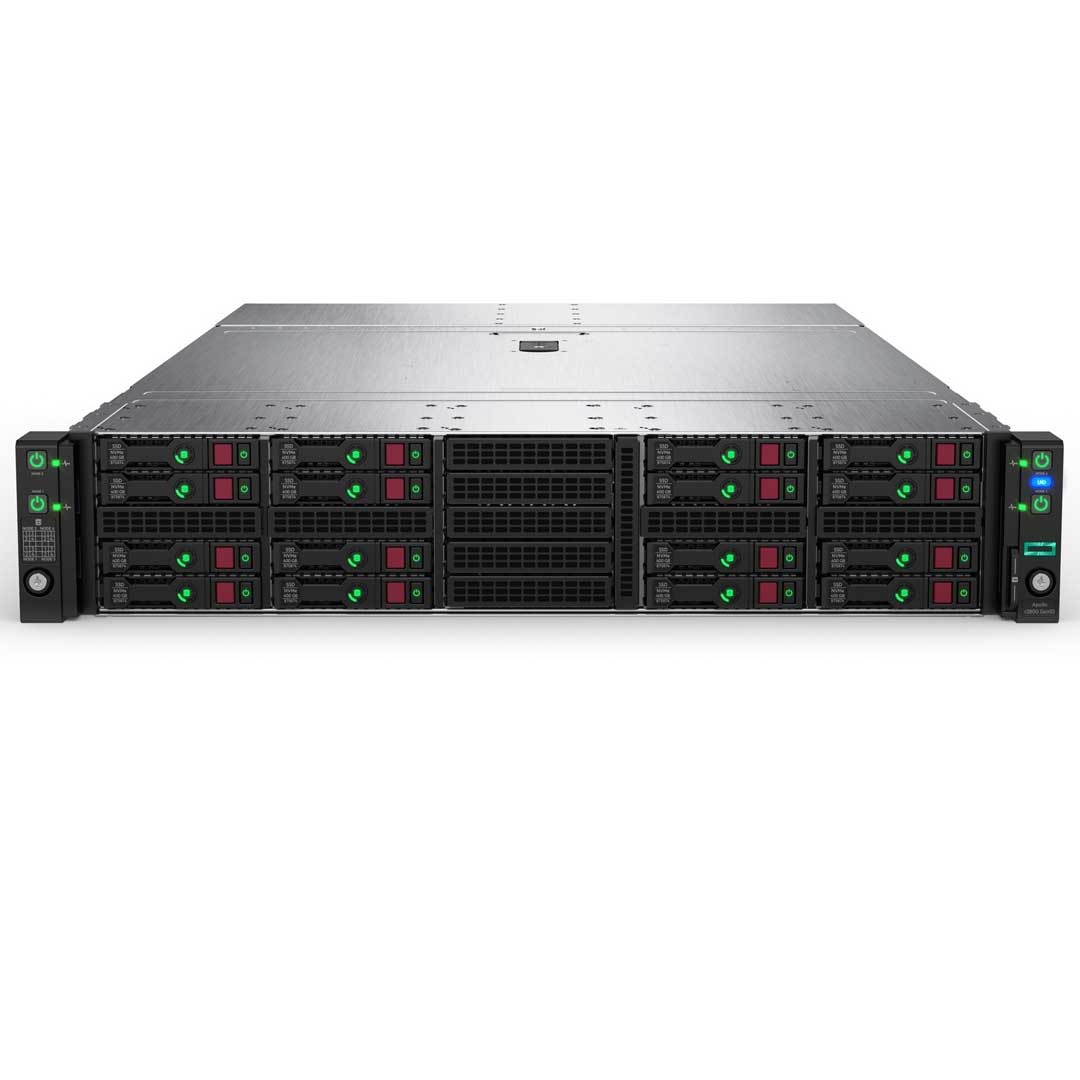

What's New for Apollo 2000 Gen10 r2800 16 NVMe
- (8 SFF + 16 NVMe) Drives
- (16) NVMe supported
- (4) Node Options
- Intel Xeon 1st & 2nd Gen Scalable processors
- Max 8TB DDR4 Memory
- Embedded dual 10GbE NIC
- HPE's Silicon Root of Trust
- HPE iLO 5 ASIC
Other Versions:
- HPE ProLiant Apollo 2000 G9 | G10
- HPE ProLiant Apollo 4200 G9 | G10 | G10+
- HPE ProLiant Apollo 4500 G9 | ---
- HPE ProLiant Apollo 6500 G9 | G10 | G10+
- HPE ProLiant Apollo pc40
- HPE ProLiant Apollo sx40
(Click to View)
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Cloud Servers
- Data Analytics
- Deep Learning (DL)
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Machine Learning (ML)
- Financial/Trading Servers
- Video Analytics
- Video Streaming
- Virtual Desktop Interface (VDI)
- Virtualization
- Virtual Machines (VM)
- Web Tech
- Anything as a service (Xaas)

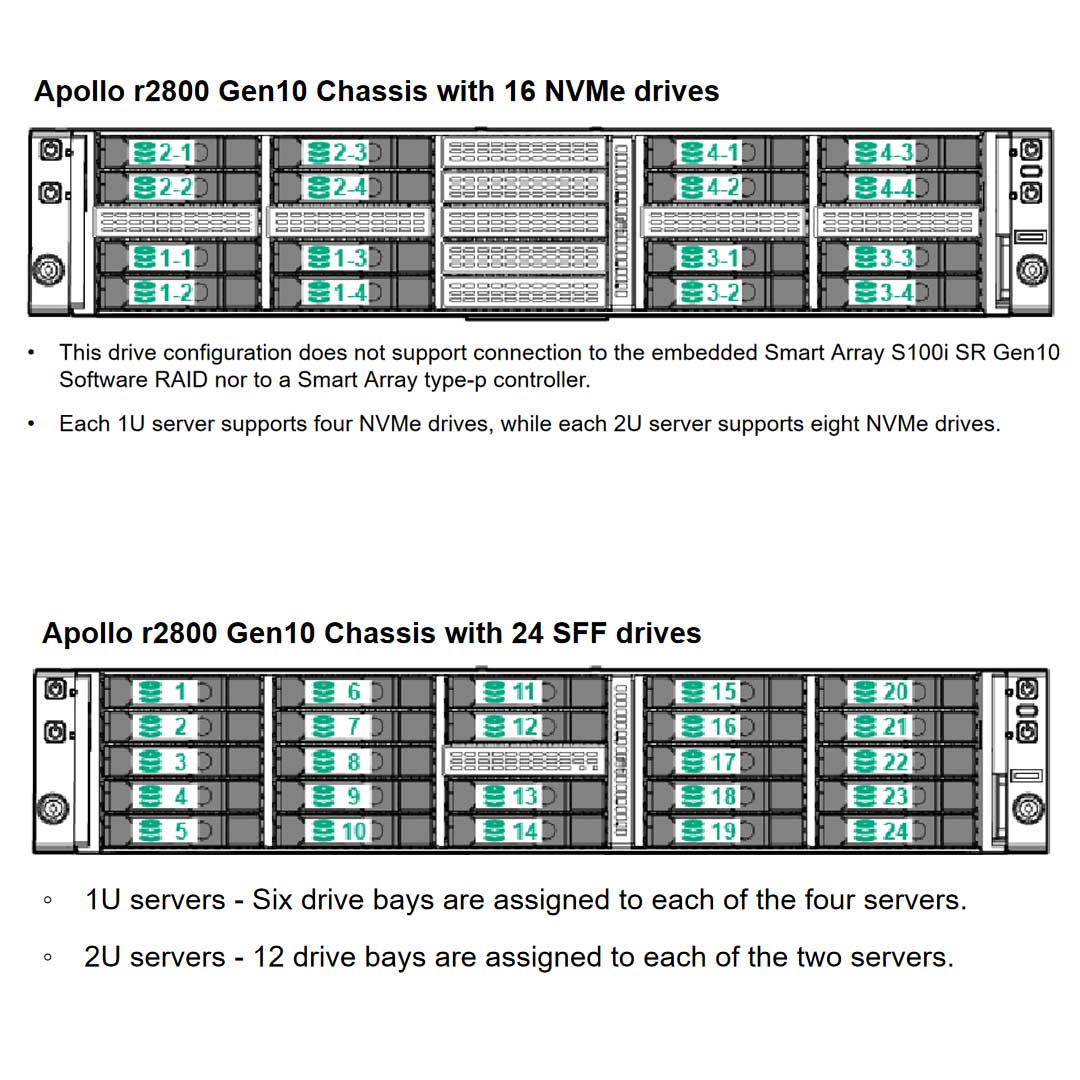

The HPE Apollo r2800 16 NVMe Chassis has a different backplane than the r2800 24 SFF Expander Chassis. All 16 NVMe drives are allocated equally across the server nodes installed. A 2U XL190r supports 8 Drives while the 1U XL170r supports 4 drives.

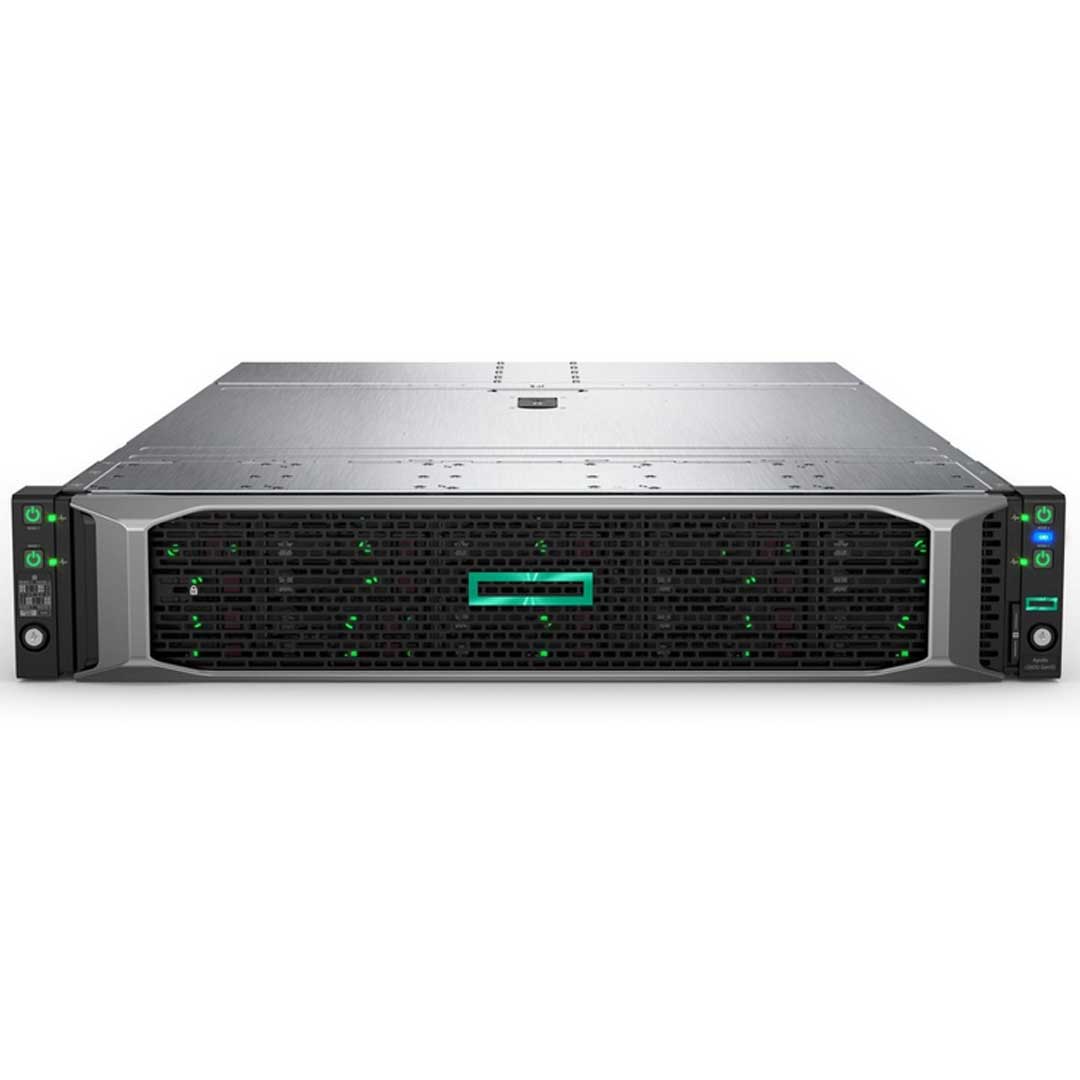

The HPE Apollo 2000 Gen10 Server is a high-density, 2U platform designed for performance and scalability. It supports up to four hot-plug ProLiant Gen10 servers per chassis, powered by Intel Xeon Scalable processors with up to 26 cores and 1.5 TB of DDR4 SmartMemory. With flexible storage options, including up to 24 SFF SAS/SATA or NVMe drives, and advanced networking like 100 Gb/s InfiniBand, it excels in demanding workloads such as HPC, AI/ML, and big data analytics, making it ideal for scalable enterprise and edge applications.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
Product features
Feature | Description | |
|---|---|---|

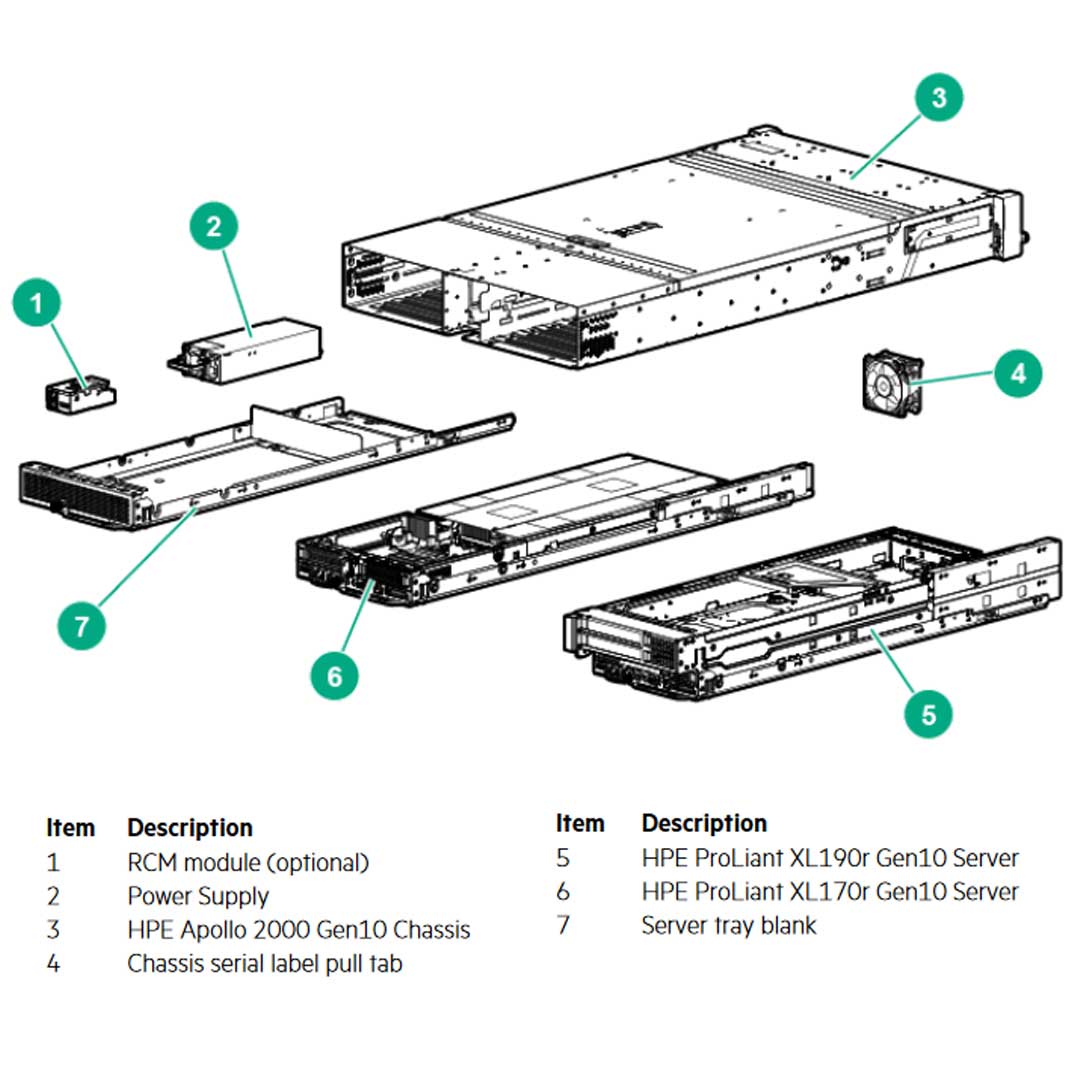

Chassis | There are 4 chassis options with different storage configurations:
Each HPE Apollo 2000 Chassis is built with:
| |
System fans | The Chassis ships standard with 4 single rotor fan modules | |
Server tray blank kit | A chassis requires that four (4) server tray slots be populated with either an HPE ProLiant XL170r Gen10, XL190r Gen10 server or HPE Apollo 2000 Gen10 Server node blank kit | |
Rack airflow requirements | HPE Apollo 2000 Gen10 Chassis
CAUTION:Always use blanking panels to fill all remaining empty front panel U-spaces in the rack.This arrangement ensures proper airflow If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment. | |
Physical specifications
Specification | Decription | ||
|---|---|---|---|
HPE Apollo r2200 Gen10 Chassis - 12 LFF | HPE Apollo r2600 Gen10 Chassis - 24 SFF | HPE Apollo r2800 Gen10 Chassis - 16 NVMe | |
Dimensions (H x W x D) | 8.76 x 44.80 x 87.93 cm (3.45 x 17.64 x 34.62 in) | 8.76 x 44.80 x 83.87 cm (3.45 x 17.64 x 33.02 in) | 8.76 x 44.80 x 83.87 cm (3.45 x 17.64 x 33.02 in) |
Shipping dimensions (H x W x D) | 31.75 x 60.02 x 100.01 cm (12.5 x 23.63 x 39.38 in) | 31.75 x 60.02 x 95.9 cm (12.5 x 23.63 x 37.76 in) | 31.75 x 60.02 x 95.9 cm (12.5 x 23.63 x 37.76 in) |
Chassis weight (Empty) | 13.01 kg (28.88 Ib) | 12.07 kg (28.00 Ib) | 12.07 kg (28.00 Ib) |
Maximum enclosure weight (Approximate) | 46.70 kg (122.19 Ib) | 46.84 kg (103.27 Ib) | 46.70 kg (102.96 Ib) |
Environmental specifications
Specification | Decription | ||
|---|---|---|---|
HPE Apollo r2200 Gen10 Chassis - 12 LFF | HPE Apollo r2600 Gen10 Chassis - 24 SFF | HPE Apollo r2800 Gen10 Chassis - 16 NVMe | |
Operating temperature | 10° to 35°C (50° to 95°F) | 10° to 35°C (50° to 95°F) | 10° to 35°C (50° to 95°F) |
Non-Operating temperature | -30° to 60°C (-22° to 140°F) | -30° to 60°C (-22° to 140°F) | -30° to 60°C (-22° to 140°F) |
Operating relative humidity | 8% | 8% | 8% |
Non-operating relative humidity | 5% to 95% | 5% to 95% | 5% to 95% |
Acoustic noise | Refer to the QuickSpecs below for detailed information on acoustic noise: | ||
NOTE: Operating temperature has an altitude derating of 1.8°F (1°C) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper nonoperating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 113°F (45°C). Altitude maximum for storage is 70 KPa. | |||
Spec Sheet 4
| HPE Apollo r2200 | HPE Apollo r2600 | HPE Apollo r2800 | |
|---|---|---|---|
| Description | Gen10 12 LFF disk or SSD chassis | Gen10 24 SFF disk or SSD chassis | Gen10 24 SFF disk or SSD chassis with drive mapping capability |
| Storage configuration | 12 LFF hot-plug SAS/SATA HDDs/SSDs, allocated equally across server nodes | 24 SFF hot-plug SAS/SATA HDDs/SSDs, or 16 SFF SAS/SATA + 8 NVMe HDD, allocated equally across server nodes | 24 SFF hot-plug SAS/SATA HDDs/SSDs,or 16 SFF NVMe BPenabling custom driveallocations to match workloads |
| Size | 2U: 17.64 in. wide x 34.62 in. deep | 2U: 17.64 in. wide x 33.02 in. deep | 2U: 17.64 in. wide x 33.02 in. deep |
| Power supplies | (2) 800W/1400W 277 VAC/1600W Platinum Power Supplies with N or N+N redundancy | (2) 800W/1400W 277 VAC/1600W Platinum Power Supplies with N or N+N redundancy | (2) 800W/1400W 277 VAC/1600W Platinum Power Supplies with N or N+N redundancy |
| HPE ProLiant XL170r Gen10 Server | HPE ProLiant XL190r Gen10 Server | |
|---|---|---|

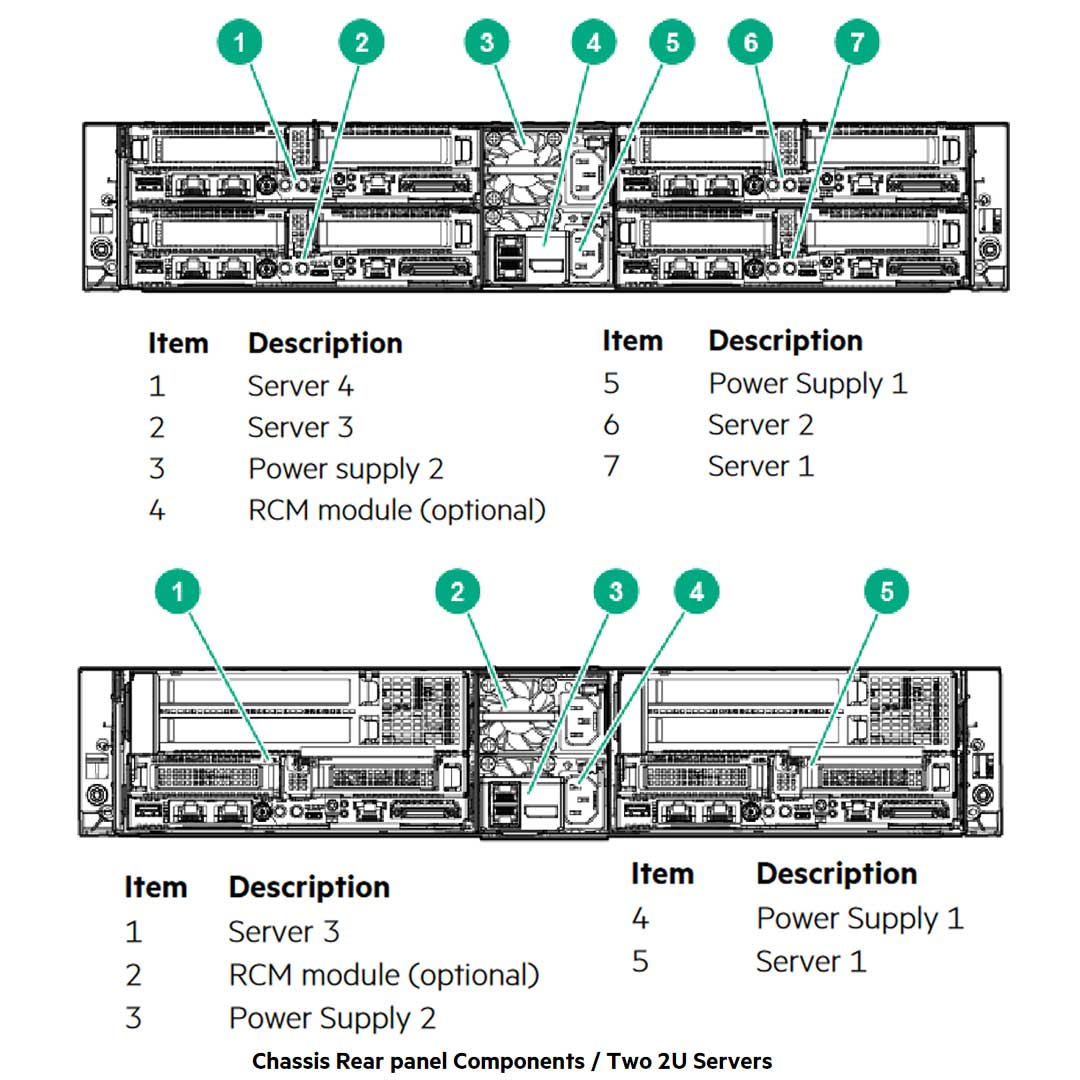

| HPE Apollo r2000 Series Chassis accommodates four independently serviceable HPE ProLiant XL170r Gen10 servers with up to 80 servers in a 42U rack with one to four servers per chassis. | HPE Apollo r2000 Series Chassis accommodates two independently serviceable HPE ProLiant XL190r Gen10 servers with up to 40 servers and 80 integrated accelerators in a 42U rack with either one or two servers per chassis. | |
| Maximum number | 1U half-width, 2P, up to four per chassis | 2U half-width, 2P, one or two per chassis |
| Processor | Intel Xeon Scalable processors with options for 4–26 cores, up to 3.6 GHz CPU speed, and power ratings up to 150 watts | |
| Chipset | Intel® C622 | |
| Memory | 16 DIMM slots with up to 1.5 TB 2666 MT/s DDR4 SmartMemory (12 DIMMs x 128 GB per DIMM) | |
| Network module | Two I/O slots for choice of networking and clustering
options including:
|
|
| PCIe 3.0 slots | One PCIe slot plus a FlexibleLOM Or Two PCIe slots | Up to four PCIe slots in multiple configurations to provide the
additional capability of supporting:
|
| Storage | Up to 24 drives per node Dual SATA host-based M.2 2280 NGFF SSDs—internal Hot-plug HDD support Internal USB port Hard drive mapping feature on r2800 chassis |
|
| Storage controller | Integrated Smart Array S100i storage controller Optional PCIe Host Bus Adapters and Smart Array controllers with advanced array features such as HPE SmartCache and RAID 10 Advanced Data Mirroring |
|
| Supported accelerators | N/A | Support for up to two per server NVIDIA, AMD, and Intel GPGPUs |
| Management |
|
|
| Common workloads | High-performance computing, small to midsize HPC clusters, large
HPC clusters in traditional data centers Scale-out architecture for large enterprises, small to medium size enterprises and remote locations, private cloud deployment Service providers operating traditional data centers |
|
