SKU: 808027-B21

Hpe Apollo 4200 Gen9 Lff Server Chassis | 808027-B21

HPE

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for Apollo 4200 Gen9
  • 2U (28 LFF or 54 SFF) Chassis Options

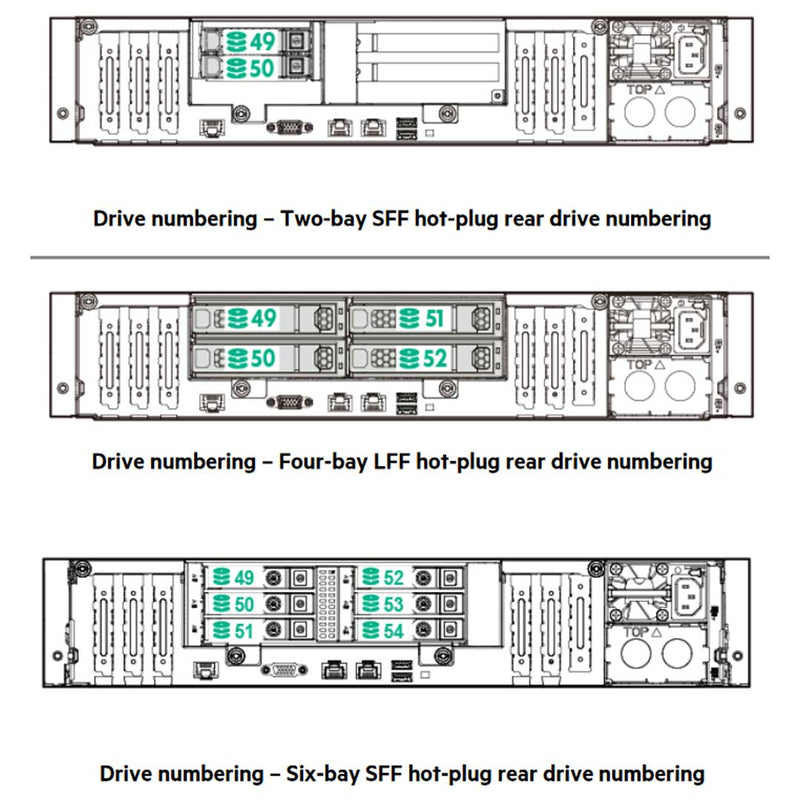

  • Optional rear drive up to 6 SFF or 4 LFF
  • (2) Intel Xeon E5-2600 v3 or v4 processors
  • (16) 2400MT/s DDR4 DIMMs | 8 DIMMs per processor
  • Supports up to 1.5 TB of DDR4 memory
  • (7) PCIe 3.0 slots
  • HPE's Silicon Root of Trust
  • HPE iLO 4
  • No NVMe Support
  • No GPU Supported
Other Versions:

(Click to View)

Ideal for:

  • Big Data Analytics
  • Cloud Servers
  • Data Analytics
  • Video Streaming

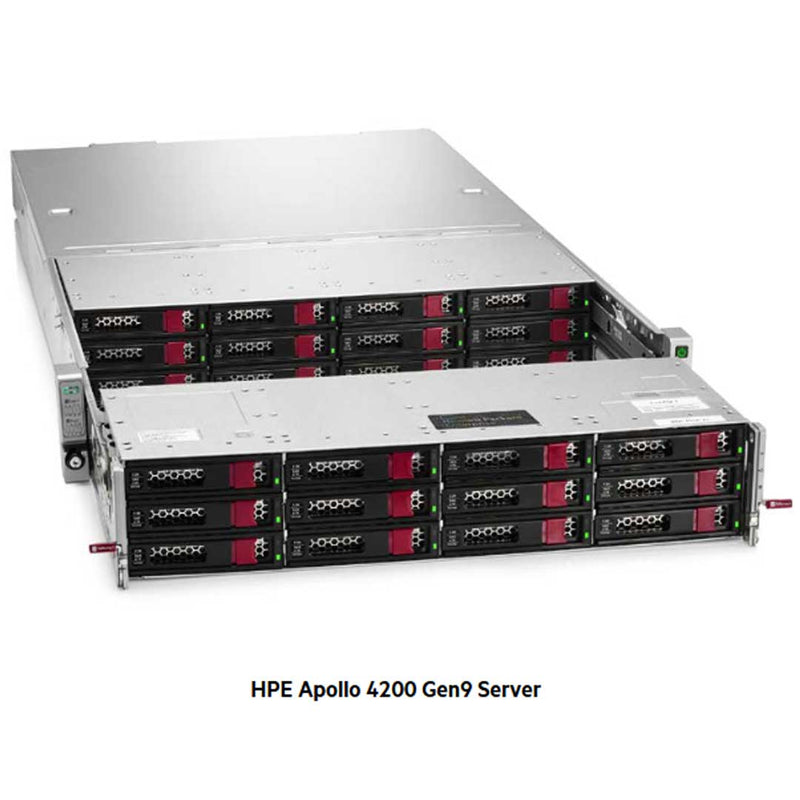

The HPE Apollo 4200 Gen9 Server combines high storage density and robust performance in a 2U form factor. It supports up to 28 LFF or 54 SFF hot-plug drives, providing industry-leading capacity for data-intensive workloads. With the LFF chassis, users can achieve up to 224 TB of storage using 8 TB drives, scaling to over 4.4 PB in a standard 42U rack. For high-performance applications, the SFF chassis supports up to 54 SAS or SSD drives with 12 Gb/s throughput, ideal for Hadoop, content delivery, and object storage workloads. Its efficient design and management features make it a standout solution for modern enterprise storage needs.

The HPE Apollo 4200 Gen9 Server does not natively support GPU accelerators in its standard configuration. It is primarily designed for storage-dense workloads and high-capacity data applications like Hadoop, object storage, and content delivery, rather than compute-intensive tasks that require GPUs.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature
Description
Processor (One of the following depending on model)
Model
CPU frequency
Cores
L3 Cache
Power
QPI
DDR4 Hz
E5-2699v3
2.3 GHz
18
45MB
145 W
9.6 GT/s
2133
E5-2698v3
2.3 GHz
16
40MB
135 W
9.6 GT/s
2133
E5-2697v3
2.6 GHz
14
35MB
145 W
9.6 GT/s
2133
E5-2695v3
2.3 GHz
14
35MB
120 W
9.6 GT/s
2133
E5-2690v3
2.6 GHz
12
30MB
135 W
9.6 GT/s
2133
E5-2683v3
2.0 GHz
14
35MB
120 W
9.6 GT/s
2133
E5-2680v3
2.5 GHz
12
30MB
120 W
9.6 GT/s
2133
E5-2670v3
2.3 GHz
12
30MB
120 W
9.6 GT/s
2133
E5-2667v3
3.2 GHz
8
20MB
135 W
9.6 GT/s
2133
E5-2660v3
2.6 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650v3
2.3 GHz
10
25MB
105 W
9.6 GT/s
2133
E5-2650Lv3
1.8 GHz
12
30MB
65 W
9.6 GT/s
2133
E5-2643v3
3.4 GHz
6
20MB
135 W
9.6 GT/s
2133
E5-2640v3
2.6 GHz
8
20MB
90 W
8.0 GT/s
1866
E5-2637v3
3.5 GHz
4
15MB
135 W
9.6 GT/s
2133
E5-2630v3
2.4 GHz
8
20MB
85 W
8.0 GT/s
1866
E5-2630Lv3
1.8 GHz
8
20MB
55 W
8.0 GT/s
1866
E5-2623v3
3.0 GHz
4
10MB
105 W
8.0 GT/s
1866
E5-2620v3
2.4 GHz
6
15MB
85 W
8.0 GT/s
1866
E5-2609v3
1.9 GHz
6
15MB
85 W
6.4 GT/s
1600
E5-2603v3
1.6 GHz
6
15MB
85 W
6.4 GT/s
1600
E5-2699v4
2.2 GHz
22
55MB
145 W
9.6 GT/s
2400
E5-2698v4
2.2 GHz
20
50MB
135 W
9.6 GT/s
2400
E5-2697v4
2.3 GHz
18
45MB
145 W
9.6 GT/s
2400
E5-2697Av4
2.6 GHz
16
40MB
145 W
9.6 GT/s
2400
E5-2695v4
2.1 GHz
18
45MB
120 W
9.6 GT/s
2400
E5-2690v4
2.6 GHz
14
35MB
135 W
9.6 GT/s
2400
E5-2683v4
2.1 GHz
16
40MB
120 W
9.6 GT/s
2400
E5-2680v4
2.4 GHz
14
35MB
120 W
9.6 GT/s
2400
E5-2667v4
3.2 GHz
8
25MB
135 W
9.6 GT/s
2400
E5-2660v4
2.0 GHz
14
35MB
105 W
9.6 GT/s
2400
E5-2650v4
2.2 GHz
12
30MB
105 W
9.6 GT/s
2400
E5-2650Lv4
1.7 GHz
14
35MB
65 W
9.6 GT/s
2400
E5-2643v4
3.4 GHz
6
20MB
135 W
9.6 GT/s
2400
E5-2640v4
2.4 GHz
10
25MB
90 W
8.0 GT/s
2133
E5-2637v4
3.5 GHz
4
15MB
135 W
9.6 GT/s
2400
E5-2630v4
2.2 Ghz
10
25MB
85 W
8.0 GT/s
2133
E5-2630Lv4
1.8 GHz
10
25MB
55 W
8.0 GT/s
2133
E5-2623v4
2.6 GHz
4
10MB
85 W
9.6 GT/s
2133
E5-2620v4
2.1 GHz
8
20MB
85 W
8.0 GT/s
2133
E5-2609v4
1.7 GHz
8
20MB
85 W
6.4 GT/s
1866
E5-2603v4
1.7 GHz
6
15MB
85 W
6.4 GT/s
1866
Chipset

  • Intel C610 series chipset

  • Intel E5-2600v3 processor family

  • Intel E5-2600v4 processor family

On system management chipset
HPE Integrated Lights-Out (iLO) (Firmware HPE iLO4 2.0) 2GB NAND
Memory protection

  • Advanced ECC: Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

  • Online spare: Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Storage controller

  • HPE Flexible Smart Array P840ar/2G FIO Controller

  • HPE Dynamic Smart Array B140i Controller

Internal storage devices

  • 48 SFF plus optional 2 SFF drives rear or 6 SFF drivers rear.

  • 24 LFF plus optional 4 LFF drives rear, 2 SFF drives rear, or 6 SFF drivers rear.

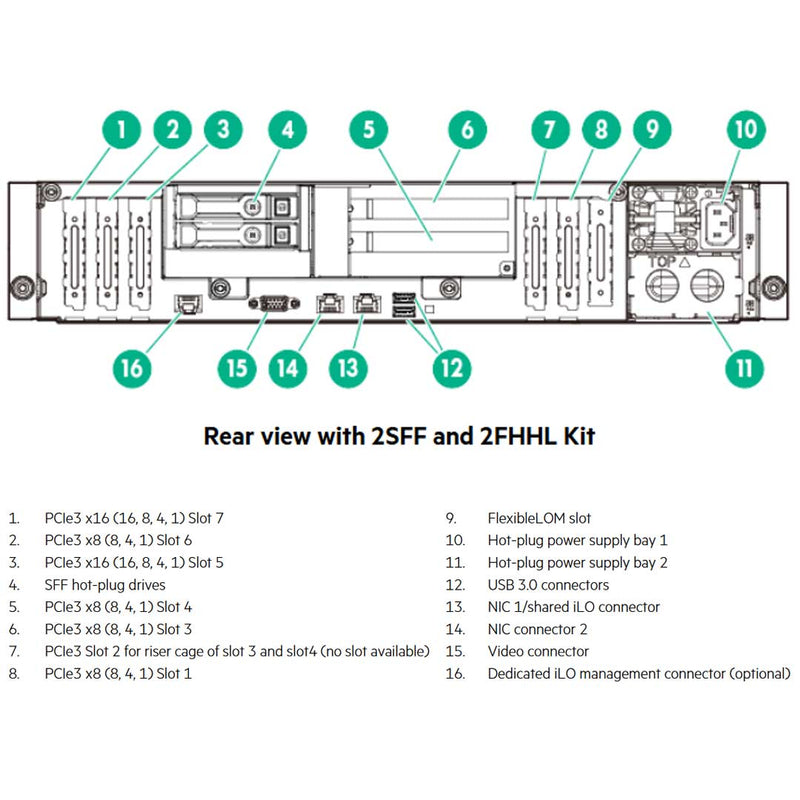

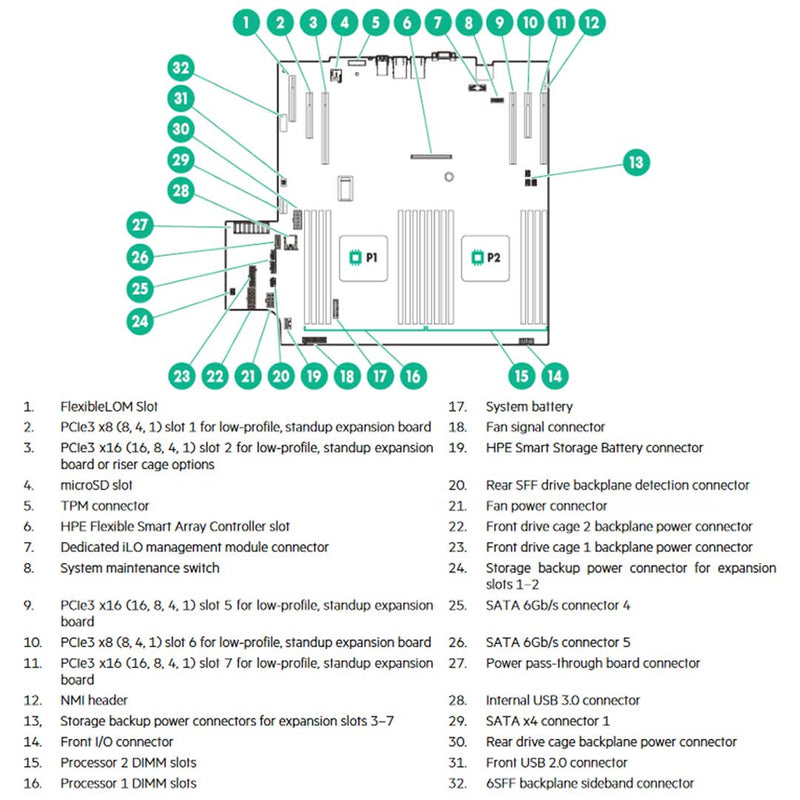

Specs 1

CPU1 (Standard)
Expansion Slots #
Technology
Bus Width
ConnectorWidth
Form Factor
Notes
1
PCIe 3.0
x8
X8
Low profile
Proc 1
2
PCIe 3.0
x16
x16
Low profile
Proc 1
Slots with 2 PCIe FHHL riser (CPU1)
Expansion Slots #
Technology
Bus Width
ConnectorWidth
Form Factor
Notes
3
PCIe 3.0
x8
x8
Full-Height, Half-Length slot
Proc 1
4
PCIe 3.0
x8
x8
Full-Height, Half-Length slot
Proc 1
CPU 2 (Optional)
Expansion Slots #
Technology
Bus Width
ConnectorWidth
Form Factor
Notes
5
PCIe 3.0
x16
x16
Low profile
Proc 2
6
PCIe 3.0
x8
x8
Low profile
Proc 2
7
PCIe 3.0
x16
x16
Low profile
Proc 2
Power supply

  • HPE 800 W Flex Slot Platinum Hot Plug Power Supply

  • HPE 1400 W Flex Slot Platinum Plus Hot Plug Power Supply

  • HPE 800 W Flex Slot Titanium Hot Plug Power Supply Kit

  • HPE 800 W Flex Slot Universal Hot Plug Power Supply Kit

  • HPE 800 W Flex Slot 48 V dc Hot Plug Power Supply Kit

System fans
Configuration
Non-Redundant
Redundant
When 1 Processor is selected
4 Fans
8 Fans
When 2 Processors are selected
5 Fans
10 Fans
Interfaces
Video
1 rear VGA
FlexibleLOM Network ports
2 x 1Gb ports shipping standard with optional FlexibleLOM
HP iLO Remote Management Network port
Shared (Optional 1Gb HPE Apollo 4200 Gen9 dedicated iLO Managementport kit 806565-B21)
Micro SD dual slot
1 Micro SD
USB 2.0
1 Front
USB 3.0
2 Rear, 1 internal
Upgradeability

  • Upgradeable to two processors (44 Cores)

  • Up to 16 DIMM slots available for higher Memory capacity

  • FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options

  • HPE Flexible Smart Array or Smart HBA Controllers

  • Embedded rear 6-Port SATA, B140i as standard

  • Optional 2 PCIe slot riser (x8, x8)

  • Optional 4LFF kit in rear, 2SFF+2FHHL PCIe kit, or 6SFF kit

  • Redundant power supply

  • HPE Legacy mode (FIO only, 758959-B22)

Industry standard compliance

  • ACPI 2.0b compliant

  • PCIe 3.0 compliant

  • PXE support

  • WOL support

  • Microsoft logo certifications

  • USB 2.0 and 3.0 support

  • Unified Extensible Firmware Interface Forum (UEFI)

  • ASHRAE A3

  • UEFI

Graphics
Integrated Matrox G200eH2 video standard with 16MB of video RAM

  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

HP iLO 4 On System Management Memory

  • 16MB Flash

  • 128MB DDR3

HPE Server UEFI/Legacy ROM
UEFI is an industry standard that provides better manageability and more secured configuration while interacting with users server at boot time
UEFI enables numerous new capabilities specific to Hewlett Packard Enterprise servers such as:

  • Secure boot

  • Operating system specific functionality

  • Support for > 2.2TB (Using GPT) boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using HPE RESTful API

  • PXE boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

Form factor

  • 2U Rack form factor

  • LFF and SFF drive bay versions: 8.75 x 44.8 x 81.28 cm (3.44 x 17.63 x 32 in)

Embedded management

  • HPE iLO

  • UEFI

  • RESTful API

  • Intelligent Provisioning

  • Embedded RemoteSupport

Server utilities

  • Smart update

  • HPE Systems Insight Manager (HPE SIM)

  • Scripting tool kit and Windows PowerShell

  • RESTful interface tool

  • HPE iLO mobile application

  • HPE Insight online

Security

  • Power-On password

  • Serial interface control

  • Administrator's password

  • iLO 4 has 12 customizable user accounts and SSL encryption

  • UEFI

  • iLO Can be disabled VIA a global setting

  • iLO Advanced supports directory services integration

  • TPM 1.2 or 2.0

top

Specs 3

Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant servers

  • Microsoft Windows Server

  • Canonical Ubuntu

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

top

Technical specifications

HPE Dynamic Smart Array B140i Controller
Specification
Description
Number of PCI links
Four (4)
PCI link rate
4 GB/s
Storage protocol support
SATA
SAS/SATA peak data transfer rate
6 GB/s
Number of SAS/SATA links
6 links
SAS/SATA connectivity
1 x 4 connectors; 2 x 1 connectors
Expander support
No
Drives supported (Max)
Up to 6 internal drives
RAID support
0, 1, 10, 5 SATA
Software management
HPE SSA, SMH, SIM
Warranty
Server warranty
HPE Secure Encryption license
Not supported
HPE SmartCache license
Not supported
HPE Smart Storage administrator
Supported
HPE Ethernet 1Gb 2-port 361i Adapter
Specification
Description
Network interface
10Base-T/100Base-TX/1000Base-TX
Compatibility

  • IEEE 802.3 10Base-T

  • IEEE 802.3ab 1000Base-T

  • IEEE 802.3u 100Base-TX

  • IEEE 1588, IEEE 802.1AS

  • IEEE 802.3az - Energy Efficient Ethernet (EEE)

Data transfer method
PCI Express v 2.0, 5.0 GT/s, two lanes (x2)
Controller
Intel I350 Powerville
Network transfer rate

  • 10Base-T (Half-Duplex): 10 Mb/s per port, 40 Mb/s combined

  • 10Base-T (Full-Duplex): 20 Mb/s per port, 80 Mb/s combined

  • 100Base-TX (Half-Duplex): 100 Mb/s per port, 400 Mb/s combined

  • 100Base-TX (Full-Duplex): 200 Mb/s per port, 800 Mb/s combined

  • 1000Base-TX (Half and Full-Duplex): 1000 Mb/s per port, 4000 Mb/s combined

Connector
Two RJ-45
Cable support
10 Base-T: Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000 Base-TX: Category 5 or higher UTP; up to 328 ft (100 m)

top

Physical specifications

Specification
Description
Dimensions (H x W x D) (Without bezel):
8.75 x 44.8 x 81.28 cm (3.44 x 17.63 x 32 in)
Weight (Approximate):
24LFF
48SFF
Minimum - 23.2 kg (51.04 lb)
Minimum - 21.2 kg (46.64 lb)
Maximum - 40.6 kg (89.32 lb)
Maximum - 35 kg (77 lb)

top

Electrical specifications

Specification
Description
Rated linevoltage

  • 100 to 120 V ac

  • 200 to 240 V ac

Maximum BTU rating
For 800 W Power Supply: 3207 BTU/hr (At 100 V ac), 3071 BTU/hr (At 200 V ac), 3112 BTU/hr (At 240 V ac) for China only
Rated Steady-State power

  • For 1400 W power supply: 1400 W (At 100 V ac), 1400 W (At 240 V ac), 1400 W (at 240 V ac)

  • For 800 W power supply: 800 W (At 100 V ac), 800 W (At 240 V ac), 800 W (At 240 V ac) input for China only

Maximum peak power

  • For 1400 W power supply: 1400 W (At 100 to 127 V ac), 1400 W (At 200 to 240 V ac), 1400 W (At 240 V ac) input for China only

  • For 800 W power supply: 800 W (At 100 to 127 V ac), 800 W (At 200 to 240 V ac), 800 W (At 240 V ac) input for China only

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35° C (50° to 95° F)
Non-operating temperature
-30° to 60° C (-22° to 140° F)
Extended ambient operating support
Minimum: 5° to 10° C (41° to 50° F)
Maximum: 35° to 40° C (95° to 104° F)
Operating relative humidity
8% to 90% non-condensing
Non-operating relative humidity
5% to 95% non-condensing
Operating altitude
3048 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)
Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment

Idle
Operating
L WAd
4.5 B Entry LFF
4.5 B Entry LFF
4.3 B Entry SFF
4.3 B Entry SFF
4.8 B Typical LFF
4.8 B Typical LFF
4.8 B Typical SFF
4.9 B Typical SFF
4.8 B Performance LFF
4.9 B Performance LFF
4.9 B Performance SFF
5.4 B Performance SFF
L pAm
4.5 B Entry LFF
30 dBA Entry LFF
4.3 B Entry SFF
27 dBA Entry SFF
4.8 B Typical LFF
33 dBA Typical LFF
4.9 B Typical SFF
33 dBA Typical SFF
4.9 B Performance LFF
35 dBA Performance LFF
5.4 B Performance SFF
37 dBA Performance SFF

top

Safety certifications

Specification
Description
FCC rating
Class A
Normative standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

top

You may also like
