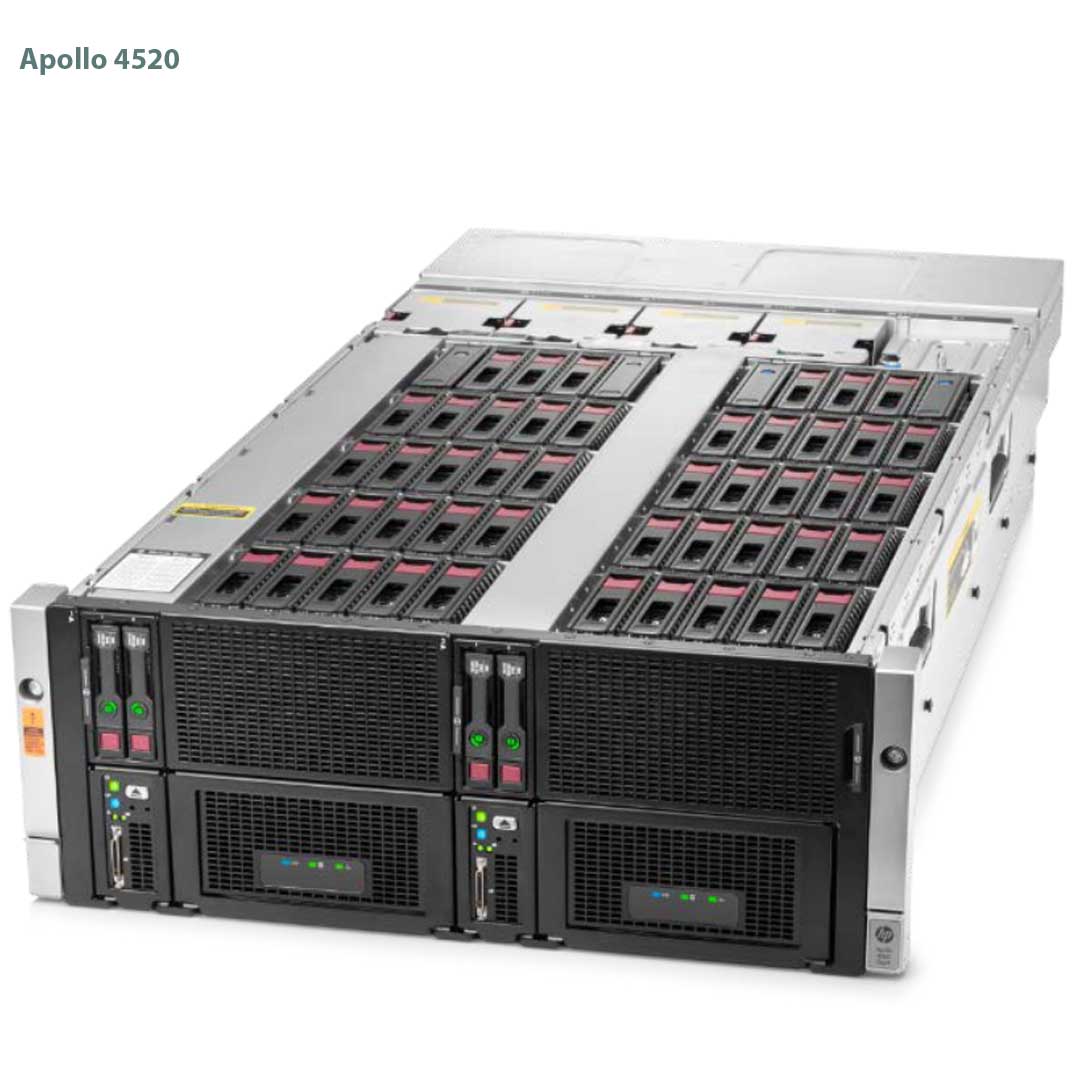

Hpe Proliant Apollo 4520 Gen9 Rack Server Chassis | 799581-B22

SKU: 799581-B22

Hpe Proliant Apollo 4520 Gen9 Rack Server Chassis | 799581-B22

Name: Hpe Proliant Apollo 4520 Gen9 Rack Server Chassis | 799581-B22
Brand: HPE
SKU: 799581-B22
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for Apollo 4500 Gen9

(3) 4U Chassis Options
D6000 DAS Support
XL450 Node server (786593-B21)
(2) Intel Xeon E5-2600 v3 and v4
(16) 2400MT/s DDR4 DIMMs Per Node
(4) PCIe Slots per 2Socket Node
HPE Ethernet 1Gb 2-port 361i Adapter standard
HPE iLO 4

Other Versions:

HPE ProLiant Apollo 2000 G9 | G10
HPE ProLiant Apollo 4200 G9 | G10 | G10+
HPE ProLiant Apollo 4500 G9 | ---
HPE ProLiant Apollo 6500 G9 | G10 | G10+
HPE ProLiant Apollo pc40
HPE ProLiant Apollo sx40

(Click to View)

Ideal for:

Big Data Analytics
Cloud Servers
Data Analytics
Database
High-Performance Computing (HPC)
Hyper-Converged infrastructure (HCI)
Virtualization

With the HPE Apollo 4500 Systems, HPE challenges the notion that one-size-fits all for Big Data infrastructure by creating purpose-built systems that specifically address storage and analytics workloads.

For object storage, the ultra-dense Apollo 4510 includes 1 server and up to 68 Large Form Factor (LFF) drives in a 4U chassis for a maximum of 680 TB per system.. For Hadoop® and other Big Data solutions, the Apollo 4530 uniquely offers 3 servers per chassis, ideal for housing 3 copies of data in a single system.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processor (One of the following depending on model)

E5-2600 v4 Series

Twenty-Two Core Processors

Intel Xeon E5 2699 v4 (2.2 GHz/22 core/55MB/145 W) Processor

Twenty Core Processors

Intel Xeon E5 2698 v4 (2.2 GHz/20 core/50MB/135 W) Processor

Eighteen Core Processors

Intel Xeon E5 2695 v4 (2.1 GHz/18 core/45MB/120 W) Processor
Intel Xeon E5 2697 v4 (2.3 GHz/18 core/45MB/145 W) Processor

Sixteen Core Processors

Intel Xeon E5 2683 v4 (2.1 GHz/16 core/40MB/120 W) Processor
Intel Xeon E5 2697A v4 (2.6 GHz/16 core/40MB/145 W) Processor

Fourteen Core Processors

Intel Xeon E5 2690 v4 (2.6 GHz/14 core/35MB/135 W) Processor
Intel Xeon E5 2680 v4 (2.4 GHz/14 core/35 MB/120 W) Processor
Intel Xeon E5 2660 v4 (2.0 GHz/14 core/35 MB/105 W) Processor
Intel Xeon E5 2650L v4 (1.7 GHz/14 core/35MB/65 W) Processor

Twelve Core Processors

Intel Xeon E5 2650 v4 (2.2 GHz/12-core/30MB/105 W) Processor

Ten Core Processors

Intel Xeon E5 2640 v4 (2.4 GHz/10-core/25MB/90 W) Processor
Intel Xeon E5 2630L v4 (1.8 GHz/10-core/25MB/55 W) Processor
Intel Xeon E5 2630 v4 (2.1 GHz/8-core/20MB/85 W) Processor

Eight Core Processors

Intel Xeon E5 2620 v4 (2.1 GHz/8-core/20MB/85 W) Processor

Six Core Processors

Intel Xeon E5 2603 v4 (1.7 GHz/6-core/15MB/85 W) Processor

E5-2600 v3 Series

Sixteen Core Processors

Intel Xeon E5-2698 v3 (2.3 GHz/16 core/40MB/135 W) Processor

Fourteen Core Processors

Intel Xeon E5-2695 v3 (2.3 GHz/14 core/35 MB/120 W) Processor
Intel Xeon E5-2683 v3 (2 GHz/14 core/35MB/120 W) Processor

Twelve Core Processors

Intel Xeon E5-2690 v3 (2.6 GHz/12 core/30MB/135 W) Processor
Intel Xeon E5-2680 v3 (2.5 GHz/12 core/30MB/120 W) Processor
Intel Xeon E5-2680 v3 (2.5 GHz/12 core/30MB/120 W) Processor
Intel Xeon E5-2680 v3 (2.5 GHz/12 core/30MB/120 W) Processor
Intel Xeon E5-2670 v3 (2.3 GHz/12 core/30MB/120 W) Processor
Intel Xeon E5-2650L v3 (1.8 GHz/12 core/30MB/65 W) Processor

Ten Core Processors

Intel Xeon E5-2660 v3 (2.6 GHz/10 core/25MB/105 W) Processor
Intel Xeon E5-2650 v3 (2.3 GHz/10 core/25MB/105 W) Processor

Eight Core Processors

Intel Xeon E5-2640 v3 (2.6 GHz/8-core/20MB/90 W) Processor
Intel Xeon E5-2630 v3 (2.4 GHz/8-core/20MB/85 W) Processor
Intel Xeon E5-2630L v3 (1.8 GHz/8-core/20MB/55 W) Processor

Six Core Processors

Intel Xeon E5-2620 v3 (2.4 GHz/6-core/15MB/85 W) Processor
Intel Xeon E5-2603 v3 (1.6 GHz/6-core/15MB/85 W) Processor

Chipset

Intel C610 series chipset
Intel E5-260 0v3 processor family
Intel E5-2600 v4 processor family

Cache memory

E5-2600v4 Processors

50MB (1 x 50MB) Level 3
45MB (1 x 45MB) Level 3
40MB (1 x 40MB) Level 3
35MB (1 x 35MB) Level 3
30MB (1 x 30MB) Level 3
25MB (1 x 25MB) Level 3
20MB (1 x 20MB) Level 3

E5-2600v3 Processors

40MB (1 x 40MB) Level 3
35MB (1 x 35MB) Level 3
30MB (1 x 30MB) Level 3
25MB (1 x 25MB) Level 3
20MB (1 x 20MB) Level 3
15MB (1 x15MB) Level 3

Legacy mode

HPE Legacy mode (FIO only - P/N 758959-B22)

NOTE: UEFI is the default mode for CTO SKUs. Can change default to legacy VIA CTO.

On system management chipset

HPE Integrated Lights-Out (iLO) (Firmware: HPE iLO4)

Memory protection

Advanced ECC (Multi-bit error protection)
Online spare
Lock step mode

Memory

Type	HPE SmartMemory DDR4 Registered (RDIMM and LRDIMM)
DIMM slots available	16 DIMM slots available
Maximum capacity (RDIMM or LRDIMMs) per server tray	1024GB (16 x 64GB) Registered memory configurations

Network controller

HPE Ethernet 1Gb 2-port 361i Adapter

Expansion slots dedicated to each server node

Expansion Slots #	Technology	Bus Width	Connector Width	Form Factor	Notes
0	PCIe 3.0	X8	X16	Low profile slot	CPU 0; FlexibleLOM
1	PCIe 3.0	X8	X16	Low profile slot	CPU 0; SA/HBA
2	PCIe 3.0	X8	X16	Low profile slot	CPU 0; SA/HBA
3	PCIe 3.0	X8	X16	Low profile slot	CPU 1
4	PCIe 3.0	X8	X16	Low profile slot	CPU 1

Storage controller (Dedicated to each server node)

Software RAID

HPE Dynamic Smart Array B140i SATA RAID
HPE Smart Array P244br/1G FIO Controller
HPE H244br FIO Smart HBA

SAS Controllers for external bulk drives

HPE H241 Smart HBA
HPE Smart Array P441/4G Controller
HPE Smart Array P841/4G Controller

Smart storage battery

HPE DL/ML/SL 96 W 145 mm smart stor battery

Internal bulk storage controller options by model

The following table shows supported controller choices for each model, per I/O module

Model	1xH240	2xH240	1xP440	2xP440	1xP840
Apollo 4510	Yes	Yes	Yes	Yes	Yes
Apollo 4520	Yes	Yes	-	-	-
Apollo 4530	Yes	-	Yes	-	-

Internal storage devices

USB drive	VIA USB port, external support only
Hard drives	None ship standard

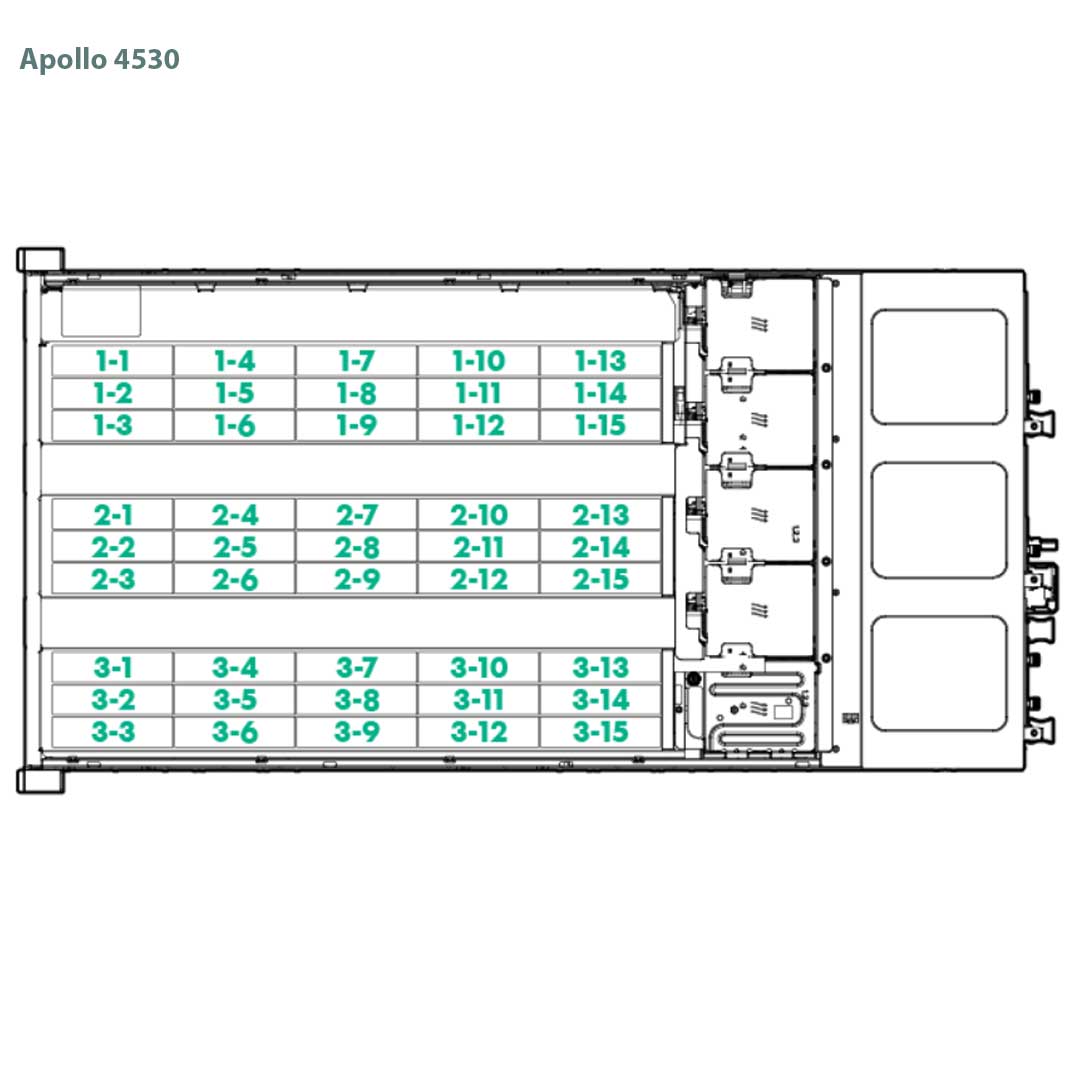

Drive bays	2 SFF drive bays total in each HPE ProLiant XL450 Server 68 LFF drive bays total in chassis for Apollo 4510 45 LFF drive bays total in chassis for Apollo 4530 (15 drives per server)

Internal storage

Apollo 4510: 1x68 Model - 68 LFF Drives per node

Drives	Capacity	Configuration
Hot plug LFF SAS	680TB	68 x 10TB
Hot plug LFF SATA	680TB	68 x 10TB
Hot plug LFF SAS SSD	108.8TB	68 x 1.6TB
Hot plug LFF SATA SSD	65.3TB	68 x 960GB
Hot plug SFF SATA SSD	3.84TB	2 x 1.92TB
Hot plug SFF SATA	3.2TB	2 x 1.6TB
M.2 2280 SSD	2TB	2 x 1TB
M.2 2280 SSD	680GB	2 x 340GB

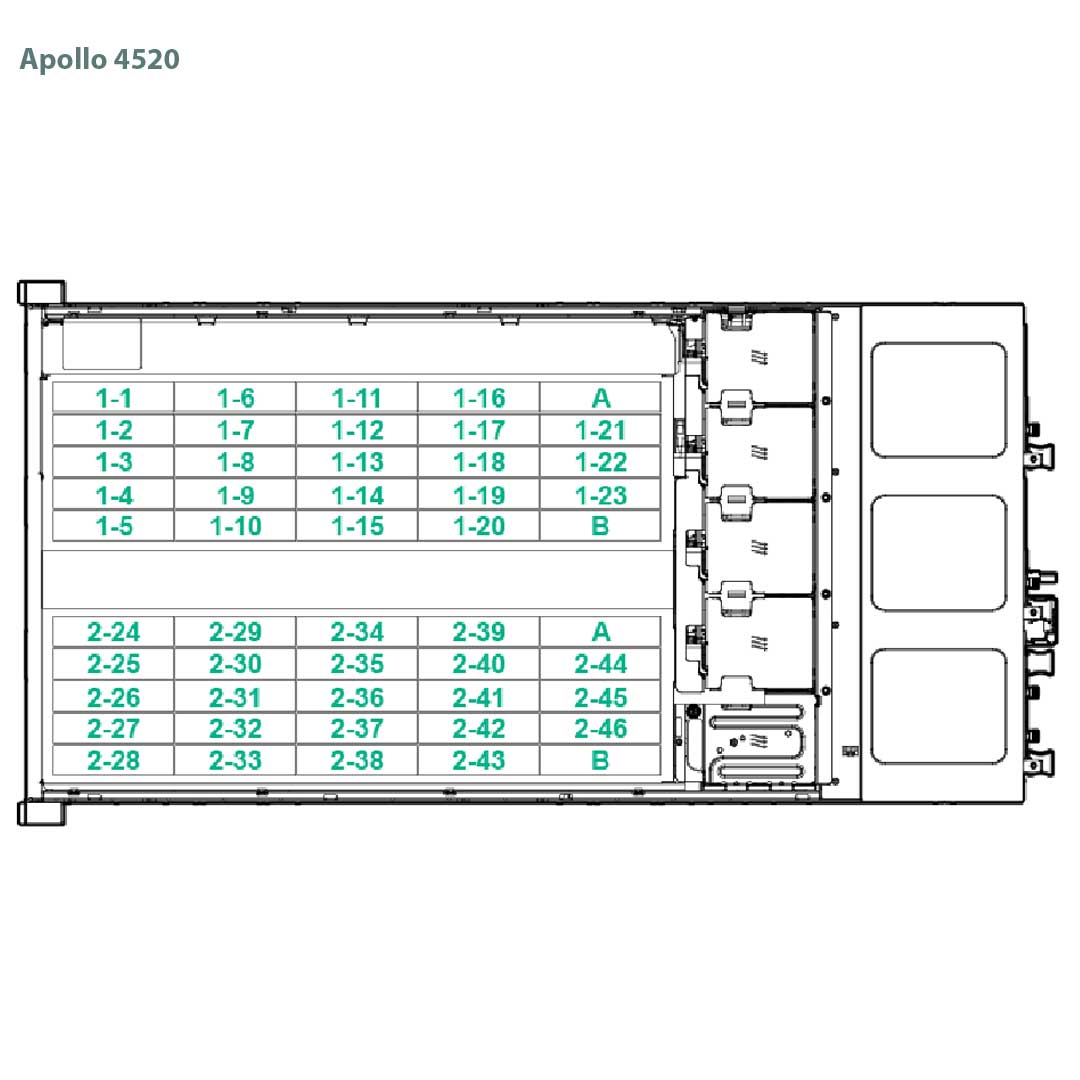

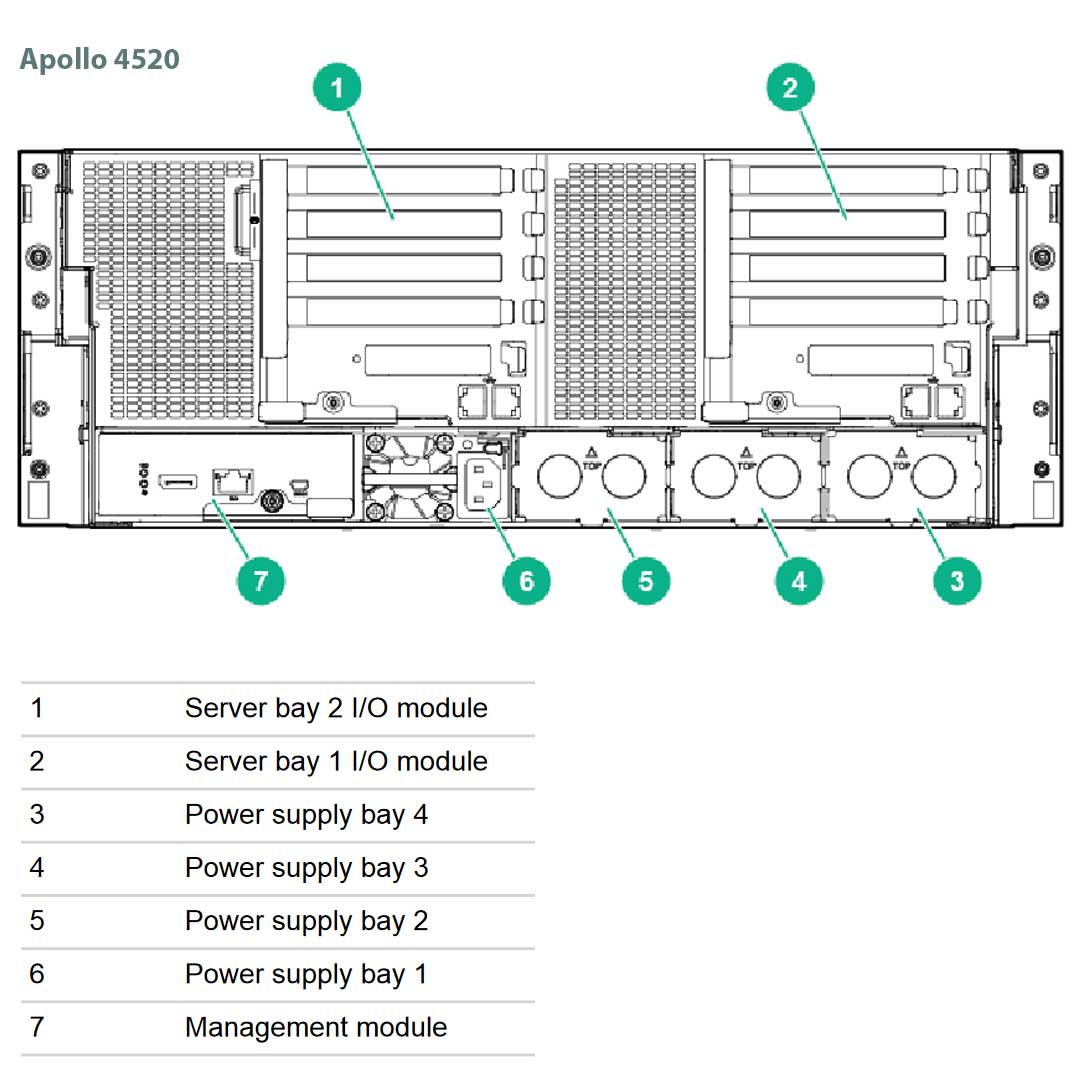

Apollo 4520: 23 LFF Drives per node, 2 nodes total for a total of 46 LFF Drives per chassis

Drives	Capacity	Configuration
Hot plug LFF SAS	460TB	46 x 10TB
Hot plug LFF SAS SSD	73.6TB	46 x 1.6TB
Hot plug SFF SAS SSD	6.4TB	4 x 1.6TB
M.2 2280 SSD	1.02TB	4 x 340GB

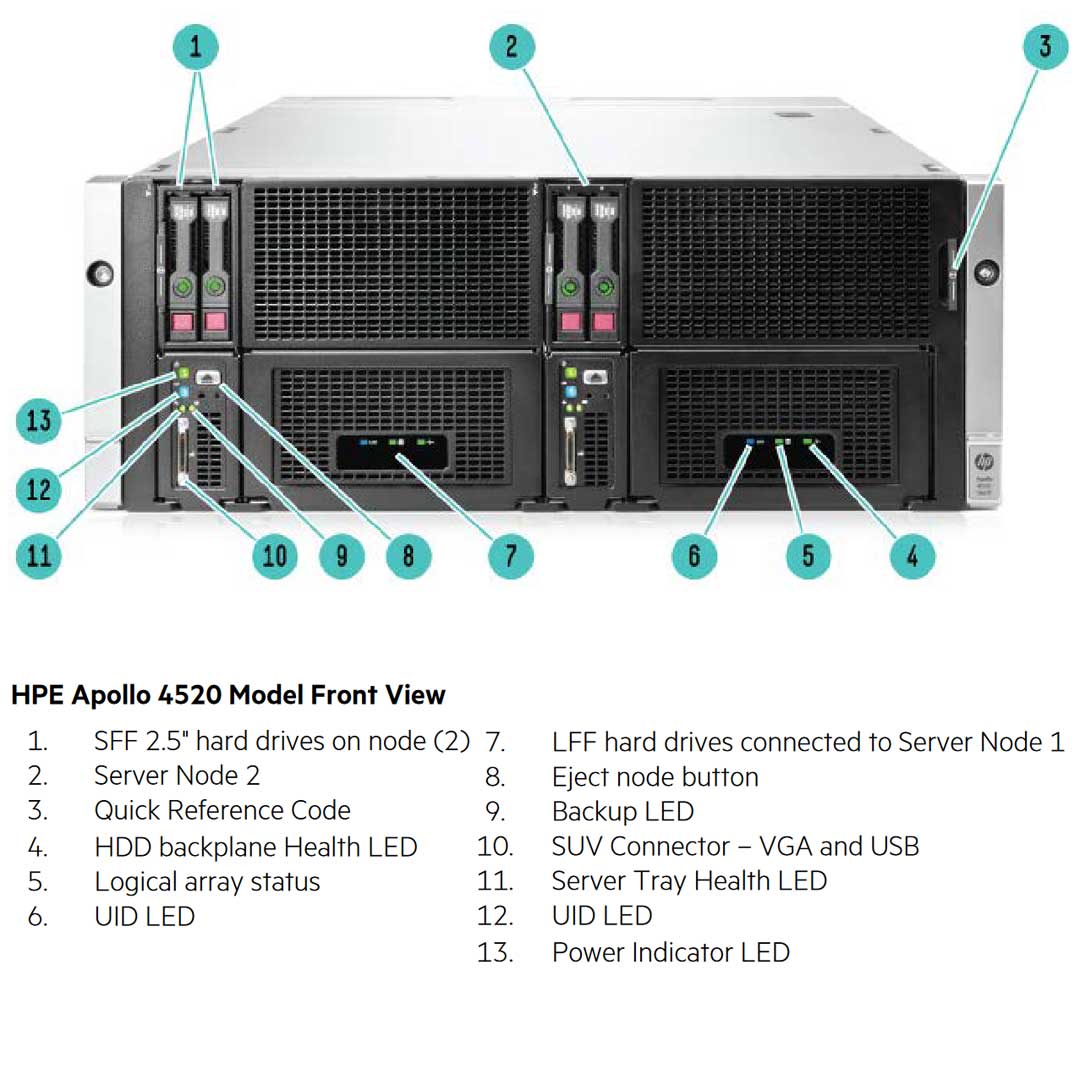

Interfaces

Network RJ-45	Two 1 GbE NIC ports
Management network port	1 GbE dedicated
Health LED	1 front
Power	1 front
UID for node	1 front per node and 1 rear on management module
UID for storage	1 per display board
SUV	Serial + USB + video (All in one)

Industry standard compliance

ACPI 5.0 compliant
PCIe 3.0 compliant
WOL support
Microsoft logo certifications
PXE support
USB 1.1 and 2.0 compliant
SMBIOS 3.0.0

Server power cords

6 Highline (IEC-IEC) power cord ships standard

System fans

System ships standard with 5 hot-plug fan modules

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 bp)
1920 x 1200 (16 bp)

Form factor

4U form factor

Security

Power-On password
QuickLock, network server mode
Serial interface control
Administrator's password
iLO 4 has 12 customizable user accounts and SSL encryption
iLO 4 can be disabled VIA a global setting
iLO Advanced supports directory services integration

Insightmanagement

HPE Insight control
HPE iLO Advanced
HPE Matrix operatingenvironment

High performanceClusters (HPC)

HPE HPC interconnects
HPE Insight clustermanagement utility
HPE HPC Linux valuepack

top

Specs 2

Software overview

Feature	Description
Operating systems and virtualization software support for ProLiant servers	Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware

top

Physical specifications

Specification	Description
Dimensions (H x W x D)	17.48 x 44.33 x 88.9 cm (6.88 x 17.45 x 35 in)
Weight (Approximate):	Minimum - 27.22 kg (60 lb) Maximum - 99.8 kg (220 lb)

top

Technical specifications

HPE Ethernet 1Gb 2-port361i Adapter

Specification

Description

Network interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 1588, IEEE 802.1AS
IEEE 1588, IEEE 802.1ASIEEE 802.3az - Energy Efficient Ethernet (EEE)

Data transfer method

PCI express v 3.0, 8.0 GT/s, 5.0 GT/s and 2.5 GT/s bus speeds for a x1link

Controller

I350 powerville

Network transfer rate

10Base-T (Half-duplex)	10 Mb/s per port, 20 Mb/s combined
10Base-T (Full-duplex)	20 Mb/s per port, 40 Mb/S combined
100Base-TX (Half-duplex)	100 Mb/s per port, 200 Mb/s combined
100Base-TX (Full-duplex)	200 Mb/s per port, 400 Mb/s combined
1000Base-TX (Half andfull-duplex)	1000Mb/s per port, 2000 Mb/s combined

Connector

RJ-45

Cable support

10Base-T	Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX	Category 5 UTP; up to 328 ft (100 m)

top

Electrical specifications

Specification	Description
Rated line voltage	100 to 120 V ac 200 to 240 V ac
Rated input current	For 1400 W power supply: 8 A (At 200 V ac) 6.7 A (At 240 V ac) For 800 W power supply: 9.4 A (At 100 V ac) 4.5 A (At 240 V ac)
Rated input frequency	50 to 60 Hz
Power supply output (Per power supply)	Maximum power For 1400 W power supply: 1400 W (At 200 to 240 V ac) For 800 W power supply: 800 W (At 100 to 240 V ac)

top

Environmental specifications

Specification	Description
Operating temperature	10° to 35°C (50° to 95°F)
Non-operating temperature	-30° to 60°C (-22° to 140°F)
Operating relative humidity	10% to 90% non-condensing
Non-operating relative humidity	5% to 95% non-condensing
Operating altitude	3048 m (10,000 ft)
Non-operating altitude	9144 m (30,000 ft)

top

Safety certifications

Specification	Description
Emissions Classification (EMC)
FCC rating	Class A
Normative standards	CISPR 22; EN55022; EN55024; FCC CFR 47,Pt 15; ICES-003; CNS13438; K22;K24; EN61000-3-2; EN 61000-3-3; EN 60950-1; IEC60950-1
