-*Image may differ from actaul product

Dell PowerEdge C6620 Node Server CTO

Price: Configure for Price

Brand:

Dell

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Form Factor:

1U rack server

Processor | Max: 56 Cores

2x 4th Generation Intel Xeon Scalable

Memory | Max: 4TB

16 DDR5 RDIMM 4800Mhz

Storage | Max: 288TB

(Enclosure)
16 SFF or
8 EDFF SAS/SATA/NVMe

Rear Storage:

None

PCIe Slots:

2x PCIe 5.0

GPU:

Up to 2 x 75W low-profile, half-len

Other Versions:

Ideal for:

High-Performance Computing
Financial/Trading Servers
Web Tech

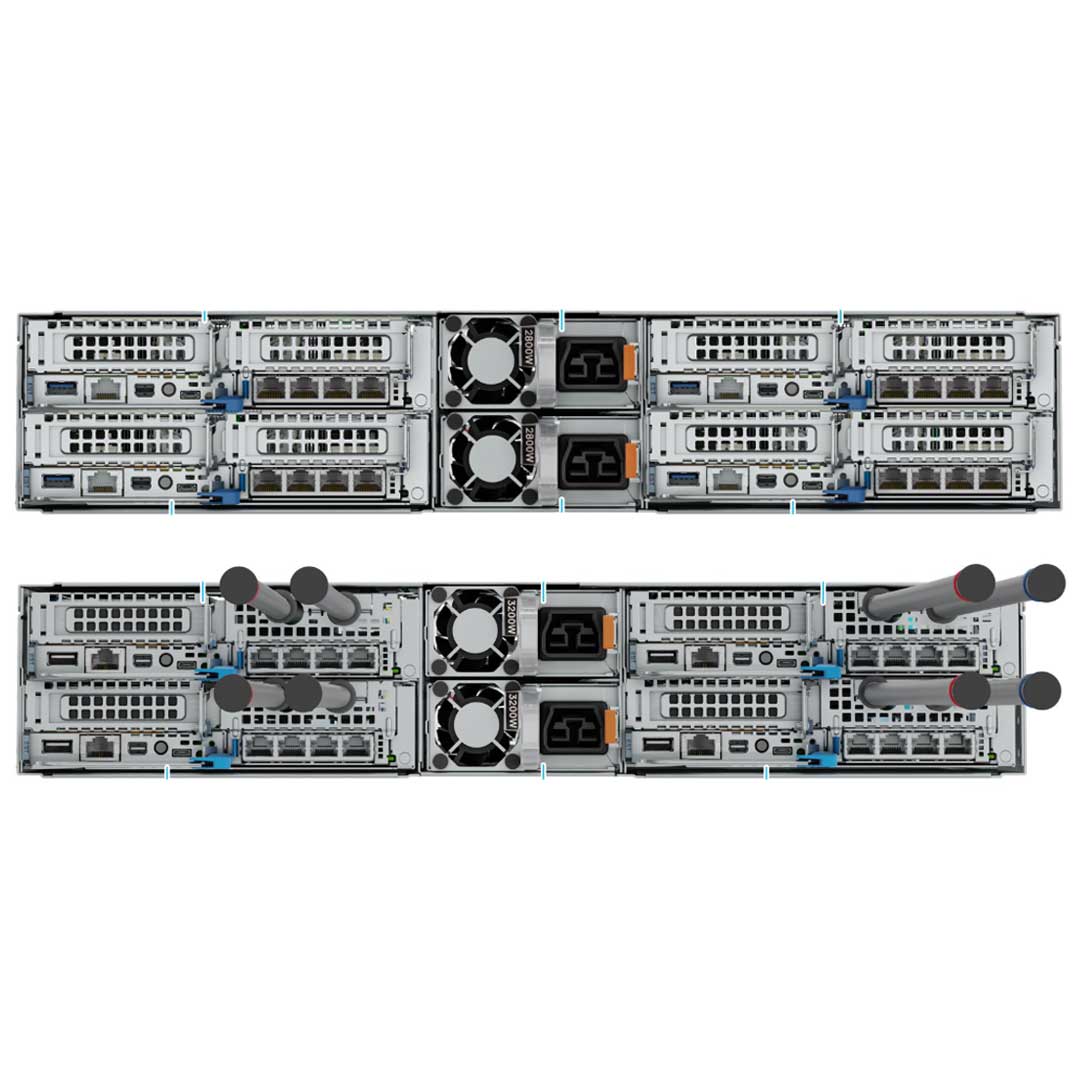

The Dell C6600 holds 4 Nodes. Either the AMD C6615 or the Intel C6620 Node Server.
You can not mix nodes.

This is 1 of the 2 Supported Nodes. The Dell C6600 Enclosure CTO must be configured separately.

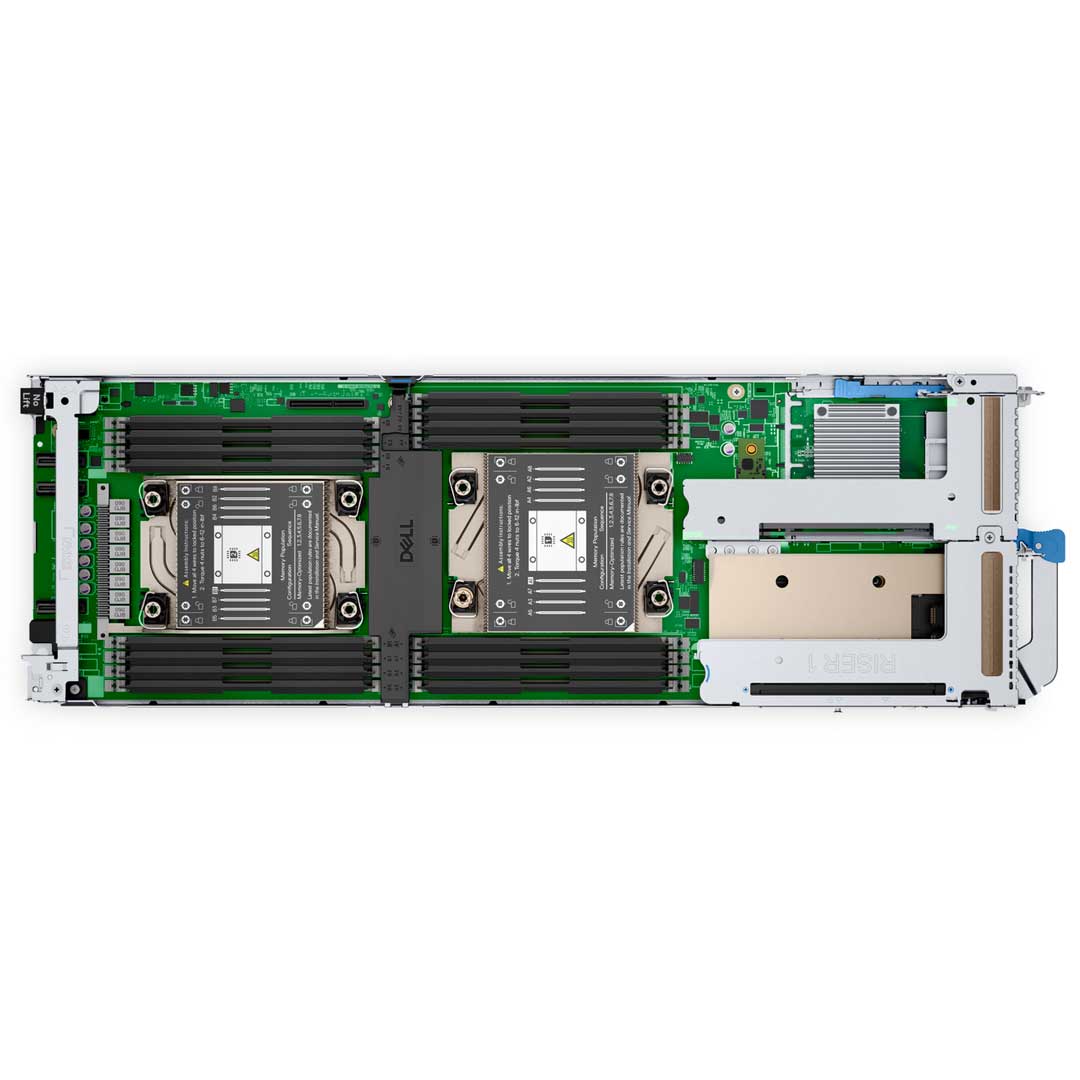

The Dell C6620 CTO is a server Node that gets placed into the rear of the C6600 Rack Enclosure. The Rack Enclosure can handle up to 4 systems in one enclosure. (2U4N)

The next-generation compute-dense Dell PowerEdge C6620 is a multi-node (2U4N) server designed for compute-intensive workloads. Right-sized low-latency storage makes it ideal for IOPS-heavy workloads. With improved Dell DLC (direct liquid cooling) support and expanded air-cooling coverage, thermal efficiencies can help lower energy and ownership costs while helping scale your business.

Reduce design cycles and innovate faster

Delivering breakthrough innovation, the PowerEdge C6620 enables high-performance and scale-out computing with performance and density. Requiring only half the footprint of 1U rack servers, take advantage of lowered TCO with half the infrastructure.

The Dell PowerEdge C6600 is a high-performance server designed to boost outcomes for core applications such as:

Max ROI

DUse up to two Next Generation Intel Xeon Scalable processors with up to 56 cores per processor and up to 8,960 cores in a standard 42U rack (compared to 4,480 cores in a 1U rack).
Enables DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 for faster access and transport of data, optimizing application output.
Optional liquid cooling is available to efficiently cool high-performance CPUs while reducing energy costs and carbon footprint.

Scale more efficiently within your existing datacenter

Increase core density in existing racks and maintain core data center ambient temperature.
53% increase in air cooling configuration support over previous generation.
Faster, low-latency storage with Gen5 E3.S.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

Chassis Options

The C6620 Node Server (2U4N) is only supported in the following Chassis.

Diskless Chassis
Up to 16x 2.5" universal backplane
Up to 16x 2.5" SAS/SATA hard drive backplane
Up to 16x 2.5" NVMe hard drive backplane
Up to 8x E3.s NVMe SSDs hard drive backplane

Heatsink & Fans

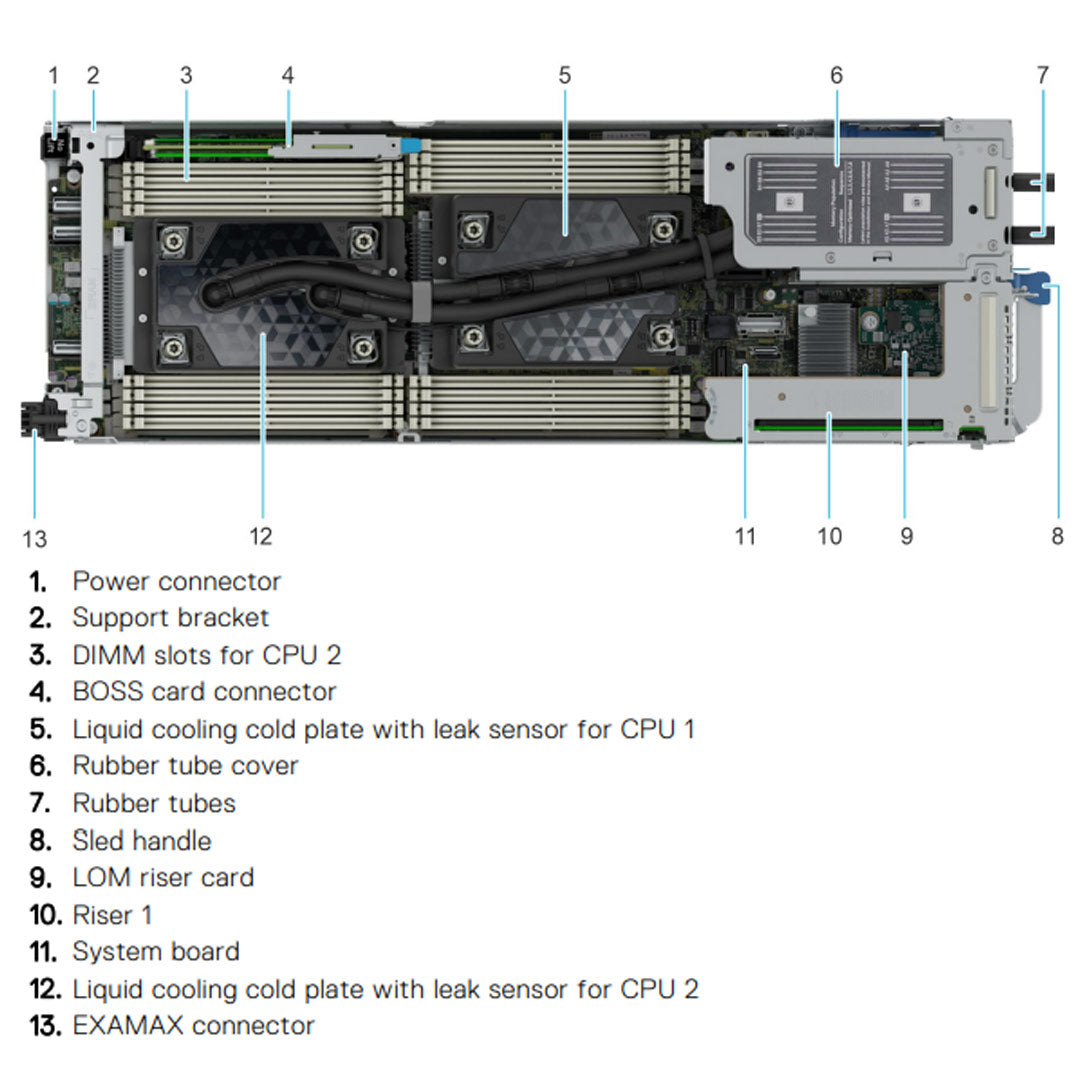

The Dell C6620 supports both air-cooled and Direct Connect Liquid Cooling (DLC). Liquid Cooling is not supported with all Risers configurations. The tubes for the DLC take over Slot 2. Please read the Riser configuration table below for more detailed information.

The Extended Heat sink (T0FVH) comes with a bracket that will need to be installed in PCIe Slot 2. The Extended Heat Sink is used in the following configurations.

2.5” with 1 CPU with a TDP 270W or below.
E3.S with 2 Socket with TDP 270W or below.
No Backplane with 2 Socket with TDP 270W or below.
E3.S with 1 Socket with TDP 350W.
No Backplane with 1 Socket with TDP 350W.

Image of the extended Heat sink for the Dell C6620 Node Server

For more detailed information about the Thermal Restrictions. Please view the manual below and look for "Supported Ambient Temperature".

Memory

On a two-socket configuration, the C6620 can support up to 16 DDR5 DIMs. This node server only supports registered ECC DDR5 DIMM. If a DIMM is not installed a blank must be in its place.

DIMM speed (MT/s)	DIMM type	DIMM capacity	Ranks per DIMM	Data width	DRAM density (Gb)	DRAM package type	SDDC support	DIMM voltage (V)
4800	RDIMM	16	1	x8	16	SDP	All Modes	1.1
4800	RDIMM	32	2	x8	16	SDP	All Modes	1.1
4800	RDIMM	64	2	x8	16	SDP	All Modes	1.1
4800	RDIMM	128	2	x8	16	SDP	All Modes	1.1

Expansion Slots

The C6620 Node server also has support for up to two 75 W (Low-Profile) GPUs. Along with a few different riser configurations.

Configuration	Number of CPUs	PERC type supported	Rear storage possible	Liquid cooling	No backplane	x16 NVMe backplane	x16 SAS/SATA backplane	x16 universal backplane	x8 E3.s backplane
Config 0	CPU1/2	NA	No	Y	Y	Y	Y	Y	Y
Config 1 - 1A	CPU1/2	Adapter PERC	No	Y	Y	Y	Y	Y	Y
Config 2 - 1A+2A	CPU1/2	Adapter PERC	No	N	Y	Y	Y	Y	Y
Config 3 - 1B	CPU2	NA	No	Y	Y	Y	Y	N	Y
Config 4 - 1B+2B	CPU2	NA	No	N	Y	Y	Y	N	Y
Config 5 - 1A+2B	CPU2	Adapter PERC	No	N	Y	Y	Y	Y	Y
Config 6 - 1B+2A	CPU2	NA	No	N	Y	Y	Y	N	Y
Config 7 - 2B	CPU2	NA	No	N	Y	Y	Y	Y	Y

Image of Riser 1A for the Dell C6620 Node Server.

R1A - Slot 1, x16, LP-HL

Image of Riser 1B for the Dell C6620 Node Server.

R1B - Slot 1, x8 + x8, LP-HL

Image of Riser 2A for the Dell C6620 Node Server.

R2A - Slot 2, x16, LP-HL

Image of Riser 2B for the Dell C6620 Node Server.

R2B - Slot 2, x16, LP-HL

Networking Adapters

LOM Mezzanine

The Node Server comes with a Broadcom BCM5720 Gigabit Ethernet controller. This along with the other PCIe slots are the only way to expand the networking capabilities of the C6620 Node Server. When using the LOM ports you save a PCIe slot. This is very important since there are only 2 PCIe 5.0 slots on the back of the C6620 Node Server.

OCP 3.0

The Node Server comes with a 4 port OCP 3.0 slot with speeds up to 25Gb per port. This OCP along with the LOM and the PCIe slots are the only way to expand the networking capabilities of the C6620 Node Server. When using the OCP ports you save a PCIe slot. This is very important since there are only 2 PCIe 5.0 slots on the back of the C6620 Node Server.

Storage Controllers

The Dell C6620 supports the NVMe and EDSFF Drives with the PERC 12 controller. The H965i PERC 12 controller can handle up to 8 drives per controller without a backplane switch. The system also supports the BOSS-N1 Riser which has 2 M.2 NVMe SSD drives for boot as well as PERC 11 cards.

Dell's RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.

Controller type	Description
Internal controllers	PERC H965, PERC H755, PERC H355
Internal boot	Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 X M.2 SSDs, uSD card
External HBA (non-RAID)	HBA355i
Software RAID	S160

Image of the BOSS M.2 Riser for the Dell C6620 Node Server.

Dimensions & Weight:

Dimension:

Width: 174.4 mm (6.86 inches)
Height: 40.0 mm (1.57 inches)

Length:

549.7 mm (21.64 inches) - diskless
561.3 mm (22.10 inches) - SAS/SATA
561.3 mm (22.10 inches) - NVMe/Universal
561.3 mm (22.10 inches) - E3.S

Weight Per Node:

8 x E3.s 41.1 kg (90.60 pounds)
16 x 2.5-inch SAS/SATA 42.5 kg (93.69 pounds)
16 x 2.5-inch NVMe 41.8 kg (92.15 pounds)
Diskless 39.2 kg (86.42 pound)

Feature	Technical Specifications
Chassis	Dell PowerEdge C6600 chassis
Nodes	Up to 4 hot-swappable 2-socket C6620 sleds in a 2U C6600 chassis
Processor	Up to two 4th Generation Intel Xeon Scalable processors, with up to 56 cores per processor
Memory	• 16 DDR5 DIMM slots, supports RDIMM of 4 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal controllers (RAID): PERC H965i, PERC H755, PERC H355 • Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB • Internal 12 Gbps SAS HBAs (non-RAID): Internal HBA355i • Software RAID: S160
Availability	Hot-plug redundant drives and PSUs
Drive Bays	Front bays: • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 61 TB • Up to 8 x E3.s NVMe SSD drives max 288 TB • System with no backplane
Power Supplies	• 3200W 277 VAC or 336 VDC redundant, hot swap • 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap • 2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap • 1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
Cooling Options	Air cooling, optional processor liquid cooling
Fans	Up to 4 cold swap fans
Dimensions	• Height – 40.0 mm (1.57 inches) • Width – 174.4 mm (6.86 inches) • Depth – 549.7 mm (21.64 inches)
Weight	42.5 kg (93.69 pound)
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module
OpenManage Software	• CloudIQ for PowerEdge plugin • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • RedHat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	1 x 1 GbE
GPU Options	Up to 2 x 75W low-profile, half-length
Network cards	1 x OCP 3.0 x16 Gen4 (for network controller)
Rear Ports	• 1 x USB 3.0 • 1 x iDRAC ethernet port • 1 x iDRAC Direct (Micro-AB USB) port • 1 x Mini-DisplayPort
PCIe	2 x PCIe Gen5 slots: • 1 x16 Gen5 (x16 PCIe) low-profile, half-length (slot 1 optional) • 1 x16 Gen5 (x8 + x8 PCIe) low-profile, half-length for SNAP I/O module (slot 1 optional) • 1 x16 Gen5 (x16 PCIe) low-profile, half-length (slot 2 optional) • 1 x16 Gen5 (x8 PCIe) low-profile, half-length (slot 2 optional)
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi/vSAN

Feature

Technical Specifications

Chassis

Dell PowerEdge C6600 chassis

Nodes

Up to 4 hot-swappable 2-socket C6620 sleds in a 2U C6600 chassis

Processor

Up to two 4th Generation Intel Xeon Scalable processors, with up to 56 cores per processor

Memory

• 16 DDR5 DIMM slots, supports RDIMM of 4 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only

Storage controllers

• Internal controllers (RAID): PERC H965i, PERC H755, PERC H355
• Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
• Internal 12 Gbps SAS HBAs (non-RAID): Internal HBA355i
• Software RAID: S160

Availability

Hot-plug redundant drives and PSUs

Drive Bays

Front bays:
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max 61 TB
• Up to 8 x E3.s NVMe SSD drives max 288 TB
• System with no backplane

Power Supplies

• 3200W 277 VAC or 336 VDC redundant, hot swap
• 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap
• 2400W Platinum 100-240 VAC or 240 VDC redundant, hot swap
• 1800W Titanium 200-240 VAC or 240 VDC redundant, hot swap

Cooling Options

Air cooling, optional processor liquid cooling

Fans

Up to 4 cold swap fans

Dimensions

• Height – 40.0 mm (1.57 inches)
• Width – 174.4 mm (6.86 inches)
• Depth – 549.7 mm (21.64 inches)

Weight

42.5 kg (93.69 pound)

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module

OpenManage Software

• CloudIQ for PowerEdge plugin
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin

Mobility

OpenManage Mobile

Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• RedHat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

1 x 1 GbE

GPU Options

Up to 2 x 75W low-profile, half-length

Network cards

1 x OCP 3.0 x16 Gen4 (for network controller)

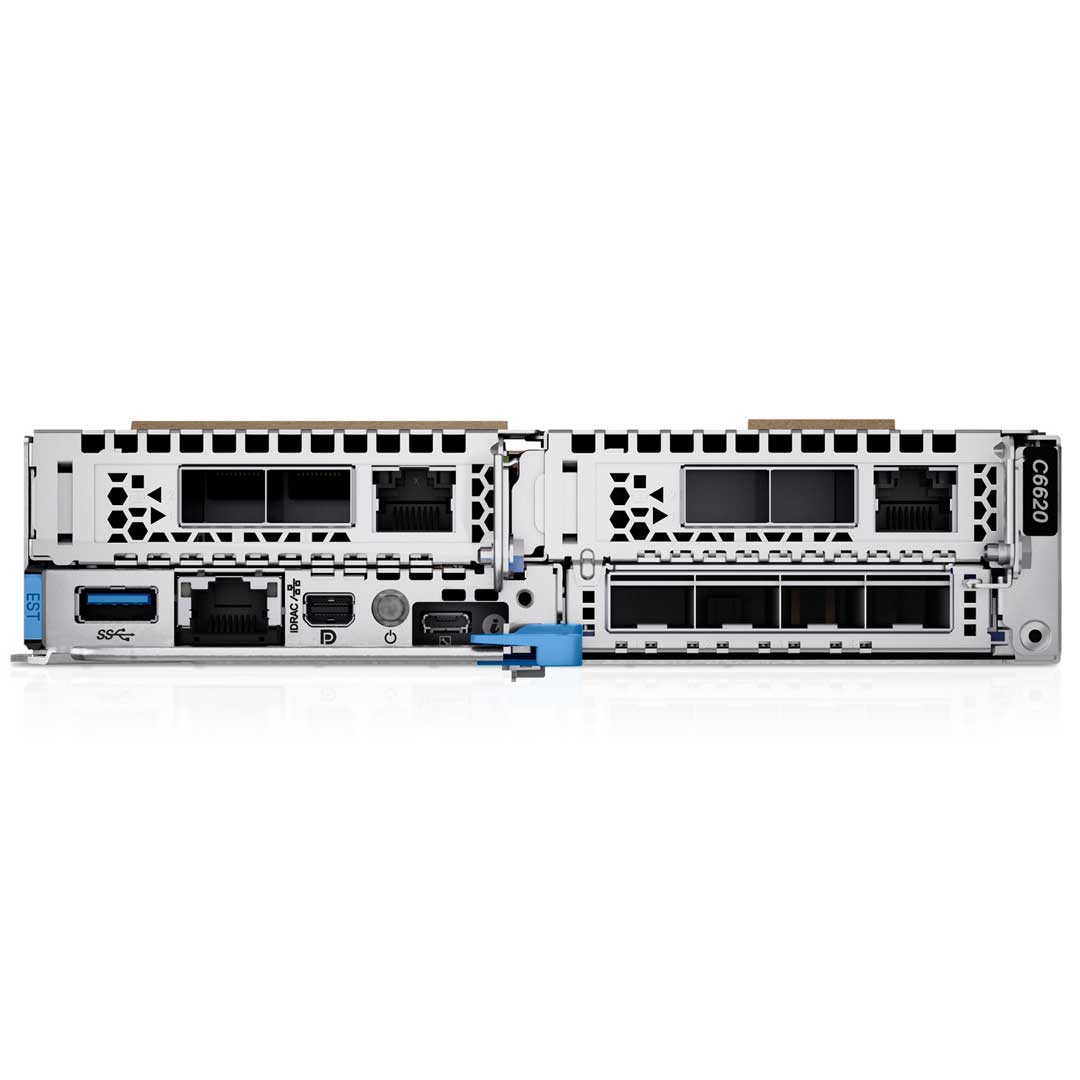

Rear Ports

• 1 x USB 3.0
• 1 x iDRAC ethernet port
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x Mini-DisplayPort

PCIe

2 x PCIe Gen5 slots:
• 1 x16 Gen5 (x16 PCIe) low-profile, half-length (slot 1 optional)
• 1 x16 Gen5 (x8 + x8 PCIe) low-profile, half-length for SNAP I/O module (slot 1 optional)
• 1 x16 Gen5 (x16 PCIe) low-profile, half-length (slot 2 optional)
• 1 x16 Gen5 (x8 PCIe) low-profile, half-length (slot 2 optional)

Operating System and Hypervisors

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi/vSAN

Features	PowerEdge C6620	PowerEdge C6520
Processors	Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores	Up to two 3rd Generation Intel Xeon Scalable processors, up to 32 cores per processor
Memory	DIMM Speed: ● Up to 4800 MT/s Memory Type: ● High-Bandwidth Memory ● RDIMM Memory module slots: ● 16 DDR5 DIMM slots ● Supports registered ECC DDR5 DIMM slots only Maximum RAM: ● RDIMM 4 TB	DIMM Speed: ● Up to 3200 MT/s Memory Type: ● RDIMM ● LRDIMM Memory module slots: ● 16 DDR4 DIMM slots ● Supports registered ECC DDR4 DIMM slots only Maximum RAM: ● RDIMM 4 TB ● LRDIMM 4 TB
Storage Controllers	● Internal controllers: PERC H965i, PERC H755, HBA355, HBA355i ● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs ● Software RAID: S160	● Internal Controllers: PERC H350, PERC H345, PERC H750, PERC H745, HBA355I, and HBA345 ● Internal Boot: Boot Optimized Storage Subsystem (BOSS-S1) - HWRAID 2 x M.2 SSDs 240 GB, 480 GB ● Software RAID: S150
Drive Bays	The C6600 chassis supports up to: ● 16 x 2.5-in SAS/SATA/NVMe (HDD/SSD) drives. ● 8 x E3.s NVMe SSDs	The C6400 chassis supports up to: ● 12 x 3.5-in hard drive - SAS/SATA ● 24 x 2.5-in hard drive - SAS/SATA/NVMe
Power Supplies	● 1800 W Titanium AC/200 - 240 V autoranging ● 1800 W DC/240 V ● 2400 W Platinum AC/100 - 240 V ● 2400 W DC/240 V ● 2800 W Titanium AC/200 - 240 V autoranging ● 2800 W DC/240 V ● 3200 W AC/277 V ● 3200 W DC336 V NOTE: 3200 W AC and DC power supplies are only available in North America.	● 1600 W Platinum AC/100 - 240 V autoranging ● 2000 W Platinum AC/100 - 240 V autoranging ● 2400 W Platinum AC/100 - 240 V autoranging ● 2600 W Platinum AC/100 - 240 V autoranging
Cooling Options	● Air cooling ● Liquid cooling	● Air cooling ● Liquid cooling
Fans	● 80 mm high-efficiency fan ● 60 mm high-efficiency fan ● 40 mm high-efficiency fan	60 mm high-efficiency fan
Up to four hot swap fans	Up to four hot swap fans
Dimension	Height: 40.0 mm (1.57 inches)	Height: 40.1 mm (1.58 inches)
Width: 174.4 mm (6.86 inches)	Width: 174.4 mm (6.86 inches)
Depth: 549.7 mm (21.64 inches) to rear lever hook	Depth: 570.34 mm (22.45 inches) to rear handle
Form Factor	2U4N compute sled	2U4N compute sled
Embedded Management	● iDRAC9 ● iDRAC Direct ● iDRAC RESTful with Redfish ● iDRAC Service Module	● iDRAC9 ● iDRAC Direct ● iDRAC RESTful with Redfish ● iDRAC Service Module
OpenManage Software	● OpenManage Enterprise ● OpenManage Power Manager plug-in ● OpenManage Update Manager plug-in ● OpenManage SupportAssist plug-in	● OpenManage Enterprise ● OpenManage Power Manager plug-in ● OpenManage Update Manager plug-in ● OpenManage SupportAssist plug-in
Mobility	OpenManage Mobile	OpenManage Mobile
Integrations and Connections	OpenManage Integrations ● BMC TrueSight ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter and vRealize Operations Manager	OpenManage Connections ● IBM Tivoli Netcool/OMNIbus ● IBM Tivoli Network Manager IP Edition ● Micro Focus Operations Manager ● Nagios Core ● Nagios XI	OpenManage Integrations ● BMC TrueSight ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter	● IBM Tivoli Netcool/OMNIbus ● IBM Tivoli Network Manager IP Edition ● Micro Focus Operations Manager ● Nagios Core ● Nagios XI
Security	● Cover latch ● Secure Boot mode ● Power Off security ● TPM 2.0 (not supported for China and Russia)	● Cover latch ● Secure Boot mode ● Power Off security ● TPM 2.0 (not supported for China and Russia)
Embedded NIC	Broadcom BCM5720 Gigabit Ethernet controller	Broadcom BCM5720 Gigabit Ethernet controller
Networking Options	● Broadcom BCM5720 Gigabit Ethernet controller ● OCP x16 Mezz 3.0	● Broadcom BCM5720 Gigabit Ethernet controller ● OCP x16 Mezz 3.0
GPU Options	Up to two 75 W (Low-Profile) GPUs.	One 70 W (Low-Profile) GPUs.
Ports	Rear ports: ● Power button with status LED ● Mini Display port connector ● 1G RJ45 port ● 1x USB 3.0 ● iDRAC Direct port (Micro AB-USB)	Rear Ports ● Power button with status LED ● Mini Display port connector ● 1G RJ45 port ● 1x USB 3.0 ● iDRAC Direct port (Micro AB-USB)
Internal Port: ● 1x SWIFT port ● 3x MCIO ports ● 1x NPIO port	Internal Port: ● 1x USB 2.0 port ● 2x Slimline ports ● 3x NPIO port
PCIe	2x PCIe Gen5 slot	3x PCIe Gen4 slots + 1x PCIe Gen3 slot
Operating System and Hypervisors	● Canonical Ubuntu Server LTS ● Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi	● Citrix (R) Hypervisor (R) ● Microsoft (R) Windows Server (R) with Hyper-V ● Red Hat (R) Enterprise Linux ● SUSE (R) Linux Enterprise server ● VMware (R) ESXi (R)

Features

PowerEdge C6620

PowerEdge C6520

Processors

Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores

Up to two 3rd Generation Intel Xeon Scalable processors, up to 32 cores per processor

Memory

DIMM Speed:
● Up to 4800 MT/s
Memory Type:
● High-Bandwidth Memory
● RDIMM
Memory module slots:
● 16 DDR5 DIMM slots
● Supports registered ECC DDR5 DIMM slots only
Maximum RAM:
● RDIMM 4 TB

DIMM Speed:
● Up to 3200 MT/s
Memory Type:
● RDIMM
● LRDIMM
Memory module slots:
● 16 DDR4 DIMM slots
● Supports registered ECC DDR4 DIMM slots only
Maximum RAM:
● RDIMM 4 TB
● LRDIMM 4 TB

Storage Controllers

● Internal controllers: PERC H965i, PERC H755, HBA355, HBA355i
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 SSDs
● Software RAID: S160

● Internal Controllers: PERC H350, PERC H345, PERC H750, PERC H745, HBA355I, and HBA345
● Internal Boot: Boot Optimized Storage Subsystem (BOSS-S1) - HWRAID 2 x M.2 SSDs 240 GB, 480 GB
● Software RAID: S150

Drive Bays

The C6600 chassis supports up to:
● 16 x 2.5-in SAS/SATA/NVMe (HDD/SSD) drives.
● 8 x E3.s NVMe SSDs

The C6400 chassis supports up to:
● 12 x 3.5-in hard drive - SAS/SATA
● 24 x 2.5-in hard drive - SAS/SATA/NVMe

Power Supplies

● 1800 W Titanium AC/200 - 240 V autoranging
● 1800 W DC/240 V
● 2400 W Platinum AC/100 - 240 V
● 2400 W DC/240 V
● 2800 W Titanium AC/200 - 240 V autoranging
● 2800 W DC/240 V
● 3200 W AC/277 V
● 3200 W DC336 V
NOTE: 3200 W AC and DC power supplies are only available in North America.

● 1600 W Platinum AC/100 - 240 V autoranging
● 2000 W Platinum AC/100 - 240 V autoranging
● 2400 W Platinum AC/100 - 240 V autoranging
● 2600 W Platinum AC/100 - 240 V autoranging

Cooling Options

● Air cooling
● Liquid cooling

Fans

● 80 mm high-efficiency fan
● 60 mm high-efficiency fan
● 40 mm high-efficiency fan

60 mm high-efficiency fan

Up to four hot swap fans

Dimension

Height: 40.0 mm (1.57 inches)

Height: 40.1 mm (1.58 inches)

Width: 174.4 mm (6.86 inches)

Depth: 549.7 mm (21.64 inches) to rear lever hook

Depth: 570.34 mm (22.45 inches) to rear handle

Form Factor

2U4N compute sled

Embedded Management

● iDRAC9
● iDRAC Direct
● iDRAC RESTful with Redfish
● iDRAC Service Module

OpenManage Software

● OpenManage Enterprise
● OpenManage Power Manager plug-in
● OpenManage Update Manager plug-in
● OpenManage SupportAssist plug-in

Mobility

OpenManage Mobile

Integrations and Connections

OpenManage Integrations
● BMC TrueSight
● Microsoft System Center
● Red Hat Ansible Modules
● VMware vCenter and vRealize Operations Manager

OpenManage Connections
● IBM Tivoli Netcool/OMNIbus
● IBM Tivoli Network Manager IP Edition
● Micro Focus Operations Manager
● Nagios Core
● Nagios XI

OpenManage Integrations
● BMC TrueSight
● Microsoft System Center
● Red Hat Ansible Modules
● VMware vCenter

● IBM Tivoli Netcool/OMNIbus
● IBM Tivoli Network Manager IP Edition
● Micro Focus Operations Manager
● Nagios Core
● Nagios XI

Security

● Cover latch
● Secure Boot mode
● Power Off security
● TPM 2.0 (not supported for China and Russia)

Embedded NIC

Broadcom BCM5720 Gigabit Ethernet controller

Networking Options

● Broadcom BCM5720 Gigabit Ethernet controller
● OCP x16 Mezz 3.0

GPU Options

Up to two 75 W (Low-Profile) GPUs.

One 70 W (Low-Profile) GPUs.

Ports

Rear ports:
● Power button with status LED
● Mini Display port connector
● 1G RJ45 port
● 1x USB 3.0
● iDRAC Direct port (Micro AB-USB)

Rear Ports
● Power button with status LED
● Mini Display port connector
● 1G RJ45 port
● 1x USB 3.0
● iDRAC Direct port (Micro AB-USB)

Internal Port:
● 1x SWIFT port
● 3x MCIO ports
● 1x NPIO port

Internal Port:
● 1x USB 2.0 port
● 2x Slimline ports
● 3x NPIO port

PCIe

2x PCIe Gen5 slot

3x PCIe Gen4 slots + 1x PCIe Gen3 slot

Operating System and Hypervisors

● Canonical Ubuntu Server LTS
● Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi

● Citrix (R) Hypervisor (R)
● Microsoft (R) Windows Server (R) with Hyper-V
● Red Hat (R) Enterprise Linux
● SUSE (R) Linux Enterprise server
● VMware (R) ESXi (R)

Leave a Message

Dell PowerEdge C6620 Node Server CTO

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

Select Chassis

Select Processor

Platinum 4th Gen Intel® Xeon® Scalable Processors

Gold 4th Gen Intel® Xeon® Scalable Processors

Silver 4th Gen Intel® Xeon® Scalable Processors

Bronze 4th Gen Intel® Xeon® Scalable Processors

Cooling Options (Optional)

Memory

Boot Optimized Storage Subsystem - BOSS-N1 (Optional)

Riser Cards (Optional)

OCP 3.0 (Optional)

Storage Controllers (Optional)

ECS Warranty

Quick Specs

Current Configuration

Select Chassis

Select Processor

Cooling Options (Optional)

Memory

Boot Optimized Storage Subsystem - BOSS-N1 (Optional)

Riser Cards (Optional)

OCP 3.0 (Optional)

Storage Controllers (Optional)

ECS Warranty

Welcome to the Request Express Quoting Form!

Manuals

Manuals

Product Specs

Base Standard Capabilities

Compare Servers

Shipping Information

ECS Warranty Information

About Express Computer Systems

Shop with Confidence

Dell PowerEdge C6620 Node Server CTO

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

Select Chassis

Select Processor

Platinum 4th Gen Intel® Xeon® Scalable Processors

Gold 4th Gen Intel® Xeon® Scalable Processors

Silver 4th Gen Intel® Xeon® Scalable Processors

Bronze 4th Gen Intel® Xeon® Scalable Processors

Cooling Options (Optional)

Memory

Boot Optimized Storage Subsystem - BOSS-N1 (Optional)

Riser Cards (Optional)

OCP 3.0 (Optional)

Storage Controllers (Optional)

ECS Warranty

Quick Specs

Current Configuration

Select Chassis

Select Processor

Cooling Options (Optional)

Memory

Boot Optimized Storage Subsystem - BOSS-N1 (Optional)

Riser Cards (Optional)

OCP 3.0 (Optional)

Storage Controllers (Optional)

ECS Warranty

Manuals

Manuals

Product Specs

Base Standard Capabilities

Compare Servers

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
