Tech
1U rack server
Processor | Max: 64 Cores1 x AMD EPYC
Memory | Max: 384GB6 DDR5 RDIMM 4800Mhz
Storage | Max: 61TB(C6600 Enclosure Support)
16x 2.5" SAS/SATA (HDD/SSD)
16x 2.5" SAS/SATA/NVMe (HDD/SSD) Universal
Not supported by the E3.S Chassis
None
iDRAC:iDRAC9 with Lifecycle Controller
PCIe Slots:2x PCIe 5.0
GPU:None
- Dell PowerEdge C6600 Enclosure
- Dell PowerEdge C6615 Node
- Dell PowerEdge C6620 Node
- --------------------------------
- Dell PowerEdge C6220 CTO
- Dell PowerEdge C6220ii CTO
- Dell PowerEdge C6300 CTO
- Dell PowerEdge C6400 CTO
(Click to View)
- High-Performance Computing
- Financial/Trading Servers
- Web Tech
(Click to View)
The Dell C6600 holds 4 Nodes. Either the AMD C6615 or the Intel C6620 Node Server.
You can not mix nodes.
This is 1 of the 2 Supported Nodes. The Dell C6600 Enclosure CTO must be configured separately.
Rich 1S Configurations for Scale-Out Computing with Increased Thermal Efficiency
The PowerEdge C6615 is designed to run workloads optimized for performance per Watt and allows for greater configurability within existing datacenters due to it’s low power form factor and improved thermal capabilities.
- With a single 4th Gen AMD EPYCTM 8004 (Siena) Processor, you get great performance at the lowest TDP (70-225W) in the EPYC portfolio for improved performance per watt in a purpose built, stream-lined architecture1.
- Core scaling up to 64 cores for increased socket-level performance drives lower TCO.
- Improved airflow to cool more efficiently than other multi-node products.
Scale more efficiently within your existing datacenter
- Increase core density in existing racks and maintain core datacenter ambient temperature.
- 53% increase in air cooling configuration support over previous generation.
- Faster, low-latency storage with Gen5 E3.S.
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

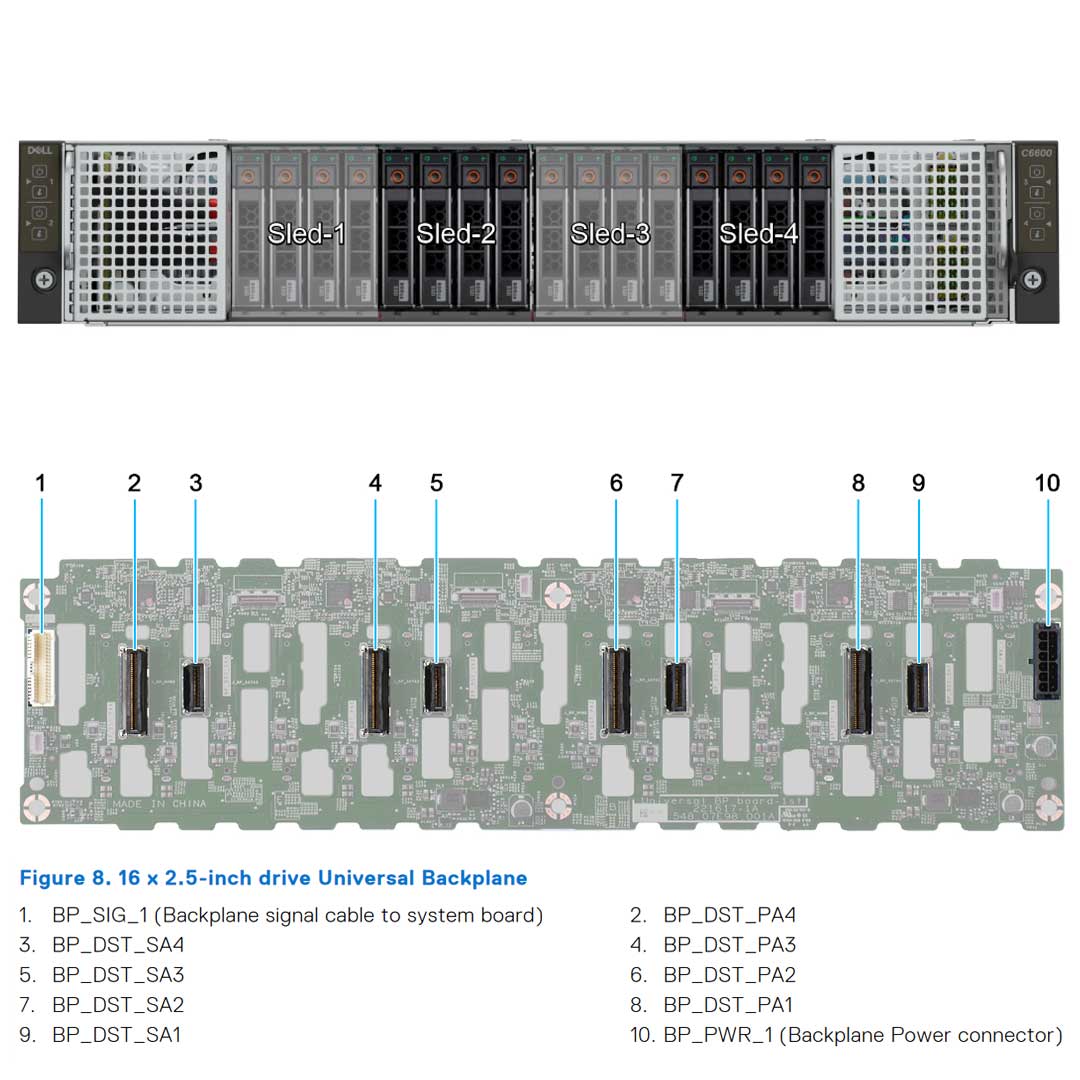

The C6615 Node Server for the C660 Rack Enclosure can only support the following backplane configurations:
- Diskless Configuration
- 16 x 2.5-in SAS/SATA (HDD/SSD) drives.
- 16 x 2.5-inch SATA/NVMe drives on Universal backplane configuration
The Dell C6615 Node Server only has 1 CPU and 1 Type of heatsink. This system only supports the air-cooled system. The Heat sink will come with the AMD CPU and the fans are located in the Dell C6600 Rack Enclosure.
The Dell AMD C6615 Node Server supports up to 6 x DDR5 channels per socket, 1 DIMM per channel (1DPC) with speeds up to 4800Mhz.
| DIMM Speed (MT/s) | DIMM Type | DIMM Capacity (GB) | Ranks per DIMM |
|---|---|---|---|
| 4800 | RDIMM | 16 | 1 |
| 4800 | RDIMM | 32 | 2 |
| 4800 | RDIMM | 64 | 2 |
Up to 2 x PCIe Gen5 Half-Height/Half-Length slots. There are only three configurations for this node server. Below is a table showing you the specs for each configuration. Click the configuration number for more details.
- Slot 1: PCIe Gen5 x16 Riser 1A on CPU 1
- Slot 2: PCIe Gen5 x16 Riser 2C on CPU 1
| Config | RSR configuration | Number of CPUs | PERC type supported | Rear storage possible | x16 CPU1 Slot 1 Low Profile | x16 CPU1 Slot 2 Low Profile |
|---|---|---|---|---|---|---|
| 0 | No RSR | CPU 1 | NA | No | N | N |
| 1 | R1A | CPU 1 | Adapter PERC | No | Y | N |
| 2 | R2C | CPU 1 | Adapter PERC | No | Y | Y |
The Node Server comes with a Broadcom BCM5720 Gigabit Ethernet controller. This along with the other PCIe slots are the only way to expand the networking capabilities of the C6615 Node Server. When using the LOM ports you save a PCIe slot. This is very important since there are only 2 PCIe 5.0 slots on the back of the C6615 Node Server.
The Node Server comes with a 4 port OCP 3.0 slot with speeds up to 25Gb per port. This OCP along with the LOM and the PCIe slots are the only way to expand the networking capabilities of the C6615 Node Server. When using the OCP ports you save a PCIe slot. This is very important since there are only 2 PCIe 5.0 slots on the back of the C6615 Node Server.
| Feature | Specifications |
|---|---|
| LOM card | 1 GbE x 1 |
| OCP card (OCP 3.0) | 1 GbE x 4, 10 GbE x 2, 25 GbE x 2, 25 GbE x 4 |
Dell's 16G products have a wider offering of Internal Storage controllers than previous server generations. To reduce complexity and provide manageable permutations that still meet customer needs, the C6615 will support PERC11/12 version.
The following table shows the controllers used in PERC11/12 family:
| Controller type | Description |
|---|---|
| Internal controllers | PERC H755N, PERC H355 |
| Internal boot | Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 X M.2 SSDs, uSD card |
| External HBA (non-RAID) | HBA355i |
| Software RAID | S160 |

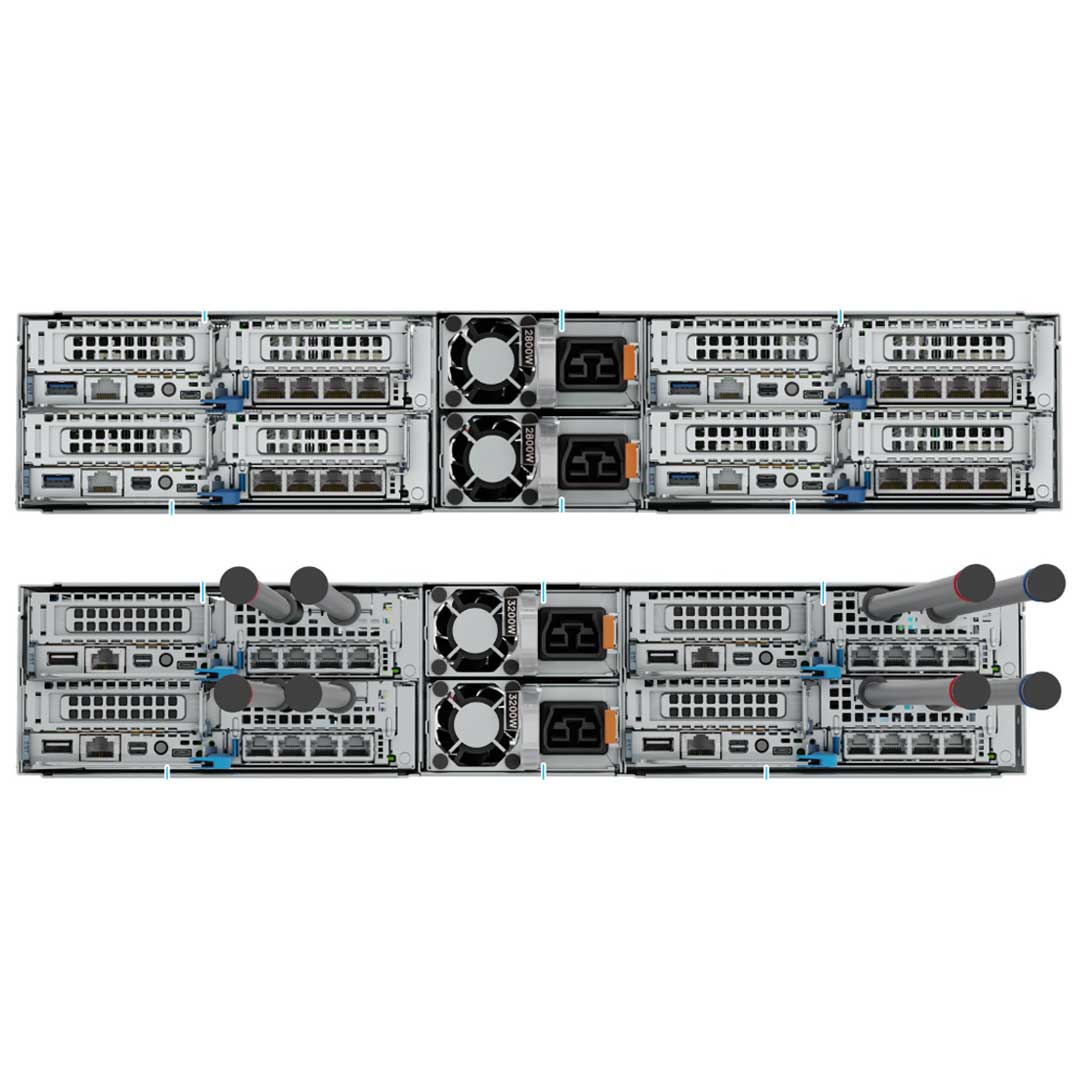

The C6600 holds 2 Power supply units to support up to 4 Sleds that could possibly have 8 CPUs and 64 DIMMs when fully populated. With so many CPUs and DIMMs to support the power supply units will be very large in capacity. The largest PSU for this system is 3200W.
3200 W AC and DC power supplies are only available in North America.
- Width: 174.4 mm (6.86")
- Height: 40.0 mm (1.57")
- Length:
- 549.7 mm (21.64") - diskless
- 561.3 mm (22.10") - SAS/SATA
- 561.3 mm (22.10") - SAS/SATA/NVMe Universal
- 561.3 mm (22.10") - E3.S EDSFF
- Weight Per Node: 3.7 kg (8.15 lbs)
Current Configuration
(List below serves as quick links to each section)
Select Chassis
Select Processor
Memory
Riser Cards
OCP 3.0
Storage Controllers
Boot Optimized Storage Subsystem BOSS
ECS Warranty
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Feature | Technical Specifications | |
|---|---|---|
| Chassis | Dell PowerEdge C6600 chassis | |
| Nodes | Up to 4 hot-swappable 1-socket C6615 sleds in a 2U C6600 chassis | |
| Processor | One AMD EPYC processor, with up to 64 cores | |
| Memory | • 6 DDR5 DIMM slots, supports RDIMM of 384 GB (6 x 64 GB) max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only | |
| Storage controllers | • Internal controllers (RAID): PERC H755N, PERC H355 • Internal Boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Internal 12 Gbps SAS HBAs (non-RAID): HBA355i • Software RAID: S160 | |
| Availability | Hot-plug redundant drives and PSUs | |
| Drive Bays | Front bays: • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives max 61 TB • Up to 16 x 2.5-inch SATA/NVMe drives max 15.36 TB on Universal Backplane configuration | |
| Hot swap, Redundant Power Supplies | • 3200W 277 VAC or 336 VDC • 2800W Titanium 200-240 VAC or 240 VDC | • 2400W Platinum 100-240 VAC or 240 VDC • 1800W Titanium 200-240 VAC or 240 VDC |
| Cooling Options | Air cooling | |
| Fans | Up to 4 cold swap fans | |
| Dimensions | • Height – 40.0 mm (1.57 inches) • Width – 174.4 mm (6.86 inches) • Depth – 549.7 mm (21.64 inches), 561.3 mm (22.10 inches) - SAS/SATA or NVMe or E3.S or Universal configuration | |
| Weight | 3.7 kg (8.15 pounds) | |
| Embedded Management | • iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module | |
| OpenManage Software | • CloudIQ for PowerEdge plugin • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center | • OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin |
| Mobility | OpenManage Mobile | |
| Integrations | • BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow | • RedHat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager |
| Security | • AMD Secure Encrypted Virtualization (SEV) • AMD Secure Memory Encryption (SME) • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot | • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Embedded NIC | 1 x 1 GbE | |
| Rear Ports | • 1 x USB 3.0 • 1 x iDRAC ethernet port • 1 x iDRAC Direct (Micro-AB USB) port • 1 x Mini-DisplayPort | |
| PCIe slots | • Up to 2 x PCIe x16 Gen5 Low-Profile slots • 1 x OCP 3.0 x16 Gen5 | |
| Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi/vSAN | |
Spec Sheet 4
| Feature | C6615 | C6525 |
|---|---|---|
| CPU | One AMD EPYC processor with up to 64 cores | 2 x AMD EPYC processor SP3 : Rome and Milan per node (support for up to 2 x 280 W processor) |
| Memory | DIMM Speed:
● Up to 4800 MT/s Memory Type: ● RDIMM Memory module slots: ● 6 DDR5 DIMM slots ● Supports registered ECC DDR5 DIMM slots only Maximum RAM: ● RDIMM 384 GB |
DDR4: Up to 16 x RDIMMs, LRDIMMs |
| NVDIMM: No | ||
| Disk bays | The C6600 chassis supports up to:
● 16 x 2.5-in SAS/SATA (HDD/SSD) drives. ● 16 x 2.5-inch SATA/NVMe drives on Universal backplane configuration |
Front: 24 x 2.5-inch (4 x 6) or 12 x 3.5-inch options. 14G carriers |
| Internal: Micro SD slot; 240 GB and 480 GB M.2 boot device (dual M.2 device post RTS) | ||
| Storage controllers | ● Internal PERC: H755N, H355, HBA355i
● Internal Boot: (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs or uSD card ● Software RAID: S160 |
HW RAID: PERC 10.4 port for H745, H345, HBA345, HBA355i |
| Chipset SATA/SW RAID: Yes | ||
| PCIe SSD | N/A | Yes (on PCIe riser) |
| PCIe slots | Up to 2 x PCIe Gen5 Half-Height/Half-Length slots | ● Slot 1 : PCIe Gen4 x 16 with Riser 1A. (CPU1)
● PCIe Gen4 x16 with Riser 1B support SNAPI. (CPU1: x8/ CPU2: x8) ● Slot 2 : PCIe Gen4 x 16 with Riser 2A. (CPU2) ● Slot 3 : OCP3.0 SFF, PCIe Gen4 x16. (CPU1) ● Slot 4 : M.2, PCIe Gen4 x16. (CPU1/2) |
| Slot 1: PCIe Gen5 x16 Riser 1A on CPU 1 | ||
| Slot 2: PCIe Gen5 x16 Riser 2C on CPU 1 | ||
| MicroSD | Yes (on PCIe riser) | Yes (on PCIe riser) |
| Embedded NIC | 1 GbE x 1 LOM card | Single port 1 GbE LOM option |
| Networking options | 1 x OCP 3.0 x16 Gen5 | OCP 3.0 SFF x16 slot |
| Ports | Rear ports:
● 1 x USB 3.0 ● 1 x Mini-DisplayPort ● 1 x Dedicated iDRAC management (RJ45) port |
1 USB3 |
| 1 USB2 (internal, default non-pop, need Dell confirm if remove from here) | ||
| GPU options | N/A | 75W low profile PCIe x1 |
| Rack height | 2U | 2U |
| Power supplies | ● 1800 W Titanium AC/200 - 240 V autoranging
● 1800 W DC/240 V ● 2400 W Platinum AC/100 - 240 V ● 2400 W DC/240 V ● 2800 W Titanium AC/200 - 240 V autoranging ● 2800 W DC/240 V ● 3200 W AC/277 V ● 3200 W DC/336 V |
Hot swap drives, PSUs (support for 2 x 1600 W, 2000 W, 2400 W and 2000 W-240 V DC, 2600 W PSUs) |
| System management | BMC (includes virtual console /media), and iDRAC Basic, Express, Enterprise and Datacenter | iDRAC9 with BMC+ (includes virtual console/media), and Enterprise options |
| iDRAC direct | 1 x Micro-AB USB 2.0-compliant port on the rear of the system | MicroUSB Type AB |
| Security | ● AMD Secure Encrypted Virtualization (SEV)
● AMD Secure Memory Encryption (SME) ● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
● AMD Secure Encrypted Virtualization (SEV)
● AMD Secure Memory Encryption (SME) ● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Availability | ● Cluster support
● ECC memory, RDIMM ● Hot-plug hard drives ● Dual power supply |
● Hot swap drives
● Hot swap redundant cooling NOTE: Fan modules are not hot swappable ● Hot swap redundant power supplies - for redundant configs ● Micro SD card ● BOSS-S1V5 (DPN: WMWJW) |
