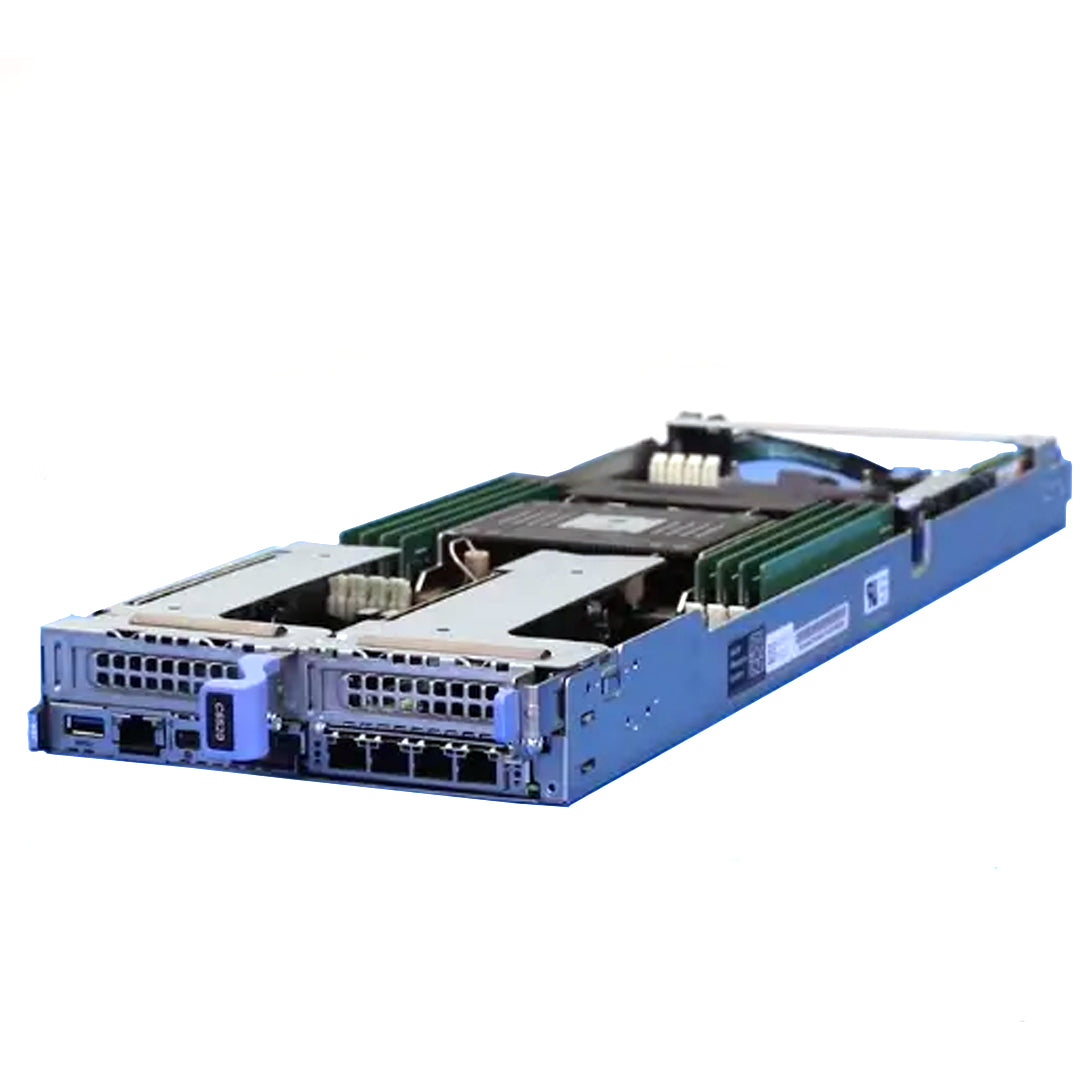

Dell PowerEdge C6520 Node Server CTO
Configure for Pricing
Quick Specs
Form Factor:
1U rack server
Processor | Max Cores: 40 Cores2x 3rd Gen Intel Xeon Scalable
Memory | Max: RDIMM 1TB | LRDIMM 2TB16 DDR4 RDIMM/LRDIMM 3200Mhz
Boot:BOSS-S1
S150 (SW RAID)
PERC H345, H350, H355, H745, H750, HBA345, HBA355i
- 6 NVMe on the 24 Bay NVMe
- 2 NVMe + 4 Drives on the NVMe Universal
- 6 Drives on the 24 Bay Direct
- 3 Drives on the 12 Bay
None
LOM:1 x 1 GbE LOM riser
OCP:1 x OCP 3.0 x16 Gen4
iDRAC:BMC with Virtual Media and Console (default)
PCIe Slots:Up to 4 x PCIe Gen4 slots (3 x16, 1 x8) with support for SNAP I/O modules
GPU:Low-profile (Half-height) 70 W GPU
Compatible Options:
- --------------------------------
-
Dell PowerEdge C6220 CTO
- Dell PowerEdge C6220ii CTO
- Dell PowerEdge C6300 CTO
- Dell PowerEdge C6600 CTO
Ideal for:
- Data Analytics
- High-Performance Computing (HPC)

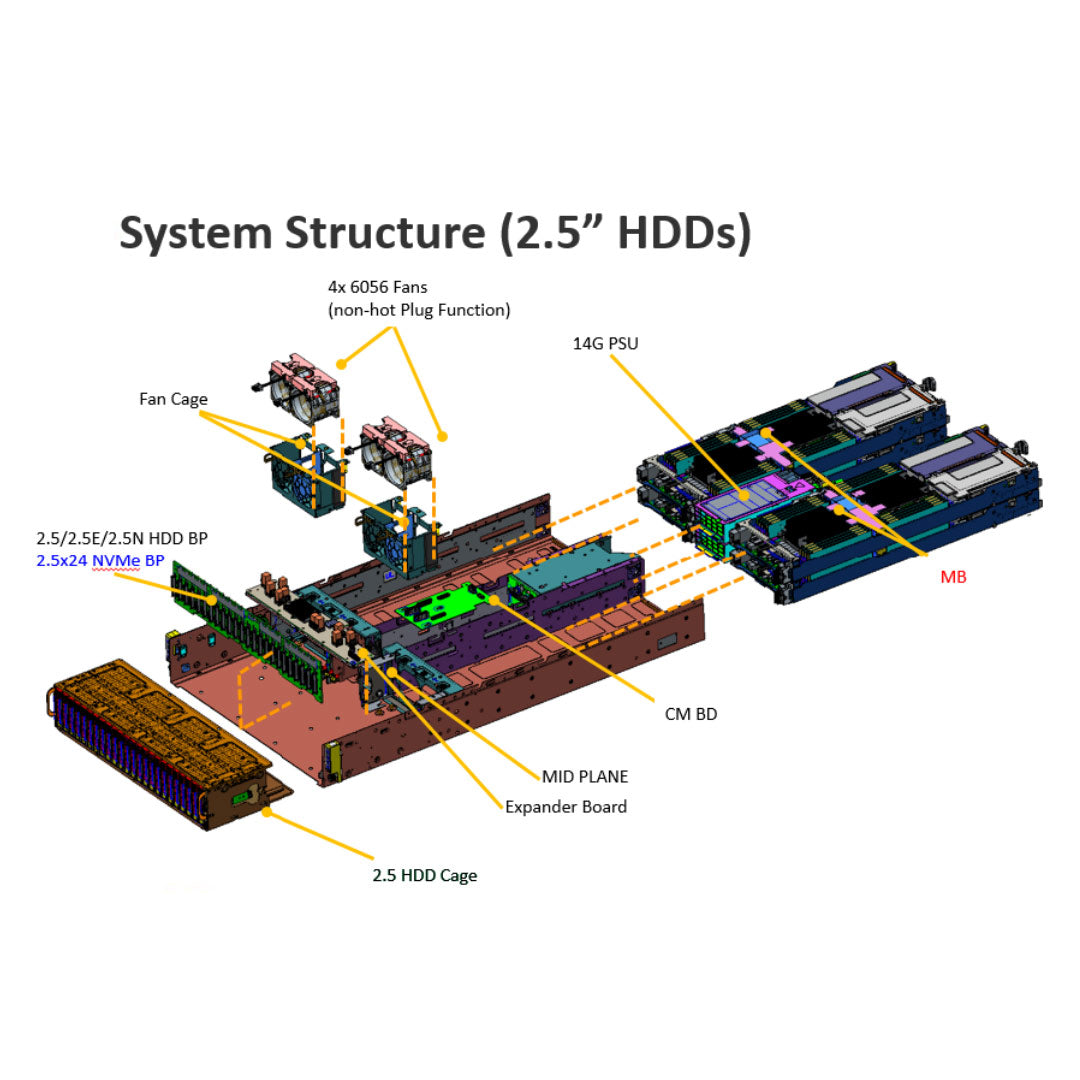

This is just 1 out of 3 Node servers supported.

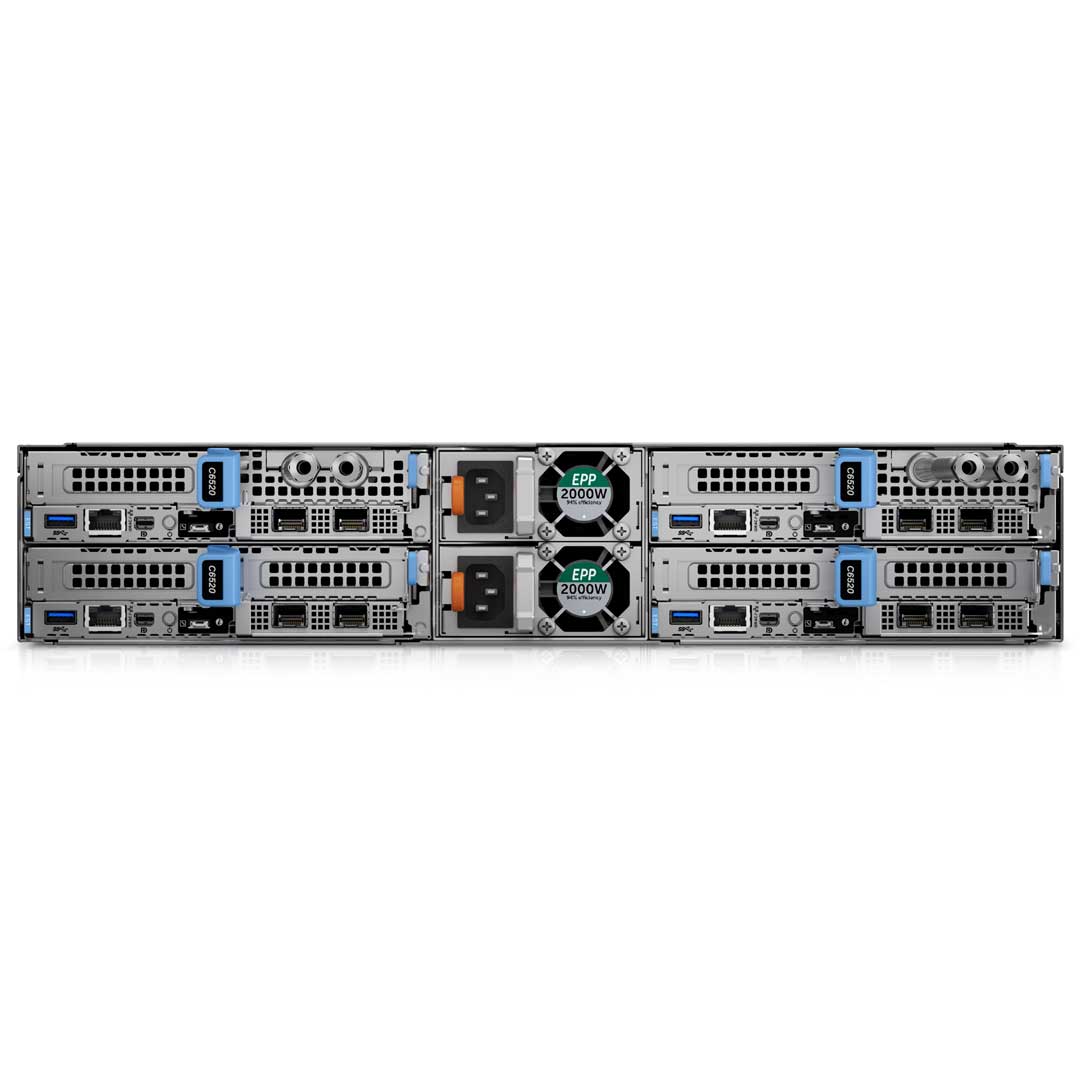

The C6400 Enclosure Server must be configured separately.
Innovate at scale with challenging and emerging workloads
The Dell EMC PowerEdge C6520, powered by the 3rd Generation Intel® Xeon® Scalable processors, is the ideal compute-dense server designed to support dynamic compute-at-scale business requirements in a dense form factor. The PowerEdge C6520 maximizes performance per U by supporting 4 dual-socket compute nodes in a 2U chassis with Air and Direct Liquid Cooling options to power the highest-performing processors. It supports 8 memory channels/CPU, up to 16 DDR4 DIMMs @ 3200 MT/s DIMM speed. In addition, to address substantial throughput improvements the PowerEdge C6520 supports PCIe Gen 4 and up to 6 NVMe drives per node. This makes the PowerEdge C6520 an ideal server for hyper scale compute workloads requiring high scalability and high performance such as High-Performance Computing (HPC), high-performance data analytics (HPDA), financial modeling and high-frequency trading(HFT), Web Tech and XaaS Service Providers.
Accelerate operational efficiency with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business.
- Optional built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with VMware, Microsoft, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell EMC PowerEdge C6520 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase
Memory

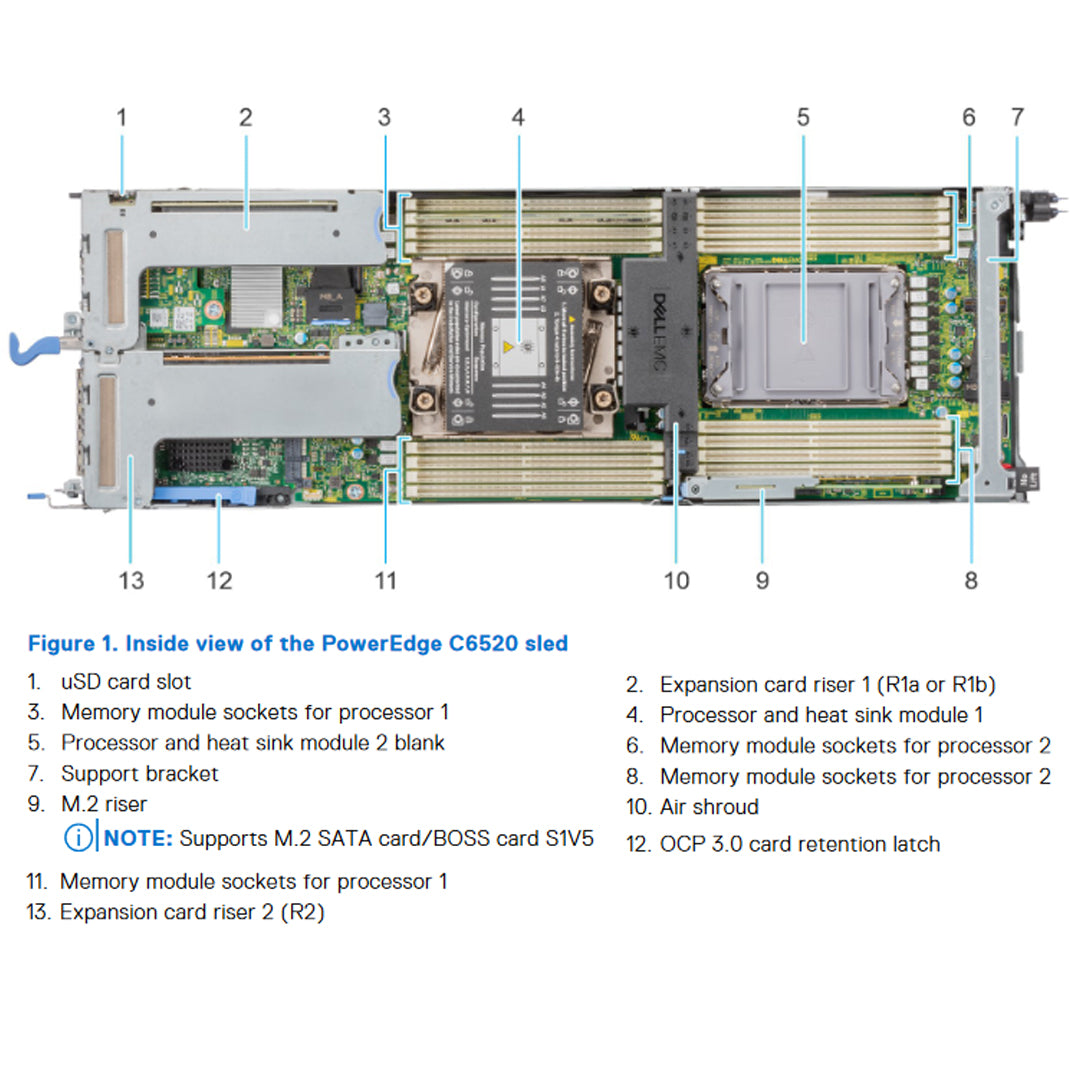

The PowerEdge C6520 supports up to 16 DIMMs in a 2S configuration, with up to 2 TB of memory capacity and speeds of up to 3200 MT/s. The PowerEdge C6520 has eight DIMM channels per processor with one DIMM per channel (DPC).
The PowerEdge C6520 supports 16 GB/32 GB/64 GB (registered) RDIMMs. It supports 128 GB LRDIMMs and it will not support UDIMMs or persistent memory.
| DIMM type | DIMM ranking | Capacity | DIMM rated voltage, speed | 1 DPC |
|---|---|---|---|---|
| RDIMM | 1R | 8 GB | DDR4 (1.2 V), 3200 | D:3200 |
| RDIMM | 2R | 16 GB, 32 GB, 64 GB | DDR4 (1.2 V), 3200 | D:3200 |
| LRDIMM | 4R | 128 GB | DDR4 (1.2 V), 3200 | D:3200 |
PCIe Options

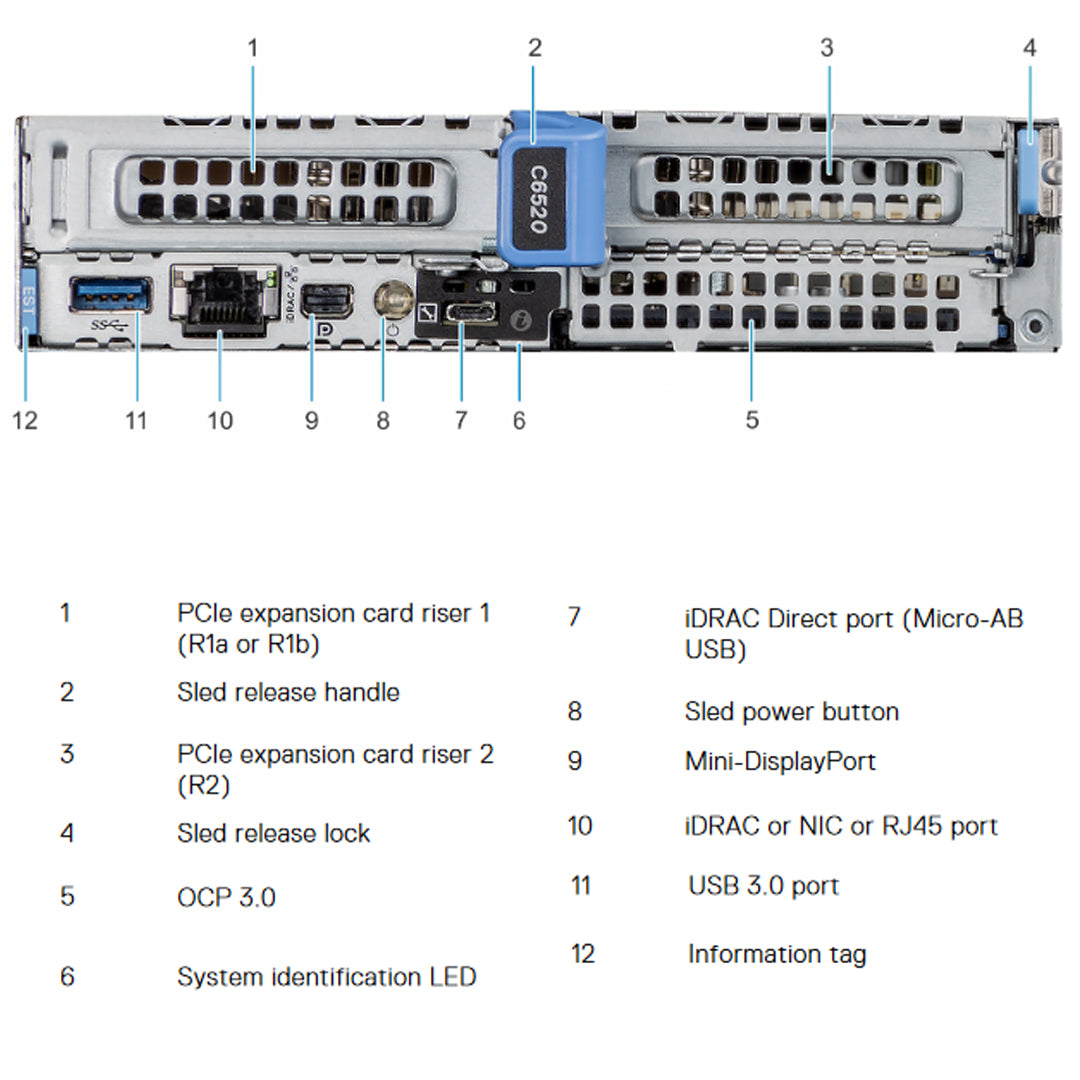

This Node server has two different risers, both have a x16 slot for a PCIe Adapter or GPU card. But Riser 1B has two Micro SD slots for boot.
There is also a dedicated slot on the system board for the BOSS-S1 M.2 Riser. This Riser holds two M.2 NVMe drives for boot.
BOSS M.2 Riser
Riser 1A
Riser 2BNetworking Supported
The system comes with a Single port 1 Gbe LOM (Broadcom) for networking. It also has an optin to upgrade the networking with the OCP3 Gen4 slot x16. This OCP slot can support a OCP NIC Card with speeds up to 25Gb per port. If the OCP card is not installed a blank filler will be installed for airflow reasons.
Storage and Controllers
Storage per sled per chassis
- 6 NVMe on the 24 Bay NVMe
- 2 NVMe + 4 Drives on the NVMe Universal
- 6 Drives on the 24 Bay Direct
- 3 Drives on the 12 Bay
| Performance Level | Controller & Description |
|---|---|
| Entry Level | S150 (SATA, NVMe) SW RAID SATA, NVMe |
| Value | H350, H345, HBA355i, HBA345 |
| Value Performance | H750, H745 |
GPU Guide
When either of the risers is installed in the C6520 Node Server. You can install any PCI adapter or a single-width GPU. With 4 Nodes installed in a chassis, you can have up to 4 GPUs in one enclosure. Please read the manual for more information on which slot can support GPU and other Adapters.
