Dell EMC PowerEdge C6525 Node Server CTO

Dell PowerEdge C6525 Node Server CTO

Price: Configure for Price

Brand:

Dell

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Form Factor:

1U rack server

Processor | Max Cores: 64 Cores

1x or 2x 2nd or 3rd Gen AMD EPYC

Memory | Max: RDIMM 2TB | LRDIMM 2TB

16 DDR4 RDIMM/LRDIMM 3200Mhz

Boot:

BOSS-S1
IDSDM on Riser 1A

Controllers:

S150 (SW RAID)
PERC H345, H355, H745, HBA345, HBA355

Storage:

2 NVMe + 4 Drives on the NVMe Universal
6 Drives on the 24 Bay Direct
3 Drives on the 12 Bay

Rear Storage:

None

LOM:

1 x 1 GbE LOM riser

OCP:

1 x OCP 3.0 x16 Gen4

iDRAC:

BMC with Virtual Media and Console (default)

PCIe Slots:

2x PCIe x16 Gen4 Risers
1x OCP 3.0 x16 Gen4
1x PCIe x8 Gen3 M.2 Riser

GPU:

1x Single-Wide GPU

Compatible Options:

Ideal for:

High-Performance Computing (HPC)
Web Tech

This is just 1 out of 3 Node servers supported.
The C6400 Enclosure Server must be configured separately.

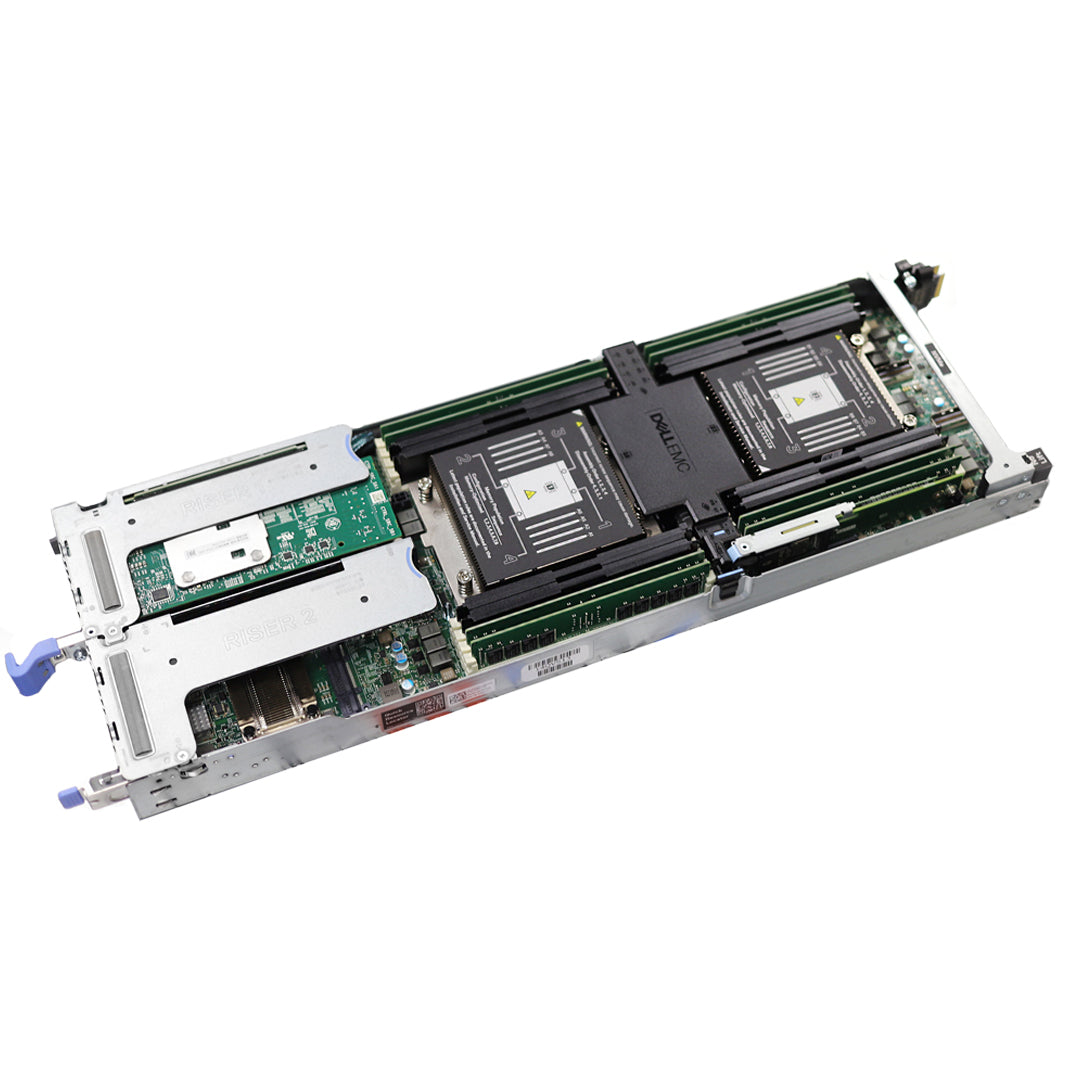

The new Dell EMC PowerEdge C6525 is a compute-dense server designed to boost data center performance to tackle a variety of High-Performance Computing (HPC) workloads and applications.

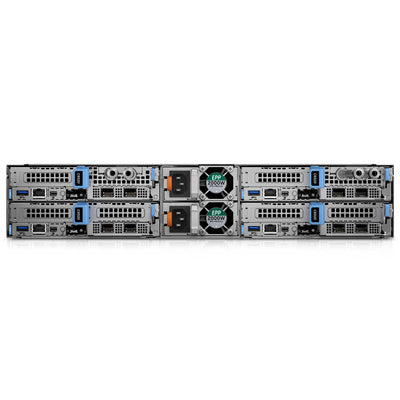

The Dell EMC PowerEdge C6400 is a 2U enclosure that can handle up to four two-socket (2S) sleds. This Dell PowerEdge C6400 Chassis / Enclosure configuration can accommodate 4 Node Servers.

Deliver breakthrough performance, innovations and density for traditional and emerging workloads

The new Dell EMC PowerEdge C6525 is a compute-dense server designed to boost data center performance to tackle a variety of High Performance Computing (HPC) workload and applications. High-level features:

Up to 512 processing cores in a 2U/4N dense server - The most available processing cores of any 2U Dell EMC PowerEdge server
Up to 3200MT/s memory speed to reduce latency and deliver faster response
Faster data transfer speeds with PCIe Gen 4
Optimized core count and memory for large datasets
Low latency and flexible high speed fabric for highly performant clusters
Cost optimized design with rich single-socket configurations

Increase efficiency and accelerate operations with an automated infrastructure
The Dell EMC OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers
through tailored, automated, and repeatable processes.

Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
Simplify and centralize one to many management with the OpenManage Enterprise console.
Utilize the OpenManage Mobile app to easily manage servers using a phone or tablet.
Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.**

Fortify your data center with integrated security

Every PowerEdge server is designed with a cyber resilient architecture, integrating

security deeply into every phase in the lifecycle, from design to retirement.

Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
Maintain server firmware safety with digitally signed firmware packages.
Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.

Memory

DIMM type	DIMM ranking	Capacity (GB)	DIMM rated voltage, Speed	2nd Generation and 3rd Generation AMD EPYC processors
DIMM type	DIMM ranking	Capacity (GB)	DIMM rated voltage, Speed	1 DPC
RDIMM	1 R / 2 R	8 GB, 16 GB, 32 GB, 64 GB	DDR4 (1.2 V), 3200 MHz	D: 3200
LRDIMM	2S4R	128 GB	DDR4 (1.2 V), 2666 MHz	D: 2666

Networking

The PowerEdge C6525 is installed with one Broadcom BCM54210S-Gigabit Ethernet controller as an independent Ethernet interface device. When installing the OCP 3.0 Card you can raise the networking capabilities from 1GbE to 25 Gb network speed.

Image of the OCP 3.0 for the C6520 Node Server by Dell.

PCI Configuration

The system has two risers that can be installed. If you desire the Liquid Cooling feature for the CPUs. The Riser 2A is not supported as the liquid cooling tubes take up that slot.

Riser option s	Slot 1	Slot 2	Length	Height	Primary processor	Minimum processor requirement	Supported configurations
Riser 1A	Riser 1A PCIe Gen 4 x 16	NA	Half Length	Low Profile	1	1	12 x 3.5-inch drives 24 x 2.5-inch drives 8 x 2.5-inch NVMe drives No backplane
Riser 1A+2A	Riser 1A PCIe Gen 4 x 16	Riser 2A PCIe Gen 4 x 16	Half Length	Low Profile	1 and 2	2	12 x 3.5-inch drives 24 x 2.5-inch drives
Riser 2A	NA	Riser 2A PCIe Gen 4 x 16	Half Length	Low Profile	2	2	12 x 3.5-inch drives 24 x 2.5-inch drives 8 x 2.5-inch NVMe drives No backplane
No riser	NA	NA	Half Length	Low Profile	NA	1	12 x 3.5-inch drives 24 x 2.5-inch drives 8 x 2.5-inch NVMe drives No backplane

Riser 1

Riser 2

Liquid Cooling Riser

Storage Controller

The PowerEdge C6525 supports multiple storage configurations for numerous type of workloads. The C6400 chassis supports the following configuration types:

No hard drives in a no-backplane configuration.
24 x 2.5-inch direct backplane configuration with up to six SAS/SATA drives for each PowerEdge C6525 node.
24 x 2.5-inch NVMe backplane configuration with up to six drives for each PowerEdge C6525 node out of which 2 drives can be NVMe drives. Both the drives can support up to Gen3 speed.
12 x 3.5-inch direct backplane configuration with up to 3 SAS/SATA drives for each PowerEdge C6525 node.

Controllers	Models
Storage controllers	PERC H345, PERC H745, HBA345, HBA355i
Integrated storage controllers	S150
H745 is Not supported for CPU TDP ≥ 180 Watts.

Boot Option BOSS M.2 Riser

The system also contains a BOSS M.2 riser that holds 2 Drives. This is a dedicated slot that is connect to the SATA port on the system board. View the manual for more details.

Image of the BOSS M.2 Riser for the C6520 Node Server by Dell.

GPU

A Single GPU is supported on Riser 1A if that is the only riser installed, If both risers are installed then 1 GPU can be installed in Slot 2 of Riser 2A. Slot 2 has top priority for the GPU. Another tip is that the T4 GPU card is Not supported with 128GB LRDIMM. Please read the manuals for all the limitations of the GPU configuration.

Image of the GPU being installed into the PCIe slot on the C6525 Dell Node Server.

Dell PowerEdge C6525 Node Server CTO Spec Sheet

Manuals

Base Standard Capabilities

Feature	PowerEdge C6525 Specification
Processor	One or two 2nd or 3rd Generation AMD EPYCTM Processors per node configurations with up to 64 cores per processor and up to 280W (TDP)
Memory	Up to 16 x DDR4 RDIMM 2TB Max LRDIMM 2TB Max Bandwidth up to 3200 MT/S
Availability	Hot plug redundant Hard drives, Fans, PSUs
Controllers	HW RAID: PERC 10.4 port for H745, H345, HBA345 Chipset SW RAID (S150): Yes
Drive Bays	2.5” Direct Backplane configuration with up to 6 SAS/SATA drives per node, up to 24 per chassis 2.5” NVMe Backplane configuration with up to 2 NVMe drives and 4 SAS/SATA drives per node. Up to 24 drives total per chassis 3.5” Direct Backplane configuration with up to 3 SAS/SATA drives per node, up to 12 per chassis Internal: uSD card \| M.2 SATA BOSS 1.0
Power Supplies	Dual Hot-plug redundant 2000W and 2400W AC Power Supply Dual Hot-plug redundant 2000W AC/DC Mixmode Power Supply Cooling options: Air Cooling, Direct Liquid Cooling (DLC)
Fans	Hot plug Fans
Dimensions	Height: 86.8mm (3.4”) Width: 448.0mm (17.6”) Depth: 790.0mm (31.1”)	Weight 45.53kg (100.3lbs) 3.5” direct backplane chassis 41.5kg (91.4lbs) 2.5” direct/NVMe backplane chassis 35.15kg (77.4lbs) no backplane chassis
Rack Units	2U/4N Rack Server
Embedded mgmt	iDRAC9 iDRAC RESTful API with Redfish iDRAC Direct
OpenManage™ SW	OpenManage Enterprise OpenManage Enterprise Power Manager OpenManage Mobile
Integrations & Connections	OpenManage Integrations BMC Truesight Microsoft® System Center Redhat® Andible® Modules VMware® vCenter™	OpenManage Connections IBM Tivoli® Netcool/OMNIbus IBM Tivoli® Network Manager IP Edition Micro Focus® Operations Manager I Nagios® Core Nagios® XI
Security	Cryptographically signed firmware Secure Boot Secure Erase	Silicon Root of Trust System Lockdown TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC	Single port 1GbE LOM
Networking Options (NDC)	1x OCP 3.0
GPU Options	1x Single-Wide GPU
Ports	Rear Ports: 1 x iDRAC Direct micro-USB port 1 x Mini-display port 1 x iDRAC or NIC port 1 x USB 3.0 port
PCIe	2x PCIe x16 Gen4 Risers 1x OCP 3.0 x16 Gen4 1x PCIe x8 Gen3 M.2 Riser
Operating Systems & Hypervisors	Canonical® Ubuntu® Server LTS CentOS based on RHEL 8.0 Kernel Citrix® HypervisorTM Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®

Compare Servers

Feature	PowerEdge C6525	PowerEdge C6520	PowerEdge C6420
Chassis	C6400 chassis	C6400 chassis	C6400 chassis
Processor	Up to two 2nd & 3rd Generation AMD EPYC Processor	Up to two 3rd Generation Intel® Xeon® Processor Scalable family	Up to two 2nd Generation Intel® Xeon® Processor Scalable family
	Air and direct contact liquid cooling.	Air and direct contact liquid cooling.	Air and direct contact liquid cooling.
	Configuration restrictions apply due to thermal or power limits.	Configuration restrictions apply due to thermal or power limits.	Configuration restrictions apply due to thermal or power limits.
Memory	-	DDR4: 8 channels per processor	DDR4: 6 channels per processor
	Up to 16x RDIMMs and LRDIMMs	Up to 16x RDIMMs and LRDIMMs	Up to 12x RDIMMs and LRDIMMS
	Speed: up to 3200 MT/s	Speed: up to 3200 MT/s	Speed: 2900 MT/s
Storage	Backplanes: ● 24 x 2.5-inch (direct and NVMe with two universal slots) ● 12 x 3.5-inch direct ● No-backplane	Backplanes: ● 24 x 2.5-inch (direct and NVMe with two universal slots) ● 24 x 2.5-inch all NVMe ● 12 x 3.5-inch ● No backplane	Backplanes: ● 24 x 2.5-inch (direct, expander and NVMe with two universal slots) ● 12 x 3.5-inch direct ● No-backplane
Storage	Internal: uSD card, M.2 SATA BOSS 1.0	Internal: uSD card, M.2 SATA BOSS 1.5	No support for persistent memory
Storage controllers	HW RAID: PERC 10 H345, H355, H745, HBA345, HBA355i	HW RAID: PERC 10: H350, H345, HBA355i, HBA345, H750 and H745	HW RAID: PERC 9 Mini (Mini H330, H730P, HBA330)
	Chipset: Intel C621 Lewisburg-1G	Chipset: SATA	Chipset: SATA
	SW RAID: Yes, S150	SW RAID: Yes, S150	SW RAID: Yes, S140
I/O slots	2 PCIe Gen3 HH/HL slot, x16	2 PCIe Gen4 HH/HL slots, x16 (network, storage, AIC)	1 PCIe Gen3 HH/HL slot, x16
	1 x16 OCP Slot (network)	1 OCP3 Gen4 slot x16	1 x16 OCP Slot (network)
	-	-	1 MEZZ slot x8 (storage)
LOM	Single port 1 Gbe LOM (Broadcom BCM5720)	Single port 1 Gbe LOM (Broadcom)	Single port 1 Gbe LOM (Intel I350)
PSU	Support for 2 x 1600 W, 2000 W, 2400 W, and 2600 W	Support for 2 x 1600 W, 2000 W, 2400 W, and 2600 W	Support for 2 x 1600 W, 2000 W, and 2400 W
PSU	Support 1+1 with FTR	Support 1+1 with FTR	Support 1+1 with FTR
Systems management	iDRAC9 with Lifecycle Controller	iDRAC9 with Lifecycle Controller	iDRAC9 with Lifecycle Controller
Accelerators	At least one GPU/FPGA/PAC (up to 75W)	At least one GPU/FPGA/PAC (up to 75W)	NA
