Dell PowerEdge C6600 Rack Enclosure CTO

Dell

| CTO Servers |

DPE-C6600-CTO



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

4 Nodes go into each Chassis.Mixing of Nodes is not supported in the same enclosure.

Dell PowerEdge C6600 Server Nodes

Supports up to 4 Nodes per Enclosure
Mixing of Nodes in same enclosure is not supported.
You will need to configure the server node you install as well.
The server nodes are their own CTO and must be configured separately.
Please click "View Item" To start configuring the Server Node for the C6600 Rack Enclosure today.
The AMD C6615 does not support the NVMe or EDSFF E3.S Backplanes.
Only the C6620 supports every backplane.

SFF Drives (Optional)

Supports up to 16 Drives

NVMe Drives (Optional)

Supports up to 16 Drives

EDSFF E3.S NVMe SSD Drives (Optional)

The 16 EDSFF Chassis can support up to 8 SAS /SAT drives on the Universal backplane.

Rail Kit (Optional)

Power Supply Units (PSU)

Supports up to 2 PSUs.

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U rack server

Processor:

(PER NODE)

Memory:

(PER NODE)

Storage | Max: 61TB

16x 2.5" SAS/SATA (HDD/SSD) or
16x 2.5" SAS/SATA/NVMe (HDD/SSD) or
8x EDFF NVMe SSD

Rear Storage:

None

PCIe Slots:

(PER NODE)

GPU:

(PER NODE)

Other Versions

(Click to View)

Ideal for:

  • High-Performance Computing

This is just the enclosure, each Node is a separate CTO you must configure.

The Dell C6600 holds 4 Nodes. Either the AMD C6615 or the Intel C6620 Node Server.
You can not mix nodes.

Supported Options
View Node CTO AMD C6615 Node Server
Node Option:

AMD C6615

Form Factor:

1U rack server

Processor | Max: 64 Cores

1 x AMD EPYC

Memory | Max: 384GB

6 DDR5 RDIMM 4800Mhz

Storage | Max: 61TB

(Enclosure) 16 SFF SAS/SATA/NVMe HDD/SSD

Rear Storage:

None

PCIe Slots:

2x PCIe 5.0

GPU:

None

View Node CTO Intel C6620 Node Server
Node Options:

Intel C6620

Form Factor:

1U rack server

Processor | Max: 56 Core

2 x 4th Gen Intel Xeon

Memory | Max: 4TB

16 DDR5 RDIMM 4800Mhz

Storage | Max: 288TB

(Enclosure) 16 SFF or 8 EDFF SAS/SATA/NVMe

Rear Storage:

None

PCIe Slots:

2x PCIe 5.0

GPU:

Up to 2 x 75W low-profile, half-len

Experience more container density to support the most demanding applications
  • Deploy more containers per physical host using increased core count and higher memory footprint than previous generations.
  • 6 or 16 channels of DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 enable faster access and transport of data, optimizing application output.
  • Reduce noisy neighbor problems by physically separating containers using single-socket multi-node infrastructure.
Scale more efficiently within your existing datacenter
  • Increase core density in existing racks and maintain core datacenter ambient temperature.
  • 53% increase in air cooling configuration support over previous generation.
  • Faster, low-latency storage with Gen5 E3.S.
Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

Dell PowerEdge C6600 Base Knowledge

There is no mixing of the Server Nodes in the C6600 Rack Enclosure. The sleds support different Processor manufacturers. The C6615 holds 1 AMD processor and 6 DIMMs while the Intel C6620 supports 2 Intel processors and 16 DIMMS.

Chassis & Sleds/Nodes Options
Chassis Options:

The PowerEdge C6600 system supports:

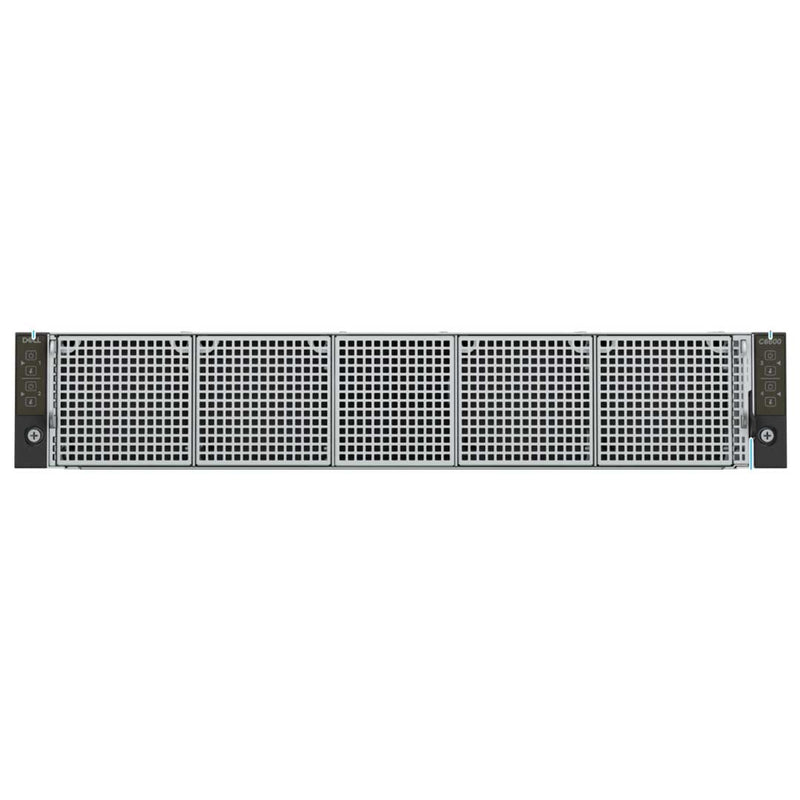

  • Zero Drives Diskless Chassis

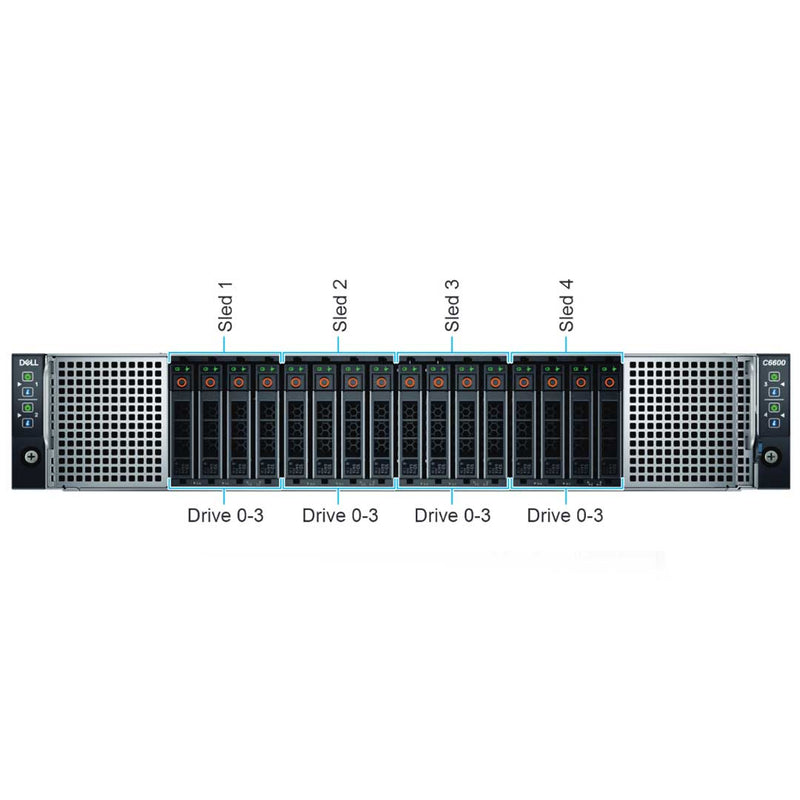

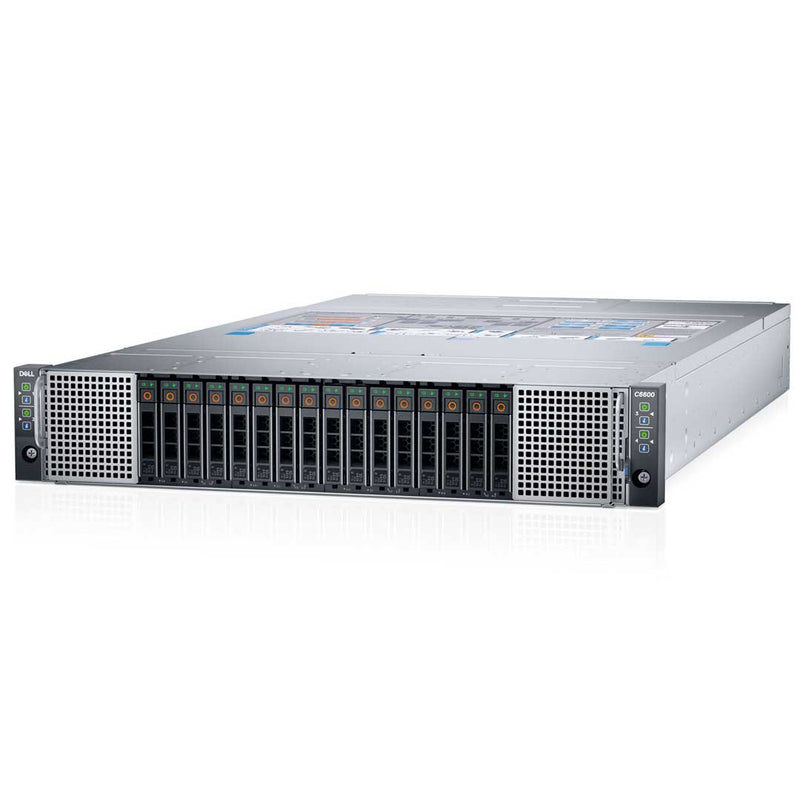

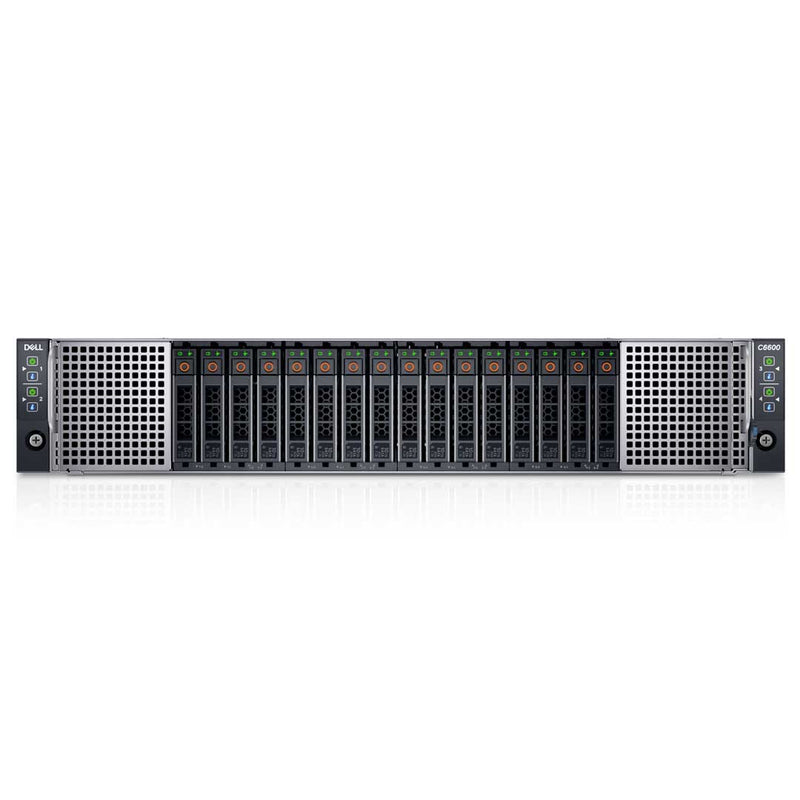

  • 16 x 2.5-inch hot-swappable Universal SAS/SATA/NVMe drives.
  • 16 x 2.5-inch hot-swappable SAS/SATA drives.
  • 16 x 2.5-inch hot-swappable NVMe drives.

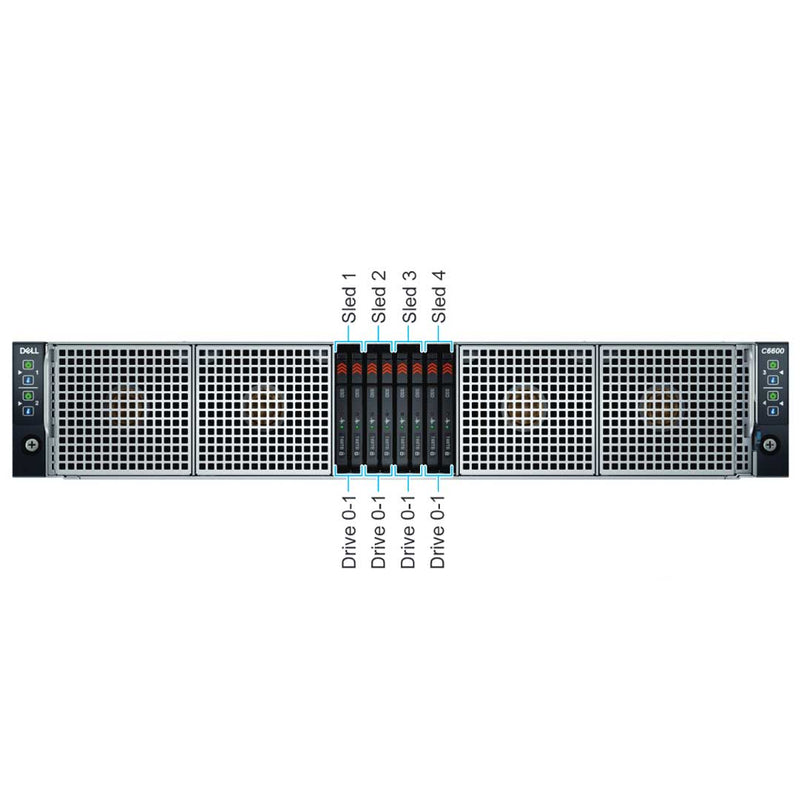

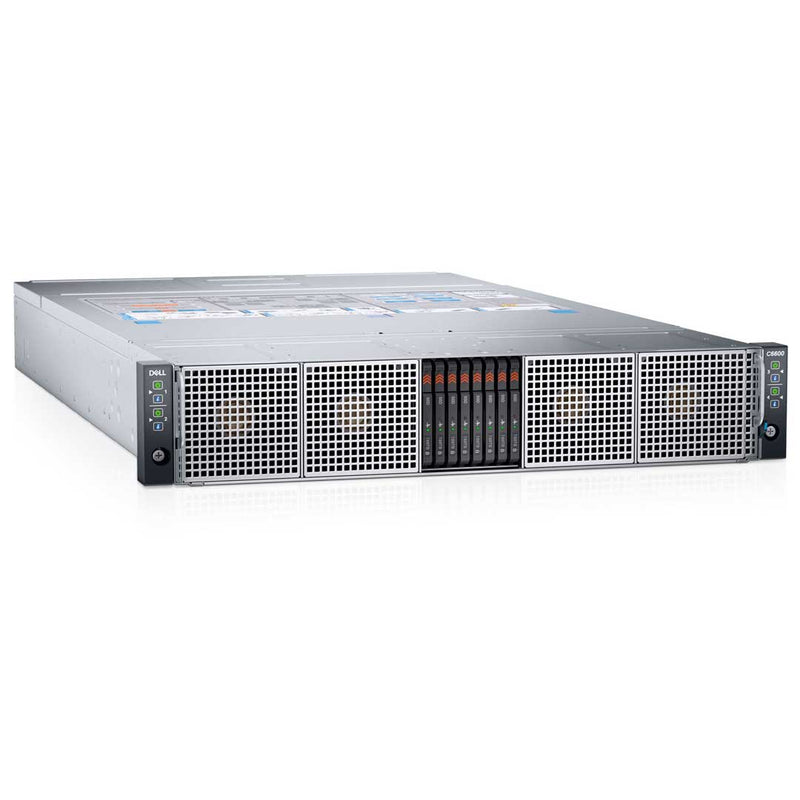

  • 8 x E3.s NVMe SSD drives.
Sleds / Nodes

All sleds that share one enclosure must be identical and match the chassis type. Installing a sled in the PowerEdge C6600 chassis that does not match the chassis type or other sleds results in the enclosure fans running to 100% speed and Logs saying “hardware mismatch” along with the server light blinking amber. If a sled is not installed a Sled Blank will be installed in its place.

  • AMD C6615 1 Socket 6 DIMM Node with 2 PCIe slots.
  • INTEL C6620 2 Socket 16 DIMM Node with 2 PCIe slots.
Heatsink & Fans

All the cooling and Fans are in the nodes. Each node will need to be configured separately. Both support air-cooled systems but the C6620 also supports the Direct Liquid Cooled system. When configuring the C6620 Node Server you will see all the rules, requirements, and limitations on how to install a DLC system.

  • 80 mm high-efficiency fan
  • 60 mm high-efficiency fan
  • 40 mm high-efficiency fan
Image of the Different Fan Sizes
Memory

All Memory is stored in the Server Nodes, The C6600 Rack Enclosure can support up to 4 similar server nodes. The C6615 holds 6 DDR5 DIMMs and the C6620 holds 16 DDR5 DIMMs.

image of the Memory Dimms being installed.
Node Components
Expansion Slots

Both Nodes hold the same 2x Low Profile x16 PCIe 5.0 slots. But only the C6620 has support for up to 2x 75W GPUs.

Networking Adapters

Both of the supported Dell Server Nodes support 1 OCP 3.0 x16 Gen 5 slot for expanding the networking of the Dell PowerEdge C6600 Rack Server.

Storage Controllers

The standard Gen 16 Storage controllers are supported on all the nodes in this 2U C6600 Rack Server.

Power & Dimensions
Power

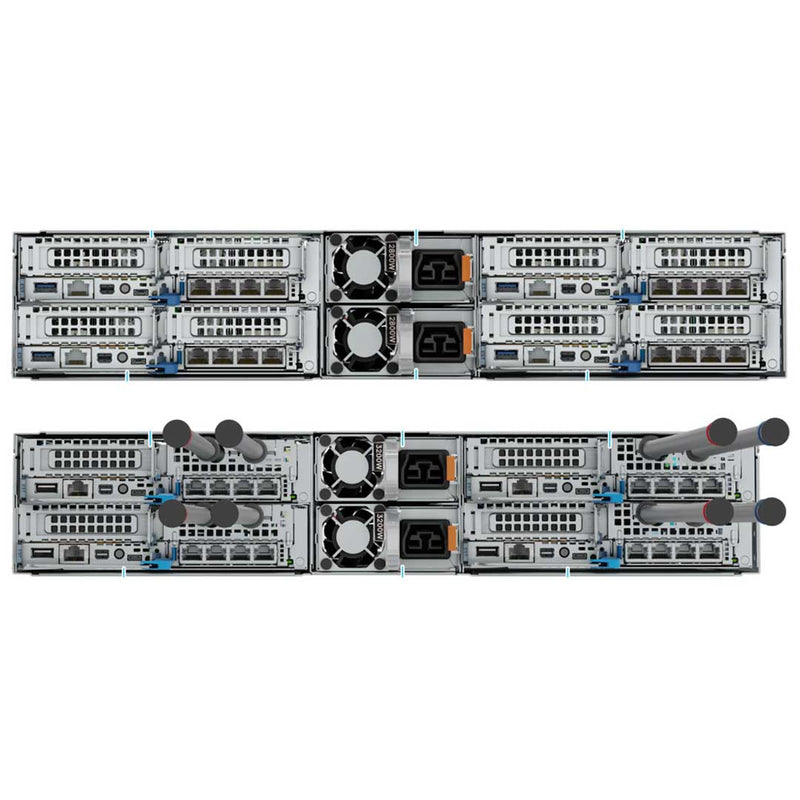

The C6600 holds 2 Power supply units to support up to 4 Sleds that could possibly have 8 CPUs and 64 DIMMs when fully populated. With so many CPUs and DIMMs to support the power supply units will be very large in capacity. The largest PSU for this system is 3200W.

3200 W AC and DC power supplies are only available in North America.

Dimensions & Weight:
  • Width: 17.63”
  • Height: 3.41”
  • Length: 33.05”
  • Weight Per Chassis:
    • 8 x E3.s 41.1 kg (90.60 pound)
    • 16 x 2.5-inch SAS/SATA 42.5 kg (93.69 pound)
    • 16 x 2.5-inch NVMe 41.8 kg (92.15 pound)
    • Diskless 39.2 kg (86.42 pound)
