SKU: 728551-B21

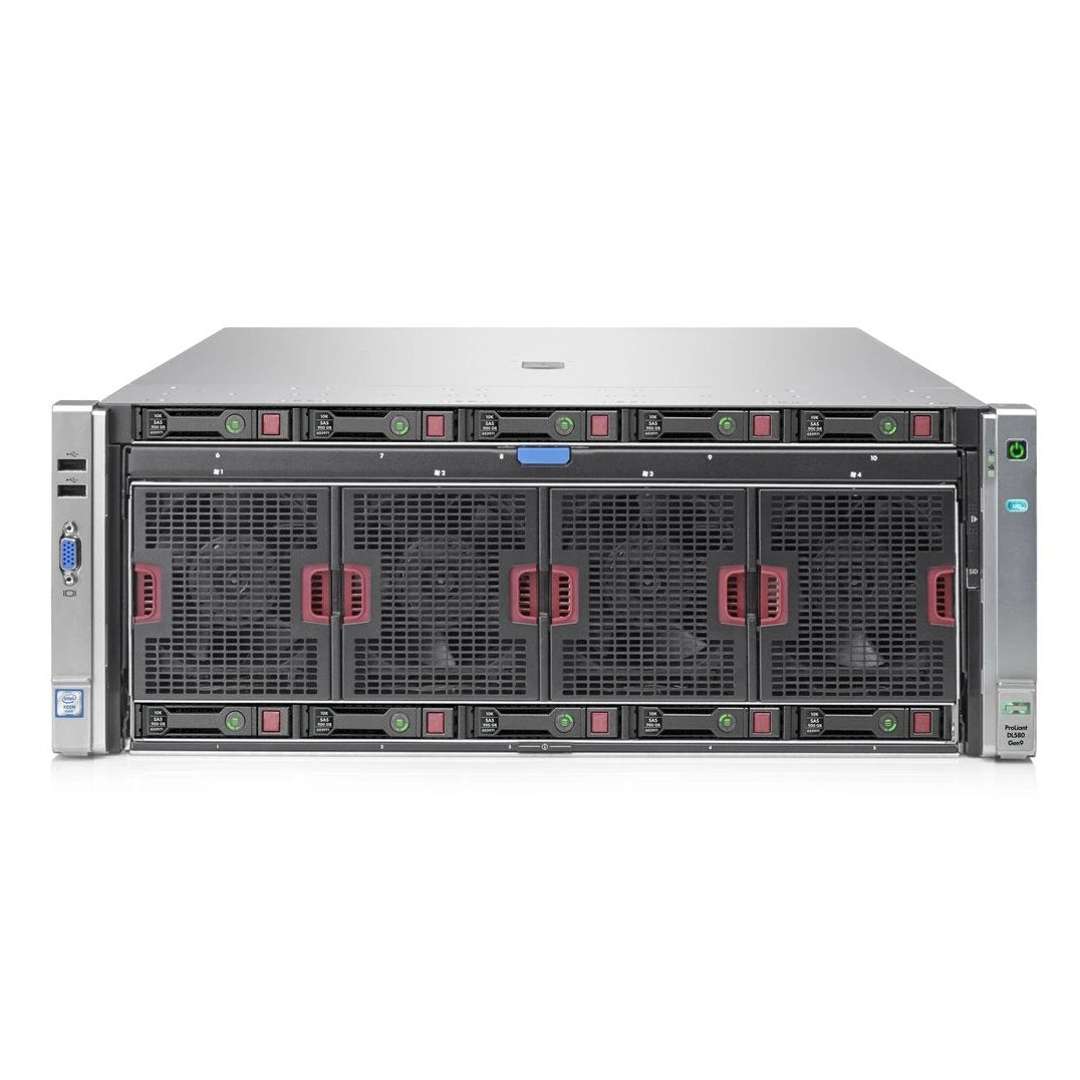

Hpe Proliant Dl580 Gen8 Server Chassis | 728551-B21

Name: Hpe Proliant Dl580 Gen8 Server Chassis | 728551-B21
Brand: HPE
SKU: 728551-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for ML30 Gen10 Plus

(4) Intel Xeon E7-4800/8800 v2
(96) DDR3 RDIMM & LRDIMM slots
(9) PCIe Gen3.0 slots
Supports up to (10) Drives
Supports up to (4) PSUs
Supports up to (5) GPUs
Supports 12Gbps SAS
Embedded HPE Smart Array 12Gb P830i Controller with FBWC
New flexible network technology - FlexibleLOMs

The refurbished HPE ProLiant DL580 Gen8 Server is an Enterprise-Grade four socket (4S) x86 server offering break through performance, Rock-Solid reliability, and compelling consolidation and manageability efficiencies. It is ideal for Mission-Critical enterprise, business intelligence, and database applications.

Featuring Intel Xeon E7-4800/8800 v2 processors, the DL580 Gen8 offers blazing fast results with enhanced processor performance, more memory slots (96 DIMMs), greater IO bandwidth (9 PCIe Gen3.0 slots), and increased storage performance (12 Gbps SAS).

Other Versions:

Ideal for:

Cloud Servers
Corporate IT
Database

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Product features

Feature

Description

Processor (One or more of the following depending on model)

Fifteen-Core processors ¹

Intel Xeon E7-4890v2 (2.8 GHz/15-core/37.5MB/155 W) processor
Intel Xeon E7-4880v2 (2.5 GHz/15-core/37.5MB/130 W) processor
Intel Xeon E7-4870v2 (2.3 GHz/15-core/30MB/130 W) processor
Intel Xeon E7-8880Lv2 (2.2 GHz/15-core/37.5MB/105 W) processor

Twelve-Core processors ²

Intel Xeon E7-4860v2 (2.6 GHz/12-core/30MB/130 W) processor
Intel Xeon E7-4850v2 (2.3 GHz/12-core/24MB/105 W) processor
Intel Xeon E7-8857v2 (3.0 GHz/12-core/30MB/130 W) processor

Ten-Core processors ³

Intel Xeon E7-4830v2 (2.2 GHz/10-core/20MB/105 W) processor
Intel Xeon E7-8891v2 (3.2 GHz/10-core/37.5MB/155 W) processor

Eight-Core processors

Intel Xeon E7-4820v2 (2.0 GHz/8-core/16MB/105 W) processor

Six-Core processors ³

Intel Xeon E7-4809v2 (1.9 GHz/6-core/12MB/105 W) processor
Intel Xeon E7-8893v2 (3.4 GHz/6-core/37.5MB/155 W) processor

Cache memory (One of the following depending on model)

37.5MB (1 x 37.5MB) Level 3 cache (E7-4890v2, E7-8880Lv2, E7-4880v2, E7-8891v2, E7-8893v2)
30MB (1 x 30MB) Level 3 cache (E7-8857v2, E7-4870v2, E7-4860v2)
24MB (1 x 24MB) Level 3 cache (E7-4850v2)
20MB (1 x 20MB) Level 3 cache (E7-4830v2)
16MB (1 x 16MB) Level 3 cache (E7-4820v2)
12MB (1 x 12MB) Level 3 cache (E7-4809v2)

Chipset ⁴

Intel C602J Chipset
Intel Xeon E7-4800/8800 v2 processor family

Upgradeability ⁵

Up to four (4) processors
Up to Ninety-Six (96) Dual Data Rate (DDR3) Dual In-line Memory Module (DIMM) slots
Up to nine (9) PCIe Gen3 expansion slots
Up to ten (10) SFF internal Hard Disk Drive (HDD)/ Solid State Drive (SSD) drive bays
Up to four (4) redundant Hot-Plug power supplies

Memory ⁶ (One of the following depending on model)

Type	HPE SmartMemory
Type	DDR3 Registered (RDIMM) and Load Reduced (LRDIMM)
DIMM Slots available	96 DIMM slots
Maximum	6TB (96 x 64GB)

System fault management and diagnostics

HPE Advanced Error Recovery
HPE Memory Quarantine
HPE Advanced Error Containment
HPE Advanced Fault Resiliency

FlexibleLOM ⁷

HPE Ethernet 1Gb 4-port 331FLR Factory Installed Option (FIO) Adapter
HPE Ethernet 1Gb 4-port 366FLR FIO Adapter
HPE Ethernet 10Gb 2-port 533FLR-T FIO Adapter
HPE FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter
HPE Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter
HPE Ethernet 10Gb 2-port 561FLR-T FIO Adapter
HPE IB FDR/EN 40Gb 2P 544+FLR-QSFP Adapter

Expansion slots ⁸

Processor	Expansion Slot #	Technology	Width	Connector Width*	Bus / Dev Number**	Form Factor	Notes
4	1	PCIe 3.0	x16	x16	C0/03/0	FH/FL	N/A
4	2	PCIe 3.0	x16	x16	C0/02/0	FH/FL	N/A
3	3	PCIe 3.0	x16	x16	80/03/0	FH/FL	N/A
3	4	PCIe 3.0	x8	x16	80/02/0	FH/FL	N/A
3	5	PCIe 3.0	x8	x16	80/02/1	FH/FL	N/A
2	6	PCIe 3.0	x16	x16	40/03/0	FH/FL	N/A
2	7	PCIe 3.0	x8	x16	40/02/0	FH/FL	N/A
2	8	PCIe 3.0	x8	x16	40/02/1	FH/FL	N/A
1	9	PCIe 3.0	x16	x16	00/03/0	FH/FL	N/A

Storage controller ⁹(One of the following depending on model)

HPE Smart Array P830i/2G Flash Backed Write Cache (FBWC) Controller

The FBWC increases cache data retention capabilities from two days of existing Battery Backed Write Cache (BBWC) to infinite data retention.

Delivers 12 Gb/s line rate performance
Standard on all models
Supports HPE Secure Encryption as an option
Transportable data protection
Increases overall controller performance

Internal storage devices

HDD Backplane	Internal SAS Lower and upper backplanes supports up to ten Small Form Factor (SFF) HDD or SSD
Diskette drive	None
Optional optical drive	None
Hard drives	None ship standard

Maximum internal storage

Hot-Plug SFF SAS	12TB	10 x 1.2TB
Hot-Plug SFF SAS SSD	16TB	10 x 1.6TB
Hot-Plug SFF SATA SSD	8TB	10 x 800GB

Interfaces

Serial	1
Video	1 front; 1 rear
Network RJ-45	4
iLO 4 Remote Management	1
micro-SD Slot	1
USB 2.0 Ports	8 total: 2 front; 4 rear; 2 internal

Common slot power supply ¹⁰ (One of the following depending on power requirements)

HPE 1500 W common slot platinum plus Hot-Plug power supply
HPE 1200 W common slot platinum plus Hot-Plug power supply

System fans

4 Hot-Plug fans (Eight rotors with N+1 redundancy)

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 b/p)
1920 x 1200 (16 b/p)

HPE iLO 4 On system management memory

16MB Flash
256MB DDR3 with ECC (112MB after ECC and video)

Form factor

4U rack

Security

Power-ON password
Keyboard password
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Trusted Platform Module (TPM)
Intel Secure Key
HPE Secure encryption (Smart Array controller)
HPE Advanced data guard (Smart Array controller)

Industry standard compliance ₁₁

ACPI 2.0. Compliant
PCIE 2.0 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE) Support
Microsoft Logo certifications
USB 2.0 Support

HPE Server Unified Extensible Firmware Interface (UEFI) ROM ¹²

UEFI enables numerous new capabilities, including both industry standard functionality and features specific to HPE ProLiant servers.

Following are some of the features that UEFI enables and that the HPE ProLiant DL580Gen8 can support when configured for UEFI boot operation:

Secure boot
Operating System (OS) specific functionality
Support for > 2.2TB (Using GPT) boot drives
UEFI Shell
PXE Boot support for IPv6 networks
PXE Multicast boot allowing for faster PXE deployments for large numbers of servers
Boot support for option cards that only support a UEFI option ROM

top

Specs 1

Software overview

Feature	Description
OS and virtualization software support for ProLiant servers	Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware
Softwares	On system management HPE Insight management Intelligent manageability HPE Insight Online HPE Proactive Insight experience HPE SAP HANA IvyBridge

top

Physical specifications

Specifications	Description
Dimensions (H x W x D) (with bezel)	17.6 x 48.3 x 70.0 cm (6.94 x 19.0 x 27.55 in)
Weight (approximate)	Maximum (all hard drives, power supplies, DIMMs and processors installed) 45.4 kg (100.0 lb) Minimum (one hard drive, two power supplies, four DIMMs, and two processors installed) 30.0 kg (66.0 lb)

top

Electrical specifications

Specifications	Description
Input requirements (per power supply)
Rated line voltage	100 - 127 V ac 200 - 240 V ac
Rated input current	12 A (at 100 V ac) 8 A (at 200 V ac)
Rated input frequency	50 to 60 Hz
Rated input power	1161 W (at 100 V ac) 1598 W (at 240 V ac)
BTU rating
Maximum	3960 BTU/hr (at 100 V ac) 5450 BTU/hr (at 200 V ac)
Power supply output (per power supply)
Rated steady-state power	910 W (low line) 1300 W (high line)
Maximum peak power	910 W (low line) 1300 W (high line)

top

Environmental specifications

Specifications	Description
System inlet temperature
Operating	10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).
Non-operating	-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative humidity (non-condensing)
Operating	10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
Non-operating	5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
Altitude
Operating	3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating	9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic noise ¹
Idle	L WAd - 6.4 B (with PCI-E) L pAm - NA dBA
Operating	L WAd - 6.8 B (with PCI-E) L pAm - NA dBA
NOTE: 1.Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

top

Safety certifications

Certifications	Description
Emissions Classification (EMC)
FCC rating	Class A
Normative standards	CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
