-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What's New for ML30 Gen10 Plus
- (4) Intel Xeon E7-4800/8800 v4/v3
- (96) DDR4 RDIMM & LRDIMM slots
- (9) PCIe Gen3.0 slots

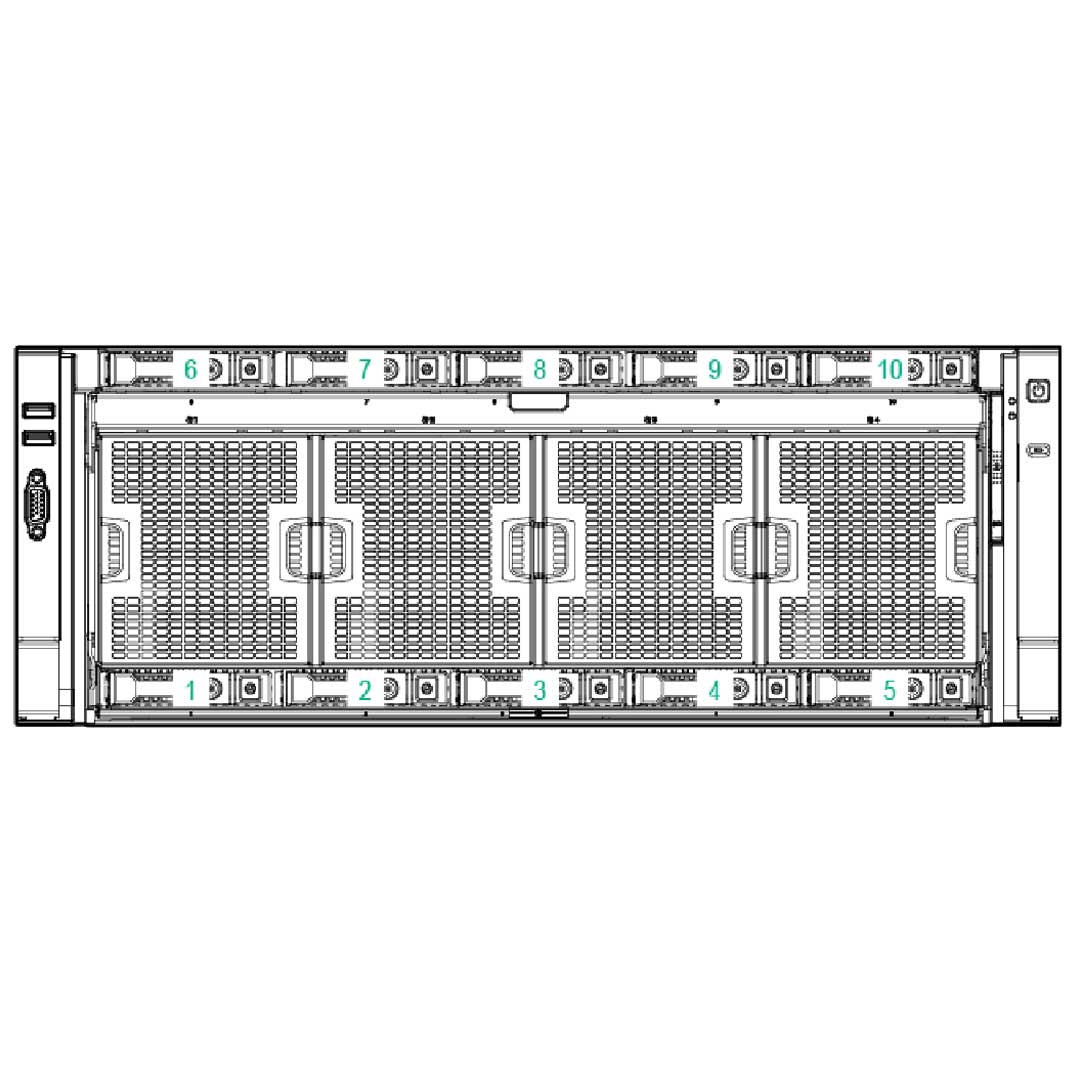

- Supports up to (10) Drives
- Supports (5) NVMe Drive - Upper Bay Only
- Supports up to (4) PSUs
- Supports up to (4) GPUs
- Supports 12Gbps SAS
- Embedded HPE Smart Array 12Gb P830i Controller with FBWC
- HPE Lockstep Memory Mode FIO Setting
- New 128GB DIMM memory
The HPE ProLiant DL580 Gen9 Server is the Hewlett Packard Enterprise four socket (4S) enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies.
Supporting Intel® Xeon® E7-4800/8800 v4/v3 processors, the HPE DL580 Gen9 offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen3.0 slots), and 12 Gb/s of SAS speeds. HPE ProLiant DL580 Gen9 has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
CTO Configuration Support
Need help with the configuration? Contact us today!
HPE DL580 Chassis Specs
| Specification | Value |
|---|---|

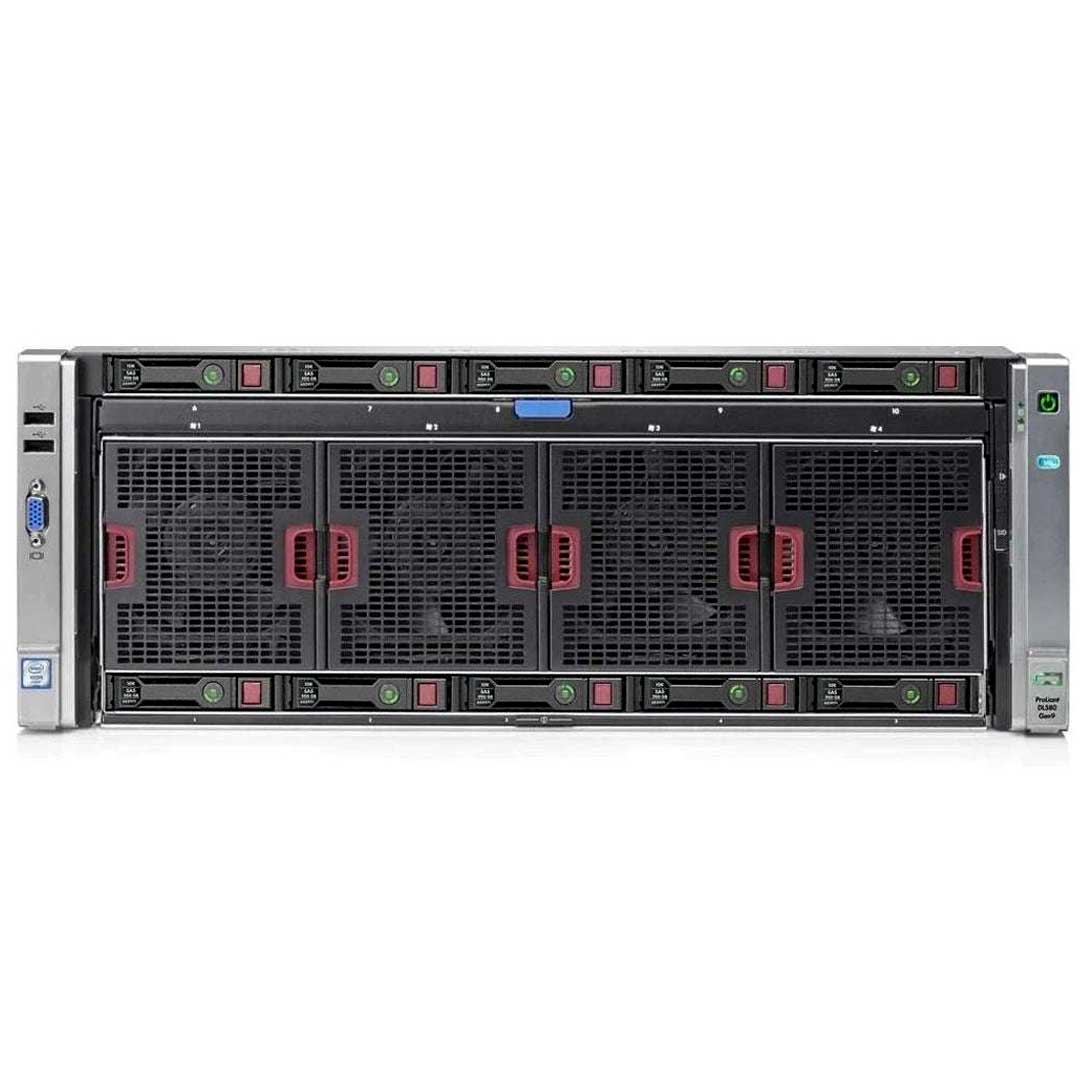

| Chassis | HPE ProLiant DL580 Gen9 Configure-to-order Server |
| SKU Number | 793161-B21 |
| Processor | 4U Server Chassis with front-accessible processor and memory drawer |
| Storage Controller | Embedded HPE Smart Array 12G P830i Controller |
| PCIe | 9 PCIe Gen3.0 I/O Expansion slots (5x16 slots, 4x8 slots) |
| Drive Cage | 5 Hot-plug SAS/SATA SFF SSD or HDD Bays (Lower) |
| Fans | 4 hot plug fans (eight rotors with N+1 redundancy), front accessible |
| Management | iLO Management (standard), Intelligent Provisioning (standard) |
| USB | 8 USB 2.0 ports (2 front, 4 rear, 2 internal) |
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HP ProLiant DL580 Gen9 Server |
|---|---|
| Compute | Two, three, or four Intel Xeon E7 4800/8800 v3 processors; 4/8/10/12/14/16/18 cores; up to 3.2 GHz and 45 MB L3 cache |
| Memory | HP SmartMemory (96) DDR4 DIMM slots and 6 TB maximum memory with 64 GB DIMMs (supports both R-DIMMs and LR-DIMMs up to 1,866 MHz) |
| Storage | HP Smart Array P830i 12 Gbps SAS Controller |
| Flash-backed write cache (FBWC) | 2 GB or 4 GB FBWC |
| HP SmartDrives | Up to 10 SFF max, HDD/SSD (20 TB max), and optional 5 NVMe PCIe SSD support |
| I/O expansion | Nine PCIe Gen3.0 FL/FH slots standard (four x8 and five x16 lanes slots); FlexibleLOM and Embedded SAS RAID Controller
provide two additional I/O devices for a total of 11 PCIe devices per system. Note: Slot availability is dependent on the number of processors installed. |
| Networking | FlexibleLOM; choice of 4 x 1GbE, 2 x 10GbE, or 2 x 10 Gbps CNA or 2 x FDR InfiniBand |
| VGA/serial/USB ports/SD | Two video (1f, 1r); eight USB (2f, 2i, 4r); 3/5 NIC; one microSD; Dual microSD (optional); external USB optical drive (optional) |
| GPU Support | Up to 4 double-wide GPGPUs |
| System ROM | UEFI and Legacy BIOS |
| Converged management | HP OneView with HP iLO Advanced |
| Support management | HP Insight Online with enhanced mobile app |
| Embedded management | HP iLO 4, HP Intelligent Provisioning, HP System Update Manager (SUM), HP RESTful Interface Tool, HP Scripting Tools for Microsoft ® Windows ® PowerShell |
| Power supplies | Up to four 1,500 W or 1,200 W (N+N redundant), 94 percent efficient (Platinum Plus); common slot 1,200 W power supplies: max power consumption—120 VAC–1,012 VA, 3,408 BTU, 230 VAC–1,332 VA, 4,447 BTU 1,500 W power supplies: max power consumption—230 VAC–1672 VA, 5,637 BTU |
| Fans | Four hot plug (eight rotors with N+1 redundancy); front accessible |
| Security | Secure Boot, Intel Secure Key, and TPM option |
| System RAS features | HP Advanced Error Recovery, HP Memory Quarantine, HP Advanced Error Containment, HP Advanced Fault Resiliency, HP Advanced Event Detection and Reporting, and HP Qualified Options |
| Industry compliance | ASHRAE A3 and A4 configurations supported |
| Power discovery services | Supported |
| Location discovery services | Supported |
| Form factor/chassis depth | Rack (4U), 29" |
| Serviceability — Easy install rails | Standard with CMA |
