HPE ProLiant DL580 Rack Server (G9) CTO

HPE

| CTO Servers



Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Intel Xeon E7-8800\/4800v3

Supports up to (4) processors
Each processor will come with a heatsink (735514-001).

Intel Xeon E7-8800\/4800v4

Supports up to (4) processors
Each processor will come with a heatsink (735514-001).

Bezel, Blanks and More (Optional)

Cable Kits (Optional)

Memory E7-8800\/4800v3 (Optional)

24 DDR4 DIMMs per Processor with a total of 96 DIMMs on a 4P Configuration.
12 DIMMs per Cartridge, 2 Cartridges per Processor, 4 Processors per server.
A minimum of two memory cartridges are required (one per processor).
Minimum of four DIMMs per server
Lockstep Memory- A minimum of four DIMMs per cartridge is required and all installed cartridges must have identical DIMM configuration.

Memory E7-8800\/4800v4 (Optional)

24 DDR4 DIMMs per Processor with a total of 96 DIMMs on a 4P Configuration.
12 DIMMs per Cartridge, 2 Cartridges per Processor, 4 Processors per server.
A minimum of two memory cartridges are required (one per processor).
Minimum of four DIMMs per server
Lockstep Memory- A minimum of four DIMMs per cartridge is required and all installed cartridges must have identical DIMM configuration.

Drive Options (Optional)

The Lower 5SFF Drive Bay comes Standard.
NVMe Drives can only be installed on the Upper Drive Bay.

HPE SFF Drives SAS (2.5in) (Optional)

Supports up to (10) SFF Drives

HPE SFF Drives SATA (2.5in) (Optional)

Supports up to (10) SFF Drives

HPE NVMe SFF Drives (Optional)

To support NVMe PCIe SSDs you need to select the SSD Express Bay Kit (788359-B21), maximum of 5 drives supported.

Networking Adapters (Optional)

Network Adapters, Converged Network Adapter, InfiniBand Adapters
Default HPE Ethernet 1Gb 4P 331FLR Adapter
For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

FlexibleLOM Adapters (Optional)

Only one FlexibleLOM can be added to the server in a dedicated slot.

Host Bus Adapters (HBAs) (Optional)

9 PCIe Slots (Full Height)

Storage Controller (Optional)

A maximum of 4 HPE Smart Array Controllers (including embedded controllers) can be installed.
Each Performance Smart Array SAS Controller comes with an FBWC PCI Card. So each Controller will take up two PCI-e slots.

GPU \/ PCI drives (Optional)

HPE DL580Gen9 M60 Reverse Air Flow Cable Kit (869724-B21) is required for Graphics cards.Up to 4 cards are supported on the DL580 Gen9. Supporting multiple number of cards on the DL580 Gen9 blocks some active IO cards as follows due to space
Read the \"Know Your Server\" GPU section for more details.

HPE USB Devices (Optional)

iLO Server Management (Optional)

iLO Management (standard), Intelligent Provisioning (standard)
UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode

Trust Platform Module (TPM) (Optional)

Power Supply Unit (PSU)

Minimum of two (2) power supplies are required.
All power supplies in a server should match. Mixing Power Supplies is not supported.
1500W Power Supplies only support High Line Voltage.

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs
What's New for DL580 Gen10 Plus
  • (4) Intel Xeon E7-4800/8800 v4/v3
  • (96) DDR4 RDIMM & LRDIMM slots
  • (9) PCIe Gen3.0 slots
  • Supports up to (10) Drives
  • Supports (5) NVMe Drive - Upper Bay Only
  • Supports up to (4) PSUs
  • Supports up to (4) GPUs
  • Supports 12Gbps SAS
  • Embedded HPE Smart Array 12Gb P830i Controller with FBWC
  • HPE Lockstep Memory Mode FIO Setting
  • New 128GB DIMM memory
Other Versions:

(Click to View)

Ideal for:
  • Cloud Servers
  • Corporate IT
  • Database

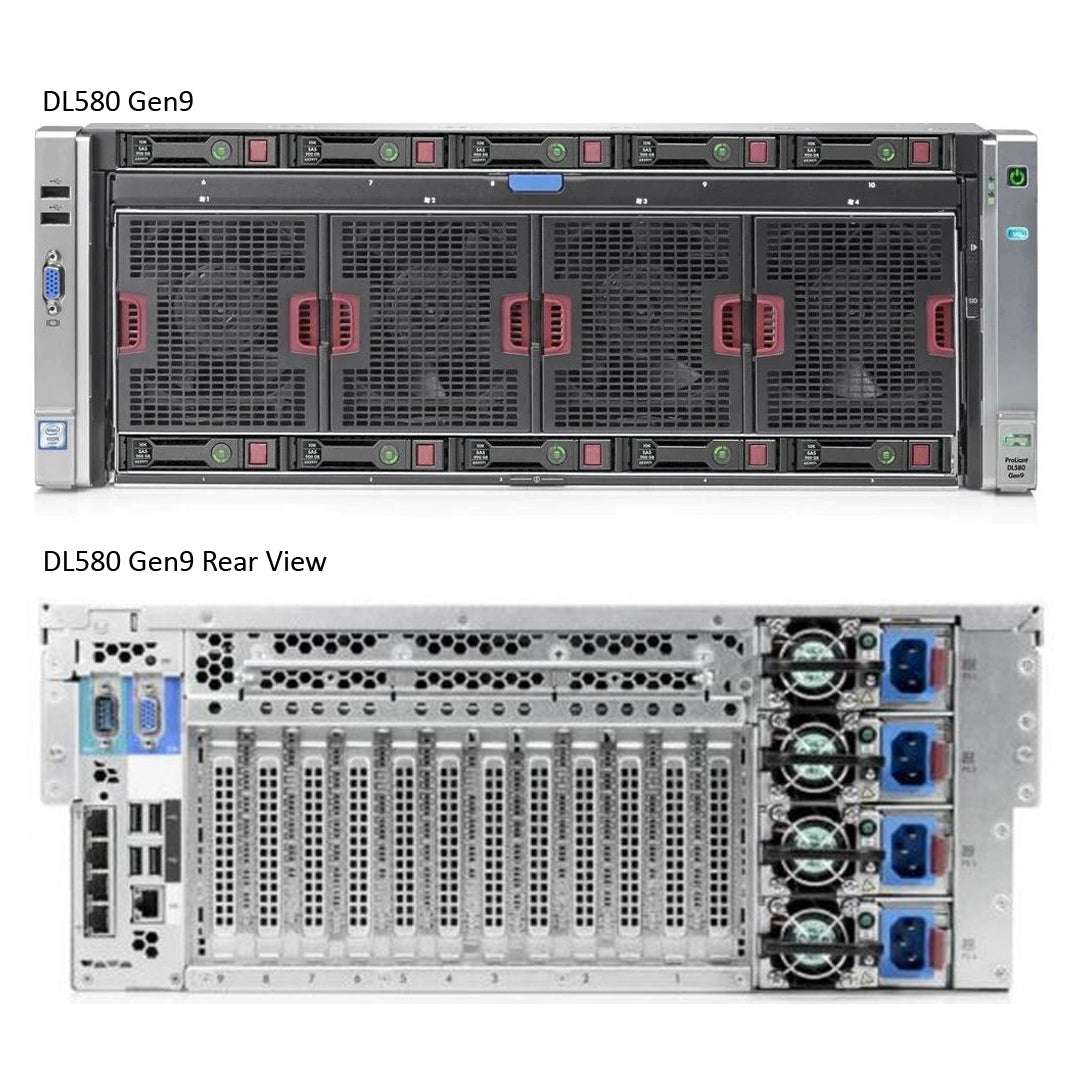

The HPE ProLiant DL580 Gen9 Server is the Hewlett Packard Enterprise four socket (4S) enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies.

Supporting Intel® Xeon® E7-4800/8800 v4/v3 processors, the HPE DL580 Gen9 offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen3.0 slots), and 12 Gb/s of SAS speeds. HPE ProLiant DL580 Gen9 has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications.

CTO Configuration Support

Need help with the configuration? Contact us today!

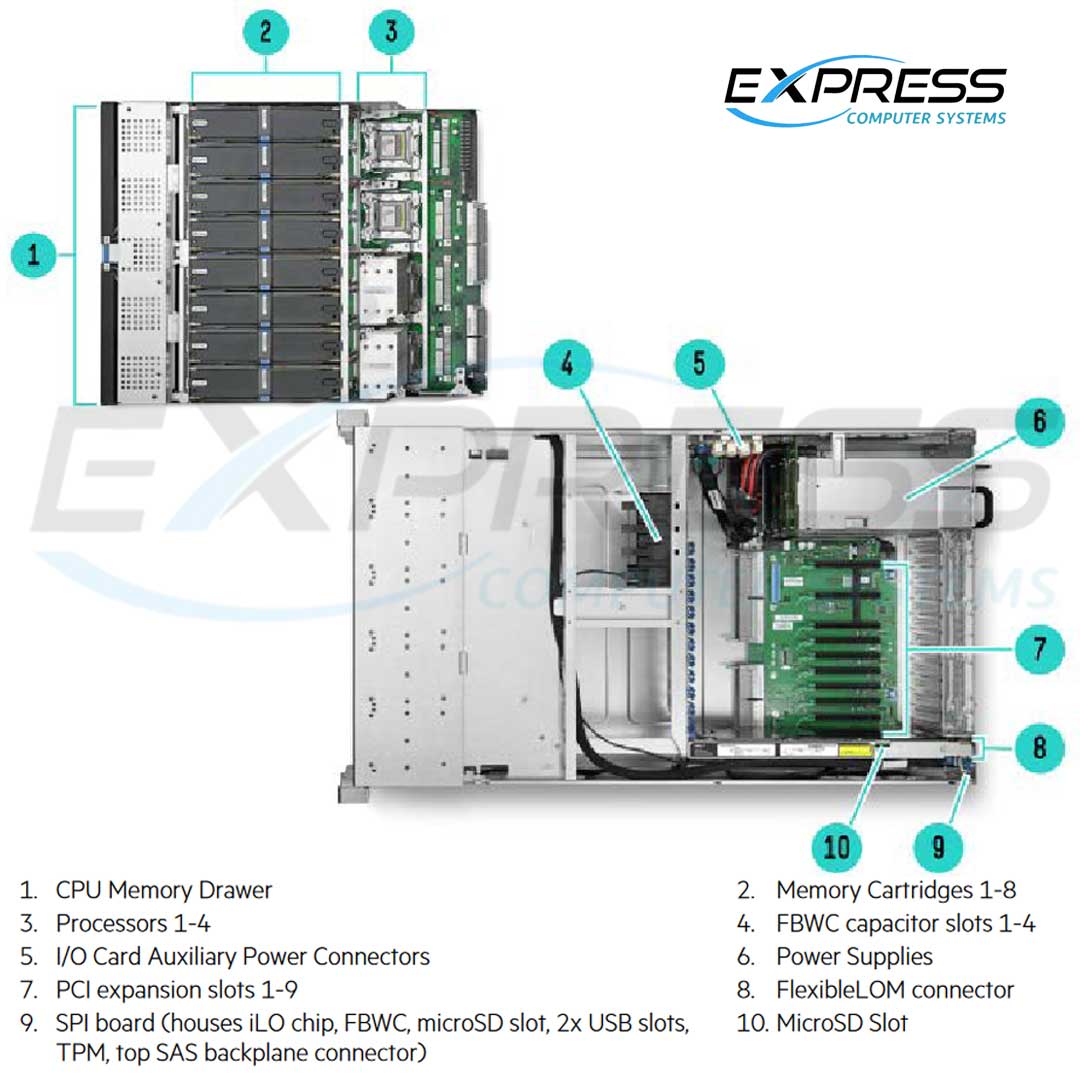

HPE DL580 Chassis Specs
Specification Value
Chassis HPE ProLiant DL580 Gen9 Configure-to-order Server
SKU Number 793161-B21
Processor 4U Server Chassis with front-accessible processor and memory drawer
Storage Controller Embedded HPE Smart Array 12G P830i Controller
PCIe 9 PCIe Gen3.0 I/O Expansion slots (5x16 slots, 4x8 slots)
Drive Cage 5 Hot-plug SAS/SATA SFF SSD or HDD Bays (Lower)
Fans 4 hot plug fans (eight rotors with N+1 redundancy), front accessible
Management iLO Management (standard), Intelligent Provisioning (standard)
USB 8 USB 2.0 ports (2 front, 4 rear, 2 internal)
DL580 (G9) Min/Max
  • A minimum of two processors are required.
  • Can support two, three, or four processors installed.
  • Min (1) Memory cartridges and (2) DIMMs are required per CPU.
  • Max 12TB in (8) Memory cartridges holding (12) DIMMs each
  • Min (2) power supplies are required; (4) are supported.
HPE DL580 (G9) Drive Numbers
HPE DL580 Gen9 Maximum Internal Storage

Internal SAS lower and upper backplanes support up to ten SFF hard disk drives or solid-state drives or Express Bays (NVMe drives). To add a drive Bay or to add a second drive bay you will need the HPE ProLiant DL580 5 Small Form Factor Drive Backplane Cage Kit (739405-B21). If you don’t plan to fill all the drive slots. Use the HPE Small Form Factor Hard Drive Blank Kit (666987-B21).

Max Drive Capacity
  • SAS 24TB (10x 2.4TB)
  • SAS SSD 4TB (10x 3.84TB)
  • SATA SSD 4TB (10x 3.84TB)
  • NVMe SSD 8TB (5x 1.6TB)

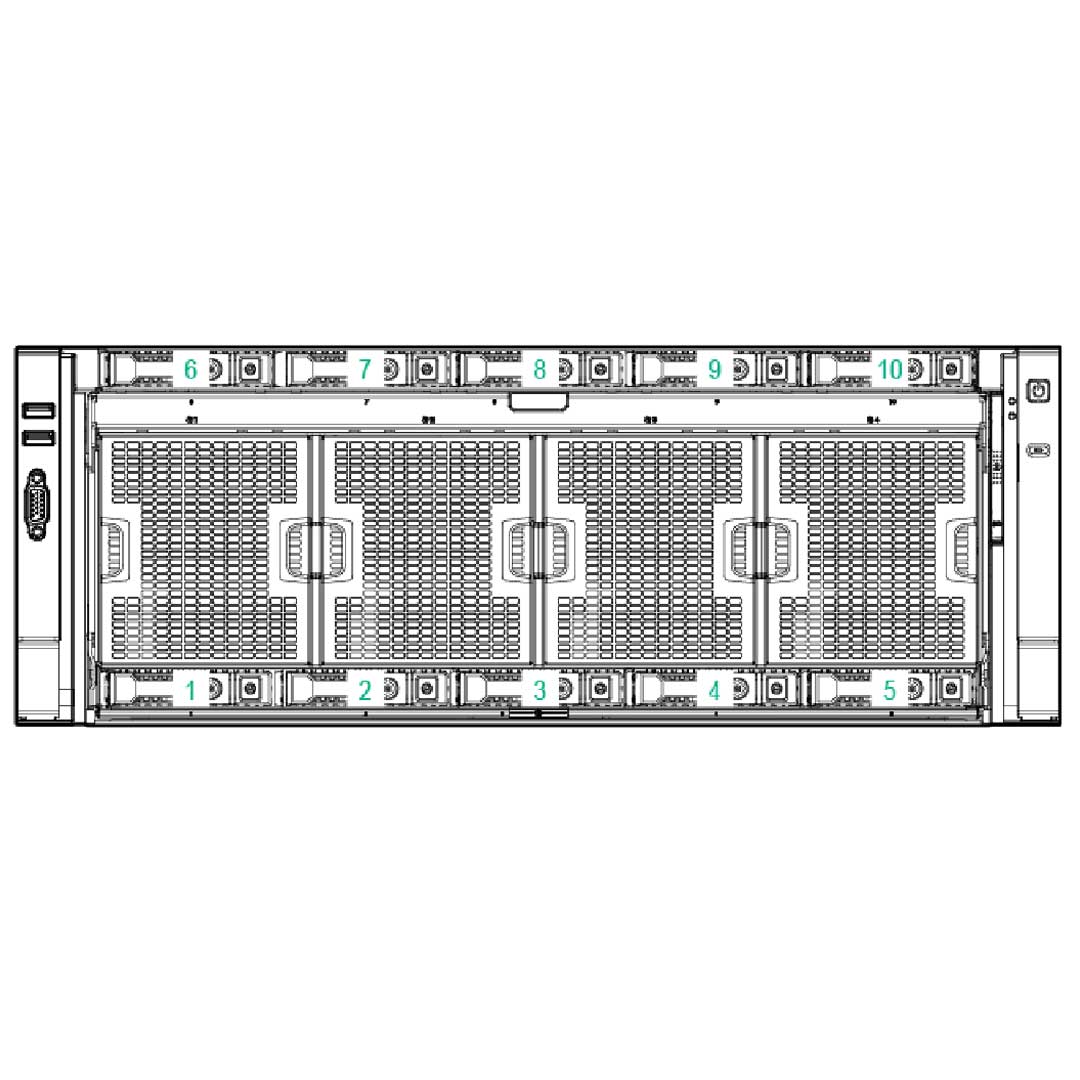

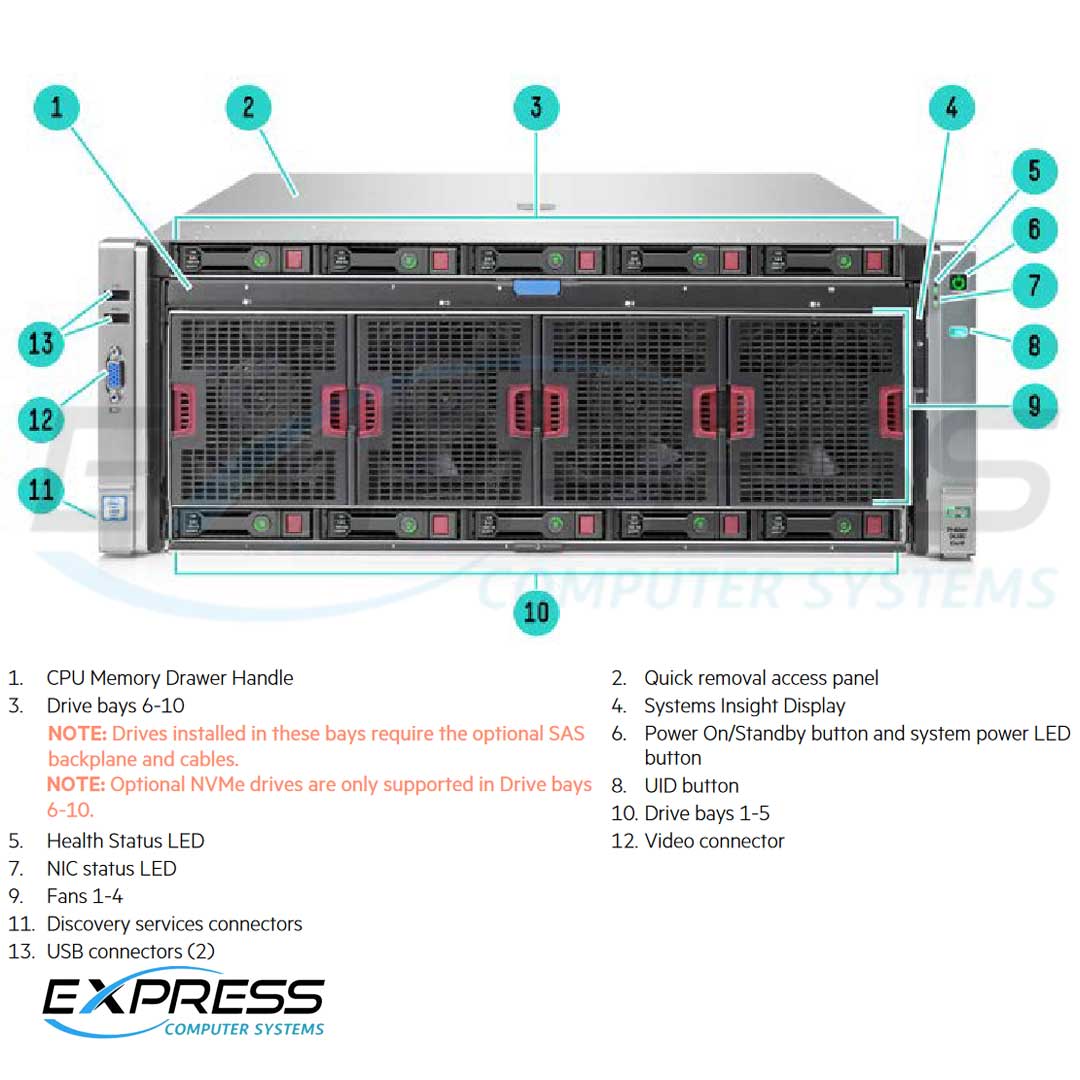

The DL580 Gen9 comes with two Drive Bays. One 5 Drive Bay on the bottom as standard and another 5 Drive Bay on top of the 4 Fans. The NVMe Drives can only be installed on the top drive bay. To support NVMe PCIe SSDs you need to select the SSD Express Bay Kit (788359-B21), maximum of 5 drives supported.

Drives Configurations
  • (5) HDD/SSD SFF Drives
  • (10) HDD/SSD SFF Drives
  • (5) NVMe + (5) HDD/SSD SFF Drives

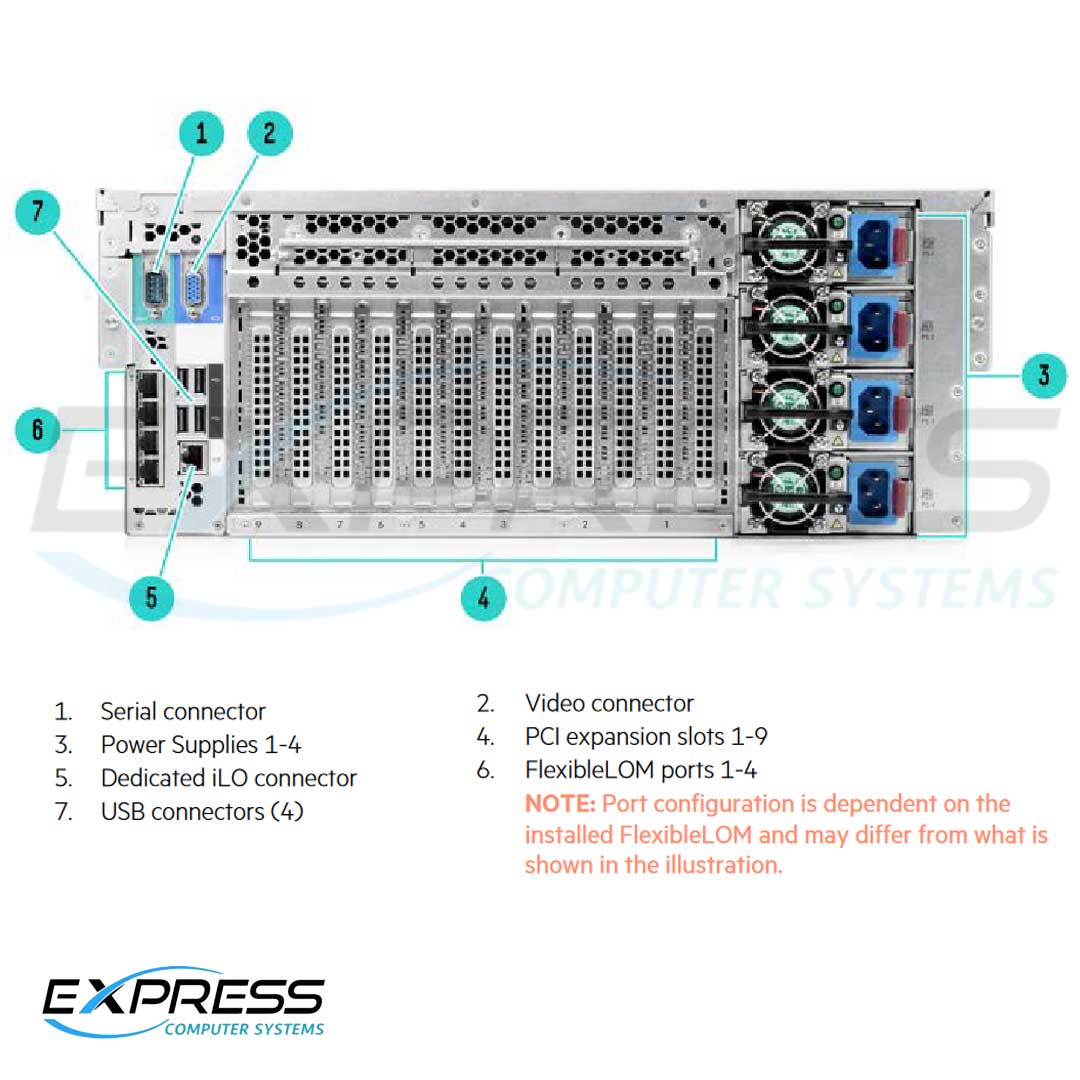

HPE DL580 Gen9 Expansion

PCIe slot availability is dependent on the number of processors installed, view the table below for details. Up to 9 slots supported; all full-length/full-height. All slots support PCIe cards to 150W or more depending on the card but an additional Power Cord Option is required (PN 669777-B21).

HPE ProLiant DL580 Gen9 servers offer a dedicated FlexibleLOM slot, which offers customers a choice of 1Gb, 10Gb, or 10Gb base-T Ethernet or converged networking in their embedded adapter.

Expansion Slots # Technology Bus Width Connector Width Bus Number Form Factor Notes
1 PCIe 3.0 x16 x16 C0/03/0 Full-length / Full-height Proc 4
2 x16 C0/02/0 Proc 4
3 x16 80/03/0 Proc 3
4 x8 80/02/0 Proc 3
5 x8 80/02/1 Proc 3
6 x16 40/03/0 Proc 2
7 x8 40/02/0 Proc 2
8 x8 40/02/1 Proc 2
9 x16 00/03/0 Proc 1
HPE DL580 Gen9 GPU / Workload Accelerator
NVIDIA Tesla M60 Requires : HPE DL580 Gen9 M60 Reverse Air Flow Cable Kit 869724-B21

Up to 4 GPU cards are supported on the DL580 Gen9. Supporting a multiple number of cards on the DL580 Gen9 blocks some active IO cards as follows due to space constraints:

HPE DL580 (G9) GPU Enablement Kit 788359-B21
For 2P config:

Max of 2 double-wide cards installed on slot 6 and slot 9 (slot 8 is blocked).

For 3P config:

Max of 3 double-wide cards installed on slot 3, slot 6, and slot 9 (slot 5 and slot 8 are blocked).

For 4P config:

Max of 4 double wide cards installed on Slot 1, Slot 3, Slot 6, and Slot 9 (slot 5 and slot 8 are blocked).

HPE DL580 Gen9 Common Slot your power!

A minimum of two (2) power supplies are required. Four (4) 1500W power supplies offers N+Nredundancy for highly loaded configurations. Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and the operation will fail.

HPE DL580 (G9) Power Supply
HPE DL580 Gen9 Lights Out! iLO
HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.

RESTful API

RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards.

Embedded Remote Support

The Hewlett Packard Enterprise embedded remote support when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support.

Lockstepmode

In this mode, the memory controller operates two DDR4 channels behind one memory buffer as single channel and the SMI2 channel operates at the DDR4 transfer rate (1866 MT/s max).

Dimensions & Weight
Dimensions
  • 6.88in (H) x 29 in (D) x 17.58in (W)
  • 17.5cm (H) x 73.6cm (D) x 44.4cm (W)
Weight
  • Min - 32.18 kg (70.94 lb)
  • Max - 52.87 kg (116.56 lb)

Current Configuration

(List below serves as quick links to each section)

Server Chassis

Bezel, Blanks and More

Cable Kits

Memory E7-8800\/4800v3

Memory E7-8800\/4800v4

Drive Options

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE NVMe SFF Drives

Networking Adapters

FlexibleLOM Adapters

Host Bus Adapters (HBAs)

Storage Controller

GPU \/ PCI drives

HPE USB Devices

iLO Server Management

Trust Platform Module (TPM)

Power Supply Unit (PSU)

ECS Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Base Standard Capabilities

Product features

Features
Description
Processor (One of the following depending on model)
Model
CPU frequency
Cores
L3 Cache
Power
QPI
DDR4 Hz
E7-8893v3
3.2 GHz
4
45MB
140 W
9.6 GT/s
1866
E7-8891v3
2.8 GHz
10
45MB
165 W
9.6 GT/s
1866
E7-8890v3
2.5 GHz
18
45MB
165 W
9.6 GT/s
1866
E7-8880v3
2.3 GHz
18
45MB
150 W
9.6 GT/s
1866
E7-8880Lv3
2.0 GHz
18
45MB
115 W
9.6 GT/s
1866
E7-8870v3
2.1 GHz
18
45MB
140 W
9.6 GT/s
1866
E7-8867v3
2.5 GHz
16
45MB
165 W
9.6 GT/s
1866
E7-8860v3
2.2 GHz
16
40MB
140 W
9.6 GT/s
1866
E7-4850v3
2.2 GHz
14
35MB
115 W
8.0 GT/s
1866
E7-4830v3
2.1 GHz
12
30MB
115 W
8.0 GT/s
1866
E7-4820v3
1.9 GHz
10
25MB
115 W
6.4 GT/s
1866
E7-4809v3
2.0 GHz
8
20MB
115 W
6.4 GT/s
1866
E7-8894v4
2.4 GHz
24
60MB
165 W
9.6 GT/s
1866
E7-8893v4
3.2 GHz
4
60MB
140 W
9.6 GT/s
1866
E7-8891v4
2.8 GHz
10
60MB
165 W
9.6 GT/s
1866
E7-8890v4
2.2 GHz
24
60MB
165 W
9.6 GT/s
1866
E7-8880v4
2.2 GHz
22
55MB
150 W
9.6 GT/s
1866
E7-8870v4
2.1 GHz
20
50MB
140 W
9.6 GT/s
1866
E7-8867v4
2.4 GHz
18
45MB
165 W
9.6 GT/s
1866
E7-8860v4
2.2 GHz
18
45MB
140 W
9.6 GT/s
1866
E7-4850v4
2.1 GHz
16
40MB
115 W
8.0 GT/s
1866
E7-4830v4
2.0 GHz
14
35MB
115 W
8.0 GT/s
1866
E7-4820v4
2.0 GHz
10
25MB
115 W
6.4 GT/s
1866
E7-4809v4
2.1 GHz
8
20MB
115 W
6.4 GT/s
1866
Memory
Type
HPE SmartMemoryDDR4 Registered (RDIMM) and Quad Rank Load Reduced (LRDIMM)
DIMM slots available
96 DIMM slots
Maximum capacity
12TB (96 x 128GB)
Internal storage devices
Diskette drive
None
Optional optical drive
External
Hard drives
None ship standard
Hard disk drive backplane
Internal SAS lower and upper backplanes support up to 10 SFF hard disk drives or solid state drives or express bays (NVMe drives)
Network controller
FlexibleLOM
HPE ProLiant Gen9 servers offer a new flexible network technology - FlexibleLOMs, which offers users a choice of 1Gb, 10Gb or 10Gb base-T Ethernet or converged networking in their embedded adapter:

  • HPE Ethernet 1Gb 4-port 331FLR FIO Adapter

  • HPE Ethernet 1Gb 4-port 366FLR FIO Adapter

  • HPE FlexFabric 10Gb 2-port 533FLR-T FIO Adapter

  • HPE FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter

  • HPE Ethernet 10Gb 2-port 546FLR-SFP+ FIO Adapter

  • HPE FlexFabric 10Gb 2-port 556FLR-SFP+FIO Adapter

  • HPE FlexFabric 10Gb 2-port 556FLR-T FIO Adapter

  • HPE Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter

  • HPE Ethernet 10Gb 2-port 561FLR-T FIO Adapter

  • HPE Ethernet 10Gb 2-port 562FLR-SFP+FIO Adapter

Maximum internal storage
Internal storage
Capacity
Configuration
Hot Plug SFF SAS
24TB
10 x 2.4TB
Hot Plug SFF SAS SSD
38.4TB
10 x 3.84TB
Hot Plug SFF SATA SSD
38.4TB
10 x 3.84TB
Hot Plug SFF NVMe PCIe SSD
8TB
5 x 1.6TB
Power supply

  • HPE 1500 W common slot platinum plus hot plug power supply

  • HPE 1500 W common slot 48 V dc hot plug power supply

  • HPE 1200 W common slot platinum plus hot plug power supply

Required cabling
Server power cords
Server ships with High-Voltage server to PDU power cord
System fans
4 Hot plug fans (Eight rotors with N+1 redundancy)
Interfaces
Video
1 front, 1 back
Serial
1
FlexibleLOM Network ports
Selection of FlexibleLOM options
iLO 4 remote management
1 x 1 Gbe dedicated
Micro SD slot
1 internal
USB 2.0 ports
8 total: 2 front, 4 back, 2 internal
Upgradeability

  • Upgradeable four (4) processors

  • Up to Ninety-Six (96) DDR4 DIMM slots

  • Nine (9) PCIe Gen3 expansion slots

  • 10 SFF internal HDD/SSD SAS drive bays or 5 SFF internal express bays + 5 SFF internal HDD/SSD drive bays

  • 5 NVMe SSD drive bays

  • 4 redundant hot-plug power supplies

Graphics
Integrated Matrox G200 video standard

  • 16MB Flash

  • 256MB DDR 3 with ECC (112MB after ECC and video)

HPE iLO 4 On system management memory

  • 16MB flash

  • 256MB DDR 3 with ECC (112MB after ECC and video)

top

Specs 1

Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant servers

  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

  • CentOS

  • Oracle Linux

top

Physical specifications

Specification
Description
Dimensions (H x W x D) (With bezel):
17.5 x 44.4 x 73.6 cm (6.88 x 17.48 x 29 in)
Weight (Approximate):

  • Maximum: 52.87 kg (116.56 lb)

  • Minimum: 32.18 kg (70.94 lb)

top

Electrical specifications

Specification
Description
Rated line voltage

  • 100 to 240 V ac (1200 W Power Supply (PS) only)

  • 200 to 240 V ac (1200 W and 1500 W PS)

Rated input current
9.2 A (100 V ac), 6.6 A (200 V ac) - 1200 W PS 8.3A (200 V ac) - 1500 W PS
Rated input frequency
50 to 60 Hz
Rated input power
1000 W (120 V ac), 1320 W (230 V ac)- 1200 W PS 1652 W (At 230 V ac) - 1500 W PS
Maximum BTU rating
3408 BTU/hr (120 V ac), 4500 BTU/hr (At 230 V ac) - 1200 W PS 5637 BTU/hr (230 V ac) - 1500 W PS V ac
Rated steady-state power and maximum peak power
800 W (100 V ac low line), 900 W (120 V ac low line), 1200 W (200 - 240 V ac) for 1200 W PS
1500 W (200 - 240 V) for 1500 W PS1400 W (At 240 V ac) input for China only

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F)
Extended ambient operating temperature
Minimum: 5° to 10° C (41° to 50° F)
Maximum: 35° to 40° C (95° to 104° F)
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Operating relative humidity
10% to 90% non-condensing
Non-operating relative humidity
5% to 95% non-condensing
Operating altitude
3048 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)
Acoustic noise

  • Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment

  • Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109)

Idle
LWAd
6.8 B
LpAm
51.2
Operating
LWAd
6.9 B
LpAm
51.2

top

Safety certifications

Specification
Description
FCC rating
Class A
Normative standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (Type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements

top

Spec Sheet 4

Technical specifications HP ProLiant DL580 Gen9 Server
Compute Two, three, or four Intel Xeon E7 4800/8800 v3 processors; 4/8/10/12/14/16/18 cores; up to 3.2 GHz and 45 MB L3 cache
Memory HP SmartMemory (96) DDR4 DIMM slots and 6 TB maximum memory with 64 GB DIMMs (supports both R-DIMMs and LR-DIMMs up to 1,866 MHz)
Storage HP Smart Array P830i 12 Gbps SAS Controller
Flash-backed write cache (FBWC) 2 GB or 4 GB FBWC
HP SmartDrives Up to 10 SFF max, HDD/SSD (20 TB max), and optional 5 NVMe PCIe SSD support
I/O expansion Nine PCIe Gen3.0 FL/FH slots standard (four x8 and five x16 lanes slots); FlexibleLOM and Embedded SAS RAID Controller provide two additional I/O devices for a total of 11 PCIe devices per system.
Note: Slot availability is dependent on the number of processors installed.
Networking FlexibleLOM; choice of 4 x 1GbE, 2 x 10GbE, or 2 x 10 Gbps CNA or 2 x FDR InfiniBand
VGA/serial/USB ports/SD Two video (1f, 1r); eight USB (2f, 2i, 4r); 3/5 NIC; one microSD; Dual microSD (optional); external USB optical drive (optional)
GPU Support Up to 4 double-wide GPGPUs
System ROM UEFI and Legacy BIOS
Converged management HP OneView with HP iLO Advanced
Support management HP Insight Online with enhanced mobile app
Embedded management HP iLO 4, HP Intelligent Provisioning, HP System Update Manager (SUM), HP RESTful Interface Tool, HP Scripting Tools for Microsoft ® Windows ® PowerShell
Power supplies Up to four 1,500 W or 1,200 W (N+N redundant), 94 percent efficient (Platinum Plus); common slot
1,200 W power supplies: max power consumption—120 VAC–1,012 VA, 3,408 BTU, 230 VAC–1,332 VA, 4,447 BTU
1,500 W power supplies: max power consumption—230 VAC–1672 VA, 5,637 BTU
Fans Four hot plug (eight rotors with N+1 redundancy); front accessible
Security Secure Boot, Intel Secure Key, and TPM option
System RAS features HP Advanced Error Recovery, HP Memory Quarantine, HP Advanced Error Containment, HP Advanced Fault Resiliency, HP Advanced Event Detection and Reporting, and HP Qualified Options
Industry compliance ASHRAE A3 and A4 configurations supported
Power discovery services Supported
Location discovery services Supported
Form factor/chassis depth Rack (4U), 29"
Serviceability — Easy install rails Standard with CMA
