Quick Specs
Form Factor:
1U rack server
Processor | Max: 64 Cores1 x AMD EPYC
Memory | Max: 384GB6 DDR5 RDIMM 4800Mhz
Storage | Max: 61TB(C6600 Enclosure Support)
16x 2.5" SAS/SATA (HDD/SSD)
16x 2.5" SAS/SATA/NVMe (HDD/SSD) Universal
Not supported by the E3.S Chassis
None
iDRAC:iDRAC9 with Lifecycle Controller
PCIe Slots:2x PCIe 5.0
GPU:None
Other Versions:
- Dell PowerEdge C6600 Enclosure
- Dell PowerEdge C6615 Node
- Dell PowerEdge C6620 Node
- --------------------------------
- Dell PowerEdge C6220 CTO
- Dell PowerEdge C6220ii CTO
- Dell PowerEdge C6300 CTO
- Dell PowerEdge C6400 CTO
(Click to View)
Ideal for:
- High-Performance Computing
- Financial/Trading Servers
- Web Tech
(Click to View)

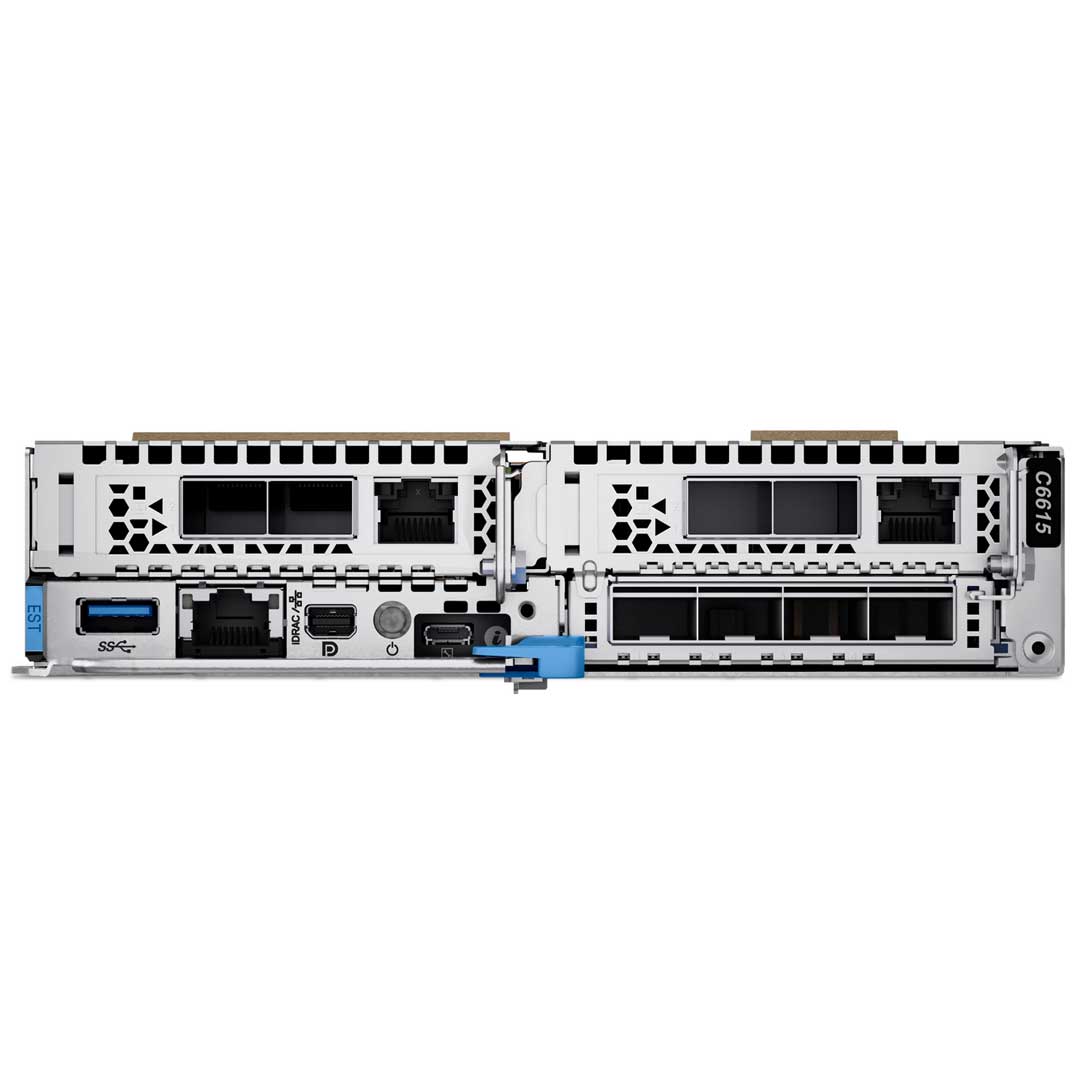

The Dell C6600 holds 4 Nodes. Either the AMD C6615 or the Intel C6620 Node Server.
You can not mix nodes.
This is 1 of the 2 Supported Nodes. The Dell C6600 Enclosure CTO must be configured separately.
Rich 1S Configurations for Scale-Out Computing with Increased Thermal Efficiency
The PowerEdge C6615 is designed to run workloads optimized for performance per Watt and allows for greater configurability within existing datacenters due to it’s low power form factor and improved thermal capabilities.
Maximize ROI
- With a single 4th Gen AMD EPYCTM 8004 (Siena) Processor, you get great performance at the lowest TDP (70-225W) in the EPYC portfolio for improved performance per watt in a purpose built, stream-lined architecture1.
- Core scaling up to 64 cores for increased socket-level performance drives lower TCO.
- Improved airflow to cool more efficiently than other multi-node products.
Scale more efficiently within your existing datacenter
- Increase core density in existing racks and maintain core datacenter ambient temperature.
- 53% increase in air cooling configuration support over previous generation.
- Faster, low-latency storage with Gen5 E3.S.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

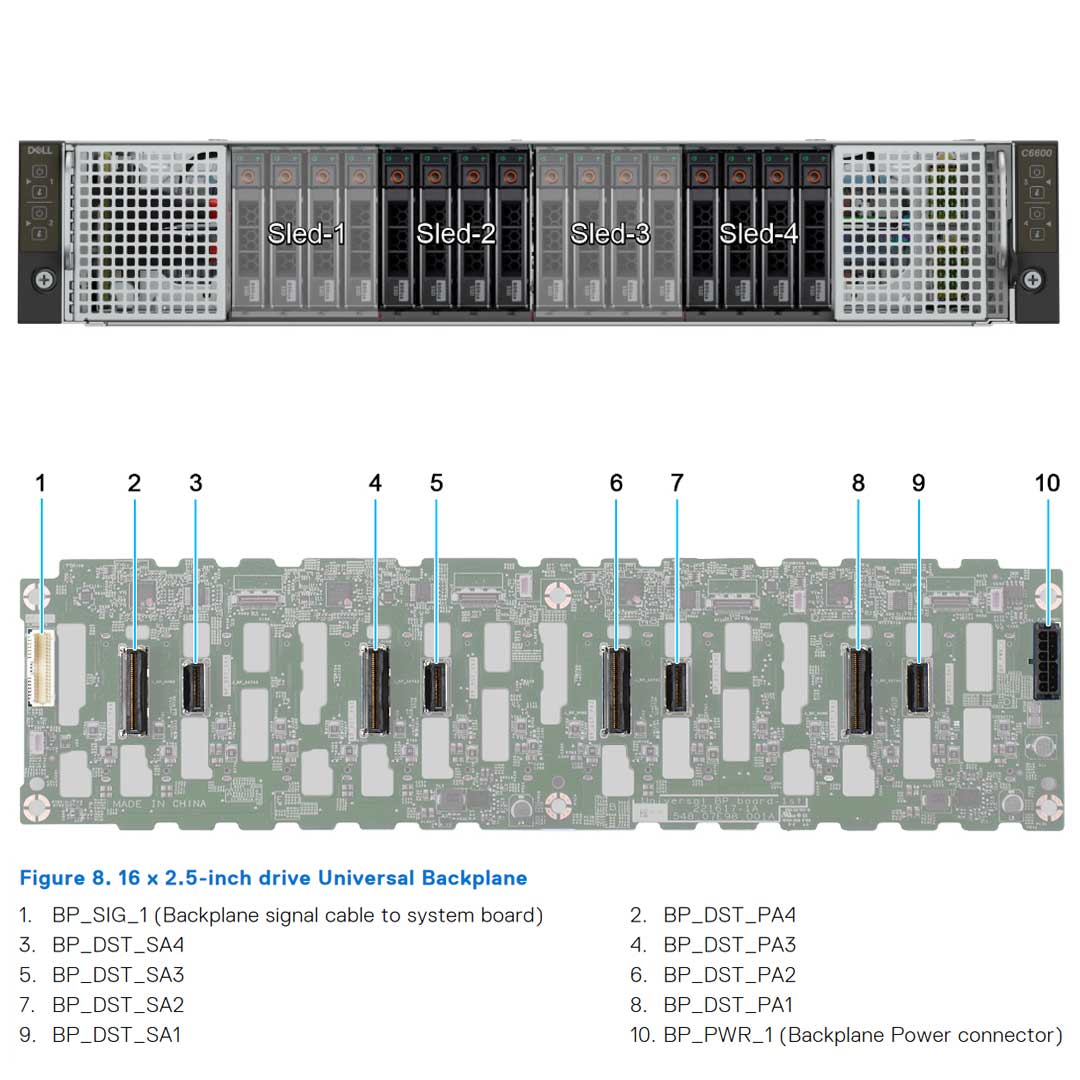

Chassis Options:
The C6615 Node Server for the C660 Rack Enclosure can only support the following backplane configurations:
- Diskless Configuration
- 16 x 2.5-in SAS/SATA (HDD/SSD) drives.
- 16 x 2.5-inch SATA/NVMe drives on Universal backplane configuration

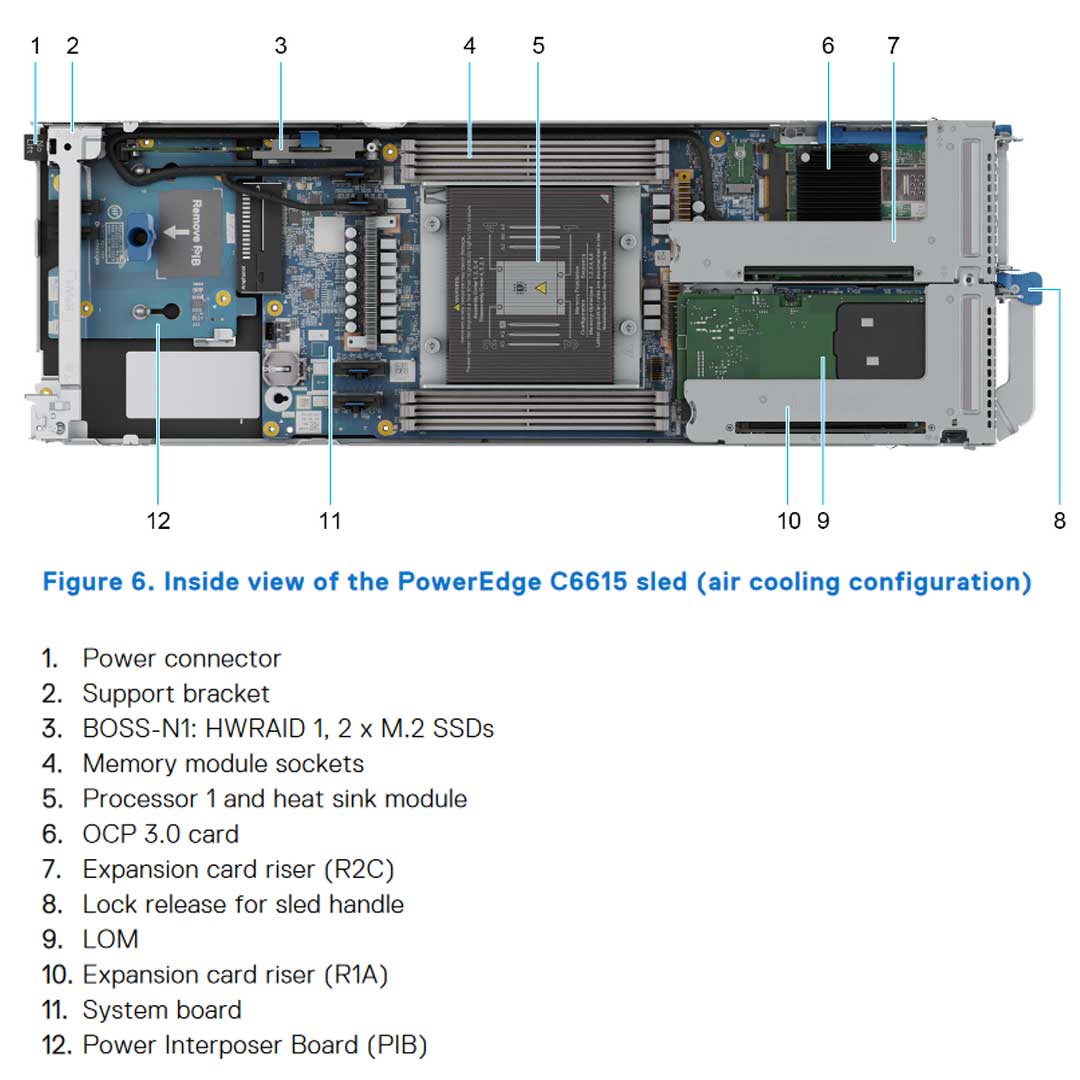

Heatsink & Fans
The Dell C6615 Node Server only has 1 CPU and 1 Type of heatsink. This system only supports the air-cooled system. The Heat sink will come with the AMD CPU and the fans are located in the Dell C6600 Rack Enclosure.
Memory
The Dell AMD C6615 Node Server supports up to 6 x DDR5 channels per socket, 1 DIMM per channel (1DPC) with speeds up to 4800Mhz.
| DIMM Speed (MT/s) | DIMM Type | DIMM Capacity (GB) | Ranks per DIMM |
|---|---|---|---|
| 4800 | RDIMM | 16 | 1 |
| 4800 | RDIMM | 32 | 2 |
| 4800 | RDIMM | 64 | 2 |
Expansion Slots
Up to 2 x PCIe Gen5 Half-Height/Half-Length slots. There are only three configurations for this node server. Below is a table showing you the specs for each configuration. Click the configuration number for more details.
- Slot 1: PCIe Gen5 x16 Riser 1A on CPU 1
- Slot 2: PCIe Gen5 x16 Riser 2C on CPU 1
| Config | RSR configuration | Number of CPUs | PERC type supported | Rear storage possible | x16 CPU1 Slot 1 Low Profile | x16 CPU1 Slot 2 Low Profile |
|---|---|---|---|---|---|---|
| 0 | No RSR | CPU 1 | NA | No | N | N |
| 1 | R1A | CPU 1 | Adapter PERC | No | Y | N |
| 2 | R2C | CPU 1 | Adapter PERC | No | Y | Y |
Networking Adapters
LOM Mezzanine
The Node Server comes with a Broadcom BCM5720 Gigabit Ethernet controller. This along with the other PCIe slots are the only way to expand the networking capabilities of the C6615 Node Server. When using the LOM ports you save a PCIe slot. This is very important since there are only 2 PCIe 5.0 slots on the back of the C6615 Node Server.
OCP 3.0
The Node Server comes with a 4 port OCP 3.0 slot with speeds up to 25Gb per port. This OCP along with the LOM and the PCIe slots are the only way to expand the networking capabilities of the C6615 Node Server. When using the OCP ports you save a PCIe slot. This is very important since there are only 2 PCIe 5.0 slots on the back of the C6615 Node Server.
| Feature | Specifications |
|---|---|
| LOM card | 1 GbE x 1 |
| OCP card (OCP 3.0) | 1 GbE x 4, 10 GbE x 2, 25 GbE x 2, 25 GbE x 4 |
Storage Controllers
Dell's 16G products have a wider offering of Internal Storage controllers than previous server generations. To reduce complexity and provide manageable permutations that still meet customer needs, the C6615 will support PERC11/12 version.
The following table shows the controllers used in PERC11/12 family:
| Controller type | Description |
|---|---|
| Internal controllers | PERC H755N, PERC H355 |
| Internal boot | Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 X M.2 SSDs, uSD card |
| External HBA (non-RAID) | HBA355i |
| Software RAID | S160 |
Power & Dimensions
Power

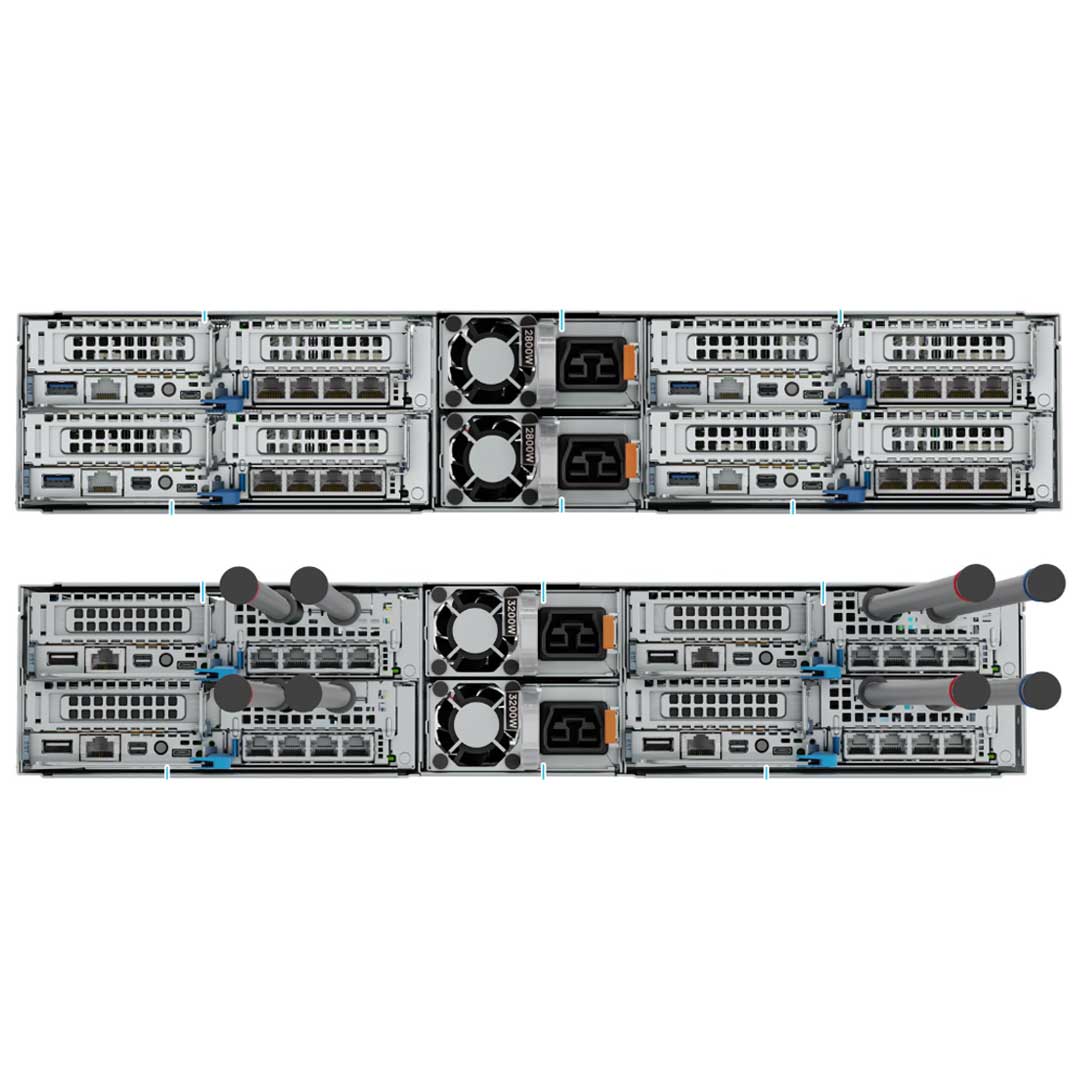

The C6600 holds 2 Power supply units to support up to 4 Sleds that could possibly have 8 CPUs and 64 DIMMs when fully populated. With so many CPUs and DIMMs to support the power supply units will be very large in capacity. The largest PSU for this system is 3200W.
3200 W AC and DC power supplies are only available in North America.
Dimensions & Weight:
- Width: 174.4 mm (6.86")
- Height: 40.0 mm (1.57")
- Length:
- 549.7 mm (21.64") - diskless
- 561.3 mm (22.10") - SAS/SATA
- 561.3 mm (22.10") - SAS/SATA/NVMe Universal
- 561.3 mm (22.10") - E3.S EDSFF
- Weight Per Node: 3.7 kg (8.15 lbs)
