SKU: H872R

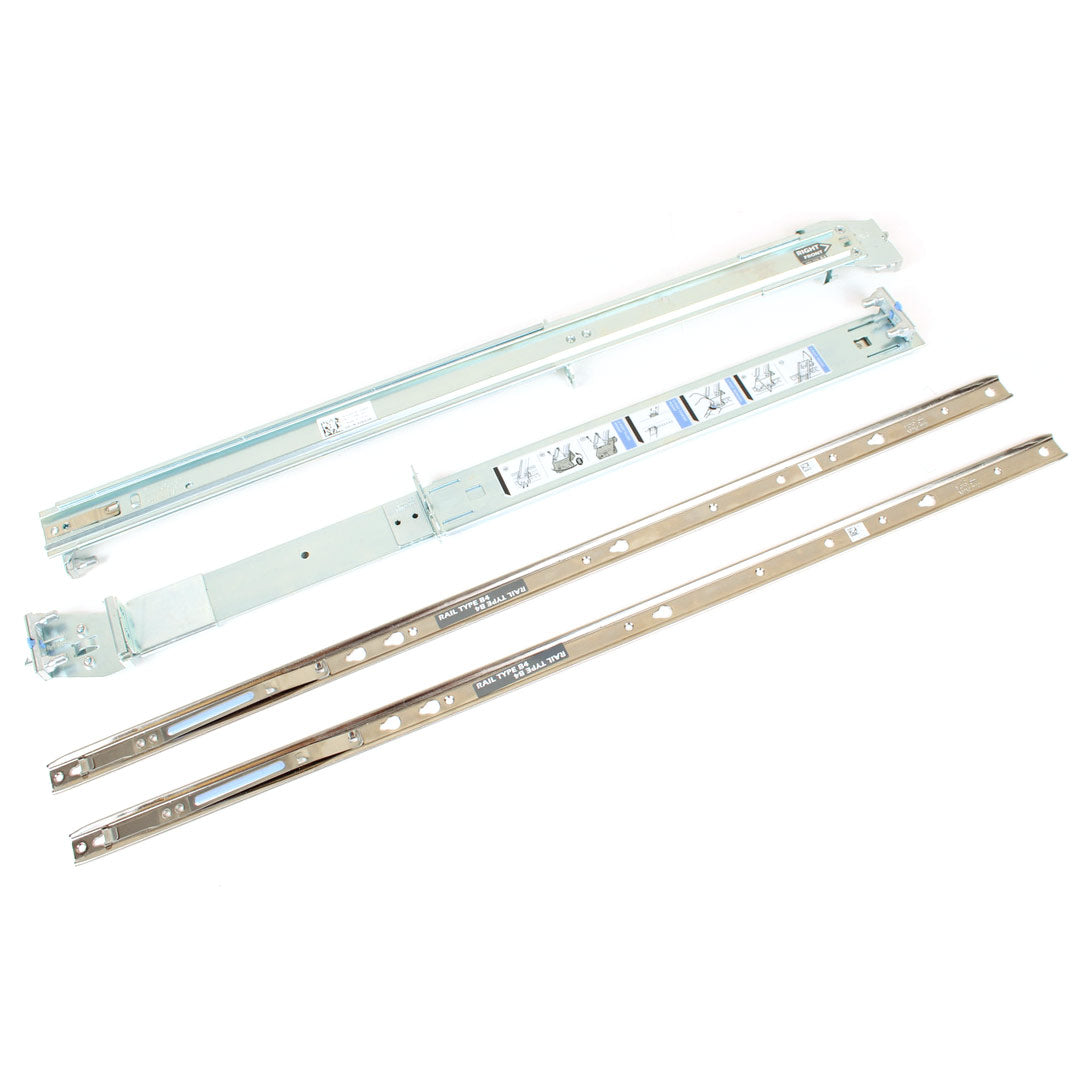

Dell B4 Stab-In Static ReadyRails Rail Kit | H872R

Name: Dell B4 Stab-In Static ReadyRails Rail Kit | H872R
Brand: Dell
SKU: H872R
Price: 125.0 USD
Availability: InStock

Dell

| Rail Kits

.price-ui--loading { display: block !important; opacity: 1 !important; }

$125.00

Quick Specs

Stab-in static rails require the inner (chassis) rail members must first be attached to the sides of the system and then inserted into the outer (cabinet) members installed in the rack. For systems that are 2U and larger, it is recommended that two people perform this operation.

Cable management arm (CMA) is a cable management accessory which connects to the rails behind the system. It allows a fully cabled system to be extended out of the rack into a service position.

Strain relief bar (SRB) is a cable management solution, which in most cases, attaches to the back of the rails via the strain relief bar brackets. Cables from the back of the chassis are placed across the top of the SRB and secured by straps.

Square-hole describes a 4-post rack mounting flange type where rails utilize Square holes sized according to EIA-310-D standard for mounting.

Round-hole describes a 4-post rack mounting flange type where rails utilize Unthreaded-Round holes sized according to EIA-310- D standard for mounting.

Threaded-hole describes a 4-post rack mounting flange type where rails utilize Threaded-round holes for mounting. Threaded round holes may require additional hardware for mounting and hardware may vary by thread type. See footnotes in table 2 for specific information on threaded-round hole mounting.

Rail identifier	Mounting interface	Rail type	Rack types supported					Rail adjustability range (mm)						Rail depth (mm)
			4-Post			2-Post		Square		Round		Threaded		without CMA/SRB	with CMA(SRB)
			Square	Round	Thread	Flush	Center	Min	Max	Min	Max	Min	Max	without CMA/SRB	with CMA(SRB)
B4	ReadyRails	Stab-in Static	X	X	X a,c	X a,c	X c	608	879	594	872	610	898	622 n	-
a Minor conversion required c Mounting screws not included in the kit n Rail depth represents cabinet assembly only and does not represent inner rail component that attaches to chassis

Compatible With:

Dell dl2200
Dell dr4000
Dell dx6012s
Dell Nx3100
Dell Nx3200
Dell R510
Dell R515
Dell R520
Dell R530
Dell R540
Dell R720
Dell R720xd
Dell R730
Dell R730xd
Dell R740
Dell R740xd
Dell R7415
Dell R7425
Dell R750
Dell R7515
Dell R7525
Dell R7910
Dell R7920
Dell R820
Dell R830
Dell Sc8000

(Click to View)
