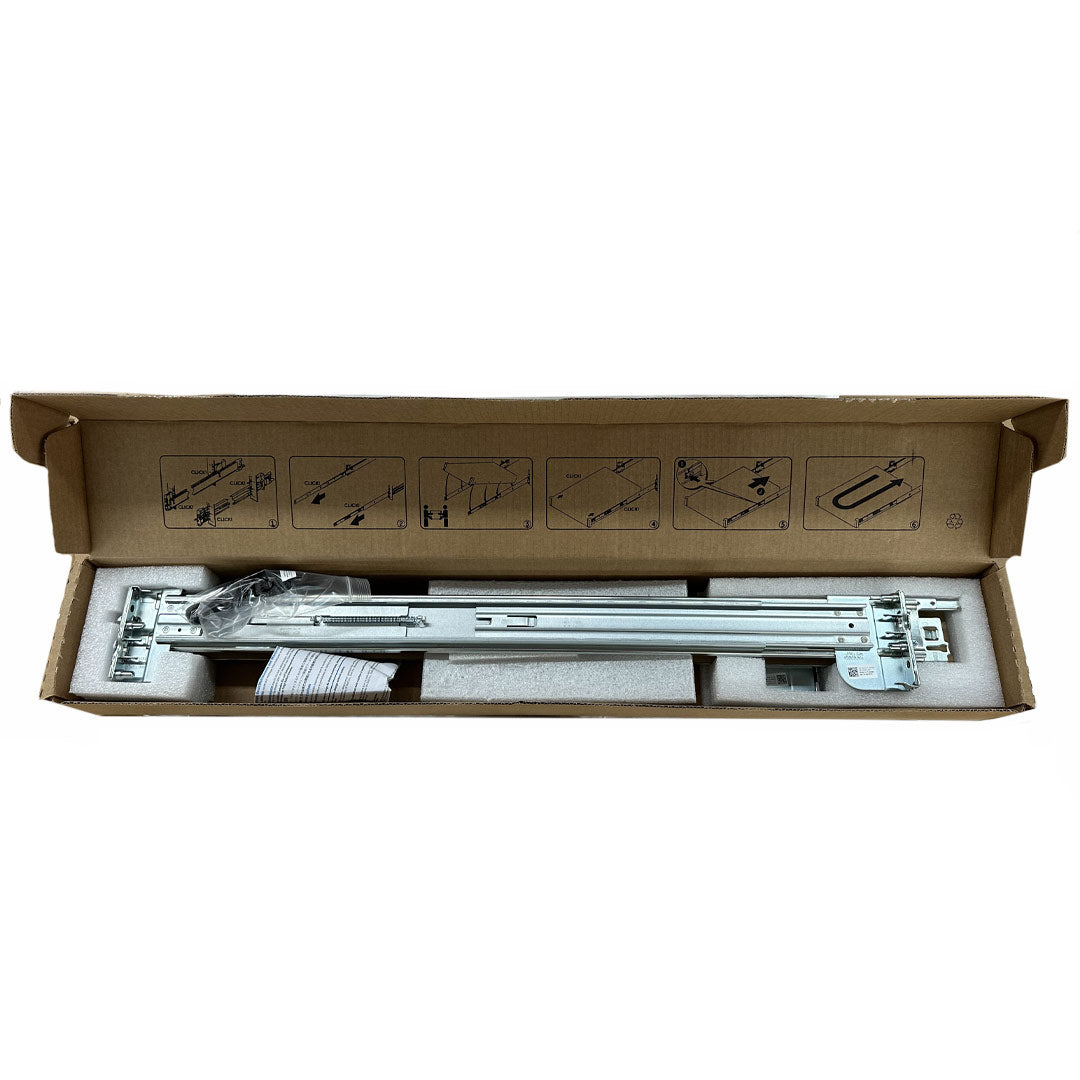

Dell B6 Sliding ReadyRails Il 4-Post Rail Kit | 0PWN3

SKU: 0PWN3

Dell B6 Sliding ReadyRails Il 4-Post Rail Kit | 0PWN3

Name: Dell B6 Sliding ReadyRails Il 4-Post Rail Kit | 0PWN3
Brand: Dell
SKU: 0PWN3
Price: 89.0 USD
Availability: InStock

Dell

| Rail Kits

.price-ui--loading { display: block !important; opacity: 1 !important; }

$89.00

Quick Specs

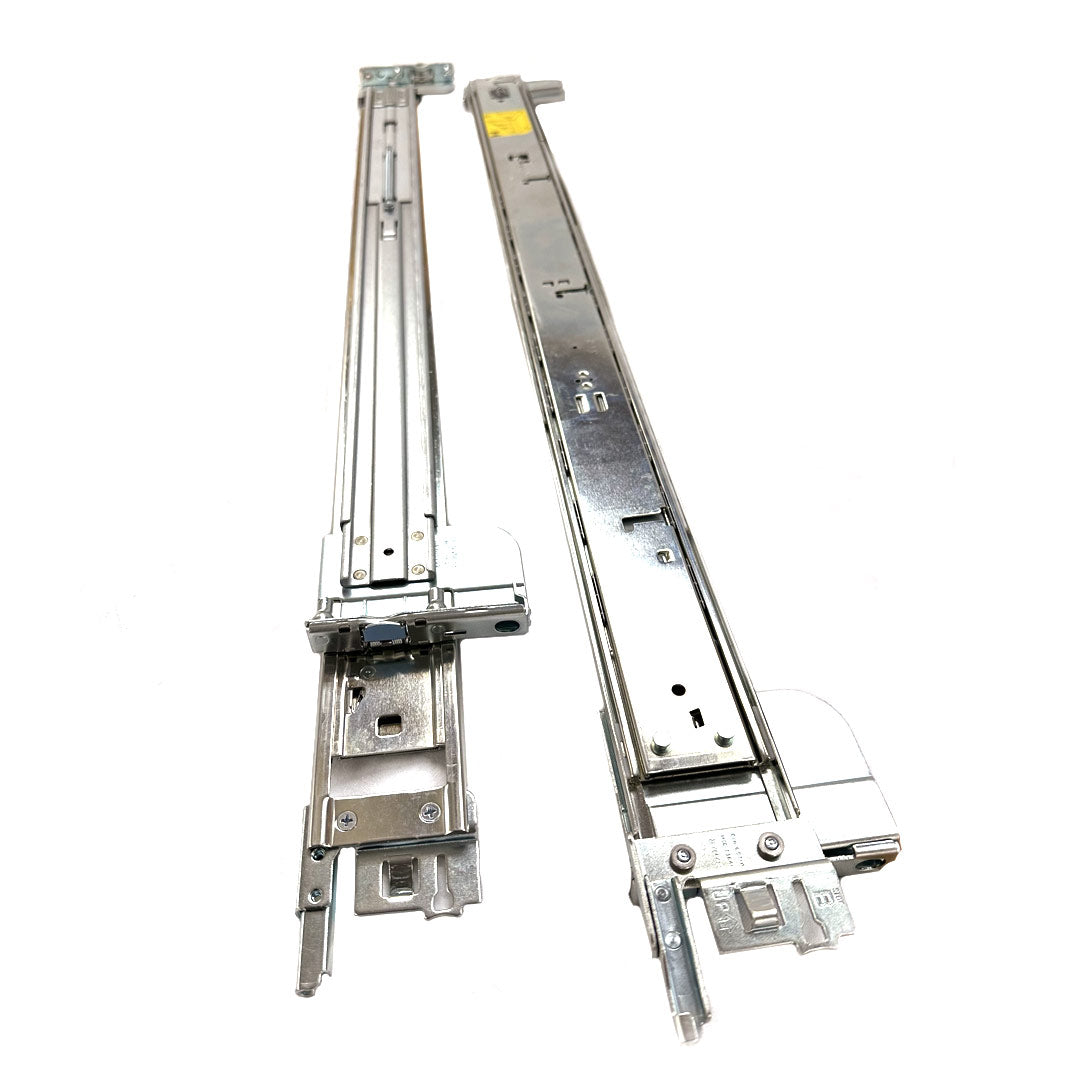

Sliding rails allow a system to be fully extended out of the rack for service. Most sliding rails support Cable Management Arms (CMAs) which enable the system to be extended out of the rack without disconnecting data/power cables at the rear of the system. Unless otherwise indicated, all sliding rails are drop-in sliding rail design

Cable management arm (CMA) is a cable management accessory which connects to the rails behind the system. It allows a fully cabled system to be extended out of the rack into a service position.

Strain relief bar (SRB) is a cable management solution, which in most cases, attaches to the back of the rails via the strain relief bar brackets. Cables from the back of the chassis are placed across the top of the SRB and secured by straps.

Square-hole describes a 4-post rack mounting flange type where rails utilize Square holes sized according to EIA-310-D standard for mounting.

Round-hole describes a 4-post rack mounting flange type where rails utilize Unthreaded-Round holes sized according to EIA-310- D standard for mounting.

Threaded-hole describes a 4-post rack mounting flange type where rails utilize Threaded-round holes for mounting. Threaded round holes may require additional hardware for mounting and hardware may vary by thread type. See footnotes in table 2 for specific information on threaded-round hole mounting.

Part Number:

H4X6X
61KCY
XV104
0PWN3

Rail identifier	Mounting interface	Rail type	Rack types supported					Rail adjustability range (mm)						Rail depth (mm)
			4-Post			2-Post		Square		Round		Threaded		without CMA/SRB	with CMA(SRB)
			Square	Round	Thread	Flush	Center	Min	Max	Min	Max	Min	Max	without CMA/SRB	with CMA(SRB)
B6	ReadyRails II	Sliding	X	X	X a,c,d	-	-	631	868	617	861	631	883	714 b	845
a Minor conversion required b With CMA brackets removed c Mounting screws not included in the kit d Mounting screw head diameter must be 10 mm or less

Compatible With:

Dell Nx3200
Dell R520
Dell R530
Dell R540
Dell R720
Dell R720xd
Dell R730
Dell R730xd
Dell R740
Dell R740xd
Dell R7415
Dell R7425
Dell R750
Dell R7515
Dell R7525
Dell R7910
Dell R7920
Dell R820
Dell R830
Dell Sc8000
