Dell PowerEdge C6525 Node Server CTO

Dell

| CTO Servers |

DPE-c6525-node-server-cto



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select chassis

Please note this Node Sever goes into the Dell C6400 Enclosure. Please Configure that Enclosure separately.

Select Processor

Supports up to 2 Processors for each Node.

AMD EPYC Gen 3

Supports up to 2 Processors for each Node.

AMD EPYC Gen 2

Supports up to 2 Processors for each Node.

Memory

DIMMs 16 x DDR4 3200 MT/s (RDIMM of 1TB max or LRDIMM of 2TB max,)
Unbuffered DIMMs (UDIMMs) are not supported.

Select Open Compute Project (OCP) 3.0 Card (Optional)

1 OCP 3.0 Gen4 slot x16

Riser Options (Optional)

The system can support Both riser at once.

Supported GPU Accelerators (Optional)

Low-profile (Half-height) 70 W GPU

Boot Options (Optional)

Configurations using an M.2 device must have both CPUs populated.

Storage Controller (Optional)

Default S150 Software RAID with Intel C620 Chipset SATA controller (RAID 0, 1, 5, 10)
RAID using a PERC controller is not supported on NVMe drives. Please choose the correct C6400 Chassis for your RAID controller.

Trusted Platform Module (Optional)

iDRAC9 (Optional)

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

1U rack server

Processor | Max Cores: 64 Cores

1x or 2x 2nd or 3rd Gen AMD EPYC

Memory | Max: RDIMM 2TB | LRDIMM 2TB

16 DDR4 RDIMM/LRDIMM 3200Mhz

Boot:

BOSS-S1
IDSDM on Riser 1A

Controllers:

S150 (SW RAID)
PERC H345, H355, H745, HBA345, HBA355

Storage:
  • 2 NVMe + 4 Drives on the NVMe Universal
  • 6 Drives on the 24 Bay Direct
  • 3 Drives on the 12 Bay
Rear Storage:

None

LOM:

1 x 1 GbE LOM riser

OCP:

1 x OCP 3.0 x16 Gen4

iDRAC:

BMC with Virtual Media and Console (default)

PCIe Slots:

2x PCIe x16 Gen4 Risers
1x OCP 3.0 x16 Gen4
1x PCIe x8 Gen3 M.2 Riser

GPU:

1x Single-Wide GPU

Compatible Options:

Ideal for:

  • High-Performance Computing (HPC)
  • Web Tech

This is just 1 out of 3 Node servers supported.
The C6400 Enclosure Server must be configured separately.

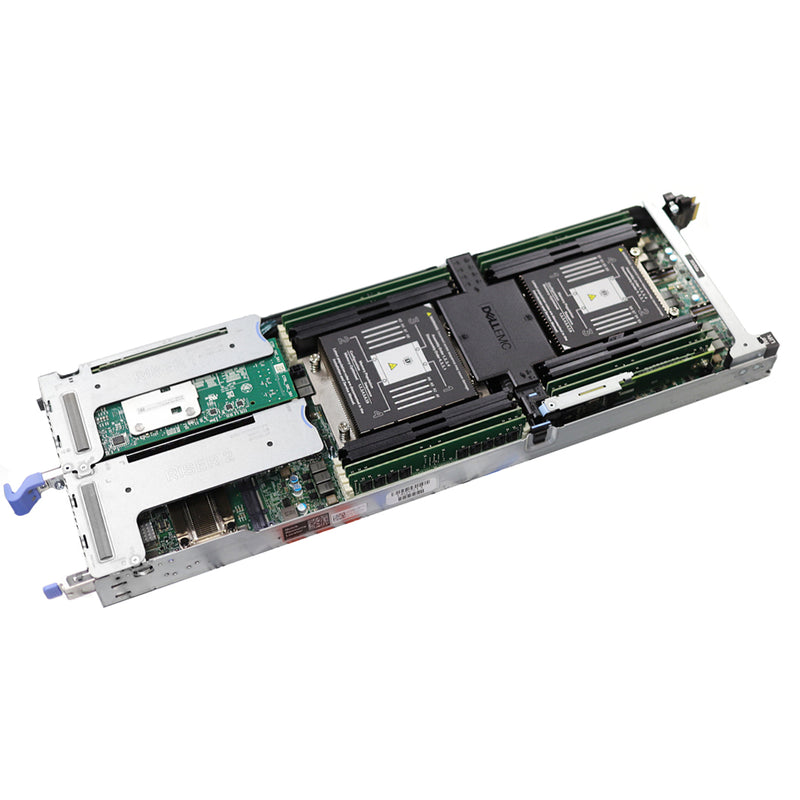

The new Dell EMC PowerEdge C6525 is a compute-dense server designed to boost data center performance to tackle a variety of High-Performance Computing (HPC) workloads and applications.

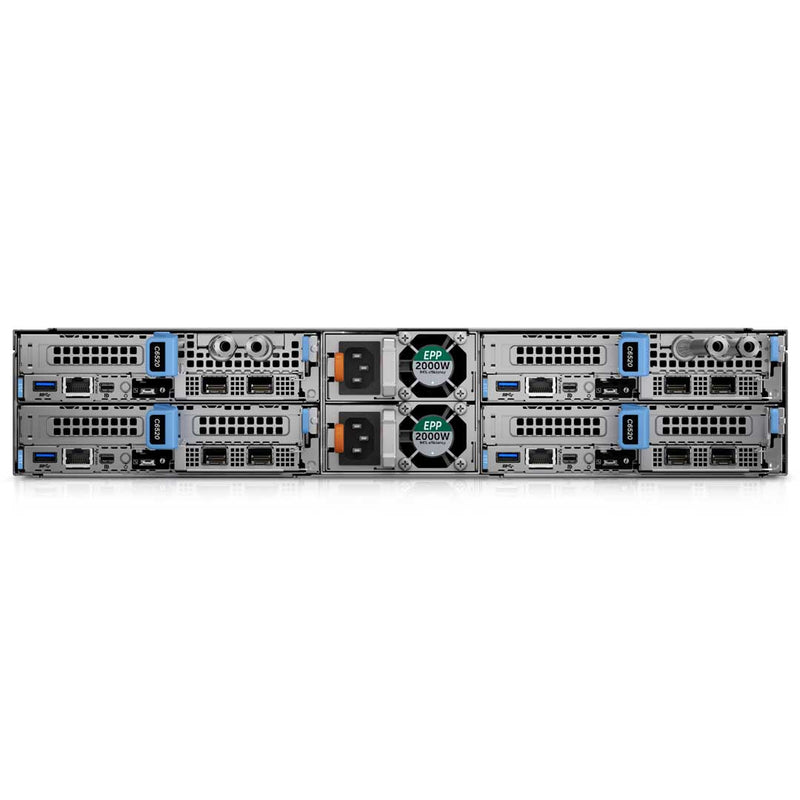

The Dell EMC PowerEdge C6400 is a 2U enclosure that can handle up to four two-socket (2S) sleds. This Dell PowerEdge C6400 Chassis / Enclosure configuration can accommodate 4 Node Servers.

Deliver breakthrough performance, innovations and density for traditional and emerging workloads

The new Dell EMC PowerEdge C6525 is a compute-dense server designed to boost data center performance to tackle a variety of High Performance Computing (HPC) workload and applications. High-level features:

  • Up to 512 processing cores in a 2U/4N dense server - The most available processing cores of any 2U Dell EMC PowerEdge server
  • Up to 3200MT/s memory speed to reduce latency and deliver faster response
  • Faster data transfer speeds with PCIe Gen 4
  • Optimized core count and memory for large datasets
  • Low latency and flexible high speed fabric for highly performant clusters
  • Cost optimized design with rich single-socket configurations

Increase efficiency and accelerate operations with an automated infrastructure
The Dell EMC OpenManage™ systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers
through tailored, automated, and repeatable processes.

  • Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
  • Simplify and centralize one to many management with the OpenManage Enterprise console.
  • Utilize the OpenManage Mobile app to easily manage servers using a phone or tablet.
  • Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.**
Fortify your data center with integrated security

Every PowerEdge server is designed with a cyber resilient architecture, integrating

security deeply into every phase in the lifecycle, from design to retirement.

  • Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
  • Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust.
  • Maintain server firmware safety with digitally signed firmware packages.
  • Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
  • Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.
Memory
DIMM type DIMM ranking Capacity (GB) DIMM rated voltage, Speed 2nd Generation and 3rd Generation AMD EPYC processors
1 DPC
RDIMM 1 R / 2 R 8 GB, 16 GB, 32 GB, 64 GB DDR4 (1.2 V), 3200 MHz D: 3200
LRDIMM 2S4R 128 GB DDR4 (1.2 V), 2666 MHz D: 2666
Networking

The PowerEdge C6525 is installed with one Broadcom BCM54210S-Gigabit Ethernet controller as an independent Ethernet interface device. When installing the OCP 3.0 Card you can raise the networking capabilities from 1GbE to 25 Gb network speed.

Image of the OCP 3.0 for the C6520 Node Server by Dell.
PCI Configuration

The system has two risers that can be installed. If you desire the Liquid Cooling feature for the CPUs. The Riser 2A is not supported as the liquid cooling tubes take up that slot.

Riser option s Slot 1 Slot 2 Length Height Primary processor Minimum processor requirement Supported configurations
Riser 1A Riser 1A PCIe Gen 4 x 16 NA Half Length Low Profile 1 1
  • 12 x 3.5-inch drives
  • 24 x 2.5-inch drives
  • 8 x 2.5-inch NVMe drives
  • No backplane
Riser 1A+2A Riser 1A PCIe Gen 4 x 16 Riser 2A PCIe Gen 4 x 16 Half Length Low Profile 1 and 2 2
  • 12 x 3.5-inch drives
  • 24 x 2.5-inch drives
Riser 2A NA Riser 2A PCIe Gen 4 x 16 Half Length Low Profile 2 2
  • 12 x 3.5-inch drives
  • 24 x 2.5-inch drives
  • 8 x 2.5-inch NVMe drives
  • No backplane
No riser NA NA Half Length Low Profile NA 1
  • 12 x 3.5-inch drives
  • 24 x 2.5-inch drives
  • 8 x 2.5-inch NVMe drives
  • No backplane
Image of the Riser 1 Holder for Dells C6525 Node Server Riser 1
Image of the Riser 2 Holder for Dells C6525 Node Server Riser 2
Image of the Liquid Cooling Riser 2 Holder for Dells C6525 Node Server Liquid Cooling Riser
Storage Controller

The PowerEdge C6525 supports multiple storage configurations for numerous type of workloads. The C6400 chassis supports the following configuration types:

  • No hard drives in a no-backplane configuration.
  • 24 x 2.5-inch direct backplane configuration with up to six SAS/SATA drives for each PowerEdge C6525 node.
  • 24 x 2.5-inch NVMe backplane configuration with up to six drives for each PowerEdge C6525 node out of which 2 drives can be NVMe drives. Both the drives can support up to Gen3 speed.
  • 12 x 3.5-inch direct backplane configuration with up to 3 SAS/SATA drives for each PowerEdge C6525 node.
Controllers Models
Storage controllers PERC H345, PERC H745, HBA345, HBA355i
Integrated storage controllers S150
H745 is Not supported for CPU TDP ≥ 180 Watts.
Boot Option BOSS M.2 Riser

The system also contains a BOSS M.2 riser that holds 2 Drives. This is a dedicated slot that is connect to the SATA port on the system board. View the manual for more details.

Image of the BOSS M.2 Riser for the C6520 Node Server by Dell.
GPU

A Single GPU is supported on Riser 1A if that is the only riser installed, If both risers are installed then 1 GPU can be installed in Slot 2 of Riser 2A. Slot 2 has top priority for the GPU. Another tip is that the T4 GPU card is Not supported with 128GB LRDIMM. Please read the manuals for all the limitations of the GPU configuration.

Image of the GPU being installed into the PCIe slot on the C6525 Dell Node Server.
