Current Configuration
(List below serves as quick links to each section)
Select Chassis
Select Processor
Memory
Micro SD
Select OCP Mezzanine Card
Boot Options
Riser Options
RAID Controller
Trusted Platform Module
iDRAC9
Select Warranty
Quick Specs
Form Factor:
1U rack server
Processor | Max Cores: 28 Cores2 x Intel Xeon E5-2600
Memory | Max: 512GB16 DDR4 RDIMM 2666Mhz
Boot:BOSS
- 6 Drives on the 24 2.5" Direct Backplane
- 12 Drives on the Expander Backplane
- 2 or 4 Drives on the NVMe Backplane
- 3 Drives on the 12 3.5" Backplane
None
Controllers:PERC H330 Mezz, H730p Mezz, HBA330, 12Gbps SAS HBA
iDRAC:BMC with Virtual Media and Console (default)
PCIe Slots:3 PCIe 3.0
GPU:None
Compatible Options:
Ideal for:
- Data Analytics
- High-Performance Computing (HPC)
- Financial/Trading Servers
This is just 1 out of 3 Node servers supported.
The C6400 Enclosure Server must be configured separately.
Ideal server for high performance, hyperscale workloads
The C6420 server supports dynamic business needs in scale-out environments where performance and density go hand in hand. The PowerEdge C6420 supports up to 4 dual socket compute nodes in a 2U form factor and with Direct Liquid Cooling options, supports high-wattage processors for even higher performance. Nonvolatile Memory express (NVMe) drives and fabrics such as InfiniBand and Omni Path can be added for even higher scalability. This makes C6420 an ideal solution for hyper-scale compute workloads requiring high scalability and high performance such as High Performance Computing (HPC), high-performance data analytics, financial modeling and high frequency trading, SaaS/IaaS and web-scale applications, visual effects rendering nodes, Hyper-Converged Infrastructure (HCI), Software Defined Storage, etc.
Intuitive system management with intelligent automation
With intelligent automation features, C6420 simplifies systems management and helps you free up precious IT skilled resources for business-critical activities. Designed for web-scale infrastructure, the C6420 does not forget management.
- Basic management is available with a base BMC option including a virtual console & virtual media.
- Optionally, leverage the integrated iDRAC9 and Redfish API for advanced management and scripting support.
Robust security spanning across the server ecosystem and lifecycle
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server lifecyle. The C6420 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
- Rely on a secure component supply chain to ensure protection from factory to the data center.
- Maintain data safety with cryptographically signed firmware packages and Secure Boot.
- Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise or Datacenter license).
- Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
Memory
| DIMM Capacity | DIMM Speed | DIMM Type | Ranks Per DIMM | Data width | Voltage (V) |
|---|---|---|---|---|---|
| 8 GB | 2666 MT/s | RDIMM | Single Rank | x8 | 1.2 |
| 16 GB | 2666 MT/s | RDIMM | Dual Rank | x8 | 1.2 |
| 32 GB | 2666 MT/s | RDIMM | Dual Rank | x4 | 1.2 |
| 32 GB | 3200 MT/s | RDIMM | Dual Rank | x8 | 1.2 |
| 64 GB | 2666 MT/s | LRDIMM | Dual Rank | x4 | 1.2 |
Networking OCP 2.0 Mezzanine
The System has a OCP 2.0 Mezzanine slot below the Storage Controller Mezzanine slot. This OCP slot is a dedicated slot just for these types of cards. These OCP slots provide an excellent way to add networking capabilities to the node server.
Storage Controllers

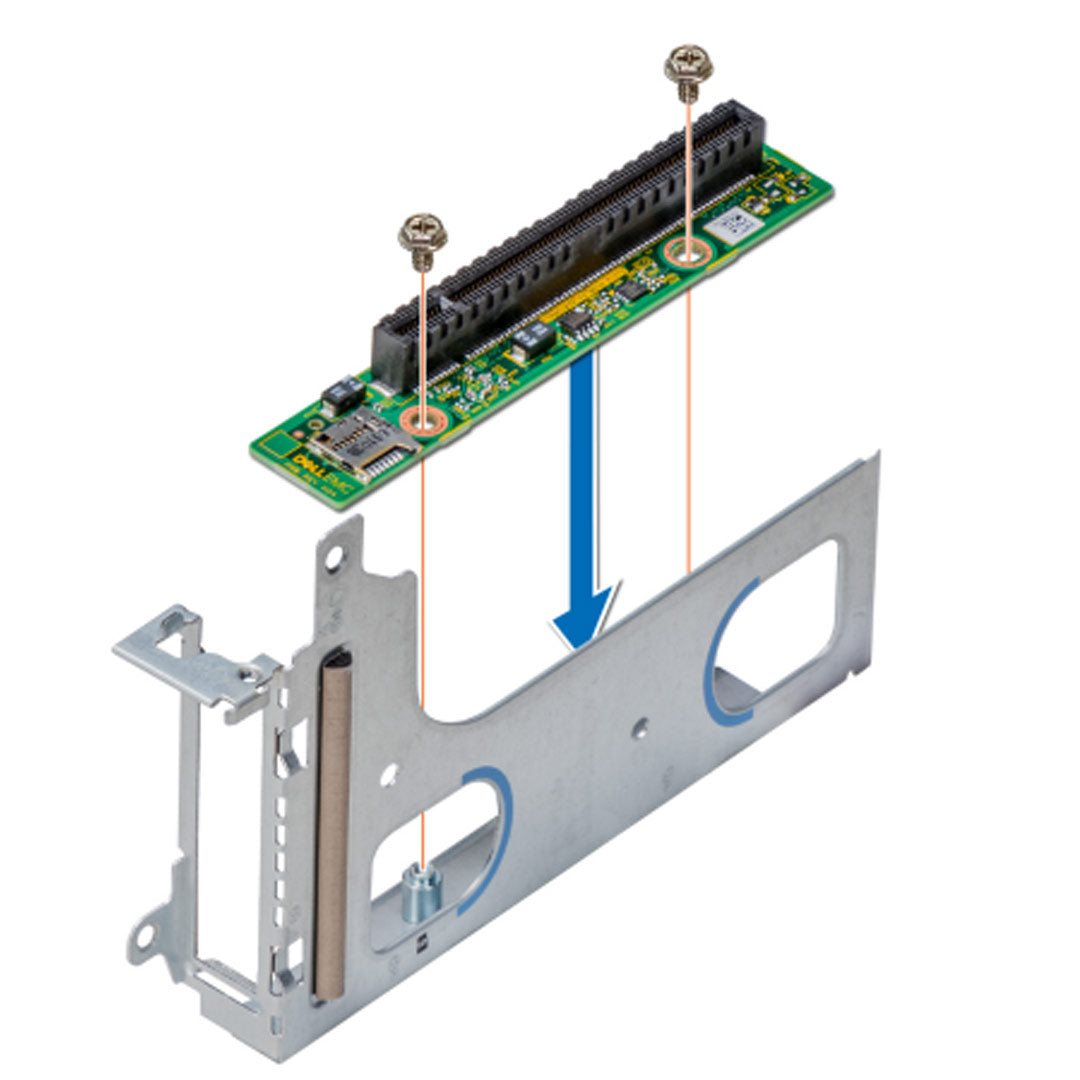

Each Sled has access to a certain number of drives on the C6400 Rack server. To save a drive from being the boot drive. You can install an M.2 BOSS riser or place a Micro SD card in the primary optional riser. The BOSS riser has a dedicated slot and can hold up to 1x M.2 NVMe SSDs per node. These two options are great for Booting the OS. Please read the manual for more details on this subject.
| Storage Controller | Supported RAID Levels |
|---|---|
| Chipset SATA | RAID 0, 1, 10, 5 (Software RAID Only) |
| PERC H330 Mezz | RAID 0, 1, 5, 10, 50 |
| PERC H730p Mezz | RAID 0, 1, 5, 6, 10, 50, 60 |
| RAID using a PERC controller is not supported on NVMe drives | |

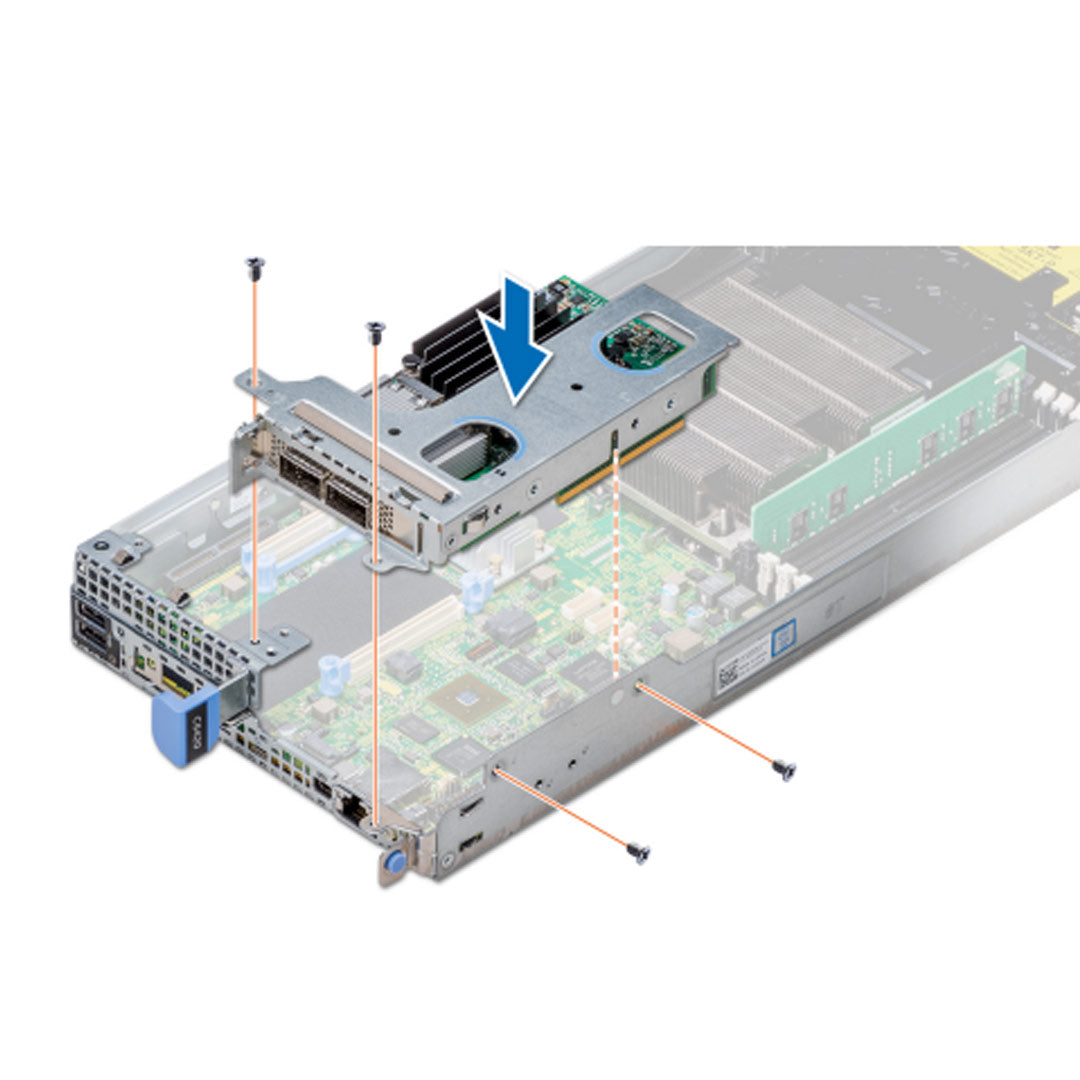

PCIe Configuration
| Slot | Description | Standard Usage |
|---|---|---|
| x8 Mezz PCI-e Riser | One x8 PCIe Gen3 for Mezz (x8 lanes) | Storage Controller |
| x16 (x8+x8) OCP Mezz Riser | X8 + X8 PCIe Gen3 for OCP Mezz (x16 lanes max) | Network card for host |
| x16 PCI-e Main Riser (plug-in) | One x16 PCIe Gen3 for LP from CPU 1 (x16 lanes) | Half Height Low Profile PCIe Adapter |
| x16 buried PCI-e Riser | One x16 PCIe Gen3 for specific form factor (x16 lanes) | M.2 SATA Boot Device |
Diemnstion & Weight
Dimensions
- Height: 86.8mm (3.41")
- Width: 448mm (17.63")
- Depth: 790mm (31.10")
Weight
- 3.5": 43.62 Kg
- 2.5": 41.46 Kg
- No Backplane: 34.56 Kg
