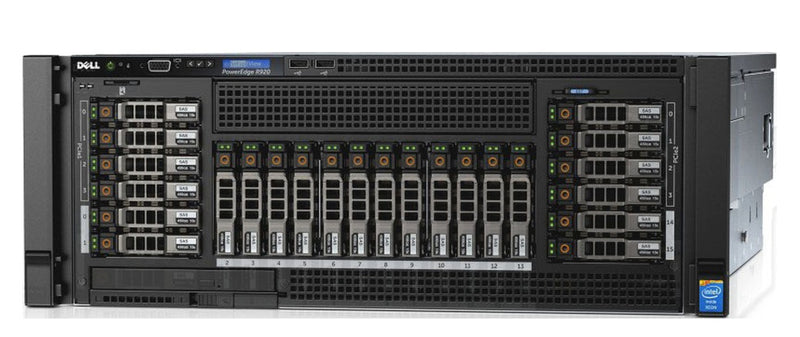

Dell PowerEdge R920

The Dell PowerEdge R920 is a 4U four-socket rack server for mission-critical databases, ERP and large virtualization hosts. It runs up to four Intel Xeon E7-4800 v2 or E7-8800 v2 processors with up to 15 cores each and 96 DDR3 DIMM slots for up to 6TB at 1600 MT/s. Up to 24x 2.5" drives, including up to eight NVMe Express Flash SSDs, up to 10 PCIe slots, dual PERC support, hot-plug fans and redundant power keep it running. Fully configurable.

Looking to compare generations? See its Gen 13 successor, the Dell PowerEdge R930, or compare Gen 12 models: Dell PowerEdge R820 and Dell PowerEdge R720xd.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 4U Rack
  • Processors: Up to 4x Intel Xeon E7-4800 v2 / E7-8800 v2
  • Memory: 96x DDR3 DIMM slots, up to 6TB
  • Memory Speed: Up to 1600 MT/s
  • Storage: Up to 24x 2.5" (up to 8 NVMe)
  • Expansion: Up to 10x PCIe 3.0 + RAID slot + NDC slot
  • GPU Support: Not listed by Dell
  • Networking: NDC: 4x 1GbE, or 2x 10GbE + 2x 1GbE
  • Management: iDRAC7 with Lifecycle Controller
  • Cooling: Air, 6 hot-swap fans
  • Power: Hot-plug redundant 750W or 1100W PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R920 →

Customize & Get Pricing

Configure your Dell PowerEdge R920 with the exact specs you need

Configure This Server

Dell PowerEdge R920 vs R930: Specs & Key Differences

Feature PowerEdge R920 PowerEdge R930
Processors Up to 4x Intel Xeon E7-4800 v2 / E7-8800 v2 (up to 15 cores) Up to 4x Intel Xeon E7-8800 v4 / E7-4800 v4 (up to 24 cores)
Memory 96x DDR3 DIMM slots, up to 6TB 96x DDR4 RDIMM/LRDIMM slots, up to 12TB
Memory Speed Up to 1600 MT/s Up to 2400 MT/s
Storage Up to 24x 2.5" (up to 8 NVMe) Up to 24x 2.5" (up to 8 NVMe)
Storage Controllers PERC H730P (dual PERC option)
External H810		 Dual PERC options
External HBAs
PCIe Up to 10 (8x Gen3 + 2 optional) Up to 10x PCIe 3.0
Networking NDC: 4x 1GbE, or 2x 10GbE + 2x 1GbE NDC: 4x 1GbE, or 2x 1GbE + 2x 10GbE
Management iDRAC7 with Lifecycle Controller iDRAC8 with Lifecycle Controller
Power 750W or 1100W hot-plug redundant 750W or 1100W hot-plug redundant
Form Factor 4U Rack 4U Rack

Frequently Asked Questions

Up to four Intel Xeon E7-4800 v2 or E7-8800 v2 processors with up to 15 cores each, or up to two E7-2800 v2 processors, on the Intel C602J chipset.

96 DDR3 DIMM sockets accept 4GB to 64GB RDIMMs or LRDIMMs, for up to 6TB at speeds up to 1600 MT/s. Dell's Fault Resilient Memory option adds a protected memory zone for hypervisors.

Up to twenty-four 2.5-inch hot-plug SAS or SATA drives, including up to eight front-access NVMe Express Flash PCIe SSDs, with the PERC H730P and support for dual RAID controllers. Please specify your capacity needs when you submit your quote configuration.

It offers up to 10 PCIe slots (eight PCIe 3.0 plus two optional), along with a dedicated RAID slot and a network daughter card slot, so large SAN and network builds are well supported.

The Gen 13 R930 moves to Xeon E7 v4 processors with up to 24 cores, doubles memory to 12TB of DDR4-2400 and uses iDRAC8. Both are 4U four-socket servers with 96 DIMM slots, 24 SFF bays with up to eight NVMe drives, up to 10 PCIe slots and 750W or 1100W power.
