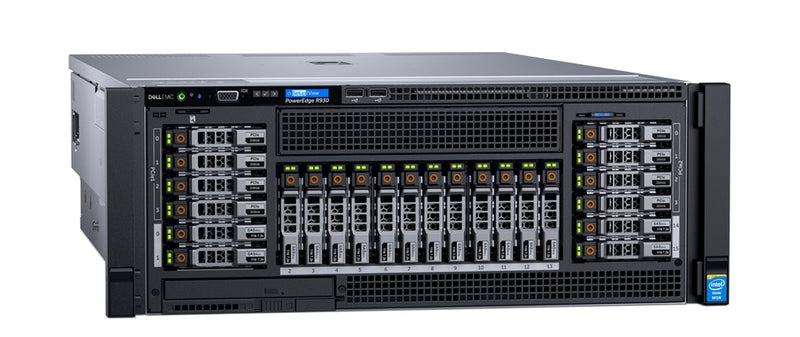

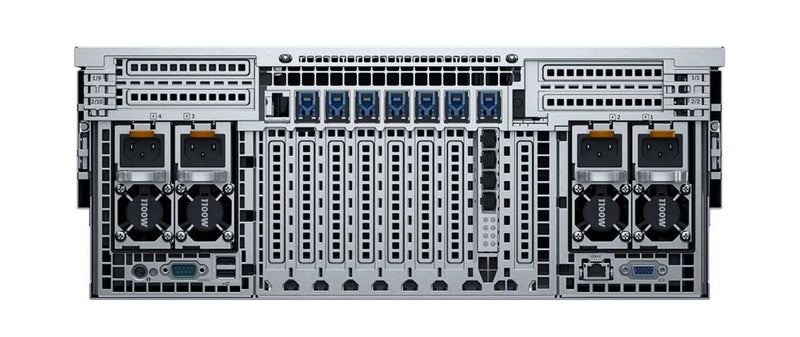

Dell PowerEdge R930

The Dell PowerEdge R930 is a 4U four-socket rack server for in-memory databases, OLTP and large consolidation projects. It runs up to four Intel Xeon E7-8800 v4 or E7-4800 v4 processors with up to 24 cores each, and 96 DDR4 DIMM slots for up to 12TB at up to 2400 MT/s. Storage scales to 24x 2.5" hot-plug drives with up to 8 front NVMe PCIe SSDs, and expansion includes up to 10 PCIe 3.0 slots plus RAID and NDC slots. Six hot-swap fans and iDRAC8 complete it. Fully configurable.

Looking to compare generations? See the two-socket Gen 14 Dell PowerEdge R740, or compare Gen 13 models: Dell PowerEdge R830 and Dell PowerEdge R730xd.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 4U Rack
  • Processors: Up to 4x Intel Xeon E7-8800 v4 / E7-4800 v4 (up to 24 cores)
  • Memory: 96x DDR4 RDIMM/LRDIMM slots, up to 12TB
  • Memory Speed: Up to 2400 MT/s
  • Storage: Up to 24x 2.5" (up to 8 NVMe)
  • Expansion: Up to 10x PCIe 3.0 + RAID slot + NDC slot
  • GPU Support: Not listed by Dell
  • Networking: NDC: 4x 1GbE, or 2x 1GbE + 2x 10GbE
  • Management: iDRAC8 with Lifecycle Controller
  • Cooling: Air, 6 hot-swap fans
  • Power: Hot-plug redundant 750W or 1100W PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R930 →

Customize & Get Pricing

Configure your Dell PowerEdge R930 with the exact specs you need

Configure This Server

Dell PowerEdge R930 vs R940: Specs & Key Differences

Feature PowerEdge R930 PowerEdge R940
Processors Up to 4x Intel Xeon E7-8800/4800 v4 (up to 24 cores) Up to 4x 2nd Gen Intel Xeon Scalable (up to 28 cores)
Memory 96x DDR4 DIMM slots, up to 12TB
Up to 2400 MT/s		 48x DDR4 DIMM slots, up to 6TB
Up to 2933 MT/s
Persistent Memory Not supported Up to 12x NVDIMM
Storage Up to 24x 2.5" (up to 8 NVMe) Up to 24x 2.5" (up to 12 NVMe)
PCIe Up to 10x PCIe 3.0 + RAID + NDC slots Up to 13x PCIe Gen3
Networking NDC: 4x 1GbE, or 2x 1GbE + 2x 10GbE NDC: 4x 1Gb, 4x 10Gb, 2x 10Gb + 2x 1Gb or 2x 25Gb
Management iDRAC8 with Lifecycle Controller iDRAC9 with Lifecycle Controller
Cooling 6 hot-swap fans 8 hot-plug fans
Power 750W or 1100W 1100W to 2400W
Form Factor 4U Rack 3U Rack

Frequently Asked Questions

Two or four Intel Xeon E7-8800 v4 or E7-4800 v4 processors with up to 24 cores each, for up to 96 cores, linked by Intel QPI.

It has 96 DDR4 DIMM sockets supporting RDIMMs and LRDIMMs, for up to 12TB at up to 2400 MT/s according to Dell's spec sheet.

Up to 24 front 2.5-inch hot-plug SAS or SATA drives, with up to eight of them as front-accessible NVMe Express Flash PCIe SSDs, using PERC H330 or H730P. Please specify your capacity needs when you submit your quote configuration.

Up to ten PCIe 3.0 slots, plus a dedicated RAID controller slot and a network daughter card slot, along with hot-plug redundant 750W or 1100W power supplies and six hot-swap fans.

The Gen 14 R940 moves to Xeon Scalable processors in a smaller 3U chassis, with 48 DIMM slots (up to 6TB at 2933 MT/s), up to 12 NVMe drives, 13 PCIe slots, 25GbE and iDRAC9. The R930 keeps the edge on DIMM slot count and memory capacity. Dell's R940 spec sheet was used for the R940 column.
