Quick Specs
Form Factor:
2U rack server
Processor | Max: 40 Cores2x Intel Gen 3 Xeon Scalable
Memory | Max: 2TB (RDIMM) | 8TB (LRDIMM) | 8TB (Pmem)32 ECC DDR4 RDIMM/LRDIMM 3200Mhz
Up to 16 Intel Persistent Memory 200 series (BPS) slots
Front bays: 12 LFF or 8, 16, 24 SFF SAS/NL-SAS/SATA (HDD/SSD) NVMe
Rear bays: 2 or 4 SFF SAS/SATA/NVMe (HDD/SSD)
Boot Optimized Server Storage (BOSS-S2) Hot-Plug
Boot Optimized Server Storage (BOSS-S1) Cold-Plug
IDSDM
Internal USB
S150 (SW RAID SATA, NVMe)
H345, H745, H755, H755N, H840, HBA335i, HBA355e
2 x 1 GbE LOM BCM5720 LAN controller
OCP 3.01 x OCP 3.0 (x8 PCIe lanes)
Remote Management:iDRAC9 Express (default) with Lifecycle Controller
PCIe Slots:Up to 8 x PCIe 4.0 slots (up to 6 x16) with support for SNAP I/O modules
GPU:Up to two double-width 300 W,
Or, Four single-width 150 W,
Or, Six single-width 75 W accelerators
Other Versions
- Dell PowerEdge R710
- Dell PowerEdge R720
- Dell PowerEdge R720XD
- Dell PowerEdge R730
- Dell PowerEdge R730XD
- Dell PowerEdge R740
- Dell PowerEdge R740XD
- Dell PowerEdge R740XD2
- Dell PowerEdge R7415
- Dell PowerEdge R7425
- Dell PowerEdge R750
- Dell PowerEdge R750XA
- Dell PowerEdge R750XS
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge R760
- Dell PowerEdge R760XA
- Dell PowerEdge R760XS
- Dell PowerEdge R760XD2
- Dell PowerEdge R7615
- Dell PowerEdge R7625
(Click to View)
Ideal for:
- Artificial Intelligence (AI)
- Big Data Analytics
- Corporate IT
- Data Analytics
- Database
- High-Performance Computing (HPC)
- Machine Learning (ML)
- Virtual Desktop Interface (VDI)
- Virtualization

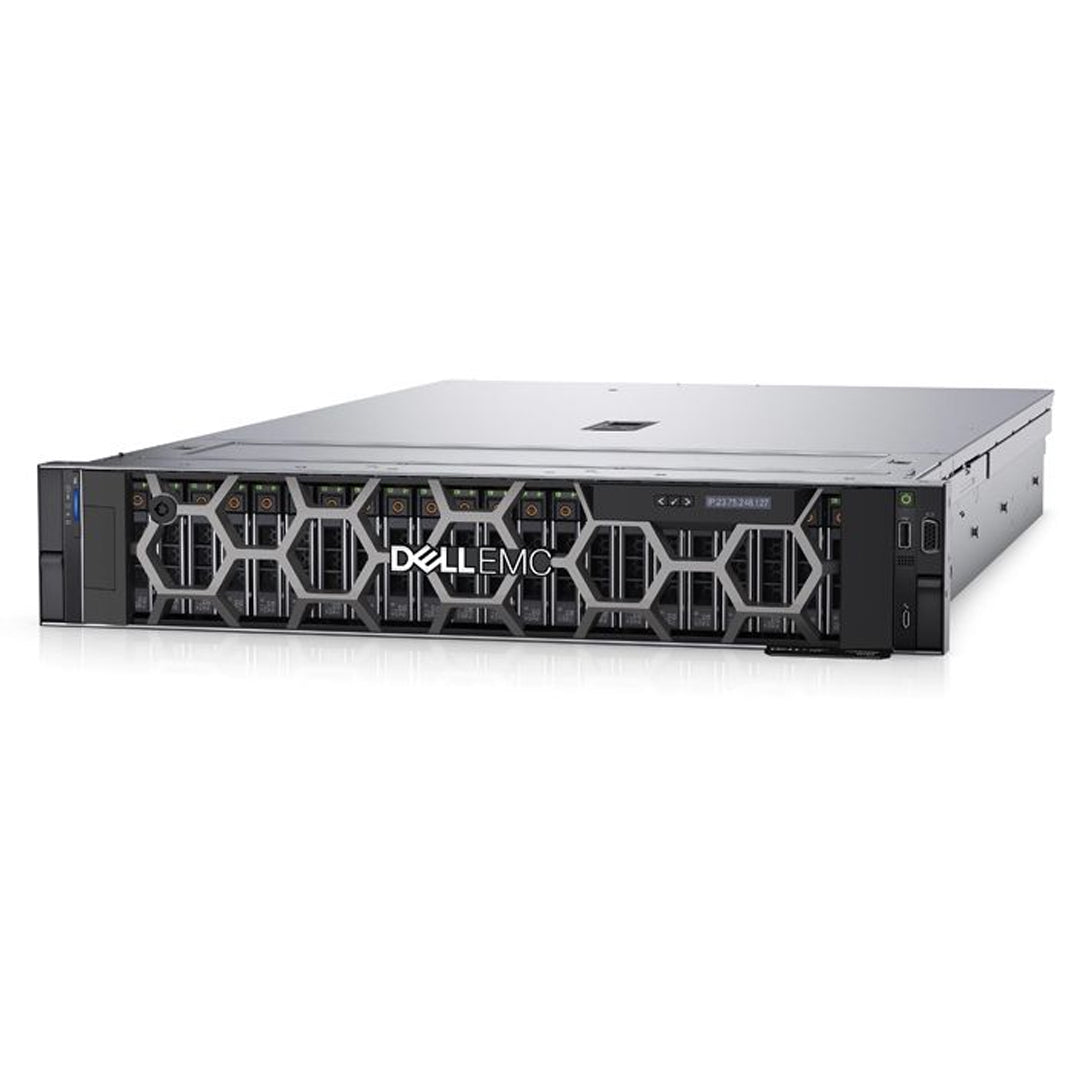

The Dell PowerEdge R750, is a full-featured enterprise server, delivering outstanding performance for the most demanding workloads.
PowerEdge R750 The Dell PowerEdge R750 offers compelling performance, highspeed memory and capacity, I/O bandwidth and storage to address data requirements.
Innovate at scale with challenging and emerging workloads
The Dell PowerEdge R750, powered by the 3rd Generation Intel® Xeon® Scalable processors is a rack server to address application performance and acceleration. The PowerEdge R750, is a dual-socket/2U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds. In addition, to address substantial throughput improvements the PowerEdge R750 supports PCIe Gen 4 and up to 24 NVMe drives with improved air-cooling features and optional Direct Liquid Cooling to support increasing power and thermal requirements. This makes the PowerEdge R750 an ideal server for data center standardization on a wide range of workloads including; Database and Analytics, High-performance computing (HPC), Traditional corporate IT, Virtual Desktop Infrastructure, and AI/ML environments that require performance, extensive storage and GPU support.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing IT infrastructure. Using Dell Technologies’ intuitive end-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order to focus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlocking the tools and automation that help you scale, manage, and protect your technology environment.
- Built-in telemetry streaming, thermal management, and RESTful API with Redfish offer streamlined visibility and control for better server management
- Intelligent automation lets you enable cooperation between human actions and system capabilities for added productivity
- Integrated change management capabilities for update planning and seamless, zero-touch configuration and implementation
- Full-stack management integration with Microsoft, VMware, ServiceNow, Ansible and many other tools
Protect your data assets and infrastructure with proactive resilience
The Dell PowerEdge R750 server is designed with a cyber-resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages
- Prevent unauthorized configuration or firmware change with system lockdown
- Securely and quickly wipe all data from storage media, including hard drives, SSDs and system memory with System Erase

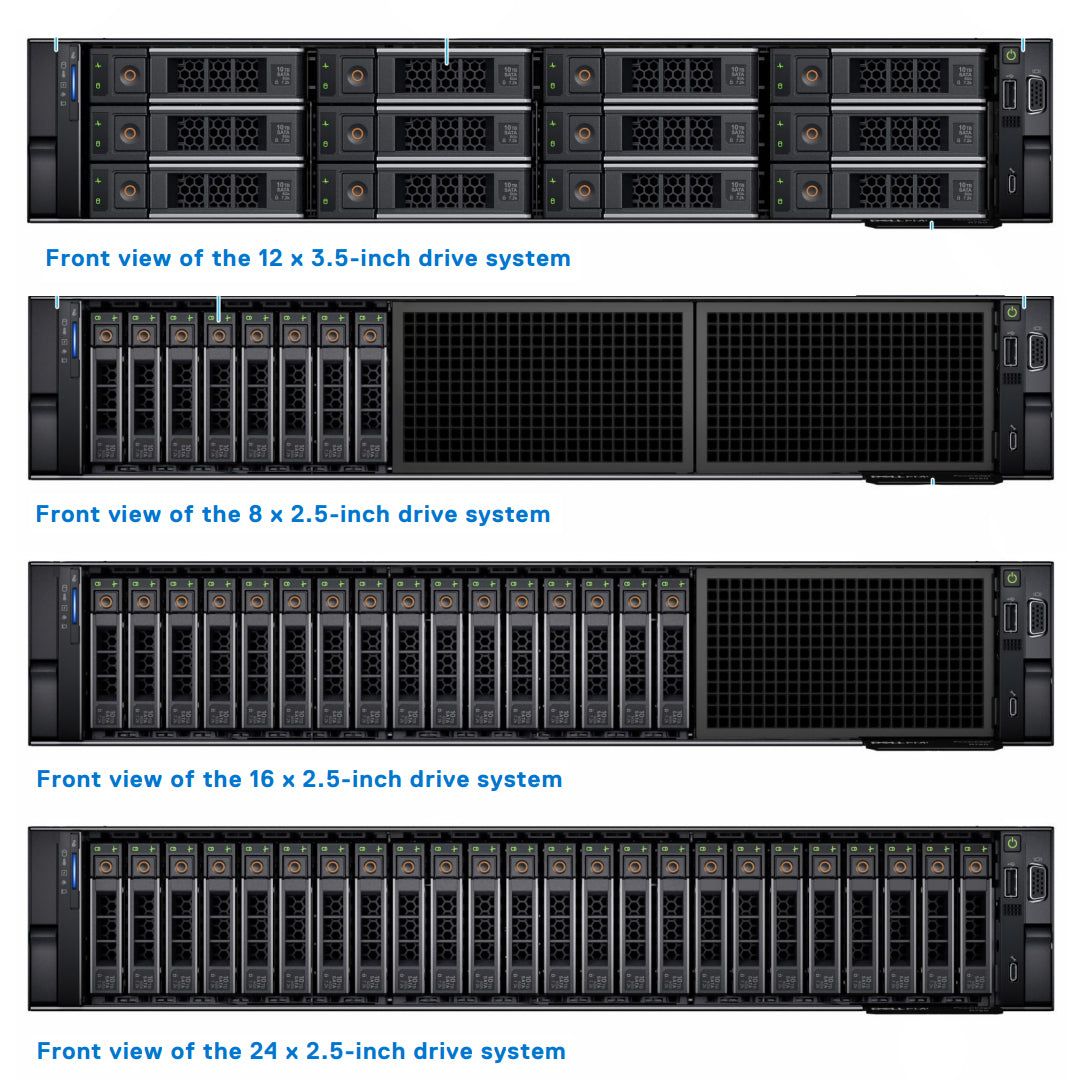

Storage Configurations/Controllers Options
Internal Storage
The PowerEdge R750 internal storage configurations are available in the list below.
- 12x3.5" SAS/SATA
- 12x3.5" w/ rear 2x2.5" SAS/SATA or NVMe
- 12x3.5" SAS/SATA + 4x2.5" SAS/SATA or NVMe
- 8x2.5" NVMe
- 8x2.5" NVMe RAID
- 8x2.5" Universal
- 16x2.5" SAS/SATA
- 16x2.5" NVMe
- 16x2.5" NVMe RAID - Dual Controller Required
- 16x2.5" SAS/SATA + 8x2.5" NVMe
- 24x2.5" NVMe switch*
- 24x2.5" NVMe RAID switched - Dual Controller*
- 24x2.5" SAS/SATA
- 24x2.5" SAS/SATA with 8x Universal slots
- 24x2.5" SAS/SATA - Dual Controller
- 24x2.5" SAS/SATA + 2x2.5" SAS/SATA or NVMe
- 24x2.5" SAS/SATA + 2x2.5" SAS/SATA - Dual Controller
- 24x2.5" SAS/SATA + 4x2.5" SAS/SATA or NVMe
- 12x3.5" SAS/SATA + 4x2.5" NVMe - 1S only
- 12x3.5" + 4x2.5" SAS/SATA - 1S only
- 24x2.5" SAS/SATA with 4x Universal slots - 1S only
Storage Controllers
Dell's RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar
15G PERC Controller offerings will be a heavy leverage of 14G PERC family. The Value and Value Performance levels will carry over to 15G from 14G. New to 15G, is the Harpoon-based Premium Performance tier offering. This high-end offering will drive IOPs performance and enhanced SSD performance.
| Performance Level | Controller and Description |
|---|---|
| Entry | S150 (SATA, NVMe) SW RAID SATA, NVMe |
| Value | H345, HBA355 (Internal/External) |
| Value Performance | H745, H755, H755N |
| Premium Performance | H840 Harpoon Chip (LSI 3508) Memory: 8GB DDR4 NV cache 72-bit memory 2133MHz Low profile form factors Dual A15 1.2GHz CPU X8PCIe 3.0, x8 12Gb SAS |
8 Bay SSD:
- 8x 2.5" NVMe
- 8x 2.5" NVMe RAID
- 8x 2.5" Universal
16 Bay SSD:
- 16x 2.5" SAS/SATA
- 16x 2.5" NVMe
- 16x 2.5" NVMe RAID - Dual Controller Required
- 16x 2.5" SAS/SATA + 8x2.5" NVMe
24 Bay w/ SAS Expander:
- 24x2.5" SAS/SATA
- 24x2.5" SAS/SATA with 8x Universal slots
- 24x2.5" SAS/SATA - Dual Controller
- 24x2.5" SAS/SATA + 2x2.5" SAS/SATA or NVMe
- 24x2.5" SAS/SATA + 2x2.5" SAS/SATA - Dual Controller
- 24x2.5" SAS/SATA + 4x2.5" SAS/SATA or NVMe
24 Bay w/ NVMe Switch:
- 24x 2.5" NVMe switch*
- 24x 2.5" NVMe RAID switched - Dual Controller*
Memory Supported
The R750 supports up to 32 DIMMs, with maximum capacity around 12 TB per system for 8x512 GB Intel Optane PersistentMemory 200 Series and 8x 256 GB LRDIMM connected to per CPU and speeds of up to 3200MT/s.
The R750 supports registered (RDIMMs) and load reduced DIMMs (LRDIMMs) which use a buffer to reduce memory loadingand provide greater density, allowing for the maximum platform memory capacity. Unbuffered DIMMs (UDIMMs) are notsupported.
| DIMM Type | DIMM Ranking | Capacity | DIMM Rated Voltage, Speed | Operating speed (MT/s) | |
|---|---|---|---|---|---|
| 1 DPC | 2 DPC | ||||
| RDIMM | 1R | 8 GB | DDR4 (1.2 V), 3200 | 3200 | 3200 |
| RDIMM | 2R | 16 GB, 32 GB, 64 GB | DDR4 (1.2 V), 3200 | 3200 | 3200 |
| LRDIMM | 4R | 128 GB | DDR4 (1.2 V), 3200 | 3200 | 3200 |
| LRDIMM | 8R | 256 GB | DDR4 (1.2 V), 3200 | 3200 | 3200 |
| 3DS (Intel Optane Persistent Memory 200 Series) | N/A | 128GB, 256GB, 512GB | N/A | 3200 | 3200 |

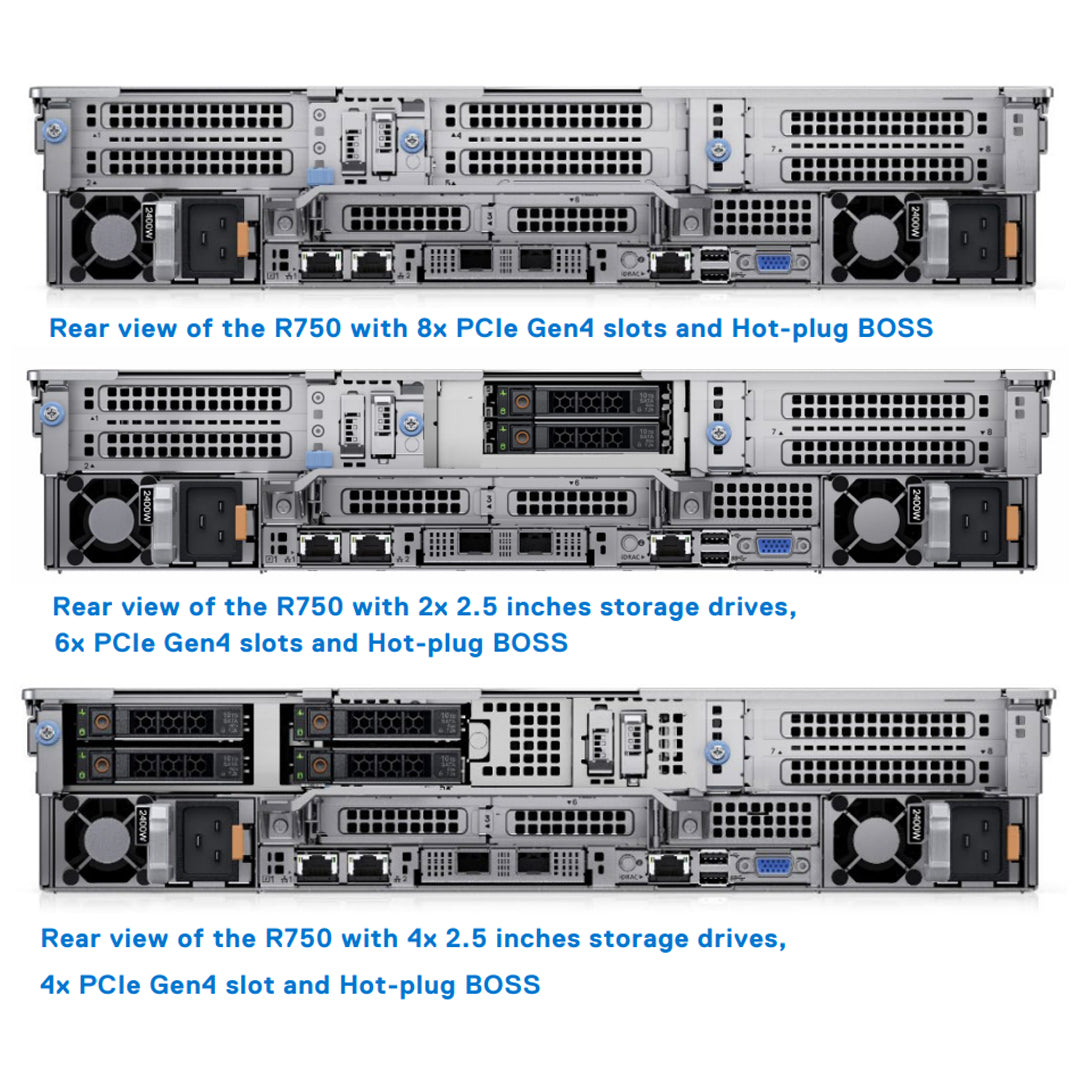

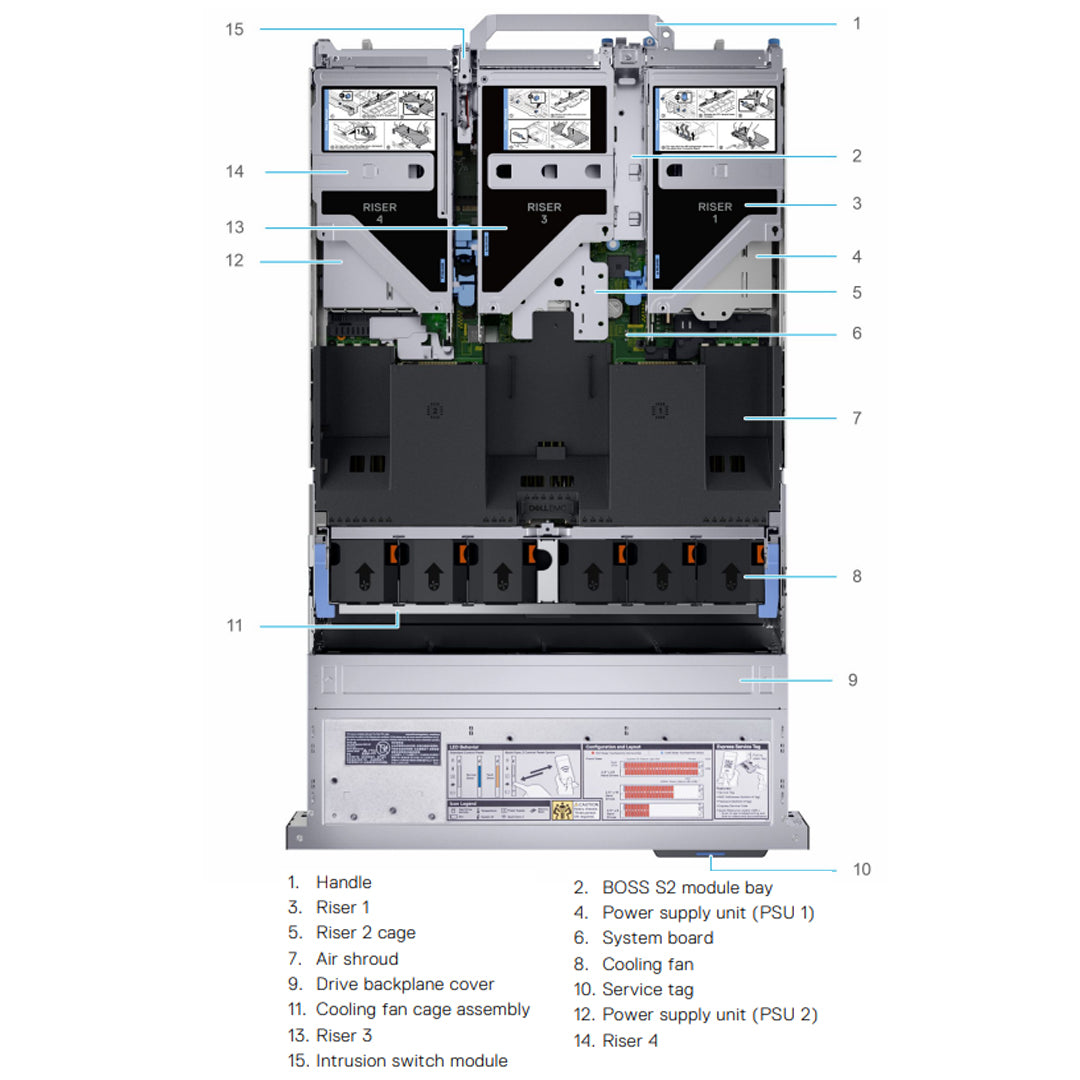

Expansion PCIe Riser

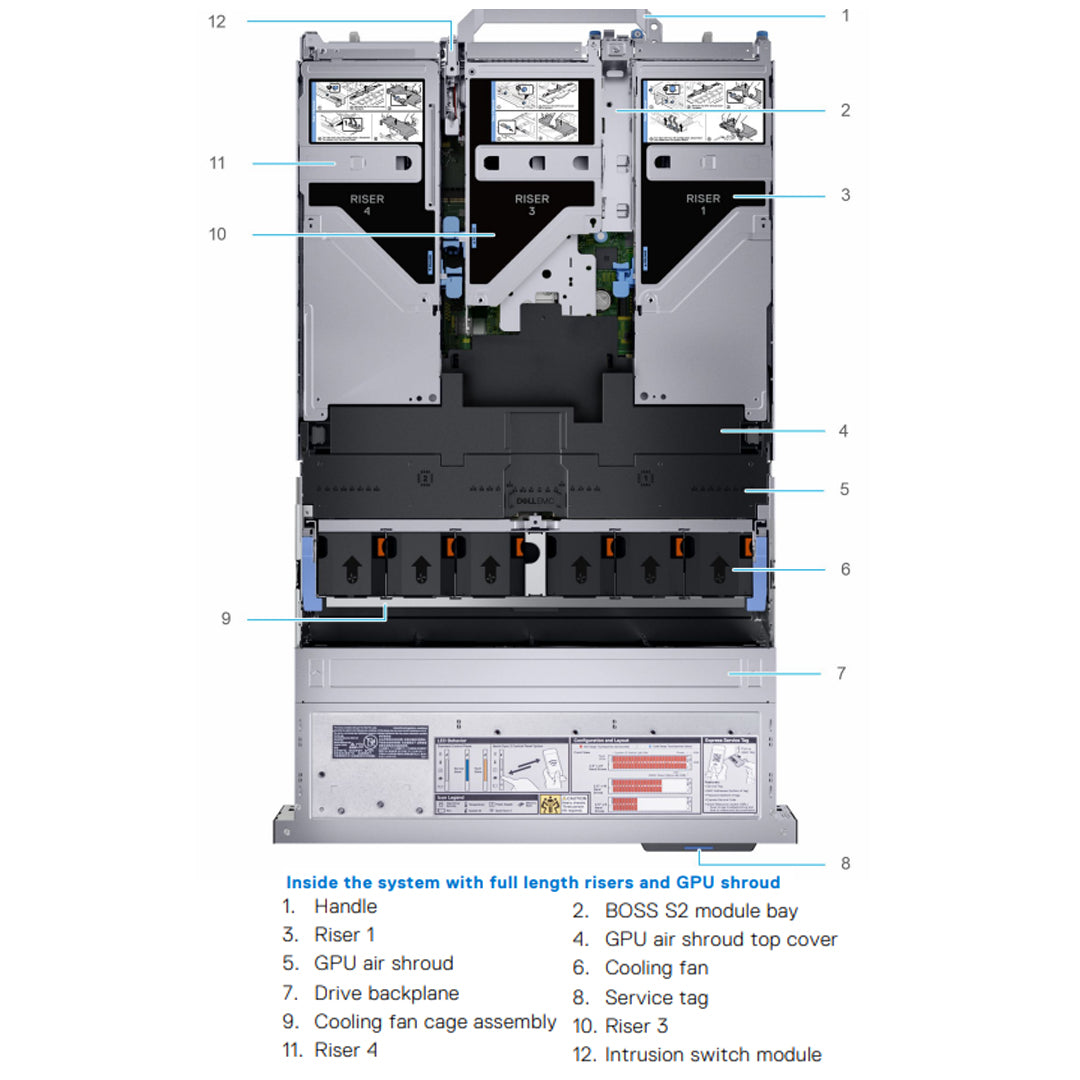

There are many PCI configurations. The Dell R750 can hold up to (6) GPUs with access to up to 8 PCIe Gen 4.0 slots. Many drive configurations support Dual PERC controllers. Either 2 fPERCs or 1 fPERC and 1 aPERC.
With so many configurations its hard to explain them all, please view the tech manual below for more detailed information about each configuration.
For example, If you want to install 16 NVMe drives on the 16 Bay Chassis. You will have to install Configuration 7. This is the only configuration where the Paddle cards are installed. These Paddle Card provide the extra PCIe lanes needed for the Direct attached NVMe Configuration.
If you need help with configuring this server, please call or chat with us today.
Configuration Options
| Config No. | Expansion card risers | PCIe Slots | Controlling Processor | PERC type supported | Rear storage possible | Height | Length | Slot width |
|---|---|---|---|---|---|---|---|---|
| Config 0. 4x FH |
R1b | 1 and 2 | Processor 1 | fPERC / Adapter | No | Full height | Half length | x8 + x8 |
| R4b | 7 and 8 | Processor 2 | fPERC / Adapter | No | Full height | Half length | x8 + x8 | |
| Config 1. 6x FH and 2x LP |
R1b | 1 and 2 | Processor 1 | fPERC / Adapter | No | Full height | Half length | x8 + x8 |
| R2a | 3 and 6 | Processor 1 and 2 | fPERC / Adapter | No | Low profile | Half length | x16 + x16 | |
| R3b | 4 and 5 | Processor 2 | fPERC / Adapter | No | Full height | Half length | x8 + x8 | |
| R4b | 7 and 8 | Processor 2 | fPERC / Adapter | No | Full height | Half length | x8 + x8 | |
| Config2-1. 4x FH and 2x LP |
R1a | 2 | Processor 1 | fPERC / Adapter | No | Full height, double width | Full length | x16 |
| R2a | 3 and 6 | Processor 1 and 2 | fPERC / Adapter | No | Low profile | Half length | x16 + x16 | |
| R3b | 4 and 5 | Processor 2 | fPERC / Adapter | No | Full height | Half length | x8 + x8 | |
| R4a (FL) | 7 | Processor 2 | fPERC / Adapter | No | Full height, double width | Full length | x16 | |
| Config2-2. 4x FH and 2x LP |
R1a | 2 | Processor 1 | fPERC / Adapter | No | Full height | Half length | x16 |
| R2a | 3 and 6 | Processor 1 and 2 | fPERC / Adapter | No | Low profile | Half length | x16 + x16 | |
| R3b | 4 and 5 | Processor 2 | fPERC / Adapter | No | Full height | Half length | x8 + x8 | |
| R4a (HL) | 7 | Processor 2 | fPERC / Adapter | No | Full height | Half length | x16 | |
| Config3-1. 4x FH, 1x SNAPI LP and 1x LP |
R1a | 2 | Processor 1 | fPERC | No | Full height, double width | Full length | x16 |
| R2b | 3 and 6 | Processor 1 and 2 | fPERC | No | Low profile | Half length | (x8 + x8) + x8 | |
| R3b | 4 and 5 | Processor 2 | fPERC | No | Full height | Half length | x8 + x8 | |
| R4a (FL) | 7 | Processor 2 | fPERC | No | Full height, double width | Full length | x16 | |
| Config3-2. 4x FH, 1x SNAPI LP and 1x LP |
R1a | 2 | Processor 1 | fPERC | No | Full height | Half length | x16 |
| R2b | 3 and 6 | Processor 1 and 2 | fPERC | No | Low profile | Half length | (x8 + x8) + x8 | |
| R3b | 4 and 5 | Processor 2 | fPERC | No | Full height | Half length | x8 + x8 | |
| R4a (HL) | 7 | Processor 2 | fPERC | No | Full height | Half length | x16 | |
| Config 4-1. 4x FH and 2x LP |
R1c | 1 and 2 | Processor 1 | fPERC | No | Full height | Full length | x16 + x16 |
| R2a | 3 and 6 | Processor 1 and 2 | fPERC | No | Low profile | Half length | x16 + x16 | |
| R3a | 5 | Processor 2 | fPERC | No | Full height | Half length | x16 | |
| R4a (FL) | 7 | Processor 2 | fPERC | No | Full height, double width | Full length | x16 | |
| Config 4-2. 4x FH and 2x LP |
R1c | 1 and 2 | Processor 1 | fPERC | No | Full height | Half length | x16 + x16 |
| R2a | 3 and 6 | Processor 1 and 2 | fPERC | No | Low profile | Half length | x16 + x16 | |
| R3a | 5 | Processor 2 | fPERC | No | Full height | Half length | x16 | |
| R4a (HL) | 7 | Processor 2 | fPERC | No | Full height | Half length | x16 | |
| Config5. 2x FH and 2x LP |
R2a | 3 and 6 | Processor 1 and 2 | fPERC / Adapter | Yes | Low profile | Half length | x16 + x16 |
| R4b | 7 and 8 | Processor 2 | fPERC / Adapter | Yes | Full height | Half length | x8 + x8 | |
| Config6. 4x FH and 2x LP |
R1b | 1 and 2 | Processor 1 | fPERC / Adapter | Yes | Full height | Half length | x8 + x8 |
| R2a | 3 and 6 | Processor 1 and 2 | fPERC / Adapter | Yes | Low profile | Half length | x16 + x16 | |
| R4b | 7 and 8 | Processor 2 | fPERC / Adapter | Yes | Full height | Half length | x8 + x8 | |
| Config7. 2x FH, 2x LP and R1 R3 paddle cards |
R2a | 3 and 6 | Processor 1 and 2 | No | No | Low profile | Half length | x16 + x16 |
| R4b | 7 and 8 | Processor 2 | No | No | Full height | Half length | x8 + x8 | |
| R1-Paddle for XA cable | NA | NA | No | No | NA | NA | NA | |
| R3-Paddle for XA cable | NA | NA | No | No | NA | NA | NA | |
| NOTE: R1 and R3 paddle cards are supported on 16 x 2.5-inch NVMe direct-attach configuration only. | ||||||||
| Config8. 2x FH and 1x LP |
R1b | 1 and 2 | Processor 1 | fPERC | No | Full height | Half length | x8 + x8 |
| R2a | 3 | Processor 1 | fPERC | No | Low profile | Half length | x16 | |
| Config 9. 1x LP |
R2a | 3 | Processor 1 | Adapter | Yes | Low profile | Half length | x16 |
