2U rack server
Processor | Max: 8 Cores2x Intel Xeon E5-2600 or E5-2600v2
Memory | Max: 256GB16x DDR3 LV RDIMM, LR RDIMM, or RDIMM Up to 1600Mhz
PCIe Slots:2x PCIe 3.0
GPU:2 GPU slots, Must install the Front and Rear GPU Risers
Storage | Max: 12TB- 2x 2.5” hot-plug + 8x 2.5” non-hot-plug
- 2x 2.5” hot-plug hard drives + 4 x 3.5” non-hot-plug
- 2x GPUs + 2 x 2.5" non-hot-plug rear drive
Note: 2x 2.5” non-hot-plug rear hard drives only supported with GPUs
(Click to View)
- Big Data Analytics
- High-Performance Computing (HPC)

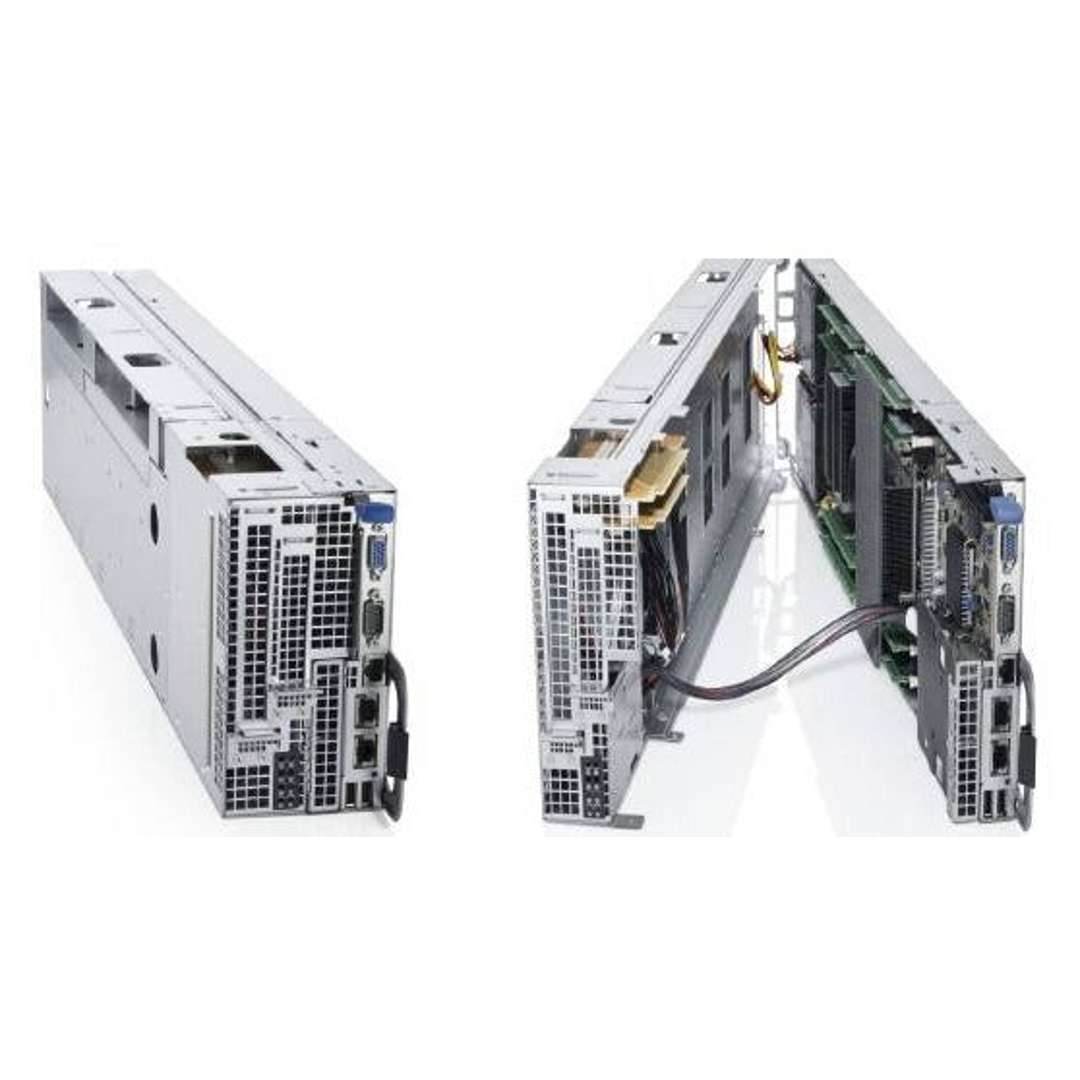

This C8220 Compute sled goes into the C8000 Enclosure. Click here to view the C8000 Rack Enclosures CTO.
Each system board supports different items. The correct Interposer board will come with the system you choose.
- CPU: Intel Xeon E5-2600 series processor
- Interposer: V1.0
- NVIDIA Tesla M2090 GPGPU card
- NVIDIA Tesla K20 GPGPU card
- Intel Xeon Phi 5110P card
- CPU: Intel Xeon E5-2600 series processor
- Interposer: V1.1
- NVIDIA Tesla M2090 GPGPU card
- NVIDIA Tesla K20 GPGPU card
- Intel Xeon Phi 5110P card
- CPU: Intel Xeon E5-2600V2 series processor
- Interposer: V1.1
- NVIDIA Tesla K10 GPGPU card
- Intel Xeon Phi 7120P card
Get results up to 10x faster with GPUs1 , delivered with up to 24 cores, 512GB memory, and three PCIe 3.0 expansion slots in a compact double-wide sled designed for the 4U PowerEdge C8000 chassis.
PowerEdge C8220X- Up to 10x faster performance with NVIDIA Tesla K20 GPUs
- Boost performance by up to 80% with Intel Xeon E5‑2600 v2 processors
- More options than the Super Micro 6047R
Make high-impact breakthroughs
Scientists need to simulate increasingly complex problems and visualize larger amounts of data with greater accuracy to achieve high-impact scientific and engineering breakthroughs. These resource-intensive workloads are pushing infrastructure limits, requiring more performance, bandwidth, memory and adaptability than ever before.
The PowerEdge C8220X double-wide compute sled can be configured with storage or graphics processing unit (GPU) expansion. Each sled, regardless of whether it is configured with GPU or additional storage, has two Intel Xeon E5‑2600 v2 processors with up to 12 cores each and 16 DIMM slots.

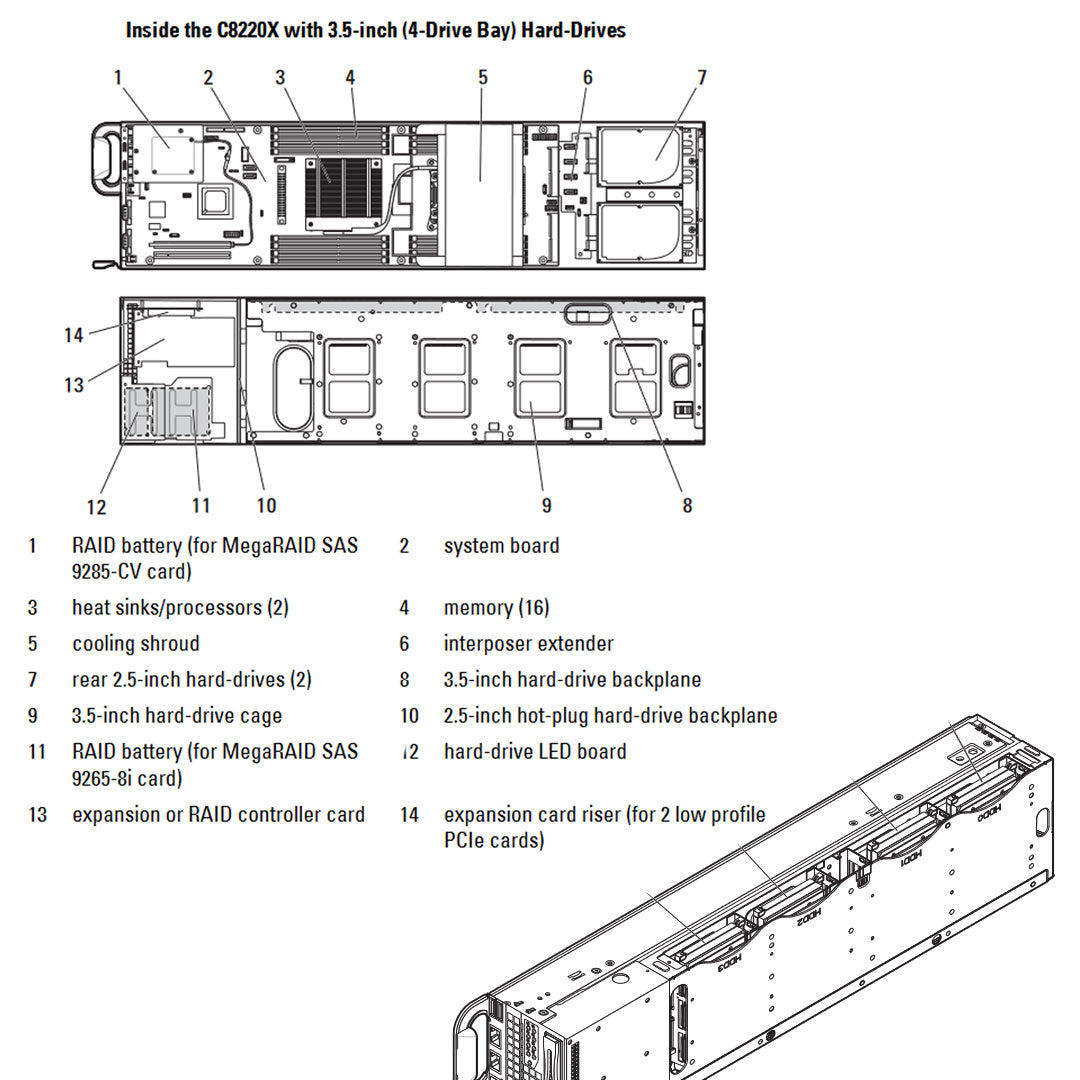

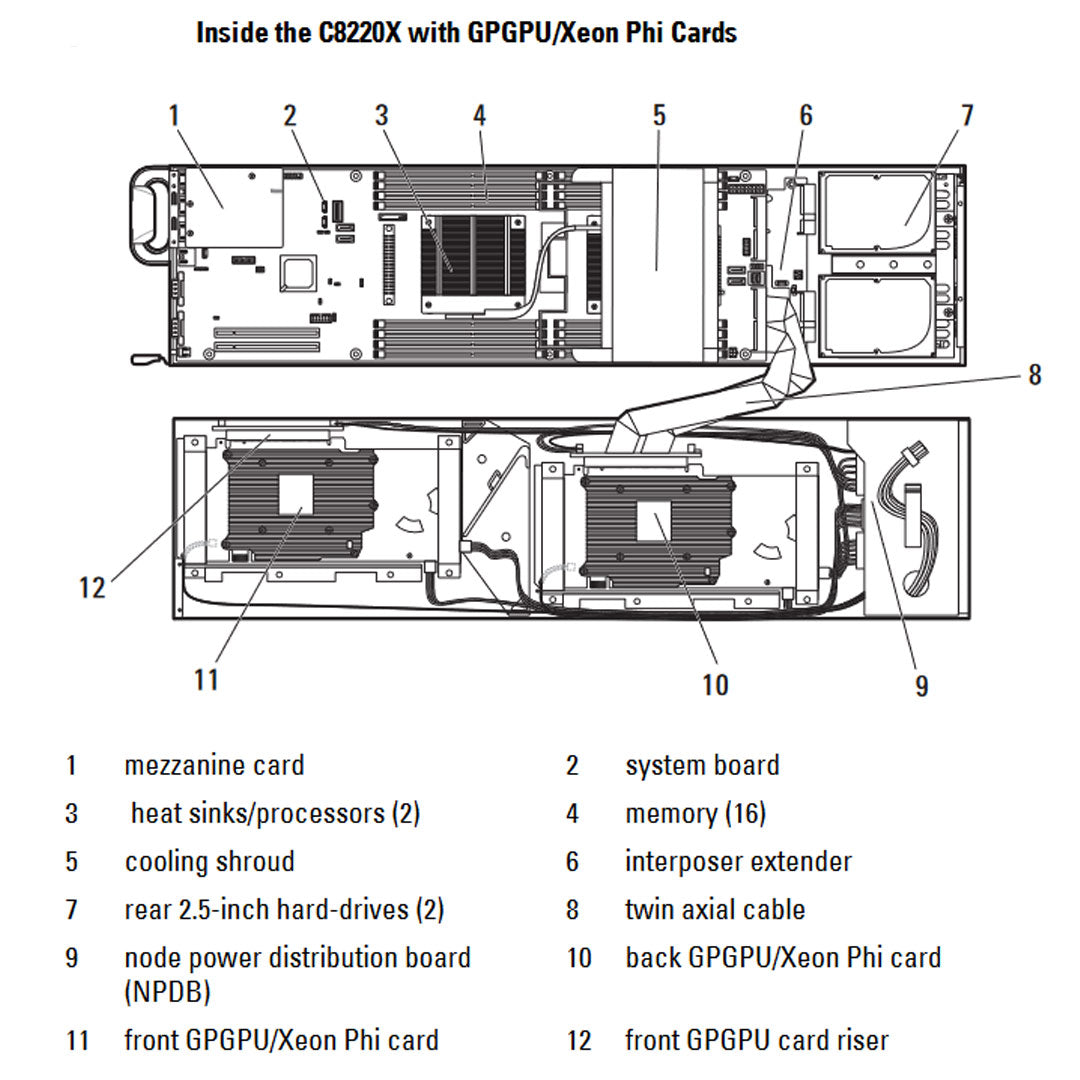

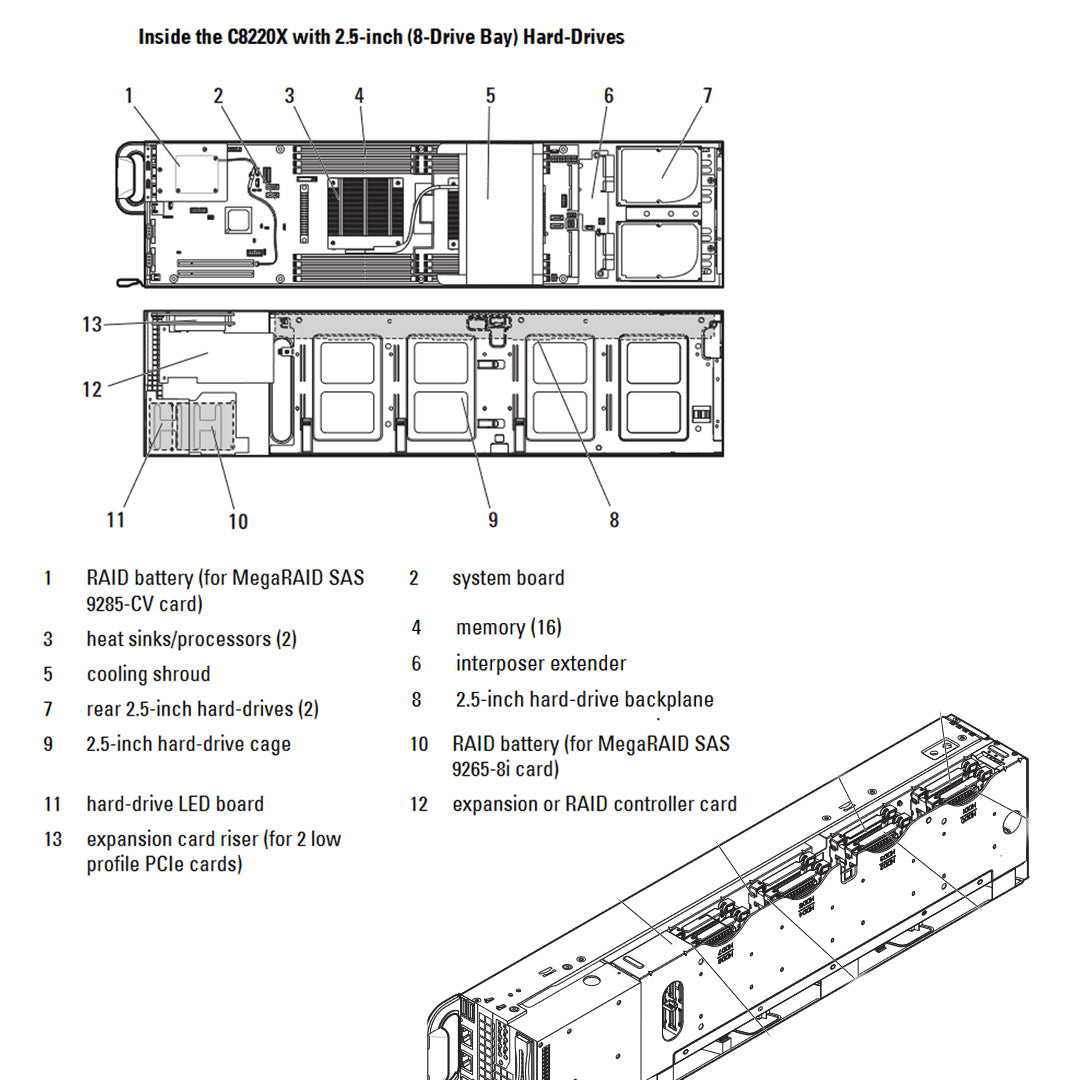

The GPU sled can help you make those breakthroughs quickly by housing up to two NVIDIA Tesla K20 GPUs. The storage sled adds another four 3.5-inch SAS/SATA HDDs or eight 2.5-inch SAS/SATA HDDs or SSDs and another two 2.5‑inch SAS/SATA HDDs or SSDs in addition to the two 2.5‑inch internal SATA HDDs or SSDs (for up to 12 2.5” SAS/SATA HDDs or SSDs).
See results fast
With two of the fastest processors available, and up to two of the most advanced GPUs available in one sled, you can speed processing by an order of magnitude to see results faster.
The Intel Xeon processor E5 product family can boost server performance by up to 80% over previous generation processors, accelerate data availability to the processing cores, while delivering up to 70% more performance per watt.
Add up to two NVIDIA Tesla K20 GPU Computing Modules and accelerate parallel processing applications by up to 10x, with up to 665 gigaflops of double precision performance and one teraflop of single-precision performance.
When it comes to memory, 16 DIMM slots provide up to 512GB3 of memory per sled, and 1866MT/s memory is available to help improve bandwidth per processor. The Intel Xeon E5-2600 v2 processors have 2.3x the memory bandwidth of the previous generation, with four memory channels, and the integrated I/O helps reduce latency up to 30%.
Reach peak efficiency

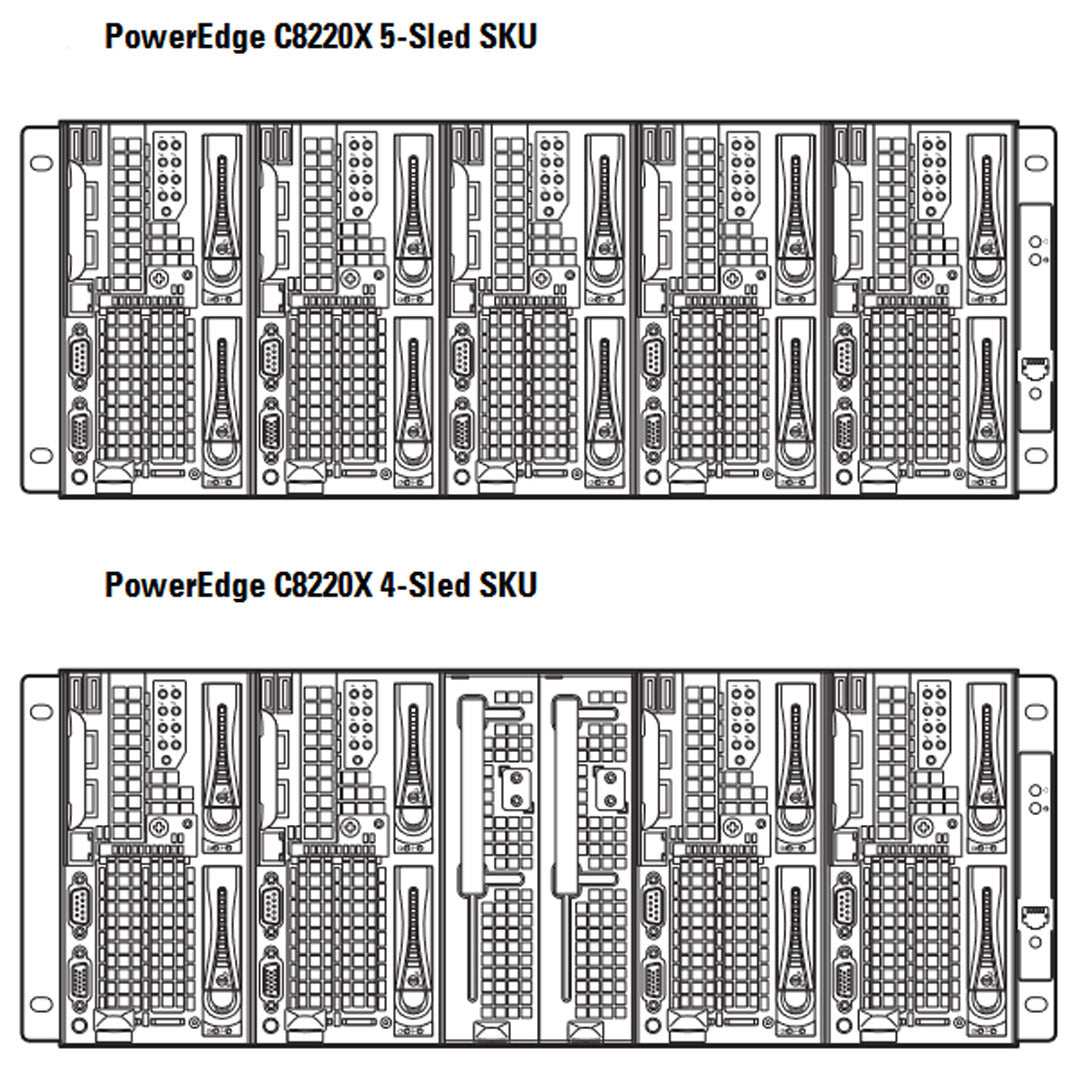

Pack more compute power in the same space, with up to four PowerEdge C8220X double-wide compute/GPU sleds in one 4U PowerEdge C8000 chassis. The C8000 4U shared infrastructure chassis is designed for efficiency, using 94% platinum-certified power supplies, and fewer, high-efficiency fans than more traditional servers. Compute, GPU and storage sleds all share chassis, power and cooling, helping save on the total cost of ownership. Help save even more by refreshing components, without having to replace the entire chassis.
Current Configuration
(List below serves as quick links to each section)
Select Chassis
Select Processor
Interposer Extender
Memory
Storage Controllers
SAS (3.5")
SATA (3.5")
SAS (2.5")
SATA (2.5")
GPUs supported by E5-2600
GPUs supported by E5-2600v2
ECS Warranty
The request has been sent.
Thank you.
Price as Configured:
$0
Base Standard Capabilities
| Feature | PowerEdge C8220X COMPUTE/GPU Sled Technical Specifications | |
|---|---|---|
| Chassis | 4U rack mount chassis fits up to 4 double-wide sleds | |
| Processors | One 2-socket server, 4, 6, or 8 core Intel® Xeon® E5-2600 processor series | |
| Graphics Processing Units (GPUs) | 2 GPU slots for up to 1024 cores with 12GB of GDDR5 on-board memory NVIDIA® Tesla™ M2090 GPU Computing Module | |
| Memory | 16 DIMM slots for up to 256 GB per node: 4GB/8GB/16GB DDR3, RDDR3, LV RDDR3, LR RDDR3 Supports 1066 MHz, 1333 MHz, and 1600 MHz DDR3 memory L2/L3 cache: 5MB, 10MB, 15MB, or 20MB | |
| Chipset | Intel C600 chipset | |
| Video | Integrated AST2300 with up to 16MB video RAM | |
| Primary Storage | Maximum internal storage: 12TB | |
| Drive Bays and Hard Drives | 2 x 2.5” hot-plug hard drives + 8 x 2.5” non-hotplug hard drive options; or 2 x 2.5” non-hot-plug hard drives, e.g. with GPUs 2.5” 6Gb SAS (10K): 300GB, 600GB, 900GB 2.5” 6Gb SAS (15K): 146GB 2.5” NL 6Gb SAS (7.2K): 1TB 2.5” SSD (eMLC): 100GB 2.5” Enterprise SATA (7.2K): 500GB, 1TB | 2 x 2.5” hot-plug hard drives + 4 x 3.5” hard drive options 3.5” 6Gb SAS (15K): 300GB, 600GB 3.5” NL 6GB SAS (7.2K): 2TB, 3TB 3.5” Enterprise SATA (7.2K): 500GB, 1TB, 2TB Note: Only 2 x 2.5” non-hot-plug hard drives with GPUs |
| Connectivity | Intel Ethernet Controller i350 - 2 x 1Gb Ethernet 1 x 100Mb Ethernet dedicated management port | |
| Ports - USB | 2 USB ports external (front) | |
| I/O Slots | 2 x8 PCIe Gen3 low-profile slots 1 x8 PCIe Gen3 daughter card connector Mellanox® ConnectX-2 dual-port quad data rate (QDR) InfiniBand adaptor (optional) Intel 82599 10Gb Ethernet controller quad-port (optional) | |
| Drive Controller | Intel C600: SATA or SSD drives only LSI® 2008 6Gb SAS mezzanine (optional) | |
| RAID Controller | LSI 9265-8i add-in RAID controller (optional) | |
| Operating Systems | Novell® SUSE® Linux® Enterprise Server 11 SP1 Red Hat® Enterprise Linux 6.0 Windows® Server® 2008 R2 Enterprise x64 SP1 Windows Server 2008 R2 Hyper-V™ SP1 Windows HPC Server® 2008 R2 x64 SP1 | |
| Server Management | Embedded BMC with IPMI 2.0 support with 1 x 10/100 Mbps RJ45 connector Intel Node Manager 2.0 compliant | |
| Hypervisors (Optional) | Citrix® XenServer® 5.6 SP2 VMware® ESXi v5.0 Windows Server 2008 Hyper-V | |
| Services (Availability varies by region. Please contact your sales representative for details.) | Data Center Consulting Services Rack Integration (U.S. only, not available in China) Rack Design Verification Configuration Services/CFI Onsite Deployment Online Self Dispatch Basic Support ProSupport for IT | ProSupport for Data Center 4-Hour Support Keep Your Hard Drive Enterprise Wide Contract IT Advisory Service Remote Advisory Service Certified Data Destruction Specialized Onsite Services |
| Dimensions and Weight | Height: 85.9 mm (3.38 in.) Wide: 171.6 mm (6.76 in.) Depth: 682.5 mm (26.87 in.) Weight (maximum configuration): 8.62 kg (19 lb.) | |
