Quick Specs
Form Factor:
4U/4N
Processor:(Compute Nodes C8220|C8220X)
Memory:(Compute Nodes C8220|C8220X)
Ports:4 external mini SAS ports (front)
Controllers:- LSI® 9202-16e (optional with C8220)
- LSI 9280-8e (optional with C8220X)
- 12 x 3.5” SAS/SATA HDD - Standard
- 12 x 2.5” SAS/SATA SSD - Flexible
- 24 x 3.5” SAS/SATA SSD - Expansion
Other Versions
(Click to View)
Ideal for:
- Big Data Analytics
- High-Performance Computing (HPC)

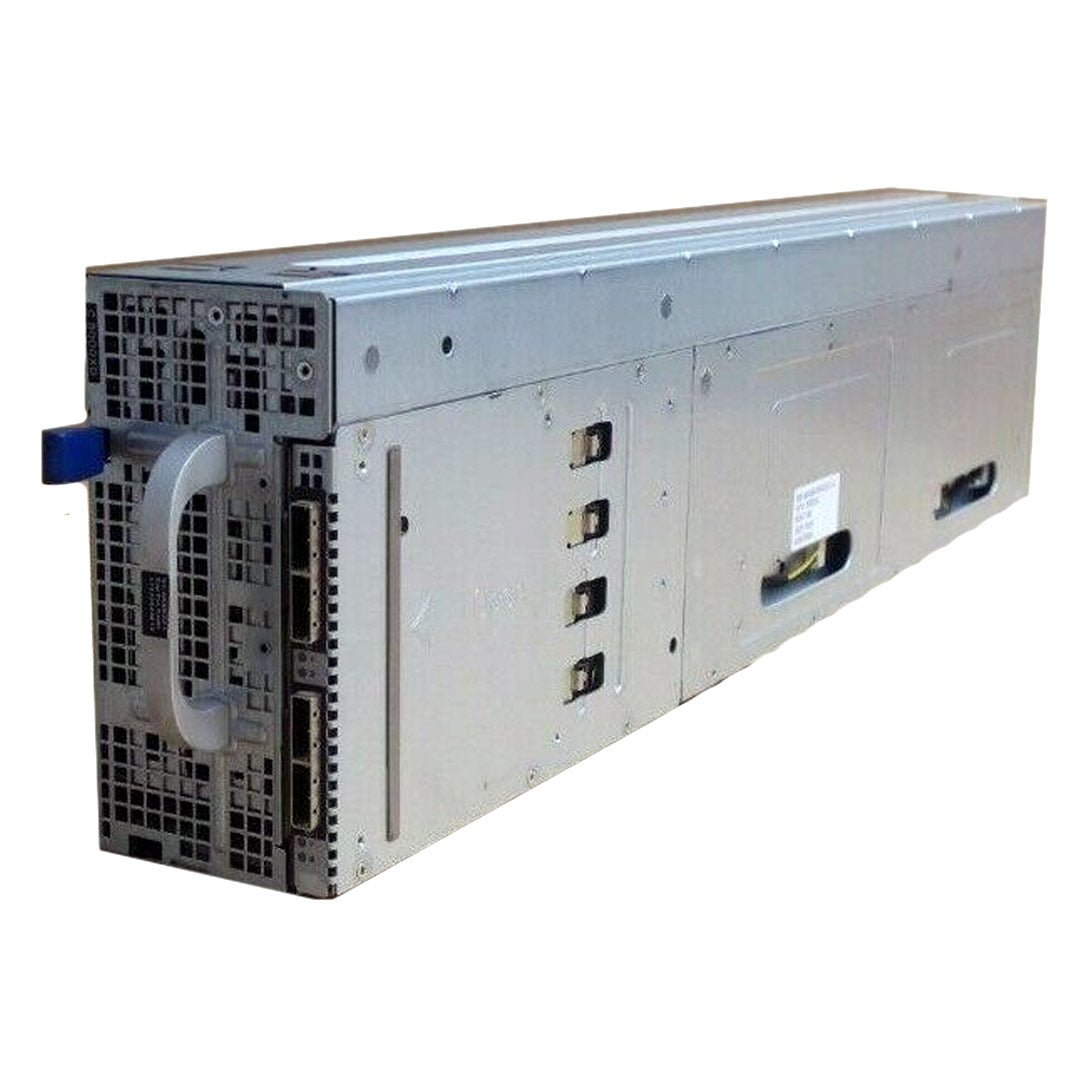

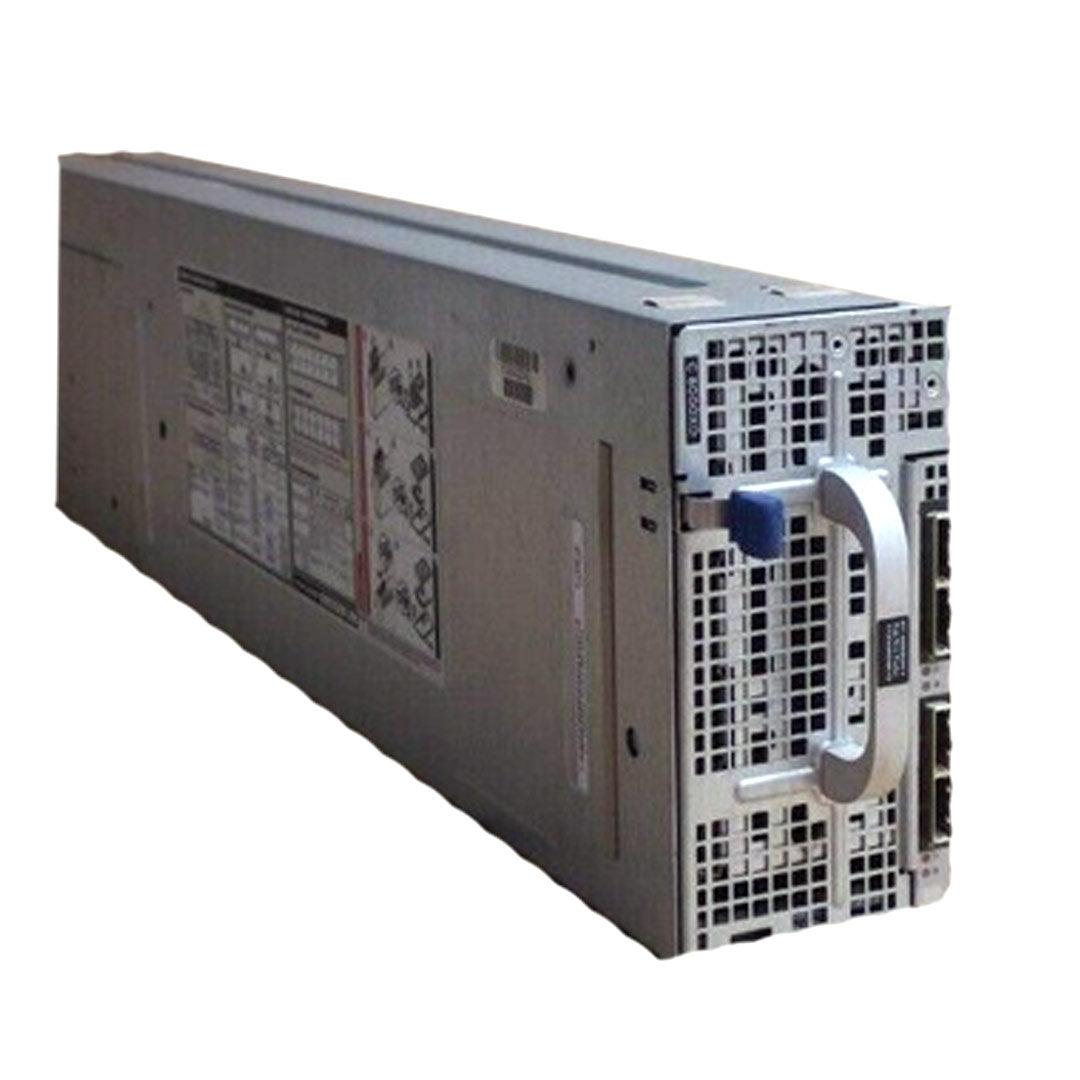

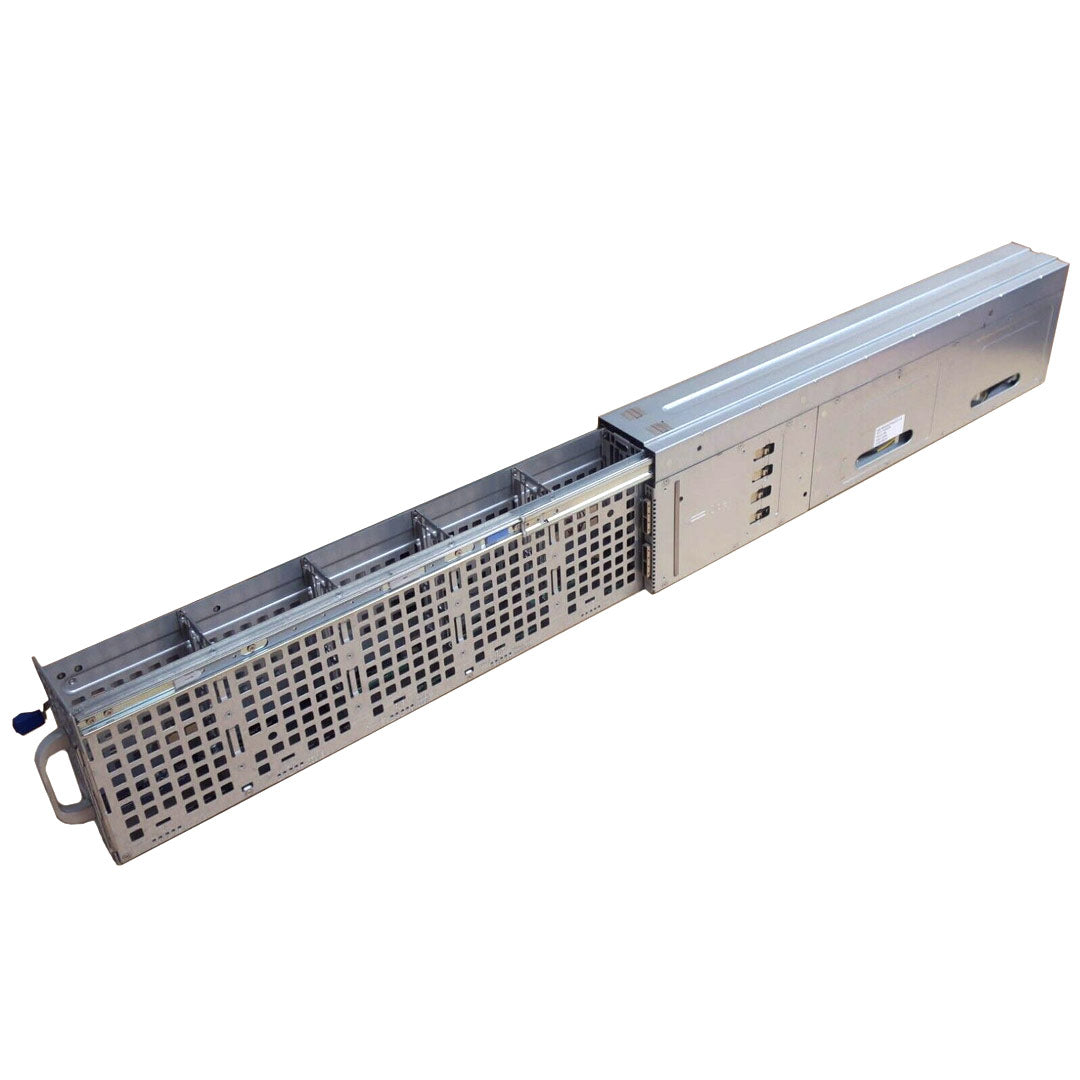

This C8220XD Storage Sled goes into the C8000 Enclosure. Click here to view the C8000 Rack Enclosures CTO.
Get big insights fast with up to 48TB of SAS, SATA or SSD storage in a compact double-wide sled designed for the 4U Dell™ PowerEdge™ C8000 chassis.
Tackle big data storage
Choose drive size, type, hot-plug/non-hot-plug capabilities and connections to reach up to 48TB per sled, with up to four sleds per chassis for 192TB. The PowerEdge C8000XD storage sled is available with up to 12 x 2.5-inch or 3.5-inch SAS/SATA HDDs or 24 x 2.5” SATA SSDs.
Up to four storage sleds can be cascaded through mini SAS ports to deliver up to 192TB of storage capacity to capacity-hungry applications.
Get big insights fast
When populated with highly reliable SAS drives, the PowerEdge C8000XD is ideally suited for enterprise-level transactional applications such as modeling and simulation. With high-capacity SATA drives, the PowerEdge C8000XD can be optimized for reference and high-bandwidth data applications such as disk-based backup, document imaging and video surveillance. With high‑speed SSDs, the PowerEdge C8000XD can be optimized to meet a high-volume of real-time demands, such as online transaction processes, database queries, hosting and cloud services.

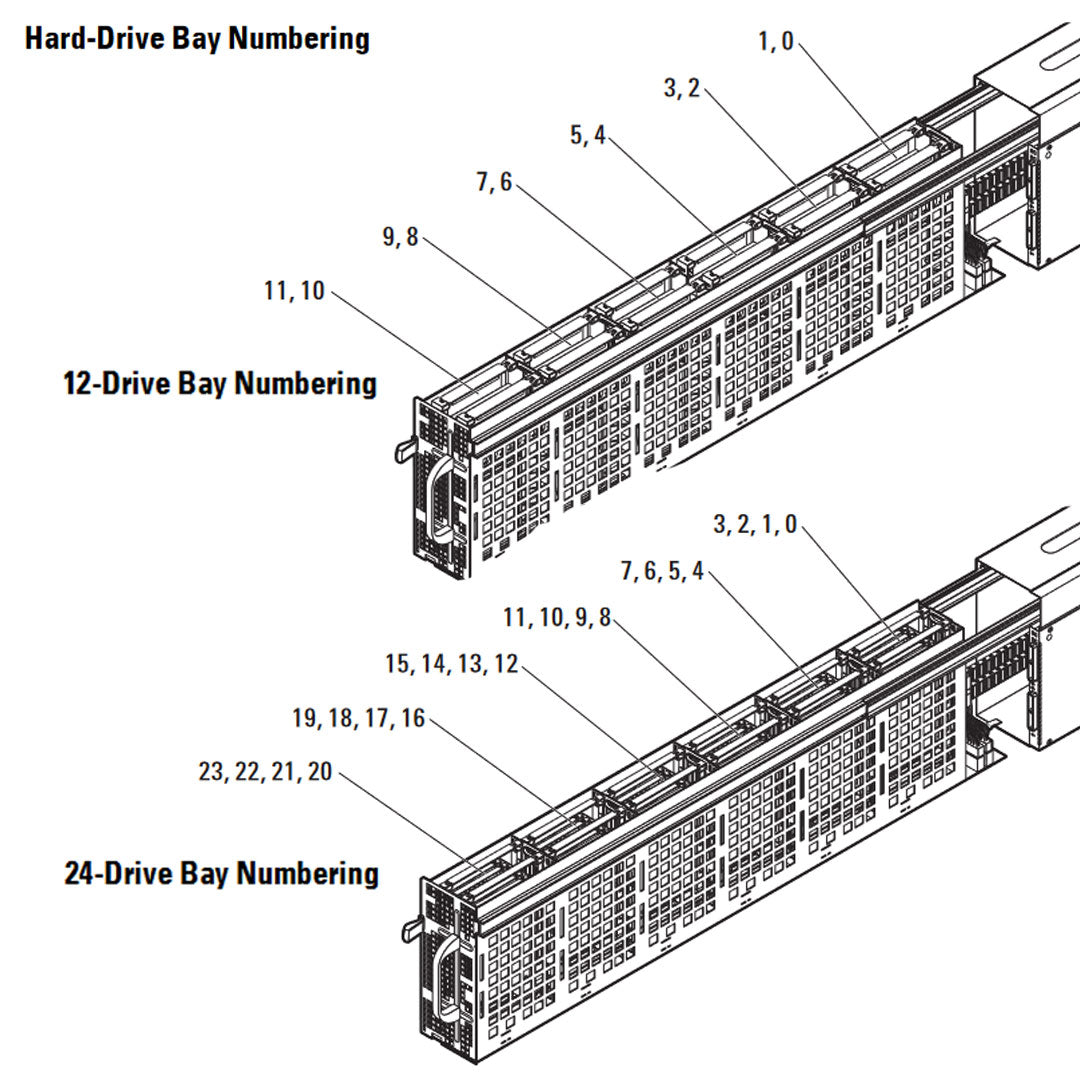

Expander Configuration Mode
The C8000XD sled is equipped with a SAS expander to operate the hard- drives in single port, dual port, or expansion mode. Use mini-SAS x4 cable(s) to connect a compute sled to your C8000XD sled.
Single port mode
In single port mode, the storage sled supports 12 x 2.5 or 3.5-inch SAS/SATA/SSD hard-drives from a single cable connection.
The figure to the right shows a single path connection from a single-HBA/RAID compute sled to the storage sled’s external mini-SAS A1 and A2 connectors. In this mode, the hard-drives in the storage sled are cascaded for extended storage capacity.
Dual port mode
In dual port mode, the storage sled SAS expander board supports 12 x 2.5 or 3.5-inch SAS hard-drives from a dual-cable connection.
The figure to the right shows a dual path connection from a dual-HBA compute sled connected to the storage sled’s external mini-SAS A1 and B1 connectors. This mode delivers dual path functionality and redundant path capability
Expansion mode (non-zoning)
In expansion mode, the storage sled SAS expander board supports 24 x 2.5 SSD hard-drives from a dual-cable connection.
The figure to the right shows a dual path connection from a single-RAID compute sled connected to the storage sled’s external mini-SAS A1 and A2 connectors. In this mode, the hard-drives in the storage sled are cascaded for extended storage capacity.
Expansion mode (four zones)
In expansion mode with four zones configuration, the storage sled SAS expander board supports 24 x 2.5 SSD hard-drives from a single-cable connection. The SAS connections are grouped into four zones (A1/Zone 0, A2/Zone 1, B1/Zone 2, B2/Zone 3) and each zone allows the host/compute sled to access a group of hard-drives in the storage sled.
A The figure to the right shows four single-RAID compute sleds connected to the storage sled’s four external mini-SAS connectors. Each compute sled can only access the hard-drives in the assigned zone.
Expansion mode (two zones)
In expansion mode with two zones configuration, the storage sled SAS expander board supports 12 x 3.5 SAS/SATA hard-drives from a single- cable connection. The SAS connections are grouped into two zones (A1/Zone 0 and A2/Zone 1) and each zone allows the host/compute sled to access a group of hard-drives in the storage sled.
The figure to the right shows two single-RAID compute sleds connected to the storage sled’s external mini-SAS A1 and A2 connectors. Each compute sled can only access the hard-drives in the assigned zone.
