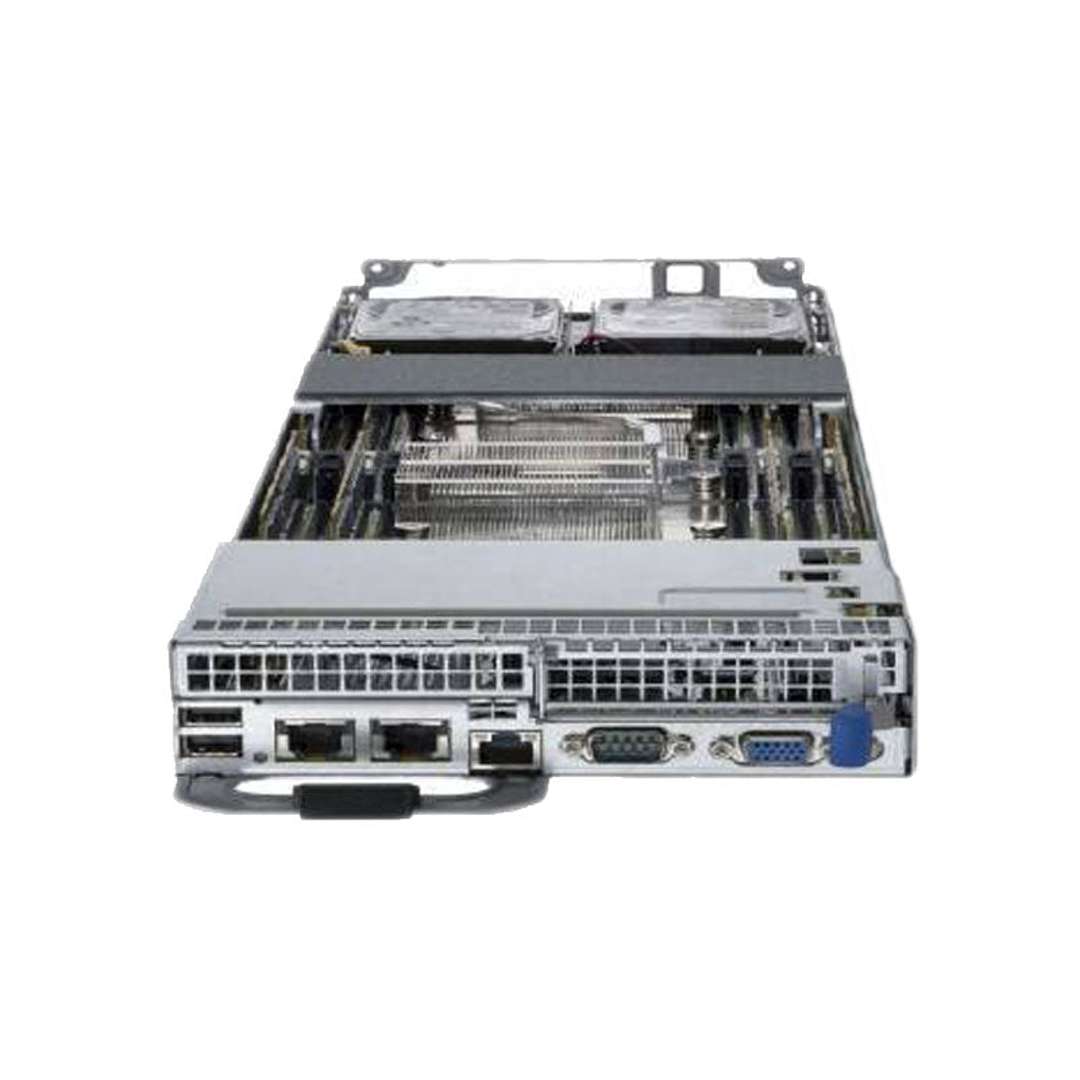

Dell PowerEdge C6220II Node Server CTO
Configure for Pricing
Quick Specs
Form Factor:
1U/4N rack server or
2U/2N rack server
2x Intel Xeon E5-2600 v2
Memory | Max: 512GBTB16 DDR3 RDIMM 1866Mhz
Storage:1U - 1 midplane connection: power, control, 6 SATA/SAS or
2U - 2 midplane connections:
---top = 4 SATA/SAS
---bottom = power, control, 4 SATA/SAS
None
PCIe Slots:1U - 2x PCIe 3.0
2U - 3x PCIe 3.0
Supported through C410x expansion chassis
Other Versions
Ideal for:
- High-Performance Computing (HPC)
- Video Analytics
This is just the node server, The C6220ii Enclosure Rack Servers must be configured separately.
Get >80% more performance with up to four 2-socket Intel Xeon E5-2600 processor-based servers in a smart 2U shared infrastructure chassis that saves more than 100 watts over previous designs.
PowerEdge C6220 II
- Intel Xeon E5-2600v2 processors boost performance by > 80%
- 135W processors deliver ~20% more performance over 95W
- 2.3x the memory bandwidth than the previous generation
- Smart chassis improvements save more than 100W per chassis
- Dell PowerEdge C6220II/C6000II CTO Enclosure Chassis
Designed with your needs in mind
Whether you’re seismic processing, video rendering or running scientific simulations, server performance, bandwidth and efficiency can impact time and cost to results.
The ability to run high-frequency processors can increase performance. Servers that can run at higher ambient temperatures can help reduce cooling costs. Simplified serviceability can save time while helping increase uptime, and the flexibility to run multiple configurations in the same chassis means the ability to do more with less.
We incorporated that customer feedback into the next‑generation Dell PowerEdge C6220II server. This scale‑out building block is a workhorse with up to four 2‑socket Intel Xeon E5-2600 processor-based servers in a streamlined 2U shared infrastructure chassis.
Deliver results faster
The high volume of computations requires performance, from the processor to the memory to the interconnect. Intel Xeon processor E5-2600 product family features Turbo Boost Technology 2.0 to deliver more than 80% more performance than the Intel Xeon 5600 processors.
In addition to this generational leap in processor performance, the PowerEdge C6220 II server supports up to 135 watt processors, adding ~20% in performance over the 95 watt processor.
When it comes to memory, 16 DIMM slots provide up to 256GB of memory per server node — up to four nodes — and 1600MT/s memory speed to help improve bandwidth per processor.
The Intel Xeon processor E5-2600 product family has 2.3x the memory bandwidth of the previous generation, with four memory channels, and the integrated I/O helps reduce latency up to 30%.
Node Options
( View C6220ii 1U Node Server )
Form Factor:
1U Node Server
Processor | Max: 12 Cores2x Intel Xeon E5-2600 v2
Memory | Max: 512GB16 DDR3 RDIMM 1866Mhz
Storage:1 midplane connection: power, control, 6 SATA/SAS
Rear Storage:None
PCIe Slots:1 Mezzanine Slot
1 PCIe 3.0 slot
GPUs are supported in the PowerEdge C6220ii only through the PowerEdge C410x expansion chassis.
( View C6220ii 2U Node Server )
Form Factor:
2U Node Server
Processor |Max: 12 Cores2x Intel Xeon E5-2600 v2
Memory | Max: 512GB16 DDR3 RDIMM 1866Mhz
Storage:2 midplane connections:
bottom = power, control, 4 SATA/SAS
top = 4 SATA/SAS
None
PCIe Slots1 Mezzanine Slot and
2 PCIe 3.0 slots
GPUs are supported in the PowerEdge C6220ii only through the PowerEdge C410x expansion chassis.
Networking LOM
The PowerEdge 6220 has a single Intel i350 dual-port GbE controller installed on the system board as an independent Ethernet interface device.
Storage Controllers
| Controller | Supported RAID levels |
|---|---|
| Embedded Intel C602 chipset-based SATA | RAID 0, 1, 10, 5 |
| LSI 2008 mezzanine at 3Gbps | RAID 0, 1, 10, JBOD |
| LSI MegaRAID SAS 9265-8i at 3Gbps | RAID 0, 1, 5, 6, 10, 50, 60, JBOD |
| LSI SAS 9210-8i at 3Gbps | RAID 0, 1, 1E, 10, JBOD |
The Intel C602 chipset includes the embedded. The PowerEdge C6220 uses the –J variant of the C602.
LSI 2008 mezzanine card
The LSI 2008 mezzanine card is a custom SAS HBA mezzanine card for the PowerEdge C6220. This card provides higher performance SAS drives without higher RAID levels and battery-backed cache.
Note: The LSI 2008 mezzanine card is limited to 3Gbps on the PowerEdge C6220.
LSI 9210-8i PCIe card
The LSI 9210-8i provides higher performance SAS HBA cards and higher RAID levels with batterybacked cache.
LSI 9265-8i PCIe card
The LSI 9265-8i provides higher performance SAS drives and higher RAID levels with battery-backed cache.
PCIe Support
Each Node has One x8 PCIe 3.0 mezzanine network daughter card slot for RAID. x8 mezzanine is not available in single processor configurations. The PCIe slots left over are for the PCIe Adapter cards. The PCIe risers on the PowerEdge C6220ii include a MicroSD card reader slot. Cards installed in this slot can be used for storing an embedded hypervisor.

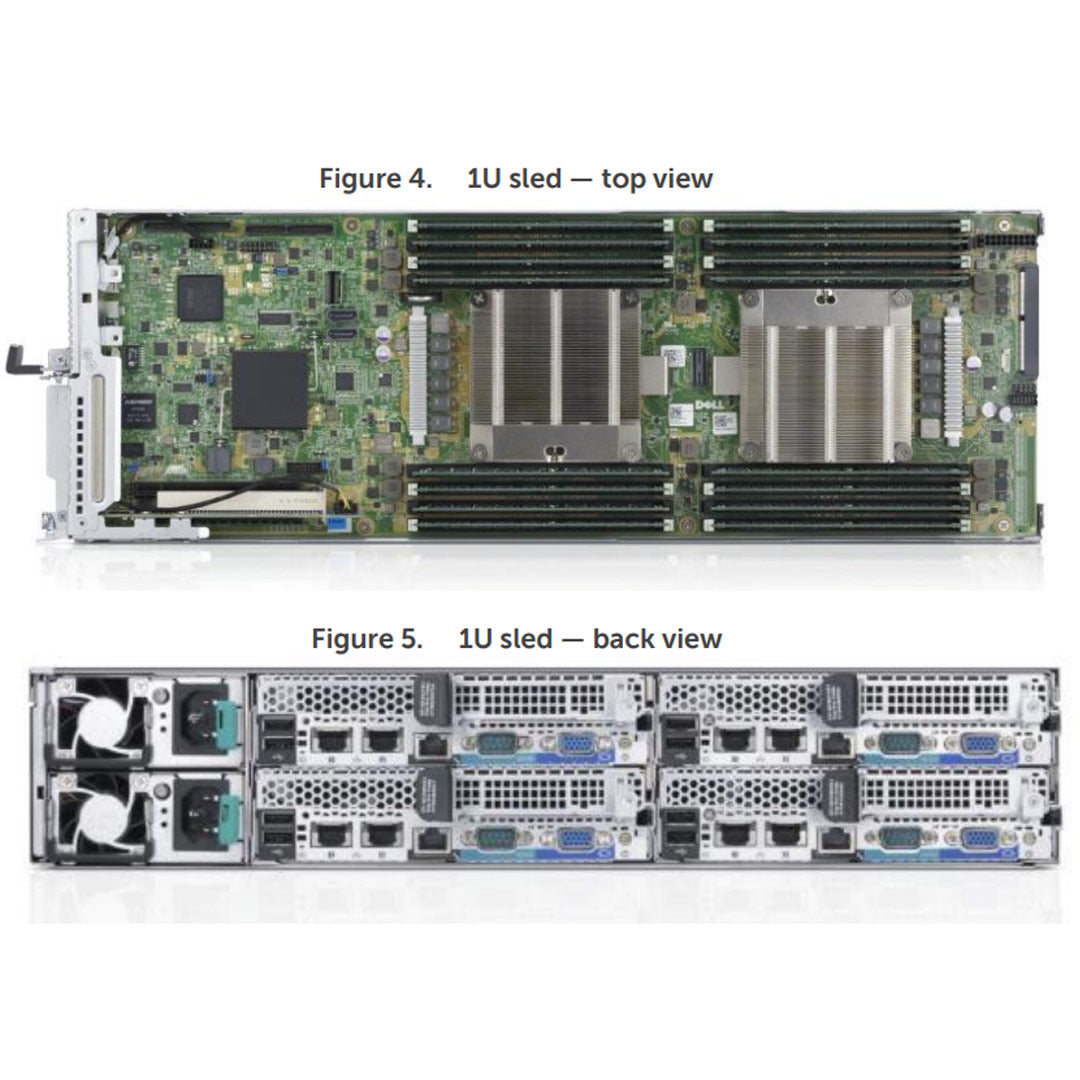

1U Node Server
1 x 16 half-height (low profile), half-length slot
There is only 1 Riser card for this 1U Node Server.

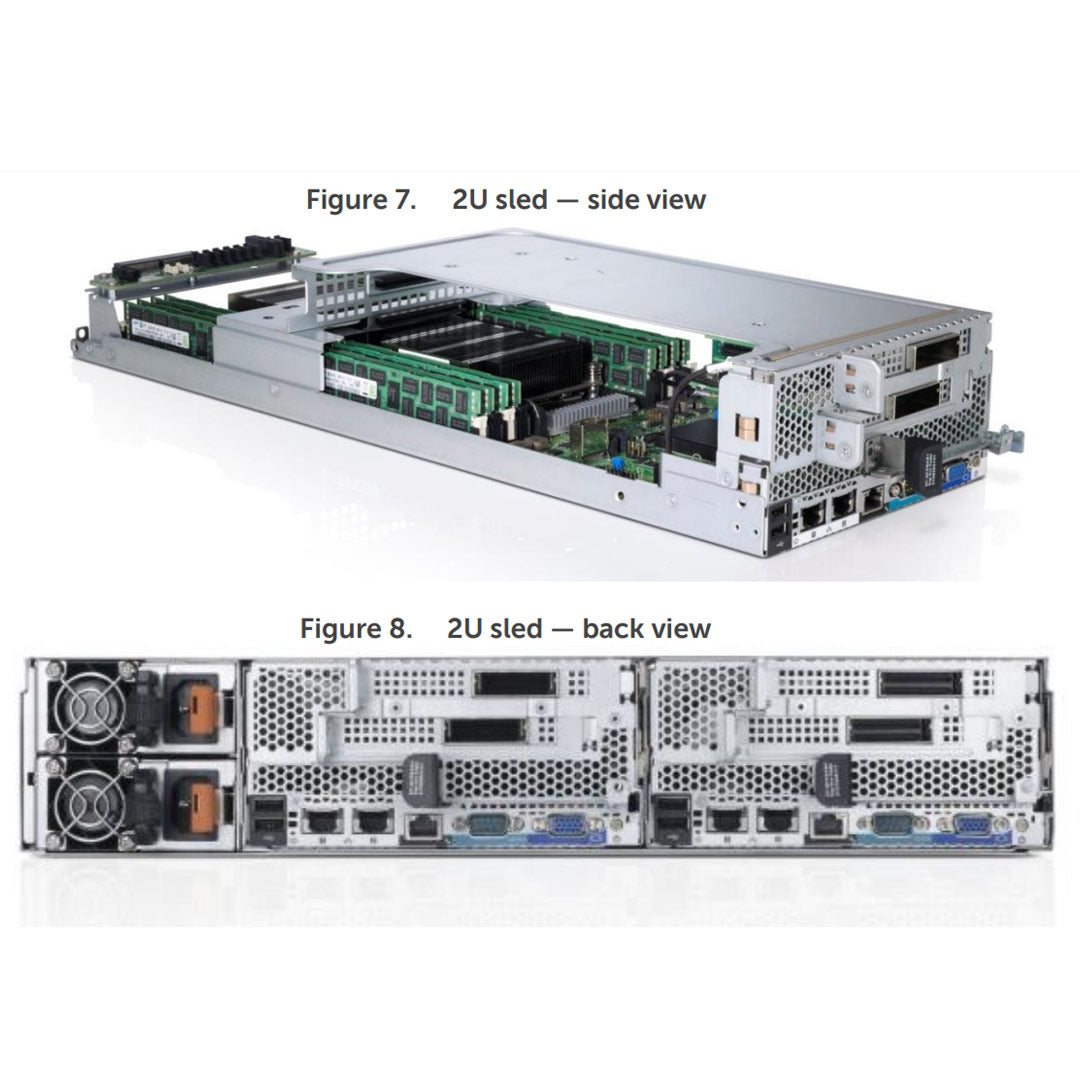

2U Node Server
1 x16 full-height, half-length slot;
1 x16 full-height, full-length slot
This 2U system has two risers, One 1.5U and One 2U riser cards. The riser cards are installed together with the 2U risers being installed first and the 1.5U riser being installed in the Riser Cage. This system holds 2 AIC or Network cards.
1U Riser for 1U Node
1.5U Riser for 2U Node
2U Riser for 2U NodeGPU Support
The PowerEdge C6220 supports up to eight GPUs per server through the PowerEdge C410x.
*Not supported with Microsoft Windows Server 2012
The PowerEdge C6220 and the PowerEdge C410x support the following GPUs:
- Intel Phi 5110P
- NVIDIA K10*
- NVIDIA K20
