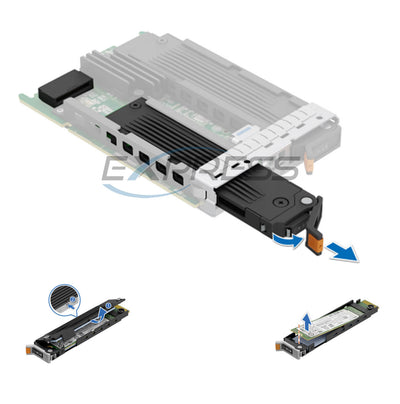

Dell PowerEdge (G17) BOSS-N1 DC-MHS
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Quick Specs
-
Enclosures per port Not applicable
- Cache: 8 GB DDR4 3200MT/s
- RAID Level: 0, 1, 5, 6, 10, 50, 60
- Non-RAID: Yes
- PCIe: Gen 4
- Processor: Broadcom RAID-on-chip, SAS4116W chipset
- Battery Backup: Yes
- Max no of VDs in RAID mode: 240
- Max no of disk groups: 64
- Max no of VDs per disk group: 16
- Hot-swap devices supported: Yes
- Drive sector size supported: 512B, 512e, and 4Kn
- Storage Boot Support: UEFI-only
Supported Drives:
- 6 Gbps SATA
- 22.5, 12, & 6 Gbps SAS
- NVMe Gen3 (8 GT/s) and Gen4 (16 GT/s)
- 16 drives per controller
- w/ SAS Expander: Limited by platform offerings
- 8 drives per controller
- w/ PCIe Switch Expander: Limited by platform offerings
- 240 SAS/SATA
- 24 NVMe
Compatible With:
- Dell PowerEdge R470
- Dell PowerEdge R570
- Dell PowerEdge R670
- Dell PowerEdge R6715
- Dell PowerEdge R770
- Dell PowerEdge R7715
