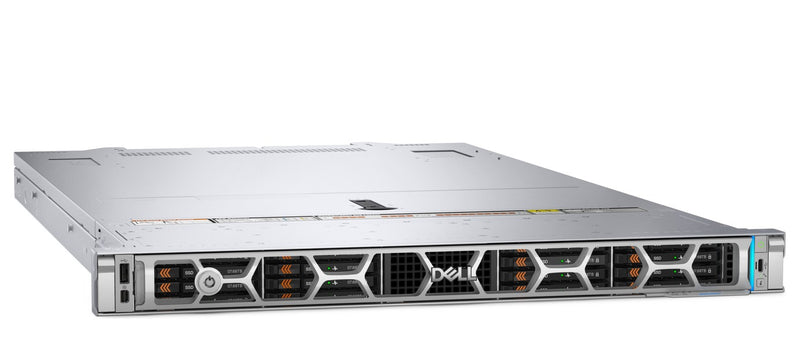

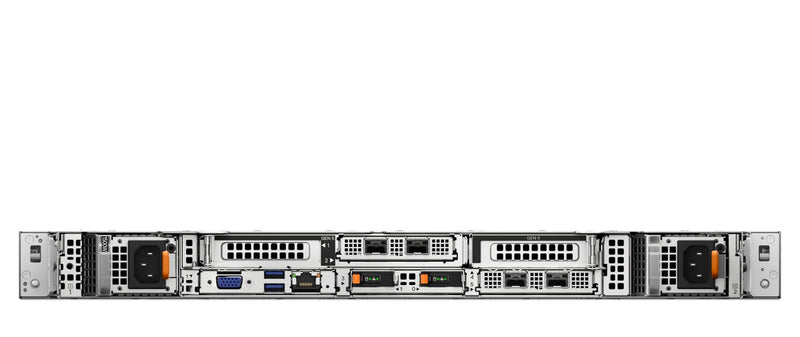

Dell PowerEdge R6715

The Dell PowerEdge R6715 is a 1U single-socket rack server powered by one 5th Gen AMD EPYC 9005 Series processor with up to 160 cores. It supports 24 DDR5 DIMM slots (up to 6TB, speeds up to 5200 MT/s), up to three PCIe Gen5 slots, two optional OCP 3.0 NICs, up to three 75W single-width GPUs and up to 20x EDSFF E3.S Gen5 NVMe front drives, with air or Direct Liquid Cooling. Managed by iDRAC10, it is a dense, efficient platform for data analytics, dense virtualization and software-defined storage. Fully configurable.

Looking to compare generations? See the Gen 16 Dell PowerEdge R660, or compare Gen 17 models: Dell PowerEdge R6725 and Dell PowerEdge R670.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: 1x AMD EPYC 9005
  • Memory: 24x DDR5 DIMM slots, up to 6TB
  • Memory Speed: Up to 5200 MT/s
  • Storage: Up to 20x E3.S, 10x 2.5" or 4x 3.5"
  • Expansion: Up to 3x PCIe Gen5 slots
  • GPU Support: Up to 3x 75W single-width
  • Networking: Up to 2x OCP 3.0
  • Management: iDRAC10
  • Cooling: Air or Direct Liquid Cooling
  • Power: Redundant PSUs, 800W to 1500W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R6715 →

Customize & Get Pricing

Configure your Dell PowerEdge R6715 with the exact specs you need

Configure This Server

Dell PowerEdge R6715 vs R6615: Specs & Key Differences

Feature PowerEdge R6715 PowerEdge R6615
Processors 1x AMD EPYC 9005 (up to 160 cores) 1x AMD EPYC 9004 (up to 128 cores)
Memory 24x DDR5 DIMM slots, up to 6TB
Up to 5200 MT/s		 12x DDR5 DIMM slots, up to 3TB
Up to 4800 MT/s
PCIe Up to 3x PCIe Gen5 slots Up to 3x PCIe Gen5/Gen4 slots
GPU Support Up to 3x 75W SW Up to 2x 75W SW
Storage Up to 20x E3.S, 10x 2.5" or 4x 3.5"
Rear 2x E3.S		 Up to 16x E3.S, 10x 2.5" or 4x 3.5"
Rear 2x 2.5" or 2x E3.S
Networking Up to 2x OCP 3.0 2x 1GbE LOM + 1x OCP 3.0
Management iDRAC10 iDRAC9
Cooling Air or DLC Air or optional DLC
Power 800W to 1500W 700W to 1800W
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

The R6715 is a single-socket server that takes one 5th Gen AMD EPYC 9005 Series processor with up to 160 Zen 5 cores. The 9005 family keeps the SP5 socket used by the EPYC 9004 series in the previous-generation R6615.

It has 24 DDR5 RDIMM slots across 12 memory channels (two DIMMs per channel), for up to 6TB of memory. Speed is up to 5200 MT/s with one DIMM per channel and up to 4400 MT/s with two. Only registered ECC DDR5 DIMMs are supported.

Yes. It supports up to three 75W single-width GPUs. Cooling is air with up to four dual hot-plug fan modules and N+1 fan redundancy, or Direct Liquid Cooling (DLC) for high-power processors.

Front options include 4x 3.5-inch SAS/SATA, 8x 2.5-inch universal or U.2, 10x 2.5-inch SAS/SATA (or 10x 2.5-inch with 4 universal), 16x EDSFF E3.S Gen5 NVMe, or 20x E3.S plus 2 rear E3.S drives. Boot is handled by BOSS-N1. Please specify your capacity needs when you submit your quote configuration.

The R6715 moves from an EPYC 9004 CPU with up to 128 cores to an EPYC 9005 CPU with up to 160 cores. It doubles DIMM slots from 12 to 24 (6TB max vs 3TB), raises memory speed from 4800 to 5200 MT/s, adds a second OCP 3.0 slot and more E3.S drive bays, and upgrades management from iDRAC9 to iDRAC10.
