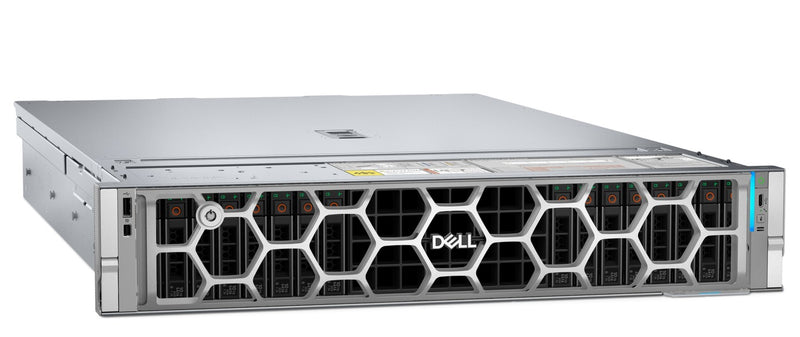

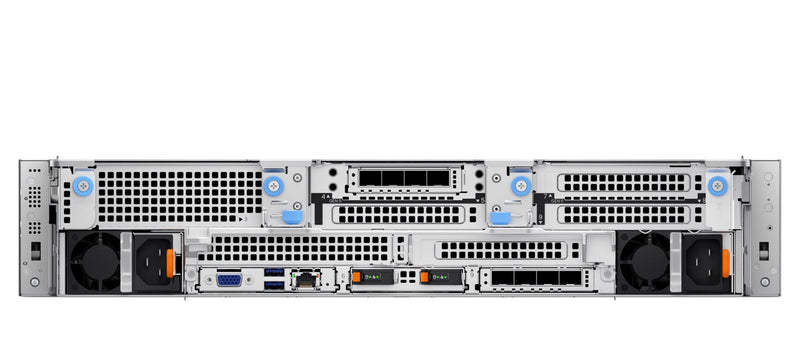

Dell PowerEdge R7715

The Dell PowerEdge R7715 is a 2U single-socket rack server powered by one 5th Gen AMD EPYC 9005 Series processor with up to 160 cores. It supports 24 DDR5 DIMM slots (up to 6TB, speeds up to 5200 MT/s), up to eight PCIe Gen5 slots, two optional OCP 3.0 NICs, up to three double-width or six single-width GPUs and up to 40x EDSFF E3.S Gen5 NVMe, 24x 2.5-inch or 12x 3.5-inch drives, with air or Direct Liquid Cooling. Managed by iDRAC10, it suits data analytics, dense virtualization and software-defined storage. Fully configurable.

Looking to compare generations? See the Gen 16 Dell PowerEdge R760, or compare Gen 17 models: Dell PowerEdge R7725 and Dell PowerEdge R770.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 2U Rack
  • Processors: 1x AMD EPYC 9005
  • Memory: 24x DDR5 DIMM slots, up to 6TB
  • Memory Speed: Up to 5200 MT/s
  • Storage: Up to 40x E3.S, 24x 2.5" or 12x 3.5"
  • Expansion: Up to 8x PCIe Gen5 slots
  • GPU Support: Up to 3x double-width or 6x 75W single-width
  • Networking: Up to 2x OCP 3.0
  • Management: iDRAC10
  • Cooling: Air or Direct Liquid Cooling
  • Power: Redundant PSUs, 800W to 3200W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R7715 →

Customize & Get Pricing

Configure your Dell PowerEdge R7715 with the exact specs you need

Configure This Server

Dell PowerEdge R7715 vs R7615: Specs & Key Differences

Feature PowerEdge R7715 PowerEdge R7615
Processors 1x AMD EPYC 9005 (up to 160 cores) 1x AMD EPYC 9004 (up to 128 cores)
Memory 24x DDR5 DIMM slots, up to 6TB
Up to 5200 MT/s		 12x DDR5 DIMM slots, up to 3TB
Up to 4800 MT/s
PCIe Up to 8x PCIe Gen5 slots Up to 8x PCIe Gen5/Gen4 slots
GPU Support Up to 3x DW or 6x 75W SW Up to 3x 300W DW or 6x 75W SW
Storage Up to 40x E3.S, 24x 2.5" or 12x 3.5" Up to 32x E3.S, 24x 2.5" or 12x 3.5"
Rear up to 4x 2.5" or 4x E3.S
Networking Up to 2x OCP 3.0 2x 1GbE LOM + 1x OCP 3.0
Management iDRAC10 iDRAC9
Cooling Air or DLC Air or optional DLC
Power 800W to 3200W 700W to 2400W
Form Factor 2U Rack 2U Rack

Frequently Asked Questions

The R7715 is a single-socket 2U server that takes one 5th Gen AMD EPYC 9005 Series processor with up to 160 Zen 5 cores, using the same SP5 socket as the EPYC 9004 series in the previous-generation R7615.

It has 24 DDR5 RDIMM slots across 12 memory channels (two DIMMs per channel), for up to 6TB of memory. Speed is up to 5200 MT/s with one DIMM per channel and up to 4400 MT/s with two. Only registered ECC DDR5 DIMMs are supported.

The R7715 supports up to three double-width GPUs or up to six 75W single-width GPUs across its eight PCIe Gen5 slots. It is cooled by up to six hot-plug fans, with Direct Liquid Cooling (DLC) available as an alternative to air cooling.

Front options include 12x 3.5-inch SAS/SATA; 8x 2.5-inch universal; 16 or 24x 2.5-inch SAS/SATA; 16x 2.5-inch SAS/SATA plus 8x U.2 NVMe; 2x U.2; or 8, 16, 32 or 40 EDSFF E3.S Gen5 NVMe drives. Boot is handled by BOSS-N1. Please specify your capacity needs when you submit your quote configuration.

The R7715 moves from an EPYC 9004 CPU with up to 128 cores to an EPYC 9005 CPU with up to 160 cores. It doubles DIMM slots from 12 to 24 (6TB max vs 3TB), raises memory speed from 4800 to 5200 MT/s, makes all eight PCIe slots Gen5, grows E3.S capacity from 32 to 40 drives, adds a second OCP 3.0 slot and upgrades to iDRAC10.
