Home / 12Gb / Dell PERC 11 H355i FH RAID Controller | VCV6T
SKU: VCV6T

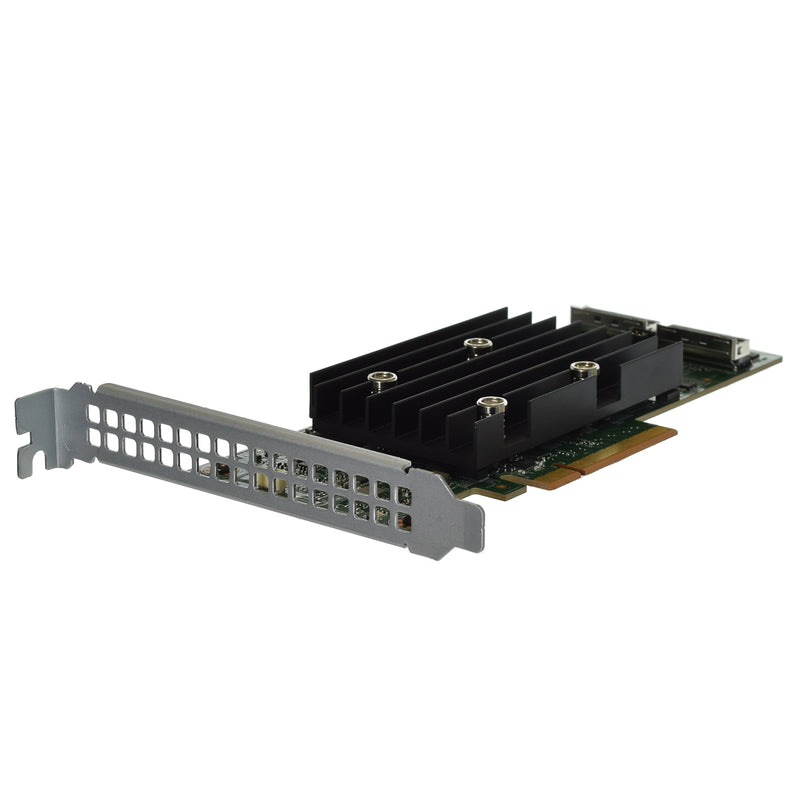

Dell PERC 11 H355i FH RAID Controller | VCV6T

Dell

| Adapter
$265.00

Quick Specs

Models

PCIe Adapter PERC

Drive Types

12 Gb/s SAS
6 Gb/s SAS/SATA

PCI Support

PCI-e 4.0

SAS Connectors

16 ports-2x8 Internal

Cache Memory

No Cache

Write Back Cache

No Cache

RAID Levels

0,1,10

Max Drive Support

Up To 32 RAID, or 32 Non-RAID

RAID Support

Hardware

Part Numbers:

  • VCV6T
H355 PERC Series 11 Options

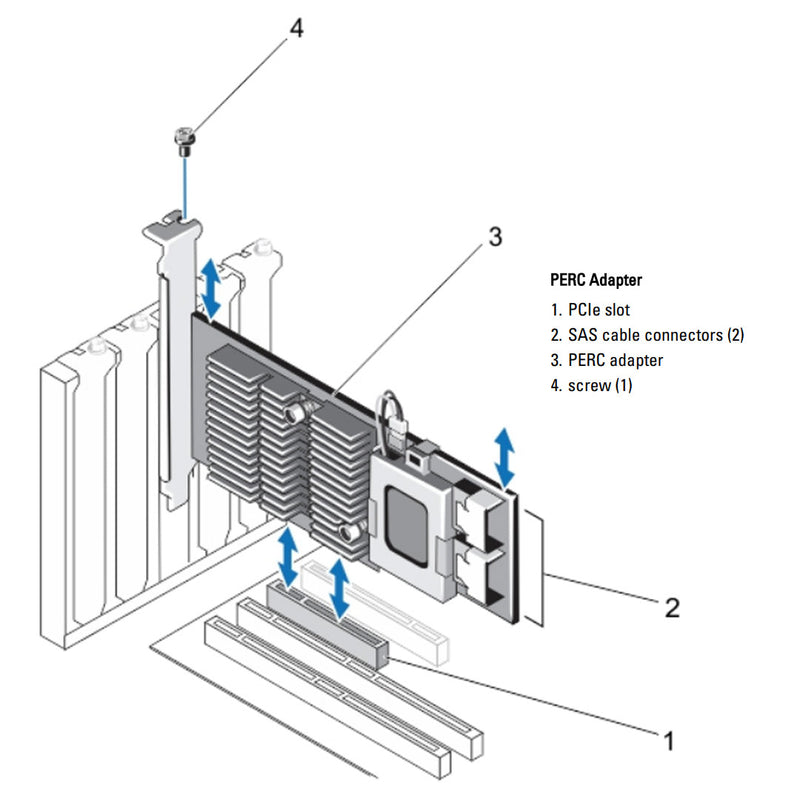

  H355 Adapter
View PERC

Enclosures per port

0

Cache:

N/A

RAID Level:

0, 1, 10

PCIe:

Gen 4

Supported Drives:
  • 12 Gb/s SAS
  • 6 Gb/s SAS/SATA
Max SAS/SATA disks:
  • Up To 32 RAID
  • or 32 Non-RAID
Max NVMe drives:
  • Not Supported
Max physical disks:
  • N/A

  H355 Front
View PERC

Enclosures per port

0

Cache:

N/A

RAID Level:

0, 1, 10

PCIe:

Gen 4

Supported Drives:
  • 12 Gb/s SAS
  • 6 Gb/s SAS/SATA
Max SAS/SATA disks:
  • Up To 32 RAID
  • or 32 Non-RAID
Max NVMe drives:
  • Not Supported
Max physical disks:
  • N/A
Summary of RAID levels
Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0 Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
  • RAID 1 Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
  • RAID 5 Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
  • RAID 6 Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
  • RAID 10 Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
  • RAID 50 Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
  • RAID 60 Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
Compatible With:
  • Dell R250
  • Dell R350
  • Dell R660
  • Dell R660xs
  • Dell R6615
  • Dell R6625
  • Dell R760
  • Dell R760xa
  • Dell R760xd2
  • Dell R760xs
  • Dell R7615
  • Dell R7625
  • Dell R860
  • Dell R960
  • Dell T150
  • Dell T350
  • Dell XR12
  • Dell XR5610

(Click to View)

Base Standard Capabilities

FeaturePERC H355 adapter SASPERC H355 front SASPERC H350 adapter SASPERC H350 Mini Monolithic SAS
RAID levels0, 1, 100, 1, 100, 1, 100, 1, 10
Non–RAIDYesYesYesYes
Enclosures per portNot applicableNot applicableNot applicableNot applicable
ProcessorBroadcom RAID-onchip, SAS3816 chipsetBroadcom RAID-onchip, SAS3816 chipsetBroadcom RAID-onchip, SAS3816 chipsetBroadcom RAID-onchip, SAS3816 chipset
Battery backup unitNoNoNoNo
Local Key Management securityNoNoNoNo
Controller queue depth1536153615361536
Secure enterprise key manager securityNoNoNoNo
Non-volatile cacheNoNoNoNo
Cache memoryNot applicableNot applicableNot applicableNot applicable
Cache functionWrite through, no read aheadWrite through, no read aheadwrite through, no read aheadwrite through, no read ahead
Max no of VDs in RAID mode32323232
Max no of disk groups32323232
Max no of VDs per disk group16161616
Hot swap devices supportedYesYesYesYes
AutoconfigYesYesYesYes
Hardware XOR engineYesYesYesYes
Online capacity expansionYesYesYesYes
Dedicated and global hot spareYesYesYesYes
Drives types3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS, Gen3 (8 GT/s)
VD strip size64 KB64 KB64 KB64 KB
PCIe supportGen 4Gen 4Gen 4Gen 4
SAS/SATA maximum drive support
  • Without SAS Expander: 16
  • With SAS Expander: Limited by platform offering
  • Without SAS Expander: 16
  • With SAS Expander: Limited by platform offering
  • Without SAS Expander: 8 drives per controller
  • With SAS Expander: Limited by platform offering
  • Without SAS Expander: 8 drives per controller
  • With SAS Expander: Limited by platform offering
NVMe maximum drive supportNot applicableNot applicableNot applicableNot applicable

Spec Sheet 4

Model & Form Factors Interface Support PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H755N Front (NVMe Only) Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/per controller Hardware
H755 Adapter FH 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0, 1, 5, 6, 10, 50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 Adapter LP
H755 Front (SAS/SATA Only) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 MX 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 1x8 Internal 8GB NV DDR4 2666MT/s Flash Backed Cache 0, 1, 5, 6, 10, 50,60 8, Limited by platform N/A
H750 Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA
*SAS/SATA ONLY		 PCIe Gen 4 1x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H750 Adapter LP
H355i Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H355i Adapter LP
H355 Front 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
>or 32 Non-RAID		 Hardware
HBA355 Front (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter LP
HBA355e Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 4x4 External N/A N/A N/A 240 N/A
HBA355e Adapter LP
H350 Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 1x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H350 Adapter LP
H350 Mini Mono 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x4 Internal N/A N/A 0, 1, 10 Without SAS Expander:
8 drives per controller

With SAS Expander:
Limited by platform offering 		N/A
HBA350i Adapter (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA350 MX (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 1x8 Internal N/A N/A N/A 8
*Platform limit		 N/A
