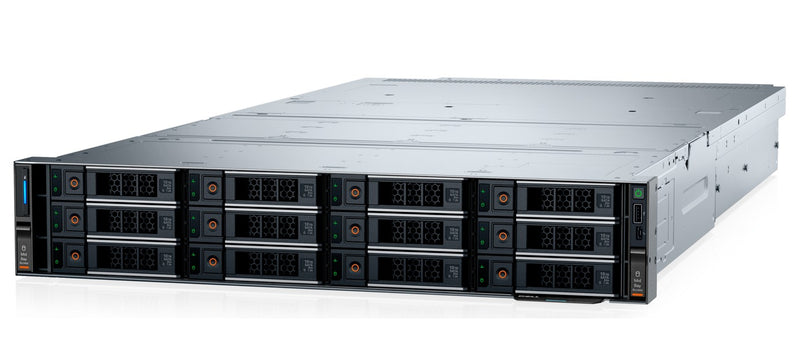

Dell PowerEdge R760xd2

The Dell PowerEdge R760xd2 is a 2U dual-socket storage server built for file and object storage, video capture and retrieval, and content delivery networks, with up to 28x 3.5" drives in front, mid-tray and rear bays. It runs up to two 4th Gen (up to 32 cores) or 5th Gen (up to 28 cores) Intel Xeon Scalable processors with 16 DDR5 DIMM slots (up to 1.5TB at up to 4800 MT/s), up to five PCIe Gen4 slots and optional single-width or double-width GPU support. Managed by iDRAC9 with 2x 1GbE LOM and an optional OCP 3.0 NIC. Fully configurable.

Looking to compare generations? See the Gen 14 Dell PowerEdge R740 and Gen 17 Dell PowerEdge R770, or compare Gen 16 models: Dell PowerEdge R760xs and Dell PowerEdge R760.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 2U Rack
  • Processors: Up to 2x 4th/5th Gen Intel Xeon Scalable
  • Memory: 16x DDR5 DIMM slots, up to 1.5TB
  • Memory Speed: Up to 4800 MT/s
  • Storage: Up to 28x 3.5" (front, mid and rear)
  • Expansion: Up to 5x PCIe Gen4 slots
  • GPU Support: Up to 2x 75W SW or 1x 180W DW
  • Networking: 2x 1GbE LOM, 1x OCP 3.0
  • Management: iDRAC9
  • Cooling: Air, up to 6 hot-swap fans
  • Power: Redundant PSUs, 700W to 1800W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R760XD2 →

Customize & Get Pricing

Configure your Dell PowerEdge R760xd2 with the exact specs you need

Configure This Server

Dell PowerEdge R760xd2 vs R740xd2: Specs & Key Differences

Feature PowerEdge R760xd2 PowerEdge R740xd2
Processors Up to 2x 4th/5th Gen Intel Xeon Scalable (up to 32 cores) Up to 2x 2nd Gen Intel Xeon Scalable (up to 22 cores)
Memory 16x DDR5 DIMM slots, up to 1.5TB
Up to 4800 MT/s		 16x DDR4 DIMM slots, up to 1TB
Up to 2933 MT/s
PCIe Up to 5x PCIe Gen4 slots Up to 5x PCIe Gen3 slots
GPU Support Up to 2x 75W SW, 1x 75W + 1x 150W SW or 1x 180W DW Not supported
Storage Up to 28x 3.5" (12 front + 12 mid + 4 rear)
Rear NVMe or E3.S options		 Up to 26x 3.5" (24 front + 2 rear)
Networking 2x 1GbE LOM + 1x OCP 3.0 2x 1GbE LOM + optional OCP
Management iDRAC9 iDRAC9
Cooling Air Air
Power 700W to 1800W 750W to 1100W
Form Factor 2U Rack 2U Rack

Frequently Asked Questions

Up to two 4th Gen Intel Xeon Scalable processors with up to 32 cores each, or two 5th Gen Intel Xeon Scalable processors with up to 28 cores each, with optional Intel QuickAssist Technology. Processors up to 185W TDP are supported.

Up to 28x 3.5-inch drives: 12 front SAS/SATA bays, 12 mid-tray SAS/SATA bays and 4 rear bays. The rear can instead take 2x or 4x 2.5-inch NVMe drives or 4x E3.S NVMe drives. Please specify your capacity needs when you submit your quote configuration.

It has 16 DDR5 RDIMM slots for up to 1.5TB of memory. DIMMs rated up to 5600 MT/s are available, but the system runs memory at up to 4800 MT/s because of the processor limit.

Yes. It supports up to two 75W single-width GPUs, one 75W plus one 150W single-width GPU, or one 180W double-width GPU. The previous-generation R740xd2 had no GPU option.

The R760xd2 moves from 2nd Gen to 4th/5th Gen Xeon Scalable processors (up to 32 cores vs 22), from DDR4 to DDR5, and from PCIe Gen3 to Gen4. It raises capacity from 26 to 28 3.5-inch drives, adds rear NVMe and E3.S options and GPU support, and adds an OCP 3.0 NIC slot.
