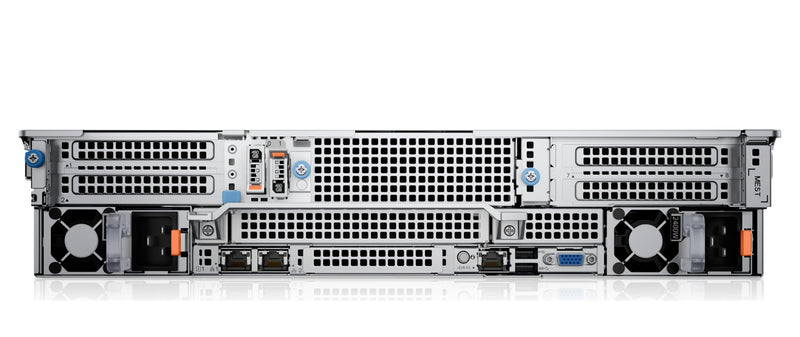

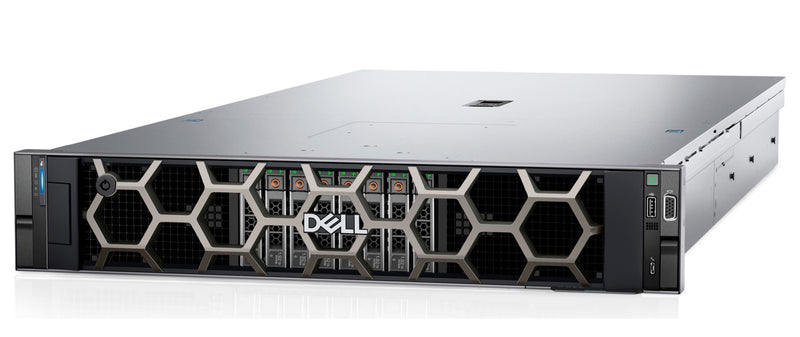

Dell PowerEdge R760xa

The Dell PowerEdge R760xa is a 2U dual-socket GPU server for AI training and inferencing, digital twins and performance graphics, running up to two 4th Gen (up to 56 cores) or 5th Gen (up to 64 cores) Intel Xeon Scalable processors. It supports up to four 400W double-width or twelve 75W single-width GPUs, 32 DDR5 DIMM slots (up to 8TB at up to 5600 MT/s), up to twelve PCIe Gen5 slots and up to 8x 2.5" or 6x E3.S drives. Managed by iDRAC9, it offers air cooling or optional Direct Liquid Cooling for the CPUs. Fully configurable.

Looking to compare generations? See the Gen 15 Dell PowerEdge R750 and Gen 17 Dell PowerEdge R770, or compare Gen 16 models: Dell PowerEdge R760 and Dell PowerEdge R760xs.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 2U Rack
  • Processors: Up to 2x 4th/5th Gen Intel Xeon Scalable
  • Memory: 32x DDR5 DIMM slots, up to 8TB
  • Memory Speed: Up to 5600 MT/s
  • Storage: Up to 8x 2.5" or 6x E3.S
  • Expansion: Up to 12x PCIe Gen5 slots
  • GPU Support: Up to 4x 400W DW or 12x 75W SW
  • Networking: Optional 2x 1GbE LOM, 1x OCP 3.0
  • Management: iDRAC9
  • Cooling: Air or Direct Liquid Cooling
  • Power: Redundant PSUs, 2400W to 3200W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R760XA →

Customize & Get Pricing

Configure your Dell PowerEdge R760xa with the exact specs you need

Configure This Server

Dell PowerEdge R760xa vs R750xa: Specs & Key Differences

Feature PowerEdge R760xa PowerEdge R750xa
Processors Up to 2x 4th/5th Gen Intel Xeon Scalable (up to 64 cores) Up to 2x 3rd Gen Intel Xeon Scalable (up to 40 cores)
Memory 32x DDR5 DIMM slots, up to 8TB
Up to 5600 MT/s		 32x DDR4 DIMM slots, up to 4TB
Up to 3200 MT/s
PCIe Up to 12x PCIe Gen5 slots Up to 8x PCIe Gen4 slots
GPU Support Up to 4x 400W DW or 12x 75W SW Up to 4x 300W DW or 8x 150W SW
Storage Up to 8x 2.5" or 6x E3.S Up to 8x 2.5"
Networking Optional 2x 1GbE LOM + 1x OCP 3.0 2x 1GbE LOM + 1x OCP 3.0
Management iDRAC9 iDRAC9
Cooling Air or optional DLC Air or optional DLC
Power 2400W to 3200W 1400W to 2800W
Form Factor 2U Rack 2U Rack

Frequently Asked Questions

Up to two 4th Gen Intel Xeon Scalable processors with up to 56 cores each, or two 5th Gen Intel Xeon Scalable processors with up to 64 cores each, with optional Intel QuickAssist Technology.

Up to four double-width GPUs at up to 400W each, or up to twelve single-width 75W accelerators.

It has 32 DDR5 RDIMM slots (16 per processor) for up to 8TB of memory. Speed is up to 4800 MT/s with 4th Gen processors and up to 5600 MT/s with 5th Gen processors at one DIMM per channel, and 4400 MT/s at two DIMMs per channel.

Front storage is up to 8x 2.5-inch SAS/SATA/NVMe drives or up to 6x E3.S Gen5 NVMe drives, with BOSS-N1 M.2 NVMe boot. Cooling is air with up to six hot-swap fans, or optional Direct Liquid Cooling for the CPUs, which requires rack manifolds and a CDU. Please specify your capacity needs when you submit your quote configuration.

The R760xa moves from 3rd Gen to 4th/5th Gen Xeon Scalable processors (up to 64 cores), from DDR4-3200 to DDR5 at up to 5600 MT/s, from 4TB to 8TB of memory, and from PCIe Gen4 to Gen5. It raises GPU support to four 400W double-width or twelve single-width cards and adds E3.S NVMe storage.
