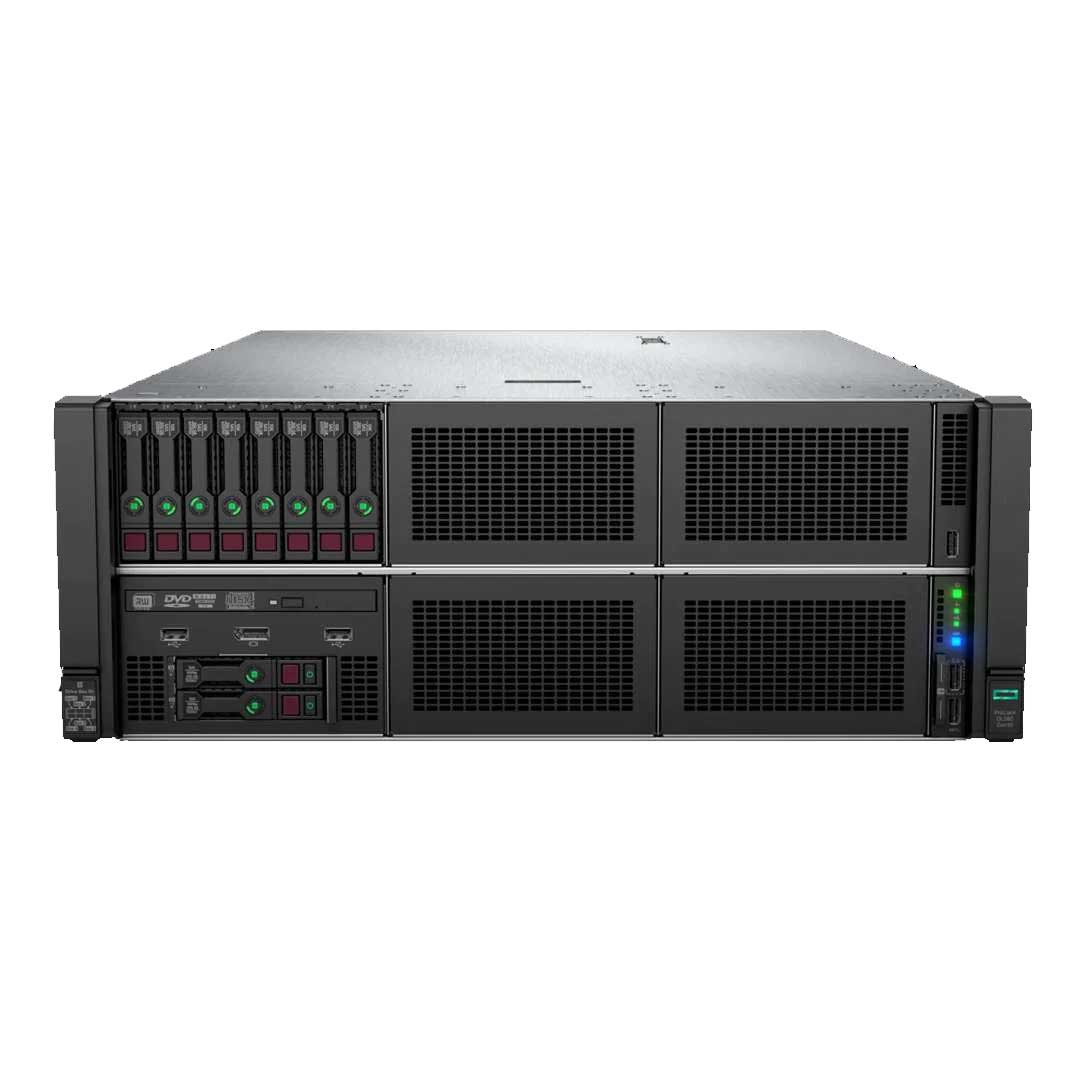

Hpe Proliant Dl580 Gen10 8Sff Rack Server Chassis | 869854-B21

SKU: 869854-B21

Hpe Proliant Dl580 Gen10 8Sff Rack Server Chassis | 869854-B21

Name: Hpe Proliant Dl580 Gen10 8Sff Rack Server Chassis | 869854-B21
Brand: HPE
SKU: 869854-B21
Availability: InStock

HPE

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

What's New for the 4U DL580 Gen10

(4) Intel Xeon Scalable 1st / 2nd Gen
(48) 2933MT/s DDR4 12 DIMMs per CPU
Supports 128GB LRDIMMs
(16) PCIe Gen3.0 slots
Supports up to (48) Drives
Supports NVMe U.3 SSDs - Upper Bay Only
Supports up to (4) PSUs
Supports up to GPUs
HPE Smart Array S100i SR Gen10 SW RAID
HPE iLO 5 ASIC

Other Versions:

Ideal for:

Cloud Servers
Corporate IT
Database

The HPE ProLiant DL580 Gen10 Server is a high-density, four-socket server with high performance, scalability and reliability, all in a 4U chassis. Supporting the latest 2 nd generation of Intel® Xeon® Scalable processors, the HPE ProLiant DL580 Gen10 Server offers greater processing power, up to 6 TB of faster memory, IO of up to sixteen PCIe 3.0 slots, up to 12 TB of HPE Persistent Memory plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 5.

The HPE ProLiant DL580 Gen10 Server is the ideal server for business critical workloads, virtualization, server consolidation, database, business processing, graphics intensive and general 4P data-intensive applications where the right performance is paramount.

CTO Configuration Support

Need help with the configuration? Contact us today!

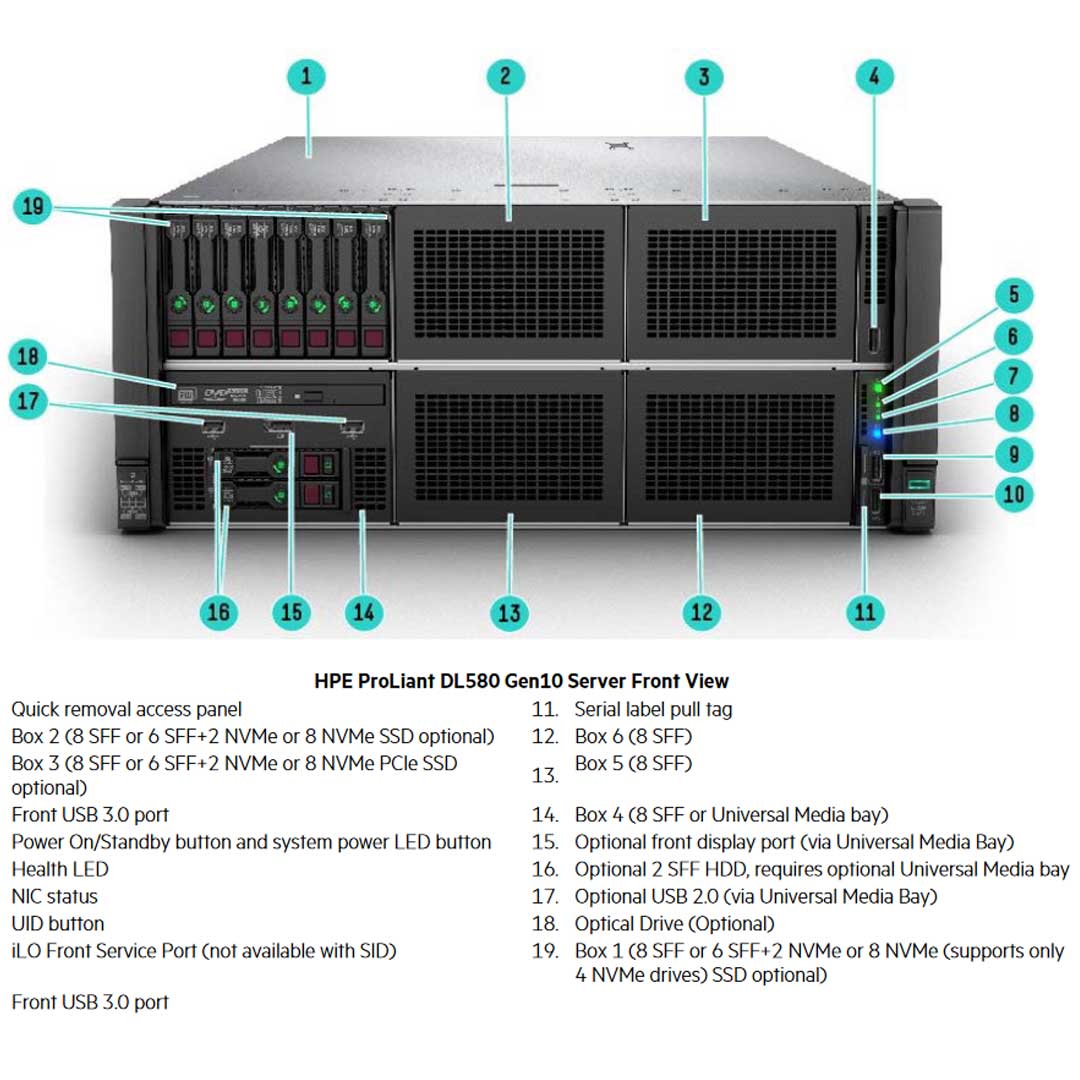

HPE DL580 Chassis Options | (48) Drives

The HPE DL580 Gen 10 has 8 Boxs and supports SAS/SATA and NVMe drives. The 8 NVMe Drive Cage can only be placed in Box 1, 2, or 3. Box 1 will only support NVMe drives 1-4, drive bays 5-8 are not functional. The max number of NVMe drives is (20) and you must have all 4 processors installed.

The Universal Media Bay (872267-B21) is not available with the 48 SFF front end, and can only be populated in Box 4. The media bay can support 2 NVMe via the optional 2 SFF premium kit (880121-B21). Not all configurations supporting the UMB 2SFF are shown. Primary 6-slot Riser (872336-B21) and/or Secondary and Tertiary 8-slot Riser (872338-B21) must be selected to support this option.

HPE DL580 Gen 10 4U Rack Server 40 Drives

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Technical specifications	HPE ProLiant DL580 Gen10 server
Processor name	Intel® Xeon® Scalable processors
Processor family	Intel® Xeon® Scalable 8200 series Intel® Xeon® Scalable 6200 series Intel® Xeon® Scalable 5200 series Intel® Xeon® Scalable 8100 series Intel® Xeon® Scalable 6100 series Intel® Xeon® Scalable 5100 series
Processor core available	28 or 26 or 24 or 22 or 20 or 18 or 16 or 14 or 12 or 10 or 8 or 6 or 4, per processor, depending on model
Processor speed	3.6 GHz, maximum depending on processor
Processor cache	13.75 MB L3 or 16.50 MB L3 or 19.25 MB L3 or 22.00 MB L3 or 24.75 MB L3 or 27.50 MB L3 or 30.25 MB L3 or 33.00 MB L3 or 35.75 MB L3 or 38.50 MB L3, per processor, depending on model
Expansion slots	16 maximum, for detailed descriptions reference the QuickSpecs
Maximum memory	6.0 TB with 128 GB DDR4, depending on processor model 12.0 TB with 512 GB Persistent Memory, depending on processor model
Memory, standard	6.0 TB (48 X 128 GB) LRDIMM; 12.0 TB (24 X 512 GB) Intel® Optane™ persistent memory 100 series for HPE
Memory slots	48 DIMM slots maximum
Memory type	HPE DDR4 SmartMemory and Intel® Optane™ persistent memory 100 series for HPE
System fan features	12 (11+1) Hot plug redundant standard
Network controller	Optional FlexibleLOM
Storage controller	HPE Smart Array S100i or HPE Smart Array Controllers, depending on model
Product Dimensions (imperial)	6.88 x 17.54 x 29.60 in
Weight	114 lb
Infrastructure management	HPE iLO Standard with Intelligent Provisioning (embedded) and HPE OneView Standard (requires download) are included Optional: HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (optional require licenses)
Drive supported	48 maximum

Specs 1

Chipset

Intel C621 chipset

On compute management chipset

HPE iLO 5 ASIC

Memory ²

DIMM Slots Available: 48

(12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel)

Type:

SmartMemory Registered Dual In-Line Memory Module (RDIMM)
Load Reduced Dual In-Line Memory Module (LRDIMM)

Type	Maximum capacity
With 2nd generation processors
LRDIMM	3TB (24 x 128GB LRDIMM @2933 MT/s 1DPC)
LRDIMM	6TB (48 x 128GB LRDIMM @ 2666 MT/s 2 DPC)
RDIMM	1.5TB (24 x 64GB RDIMM @ 2933 MT/s 1 DPC)
RDIMM	3TB (48 x 64GB RDIMM @ 2666 MT/s 2 DPC)
Non-Volatile Dual In-Line Memory Module (NVDIMM)	Not supported
With 1st generation processors
LRDIMM	6TB (48 x 128GB LRDIMM @ 2666 MT/s)
RDIMM	1.5TB (48 x 32GB RDIMM @ 2666 MT/s)
NVDIMM	384GB (24 x 16GB NVDIMM @ 2666 MT/s)

Expansion slots ³

Primary 6-slot riser (Optional)

Expansion Slots	Technology	Bus/Connector Width	Form Factor/Connector	Notes
2	PCIe 3.0	x 16	Full length/full height	Processor 3
3	PCIe 3.0	x 8	Full length/full height	Processor 3
4	PCIe 3.0	x 16	Full length/full height	Processor 3
5	PCIe 3.0	x 8	¾ length/full height	Processor 1
6	PCIe 3.0	x 8	¾ length/full height	Processor 1
7	PCIe 3.0	x 8	¾ length/full height	Processor 1
None (J4)	NVMe	x 8	Slimline	Processor 1
None (J3)	NVMe	x 8	Slimline	Processor 3

Primary 7-slot riser (Optional)

Expansion Slots	Technology	Bus/Connector Width	Form Factor/Connector	Notes
1	PCIe 3.0	x 8	Full length/full height	Processor 3
2	PCIe 3.0	x 16	Full length/full height	Processor 3
3	PCIe 3.0	x 8	Full length/full height	Processor 3
4	PCIe 3.0	x 16	Full length/full height	Processor 3
5	PCIe 3.0	x 8	¾ length/full height	Processor 1
6	PCIe 3.0	x 16	¾ length/full height	Processor 1
7	PCIe 3.0	x 8	¾ length/full height	Processor 1

Secondary and tertiary 8-slot riser (Optional)

Expansion Slots	Technology	Bus/Connector Width	Form Factor/Connector	Notes
9	PCIe 3.0	x 16	Full length/full height	Processor 4
10	PCIe 3.0	x 8	Full length/full height	Processor 4
11	PCIe 3.0	x 16	Full length/full height	Processor 4
12	PCIe 3.0	x 8	¾ length/full height	Processor 2
13	PCIe 3.0	x 8	¾ length/full height	Processor 2
14	PCIe 3.0	x 8	¾ length/full height	Processor 2
15	PCIe 3.0	x 8	¾ length/full height	Processor 2
16	PCIe 3.0	x 8	¾ length/full height	Processor 2
None (J4)	NVMe	x 8	Slimline	Processor 2
None (J3)	NVMe	x 8	Slimline	Processor 4

Secondary and tertiary 9-slot riser (Optional)

Expansion Slots	Technology	Bus/Connector Width	Form Factor/Connector	Notes
8	PCIe 3.0	x 8	Full length/full height	Processor 4
9	PCIe 3.0	x 16	Full length/full height	Processor 4
10	PCIe 3.0	x 8	Full length/full height	Processor 4
11	PCIe 3.0	x 16	Full length/full height	Processor 4
12	PCIe 3.0	x 8	¾ length/full height	Processor 2
13	PCIe 3.0	x 16	¾ length/full height	Processor 2
14	PCIe 3.0	x 8	¾ length/full height	Processor 2
15	PCIe 3.0	x 8	¾ length/full height	Processor 2
16	PCIe 3.0	x 8	¾ length/full height	Processor 2

Primary NVMe slimline riser (Optional) (Includes the 4-port NVMe mezzanine card)

Expansion Slots	Technology	Bus/Connector Width	Form Factor/Connector	Notes
None (J4)	NVMe	x 8	Slimline	Processor 1
None (J5)	NVMe	x 8	Slimline	Processor 1
None (J6)	NVMe	x 8	Slimline	Processor 1
None (J8)	NVMe	x 8	Slimline	Processor 1

4-Port NVMe mezzanine card

Expansion Slots	Technology	Bus/Connector Width	Form Fxactor/Connector	Notes
None	NVMe	x 8	Slimline	Processor 3
None	NVMe	x 8	Slimline	Processor 3
None	NVMe	x 8	Slimline	Processor 3
None	NVMe	x 8	Slimline	Processor 3

Network controller

Model	Adapter
Entry model	HPE Ethernet 1Gb 4-port 331FLR adapter
Base model	HPE FlexFabric 10Gb 2-port 535FLR-T adapter
Performance model	HPE FlexFabric 10/25 Gb 2-port 640FLR-SFP28 adapter

Storage controllers ⁴

Software RAID
HPE Smart Array S100i SR Gen10 SW RAID

Essential RAID

HPE Smart Array E208i-p SR Gen10 controller
HPE Smart Array E208e-p SR Gen10 controller

Performance RAID

HPE Smart Array P408i-p SR Gen10 controller
HPE Smart Array P408e-p SR Gen10 controller
HPE Smart Array P824i-p MR Gen10 controller

Internal storage devices

Optical Drive (Optional): DVD-ROM, DVD-RW
Hard Drives: None ship standard
Hard drive bays: 8 Hot-Plug SFF SAS/SATA HDD bay in entry, Base and performance models. Optional 8 NVMe SSD
Express bay enablement kit
Optional premium 6SFF and 2 NVMe or 8SFF bay kit

Maximum internal storage

Drive	Capacity	Configuration
Hot Plug SFF SATA HDD	96TB	48 x 2TB
Hot Plug SFF SAS HDD	115.2TB	48 x 2.4TB
Hot Plug SFF SATA SSD	368.6TB	48 x 7.68TB
Hot Plug SFF SAS SSD	734TB	48 x 15.3TB
SFF NVMe SSD	307.2TB	20 x 15.36TB

Power supply

HPE 800 W flex slot platinum hot-plug low halogen power supply kit
HPE 1600 W flex slot platinum hot-plug low halogen power supply kit

Industry standard compliance

ACPI 6.1 Compliant
PCIe 3.0 Compliant
WOL Support
Microsoft logo certifications
PXE Support
USB 3.0 Compliant (Internal)
USB 2.0 Compliant
SMBIOS 3.1
UEFI 2.6
Redfish API

Embedded management

HPE Integrated Lights-Out (HPE iLO)
Unified Extensible Firmware Interface (UEFI)
Intelligent provisioning
iLO RESTful API

Server utilities

Active Health System (AHS)
AHS Viewer
Smart update
iLO Amplifier Pack
HPE iLO Mobile application
RESTful Interface Tool (iLOREST)
Scripting tools
HPE OneView standard
HPE Systems Insight Manager (HPE SIM)

Security ⁵

UEFI Secure boot and secure start support
Immutable silicon root of trust
FIPS 140-2 validation (iLO 5 Certification in progress)
Common criteria certification (iLO 5 Certification in progress)
Configurable for PCI DSS compliance
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
Support for Commercial National Security Algorithms (CNSA)
Granular control over iLO interfaces
Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
Tamper-Free updates – Components digitally signed and verified
Secure recovery – Recover critical firmware to known good state on detection of compromised firmware
Ability to rollback firmware
Secure erase of NAND/User data
TPM (Trusted Platform Module) 1.2 option
TPM (Trusted Platform Module) 2.0 option
Bezel locking kit
Chassis intrusion detection option

NOTE:

- Platinum – 82xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 MT/s 1DPC, 1TB memory capacity (Up to 2TB on ‘M’ SKUs and up to 4.5TB on ‘L’ SKUs), Intel Turbo Boost Technology, Intel Hyper-Threading Technology,Intel AVX-512 (2 x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.
- Platinum 81xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MT/s, 768GB memory capacity (1.5TB on select skus with the M suffix), Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2 x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.
- Platinum 8165 processor and Gold 6143 processors support core boosting technology.
- Gold – 62xx and 52xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s on 62xx processors, 2UPI @ 10.4 GT/s on 52xx processors, 6 Channel DDR4 @ 2933 MT/s 1DPC on 62xx and 5222 processors , 6-Channel DDR4 @ 2666 MT/s on 52xx processors, 1TB memory capacity (up to 2TB on ‘M’ SKUs and up to 4.5TB on ‘L’ SKUs), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1 x 512-bit FMA) (SKU 5222 supports 2 x 512 bit FMA), 48 lanes PCIe 3.0,advanced RAS.
- Gold 61xx and 51xx series - 2 and 4 socket capable, 3UPI @ 10.4 GT/s on 61xx processors, 2UPI @ 10.4 GT/s on 51xx processors, 6-Channel DDR4 @ 2400 MHz (SKU 5122 = supports 2666), 768GB memory capacity (1.5TB on select skus with theM suffix), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1 x 512-bit FMA) (SKU 5122 supports 2 x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.
- 82xx, 81xx, 62xx and 61xx processors support 3 UPI links and all processors are connected in a cross bar configuration with each processor connected to another directly in a four processor system. 52xx and 51xx processors support 2 UPI links only and all processors are connected in a ring configuration with processors 1, 3 and 2, 4 not connected directly in a four processor system.
- Gold 5218N processor is optimized for NFV (Network Function Virtualization) workloads and supports Intel Speed Select Technology – Base Frequency.
- Gold 5218B processor and Gold 5218 processor have the same specifications and cannot be mixed within a server.
- Processors with 130 W or higher will ship with the High Performance heat sink plus SKUs 8256, 8156, 8158, 6128, 5222, 5122 as noted below. All other will processors will ship with the Standard heat sink.
- With the current maximum memory offering (128GB LRDIMMs), the ‘L’ SKUs and ‘M’ SKUs can support up to 1.5TB per socket.
- Platinum 8260Y and Gold 6240Y processors support Intel Speed Select Technology – Performance Profile.
- 82xx, 62xx and 52xx processors offer VNNI (vector neural network instruction) instruction set.
- 3 Processor configurations are not supported for 51xx Gold processors.
- Only 2666 MT/s memory SKUs are supported with 1st generation processors (81xx,61xx and 51xx ).
- Only 2933 MT/s memory SKUs are supported with 2nd generation processors (82xx,62xx and 52xx).
- The 2933 MT/s memory SKUs offer a transfer rate of 2933 MT/s at 1 DIMM per channel and 2666 MT/s at 2 DIMMs per channel.
- Mixing of RDIMM and LRDIMM memory is not supported.
- The maximum memory speed is a function of the memory type, memory configuration, and processor model.
- Intel memory processors (With suffix M) are needed for supporting 1.5TB memory per socket on 1st generation processors.
- Intel memory processors (With suffix M or suffix L) are needed for supporting more than 1TB memory per socket on 2nd generation processors.
- Maximum of 6 NVDIMMs are supported per processor on the 1st generation processors.
- NVDIMM is not supported on the 2nd generation processors.
- A minimum of 1 primary riser needs to be ordered.
- The secondary riser is shipped with the tertiary riser and can be installed only after the primary riser has been installed. The tertiary riser cannot be ordered separately.
- Slot availability is dependent on the processor installed. Please refer the above table carefully to make decisions on adding PCIe cards.
- The expansion slots at the back are numbered in ascending order from top to bottom and from left to right.
- The optional Slimline NVMe riser (878360-B21) supports a maximum of 16 NVMe drives and includes a primary 4-port riser and a 4-port NVMe mezzanine card. The 4-port NVMe mezzanine card installs on top of the HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) or HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) and requires three or four processor configuration.
- Each NVMe port (slot) supports 2 NVMe drives.
- A maximum of 1 primary, 1 secondary (includes tertiary) riser can be installed in one server.
- Internal storage controllers and SAS expanders are supported only in the primary and tertiary risers. Not supported in the secondary riser.
- HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.
- HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO Enable Smart Array SW RAID (784308-B21).
- HPE Trusted Platform Module 2.0 Option (864279-B21) works with Gen10 servers with UEFI Mode and not Legacy Mode. The Trusted Platform Module 2.0 Option can be configured to the 1.2 version through the UEFI BIOS to support TPM 1.2 functionality.
- HPE server systems can have a TPM module (Of any type) installed only once. It cannot be replaced with any other TPM module.

Specs 2

Software overview

Feature	Description
Operating Systems (OS) and virtualization software support for ProLiant Servers	With 1st generation processors Windows Server 2012 R2 Windows Server 2016 VMware ESXi 6.0 U3 VMware ESXi 6.5 and U1 upon release Red Hat Enterprise Linux (RHEL) 6.9 and 7.3 SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2 CentOS 6.9 and 7.3 Citrix XenServer 7.1, 7.3, 7.4 Oracle Linux 7
	With 1st generation processors Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 VMware ESXi 6.0 U3 VMware ESXi 6.5 U2 VMware ESXi 6.7 U1 Red Hat Enterprise Linux (RHEL) 7.6 and 8.0 SUSE Linux Enterprise Server (SLES) 12 SP4 ,12 SP3 and 15 SP1 CentOS 7.6
NOTE:Not directly supported/community supported (Based on RHEL so RHEL testing and enablement applicable to Cent OS) CentOS 6.9/CentOS 7.3 Click here to access the Server Operating Systems and Virtualisation Software for latest listing of software drivers available for the server .

top

Physical specifications

Specifications	Description
Dimensions (H x W x D) (With bezel)	17.48 x 44.55 x 75.18 cm (6.88 x 17.54 x 29.60 in)
Weight (Approximate)	Maximum: 51.71 kg (114 lb) (All hard drives, power supplies, DIMMs and processors installed)
Weight (Approximate)	Minimum: 28.12 kg (62 lb) (One processor, one standard heatsink, one air baffle, one hard drive, two power supply, one DIMM, one NIC one rail kit with CMA and one primary riser installed)

top

Electrical specifications

Specifications	Description
Input requirements (Per power supply)
Rated input voltage	100 - 127 V ac, 200 - 240 V ac, 240 V dc for China only (800 W platinum power supply only) 200 - 240 V ac, 240 V dc for China only (1600 W power supply only)
Rated input current	9.4 A (100 V ac), 4.5 A (200 V ac), 3.8 A at 240 V dc for China only (800 W platinum power supply only) 8.7 A at 200 V ac, 7.2 A at 240 V ac - (1600 W power supply only)
Rated input frequency	50 to 60 Hz (NA for V dc ranges)
Maximum rated input power	940 W (100 V ac), 900 W (200 V ac), 912 W at 240 V dc for China only - (800 W platinum power supply only) 1734 W at 200 V ac 1720 W at 240 V ac - (1600 W power supply only)
BTU Rating
Maximum	3207 BTU/hr at 100 V ac, 3071 BTU/hr at 200 V ac, 3112 BTU/hr at 240 for China only - (800 W platinum power supply only) 5918 BTU/hr at 200 V ac, 5884 BTU/hr at 240 V ac - (1600 W power supply only)
Power supply output (Per power supply) ¹
Rated steady-state power	800 W at 100 V ac to 127 V ac input, 800 W at 200 V ac to 240 V ac input, 800 W at 240 V dc input for China only - (800 W platinum power supply only) 1600 W at 200 V ac to 240 V ac input, 1600 W at 240 V dc input - (1600 W power supply only)
Maximum peak power	800 W at 100 V ac to 127 V ac input, 800 W at 200 V ac to 240 V ac input, 800 W at 240 V dc input for China only - (800 W platinum power supply only) 2200 W for 1 ms (Turbo mode) at 200 V ac to 240 V ac input - (1600 W power supply only)
NOTE: To review typical system power ratings use the HPE Power Advisor. Click here to access the HPE Power Advisor .

top

Environmental specifications

Specifications	Description
System inlet temperature
Standard operating support	10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight Maximum rate of change is 20°C/hr (36°F/hr) The upper limit and rate of change may be limited by the type and number of options installed System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)
Extended ambient operating support	For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft) For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft) The approved hardware configurations for this system are listed at the below url: Click here to view the Hewlett Packard Enterprise Information Library for approved hardware configurations . System performance may be reduced if operating in the extended ambient operating range or with a fan fault
Non-operating	-30° to 60°C (-22° to 140°F) Maximum rate of change is 20°C/hr (36°F/hr)
Relative humidity (Non-condensing) (Rh)
Operating	8% to 90% Rh, 28°C (82.4°F) maximum wet bulb temperature, non-condensing
Non-operating	5% to 95% Rh, 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing
Altitude
Operating	3050 m (10,000 ft) This value may be limited by the type and number of options installed Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Non-operating	9144 m (30,000 ft) Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic noise ¹	Product configuration	Entry	Base	Performance
	Idle - LWAd	5.6 B	5.7 B	5.4 B
	Idle - LpAm	53.0 dBA	53.6 dBA	50.6 dBA
	Operating - LWAd	5.9 B	7.0 B	6.8 B
	Operating - LpAm	55.7 dBA	67.1 dBA	65.3 dBA
NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only

top
