Dell PowerEdge C6615 Node Server Chassis

Dell PowerEdge C6615 Node Server Chassis

Price: Request a Quote

Brand:

Dell

MPN:

DPE-C6615-Chassis

Type:

Chassis

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge C6615 Node Server Chassis

Quick Specs

Form Factor:

1U rack server

Processor | Max: 64 Cores

1 x AMD EPYC

Memory | Max: 384GB

6 DDR5 RDIMM 4800Mhz

Storage | Max: 61TB

(C6600 Enclosure Support)
16x 2.5" SAS/SATA (HDD/SSD)
16x 2.5" SAS/SATA/NVMe (HDD/SSD) Universal
Not supported by the E3.S Chassis

Rear Storage:

None

iDRAC:

iDRAC9 with Lifecycle Controller

PCIe Slots:

2x PCIe 5.0

GPU:

None

Other Versions:

Ideal for:

High-Performance Computing
Financial/Trading Servers
Web Tech

The Dell C6600 holds 4 Nodes. Either the AMD C6615 or the Intel C6620 Node Server.
You can not mix nodes.

This is 1 of the 2 Supported Nodes. The Dell C6600 Enclosure CTO must be configure separately.

Rich 1S Configurations for Scale-Out Computing with Increased Thermal Efficiency

The PowerEdge C6615 is designed to run workloads optimized for performance per Watt and allows for greater configurability within existing datacenters due to it’s low power form factor and improved thermal capabilities.

Maximize ROI

With a single 4th Gen AMD EPYCTM 8004 (Siena) Processor, you get great performance at the lowest TDP (70-225W) in the EPYC portfolio for improved performance per watt in a purpose built, stream-lined architecture1.
Core scaling up to 64 cores for increased socket-level performance drives lower TCO.
Improved airflow to cool more efficiently than other multi-node products.

Scale more efficiently within your existing datacenter

Increase core density in existing racks and maintain core datacenter ambient temperature.
53% increase in air cooling configuration support over previous generation.
Faster, low-latency storage with Gen5 E3.S.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

Chassis Options:

The C6615 Node Server for the C660 Rack Enclosure can only support the following backplane configurations:

Diskless Configuration
16 x 2.5-in SAS/SATA (HDD/SSD) drives.
16 x 2.5-inch SATA/NVMe drives on Universal backplane configuration

Image of the 16 Bay Chassis from the C6600 Dell Enclosure

Heatsink & Fans

The Dell C6615 Node Server only has 1 CPU and 1 Type of heatsink. This system only supports the air-cooled system. The Heat sink will come with the AMD CPU and the fans are located in the Dell C6600 Rack Enclosure.

Image of the AMD Heat Sink for the Dell C6615 Node Server

Memory

The Dell AMD C6615 Node Server supports up to 6 x DDR5 channels per socket, 1 DIMM per channel (1DPC) with speeds up to 4800Mhz.

DIMM Speed (MT/s)	DIMM Type	DIMM Capacity (GB)	Ranks per DIMM
4800	RDIMM	16	1
4800	RDIMM	32	2
4800	RDIMM	64	2

Expansion Slots

Up to 2 x PCIe Gen5 Half-Height/Half-Length slots. There are only three configurations for this node server. Below is a table showing you the specs for each configuration. Click the configuration number for more details.

Slot 1: PCIe Gen5 x16 Riser 1A on CPU 1
Slot 2: PCIe Gen5 x16 Riser 2C on CPU 1

Config	RSR configuration	Number of CPUs	PERC type supported	Rear storage possible	x16 CPU1 Slot 1 Low Profile	x16 CPU1 Slot 2 Low Profile
0	No RSR	CPU 1	NA	No	N	N
1	R1A	CPU 1	Adapter PERC	No	Y	N
2	R2C	CPU 1	Adapter PERC	No	Y	Y

Networking Adapters

LOM Mezzanine

The Node Server comes with a Broadcom BCM5720 Gigabit Ethernet controller. This along with the other PCIe slots are the only way to expand the networking capabilities of the C6620 Node Server. When using the LOM ports you save a PCIe slot. This is very important since there are only 2 PCIe 5.0 slots on the back of the C6620 Node Server.

OCP 3.0

The Node Server comes with a 4 port OCP 3.0 slot with speeds up to 25Gb per port. This OCP along with the LOM and the PCIe slots are the only way to expand the networking capabilities of the C6620 Node Server. When using the OCP ports you save a PCIe slot. This is very important since there are only 2 PCIe 5.0 slots on the back of the C6620 Node Server.

Feature	Specifications
LOM card	1 GbE x 1
OCP card (OCP 3.0)	1 GbE x 4, 10 GbE x 2, 25 GbE x 2, 25 GbE x 4

Storage Controllers

Dell's 16G products have a wider offering of Internal Storage controllers than previous server generations. To reduce complexity and provide manageable permutations that still meet customer needs, the C6615 will support PERC11/12 version.

The following table shows the controllers used in PERC11/12 family:

Controller type	Description
Internal controllers	PERC H755N, PERC H355
Internal boot	Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 X M.2 SSDs, uSD card
External HBA (non-RAID)	HBA355i
Software RAID	S160

Power & Dimensions

Power

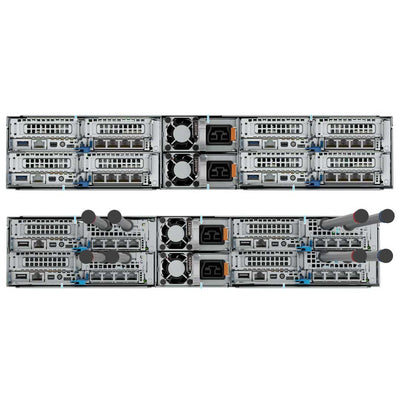

The C6600 holds 2 Power supply units to support up to 4 Sleds that could possibly have 8 CPUs and 64 DIMMs when fully populated. With so many CPUs and DIMMs to support the power supply units will be very large in capacity. The largest PSU for this system is 3200W.

3200 W AC and DC power supplies are only available in North America.

Dimensions & Weight:

Width: 174.4 mm (6.86")
Height: 40.0 mm (1.57")
Length:
- 549.7 mm (21.64") - diskless
- 561.3 mm (22.10") - SAS/SATA
- 561.3 mm (22.10") - SAS/SATA/NVMe Universal
- 561.3 mm (22.10") - E3.S EDSFF
Weight Per Node: 3.7 kg (8.15 lbs)

Looking to Customize?

Need assistance with customization? Our sales experts will help you choose the best setup for your needs.

Start Customizing Today!

Dell PowerEdge C6615 Node Server Chassis Spec Sheet

Manuals

Base Standard Capabilities

Feature	Technical Specifications
Chassis	Dell PowerEdge C6600 chassis
Nodes	Up to 4 hot-swappable 1-socket C6615 sleds in a 2U C6600 chassis
Processor	One AMD EPYC processor, with up to 64 cores
Memory	• 6 DDR5 DIMM slots, supports RDIMM of 384 GB (6 x 64 GB) max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal controllers (RAID): PERC H755N, PERC H355 • Internal Boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Internal 12 Gbps SAS HBAs (non-RAID): HBA355i • Software RAID: S160
Availability	Hot-plug redundant drives and PSUs
Drive Bays	Front bays: • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives max 61 TB • Up to 16 x 2.5-inch SATA/NVMe drives max 15.36 TB on Universal Backplane configuration
Hot swap, Redundant Power Supplies	• 3200W 277 VAC or 336 VDC • 2800W Titanium 200-240 VAC or 240 VDC	• 2400W Platinum 100-240 VAC or 240 VDC • 1800W Titanium 200-240 VAC or 240 VDC
Cooling Options	Air cooling
Fans	Up to 4 cold swap fans
Dimensions	• Height – 40.0 mm (1.57 inches) • Width – 174.4 mm (6.86 inches) • Depth – 549.7 mm (21.64 inches), 561.3 mm (22.10 inches) - SAS/SATA or NVMe or E3.S or Universal configuration
Weight	3.7 kg (8.15 pounds)
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module
OpenManage Software	• CloudIQ for PowerEdge plugin • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center	• OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow	• RedHat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• AMD Secure Encrypted Virtualization (SEV) • AMD Secure Memory Encryption (SME) • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot	• Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	1 x 1 GbE

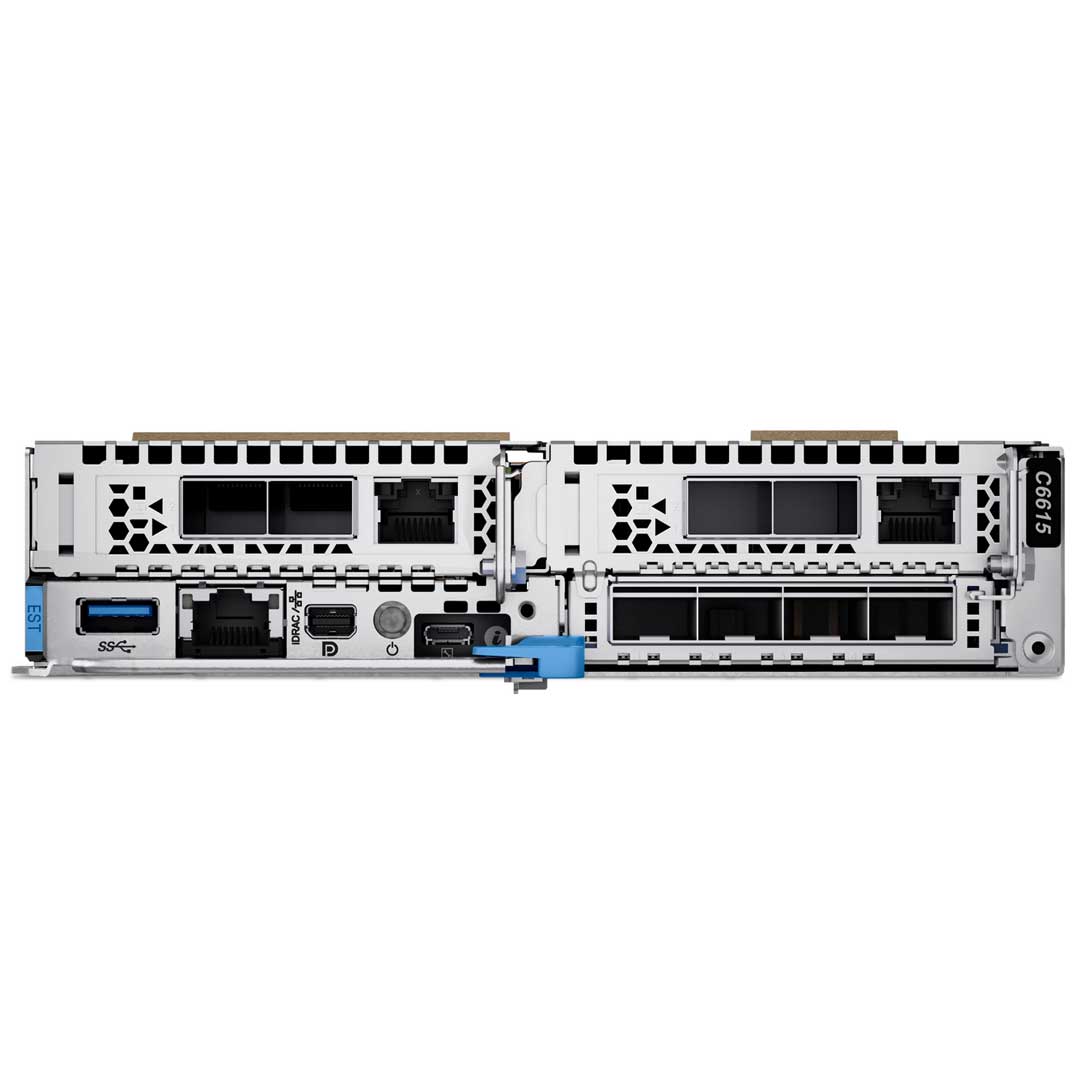

Rear Ports	• 1 x USB 3.0 • 1 x iDRAC ethernet port • 1 x iDRAC Direct (Micro-AB USB) port • 1 x Mini-DisplayPort
PCIe slots	• Up to 2 x PCIe x16 Gen5 Low-Profile slots • 1 x OCP 3.0 x16 Gen5
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi/vSAN

Compare Servers

Feature	C6615	C6525
CPU	One AMD EPYC processor with up to 64 cores	2 x AMD EPYC processor SP3 : Rome and Milan per node (support for up to 2 x 280 W processor)
Memory	DIMM Speed: ● Up to 4800 MT/s Memory Type: ● RDIMM Memory module slots: ● 6 DDR5 DIMM slots ● Supports registered ECC DDR5 DIMM slots only Maximum RAM: ● RDIMM 384 GB	DDR4: Up to 16 x RDIMMs, LRDIMMs
Memory		NVDIMM: No
Disk bays	The C6600 chassis supports up to: ● 16 x 2.5-in SAS/SATA (HDD/SSD) drives. ● 16 x 2.5-inch SATA/NVMe drives on Universal backplane configuration	Front: 24 x 2.5-inch (4 x 6) or 12 x 3.5-inch options. 14G carriers
Disk bays		Internal: Micro SD slot; 240 GB and 480 GB M.2 boot device (dual M.2 device post RTS)
Storage controllers	● Internal PERC: H755N, H355, HBA355i ● Internal Boot: (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs or uSD card ● Software RAID: S160	HW RAID: PERC 10.4 port for H745, H345, HBA345, HBA355i
Storage controllers		Chipset SATA/SW RAID: Yes
PCIe SSD	N/A	Yes (on PCIe riser)
PCIe slots	Up to 2 x PCIe Gen5 Half-Height/Half-Length slots	● Slot 1 : PCIe Gen4 x 16 with Riser 1A. (CPU1) ● PCIe Gen4 x16 with Riser 1B support SNAPI. (CPU1: x8/ CPU2: x8) ● Slot 2 : PCIe Gen4 x 16 with Riser 2A. (CPU2) ● Slot 3 : OCP3.0 SFF, PCIe Gen4 x16. (CPU1) ● Slot 4 : M.2, PCIe Gen4 x16. (CPU1/2)
	Slot 1: PCIe Gen5 x16 Riser 1A on CPU 1
	Slot 2: PCIe Gen5 x16 Riser 2C on CPU 1
MicroSD	Yes (on PCIe riser)	Yes (on PCIe riser)
Embedded NIC	1 GbE x 1 LOM card	Single port 1 GbE LOM option
Networking options	1 x OCP 3.0 x16 Gen5	OCP 3.0 SFF x16 slot
Ports	Rear ports: ● 1 x USB 3.0 ● 1 x Mini-DisplayPort ● 1 x Dedicated iDRAC management (RJ45) port	1 USB3
Ports		1 USB2 (internal, default non-pop, need Dell confirm if remove from here)
GPU options	N/A	75W low profile PCIe x1
Rack height	2U	2U
Power supplies	● 1800 W Titanium AC/200 - 240 V autoranging ● 1800 W DC/240 V ● 2400 W Platinum AC/100 - 240 V ● 2400 W DC/240 V ● 2800 W Titanium AC/200 - 240 V autoranging ● 2800 W DC/240 V ● 3200 W AC/277 V ● 3200 W DC/336 V	Hot swap drives, PSUs (support for 2 x 1600 W, 2000 W, 2400 W and 2000 W-240 V DC, 2600 W PSUs)
System management	BMC (includes virtual console /media), and iDRAC Basic, Express, Enterprise and Datacenter	iDRAC9 with BMC+ (includes virtual console/media), and Enterprise options
iDRAC direct	1 x Micro-AB USB 2.0-compliant port on the rear of the system	MicroUSB Type AB
Security	● AMD Secure Encrypted Virtualization (SEV) ● AMD Secure Memory Encryption (SME) ● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ	● AMD Secure Encrypted Virtualization (SEV) ● AMD Secure Memory Encryption (SME) ● Cryptographically signed firmware ● Data at Rest Encryption (SEDs with local or external key mgmt) ● Secure Boot ● Secured Component Verification (Hardware integrity check) ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Availability	● Cluster support ● ECC memory, RDIMM ● Hot-plug hard drives ● Dual power supply	● Hot swap drives ● Hot swap redundant cooling NOTE: Fan modules are not hot swappable ● Hot swap redundant power supplies - for redundant configs ● Micro SD card ● BOSS-S1V5 (DPN: WMWJW)
