Quick Specs
Form Factor:
1U rack server
Processor | Max: 20 Cores2x Intel Gen 1 | 2 Xeon Scalable
Memory | Max: 1TB12 DDR4 RDIMM/LRDIMM 2666Mhz
Storage | Max: 64TB or 76.8TB10 x 2.5 inch SAS/SATA/NVMe (Up to 4 NVMe drives)
8 x 2.5 inch SAS/SATA
4 x 3.5 inch SAS/SATA
S140 (SW RAID)
H330, H350, H730P, H740P, H750
HBA355e, H840, 12 Gbps Ext SAS HBA
HBA330, HBA350i
2x 1GbE LOM
(Optional LOM Riser) 2 x 1GbE or 2x 10GbE SFP+ or 2 x 10GbE BaseT
BOSS-S1
Internal dual SD module (IDSDM)
iDRAC9 with Lifecycle Controller
PCIe Slots:2x PCIe Gen 3 slots plus a dedicated PERC and LOM slot
GPU:None
Other Versions
(Click to View)
Ideal for:
- High-Performance Computing (HPC)
- Web Tech

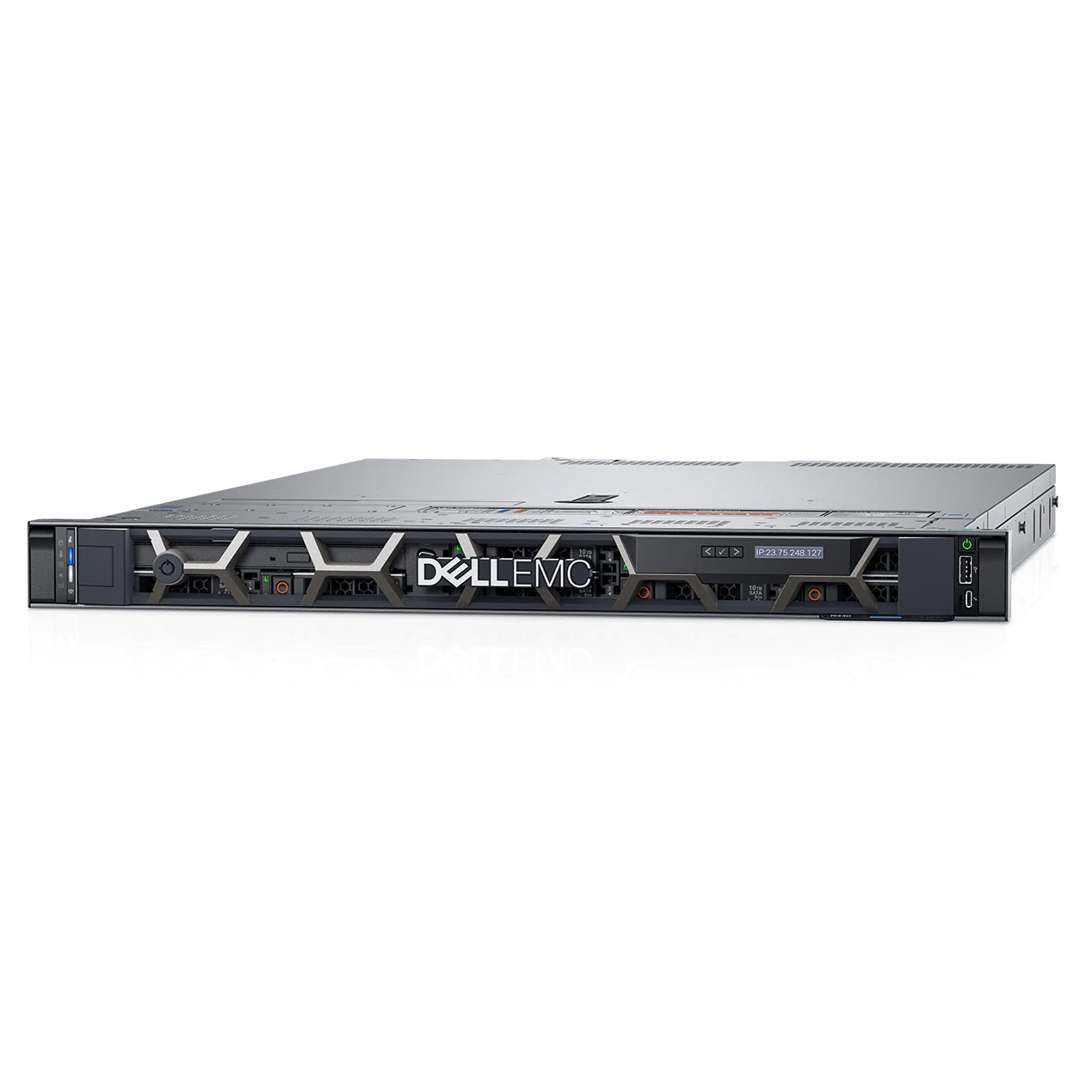

The Dell EMC PowerEdge R440 delivers the perfect combination of performance and density for HPC and web-tech deployments with a feature set right-sized for scale-out infrastructure environments.
Deliver performance at scale with the Dell EMC PowerEdge portfolio
Modern compute platforms from Dell EMC easily scale and leverage key technologies to maximize application performance. The Dell EMC PowerEdge R440 is built on a scalable architecture that provides the choice and flexibility to optimize performance and density.
- Scale compute resources with 2nd Generation Intel Xeon Scalable processors, and tailor performance based on your unique workload requirements.
- Flexible storage with up to 10 x 2.5 SAS/SATA/SSD with up to 4 NVMe PCIe SSD’s or 4 x 3.5.
- Free up storage with boot optimized M.2 SSDs.
Intuitive systems management with intelligent automation
The Dell EMC OpenManage portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the Dell EMC PowerEdge R440 is simply managed, freeing up time for high profile projects.
- Simplify management of your servers with OpenManage Essentials, a 1:many console that automates all phases of lifecycle management: deployment, updates, monitoring, and maintenance.
- Use Quick Sync 2, a wireless module, and the OpenManage Mobile app for at-server management, to configure or troubleshoot in the data center, and to receive alerts when you’re on the go.
Rely on PowerEdge with built-in security
Every PowerEdge server is made with a cyber-resilient architecture, building security into all parts of a server’s life cycle. The R440 uses these new security features so you can reliably and securely deliver the right data to where your customers are, no matter where they are. Dell EMC consider each part of system security, from design to end of life, to ensure trust and deliver worry-free, secure systems.
- Rely on a secure supply chain that protects servers from factory to the data center.
- Maintain data safety with cryptographically signed firmware packages and Secure Boot.
- Prevent unauthorized or malicious change with Server Lockdown.
- Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
Performance in a density-optimized 1U, 2-socket rack server
Experience an outstanding balance of performance and density for scale-out computing. The Dell EMC PowerEdge R440 brings you value in a small form factor. Benefit from platform flexibility and maximize performance with dual 2nd Generation Intel Xeon Scalable processors, up to 16 DIMMs and scalable storage that lets you mix SSDs and NVMe PCIe SSDs. Embedded diagnostics and SupportAssist help the Dell EMC PowerEdge R440 to deliver maximum uptime in a worry-free environment.
Deliver performance at scale with the PowerEdge portfolio
Modern compute platforms from Dell EMC are designed to scale easily and use technologies that maximize application performance. The PowerEdge R440 rack server provides choice and flexibility that lets you optimize performance and density.
- Scale compute resources with 2nd Generation Intel Xeon Scalable processors and tailor performance based on your unique workload requirements.

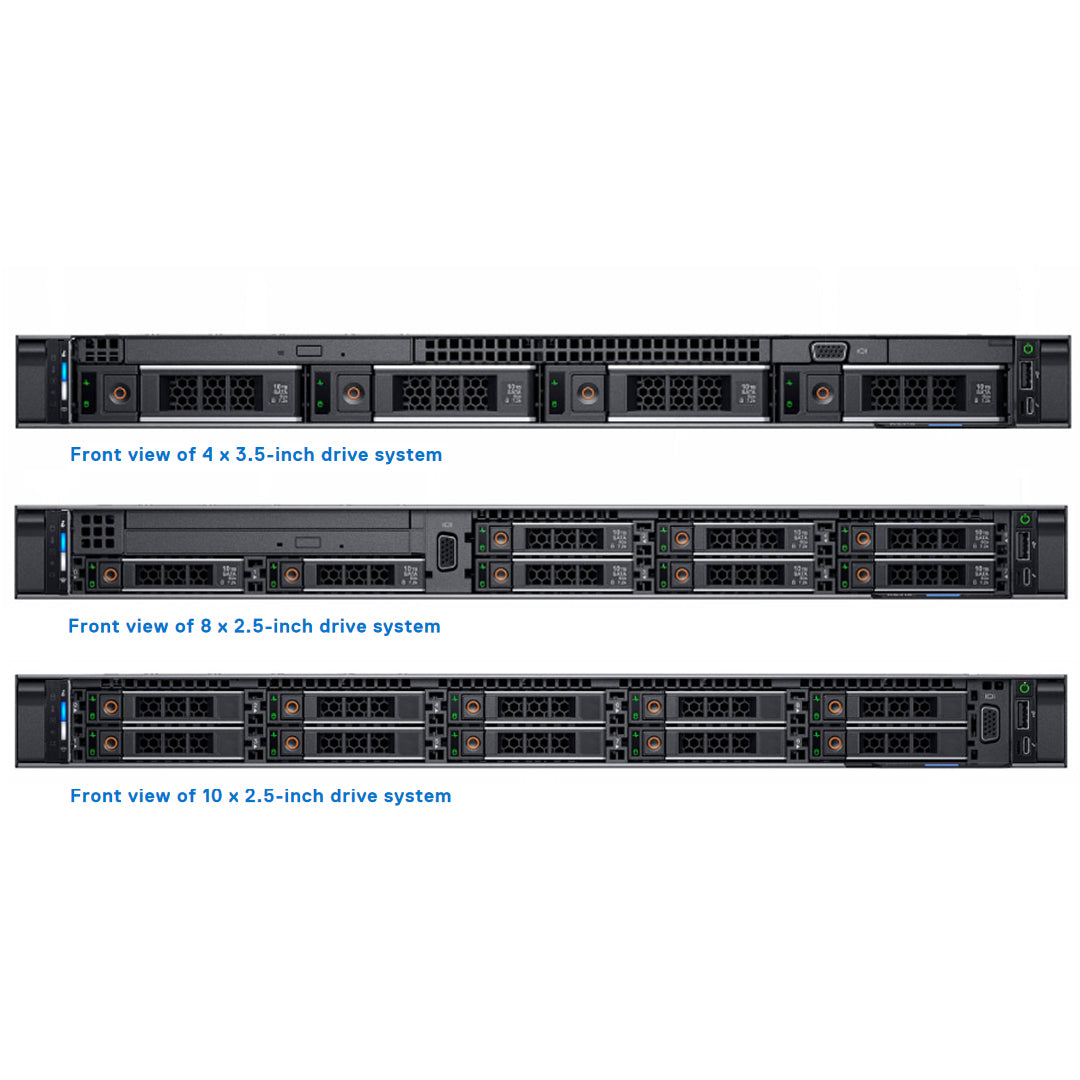

- Gain storage flexibility with up to 10 x 2.5" SAS/SATA/SSD with up to 4 NVMe PCIe SSDs, or 4 x 3.5" disks.
- Free up storage with boot-optimized M.2 SSDs.
Memory
The R440 supports memory speeds of 2666 MT/s, 2400 MT/s, 2133 MT/s, and 1866MT/s depending on the DIMM types installed and the configuration. The default speed is the highest common supported speed between the CPUs and DIMMs.
| DIMM type | DIMM ranking | Capacity | DIMM rated voltage, speed |
|---|---|---|---|
| RDIMM | 1R/2R | 8 GB, 16 GB, 32 GB | DDR4 (1.2 V), 2666 |
| LRDIMM | 2R | 64 GB | DDR4 (1.2 V), 2666 |
PCIe Expansion Cards
| Expansion card riser | PCIe slots on the riser | Height | Length | Link |
|---|---|---|---|---|
| Riser 2 (LOM riser) | Slot 1 | Mezz Type | Mezz Type | x8 |
| Right riser | Slot 2 (R1) | Low Profile | Half Length | x16 |
| Slot 2 (R1A) | Full Height | Half Length | x16 | |
| PCIe passive bridge | Slot-integrated | Low Profile | Half Length | x8 |
| Internal PERC riser | Slot-integrated | Low Profile | Half Length | x8 |
| Left riser | Slot 3 (R2) | Low Profile | Half Length | x16 |
Riser 1A (Config 1)
Riser 1 (Config 2)
Riser 2 (Config 2)Boot Options
The BOSS is recommended for non-virtualized operating systems. Virtualized operating systems are best supported by the IDSDM
IDSDM or vFlash card
The IDSDM with vFlash module has a dedicated slot at the back of the system chassis. This is a Dell EMC-proprietary PCIe x1 slot that uses a USB 3.0 interface to host. In the PowerEdge R440 systems, the IDSDM and vFlash card size changes from SD to microSD and the supported capacity for IDSDM microSD cards are 16 GB, 32 GB, or 64 GB, while for vFlash the capacity is 16 GB only. The write-protect switch is built onboard on the IDSDM module.
Boot Optimized Storage Subsystem (BOSS)
The Boot Optimized Storage Subsystem (BOSS) is an alternative, high speed location to install the operating system. This ensures that the drive based storage is not used by the operating system. BOSS is a simple RAID solution card designed specifically for booting the system's operating system, which supports up to two 6 Gbps M.2 SATA drives. This card has a x8 connector using PCIe gen 2.0 x2 lanes, available only in the low-profile and half-height form factor
Storage Controller Options
The new generation PERC 11 H750, H350, and HBA350i adapters cannot be mixed with the PERC H740P, H730P, H330, HBA330 adapters of the previous generations in one system.
| Performance Level | Controller and Description |
|---|---|
| Entry | S140—SATA |
| Value | HBA355e, HBA350i, H350, H730P, HBA330, H330, 12 Gb/s Ext SAS HBA |
| Value Performance | H750, H730P |
| Premium Performance | H750, H840, H740P |
Power Supply Units (PSU)
| PSU | Class | Heat dissipation (maximum) | Frequency | Voltage | Current |
|---|---|---|---|---|---|
| 550 W | Platinum | 2107 BTU/hr | 50/60 Hz | 100–240 V, autoranging | 7.4 A – 3.7 A |
| 450 W cabled | Bronze | 1871 BTU/hr | 50/60 Hz | 100–240 V, autoranging | 6.5 A – 3.5 A |
