Quick Specs
Form Factor:
short-height 1U rack server short-depth (24-inch) chassis
Processor | Max: 20 Cores2 x Intel Xeon E5-2600v3 or v4
Memory | Max: 384GB12 DDR4 RDIMM 2400Mhz
Storage | Max: 16TB10x 2.5" hot-plug SAS/NL-SAS/SATA (HDD/SSD)
8x 2.5" hot-plug SAS/NL-SAS/SATA (HDD/SSD)
4x 3.5" hot-plug SAS/NL-SAS/SATA (HDD/SSD)
4x 3.5" cabled drives SAS/NL-SAS/SATA (HDD)
S130 (SW RAID) H330, H730, H730P, H830
NIC/LOM:4 x 1GbE LOM
Boot Options:Internal dual SD module (IDSDM)
Internal USB
iDRAC8 with Lifecycle Controller
PCIe Slots:2x PCIe x16 3.0
GPU:None
Other Versions
(Click to View)
Ideal for:
- Virtualization

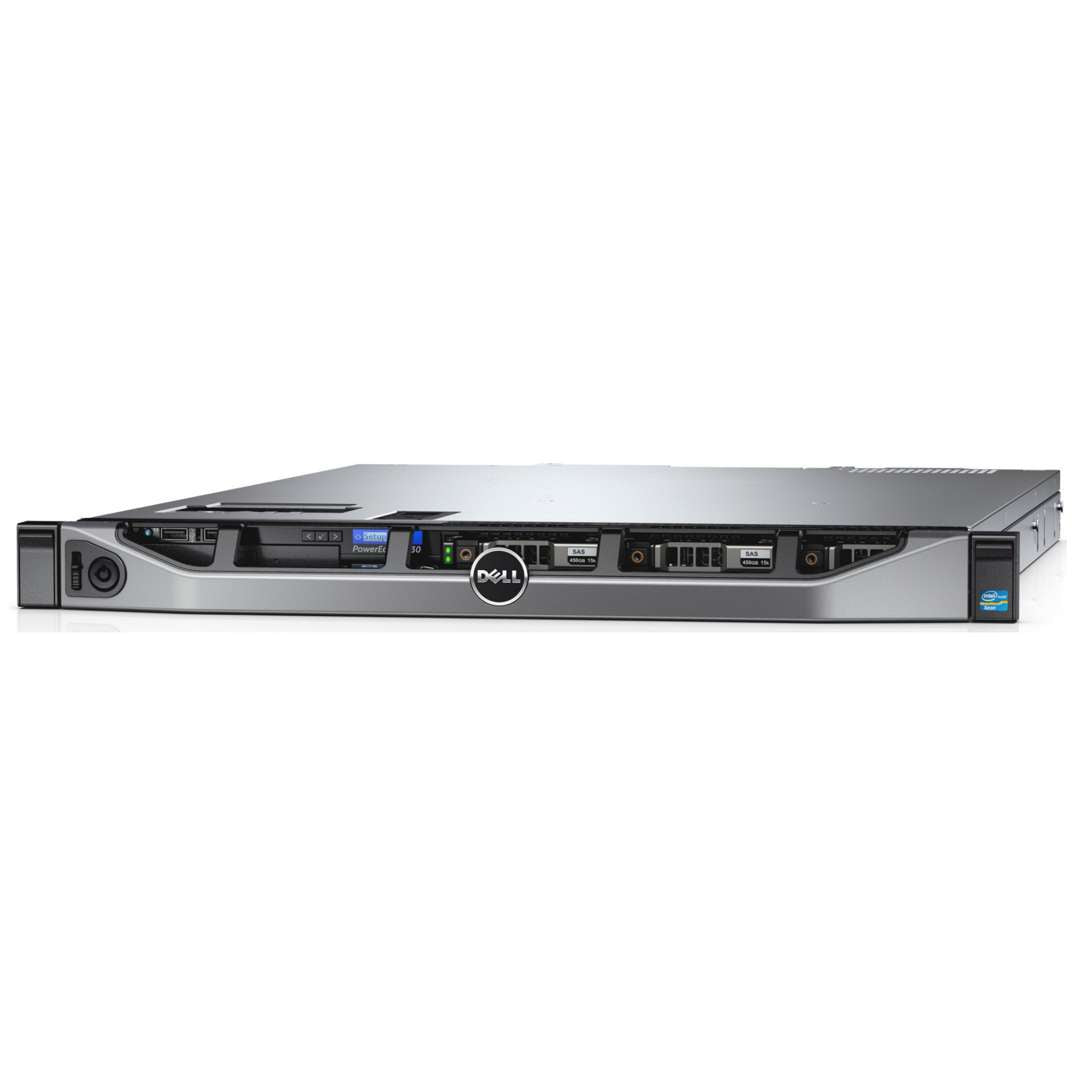

Introducing the PowerEdge R430 - a powerful, two-socket entry rack server designed for peak performance, configuration flexibility, high availability and intuitive management in a compact package. With its short-height (1U) and short-depth (24-inch) chassis, the R430 overcomes space constraints without compromising on performance or storage capacity.

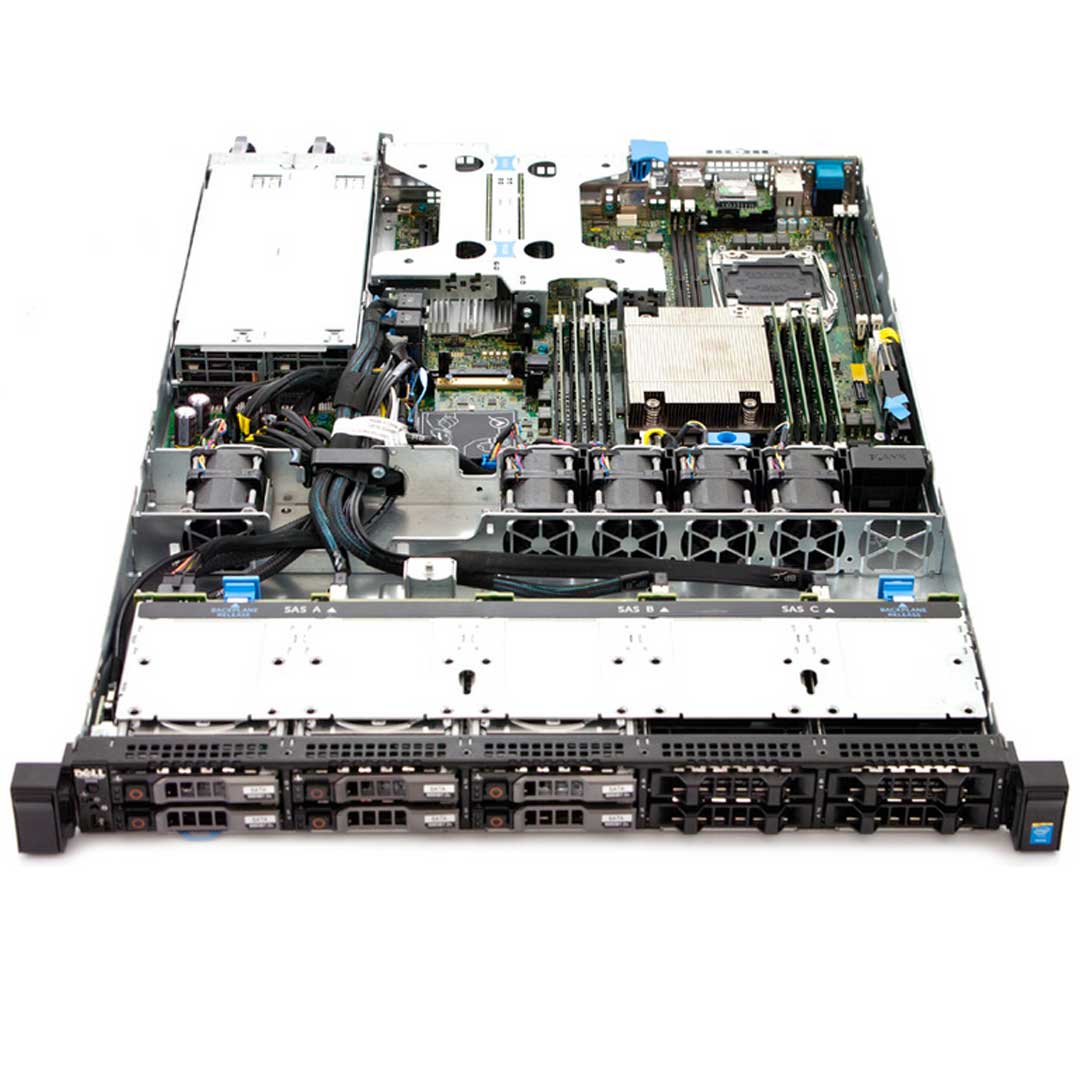

The R430 boasts up to 12 DDR4 DIMMs, 2 PCIe 3.0 I/O slots and scalable internal storage capacity of up to 10 x 2.5" hard drives. This, combined with its energy-efficient processors, memory, power supplies, and Fresh Air 2.0 capability, ensures maximum operational efficiency, driving better ROI and saving time for IT administrators.

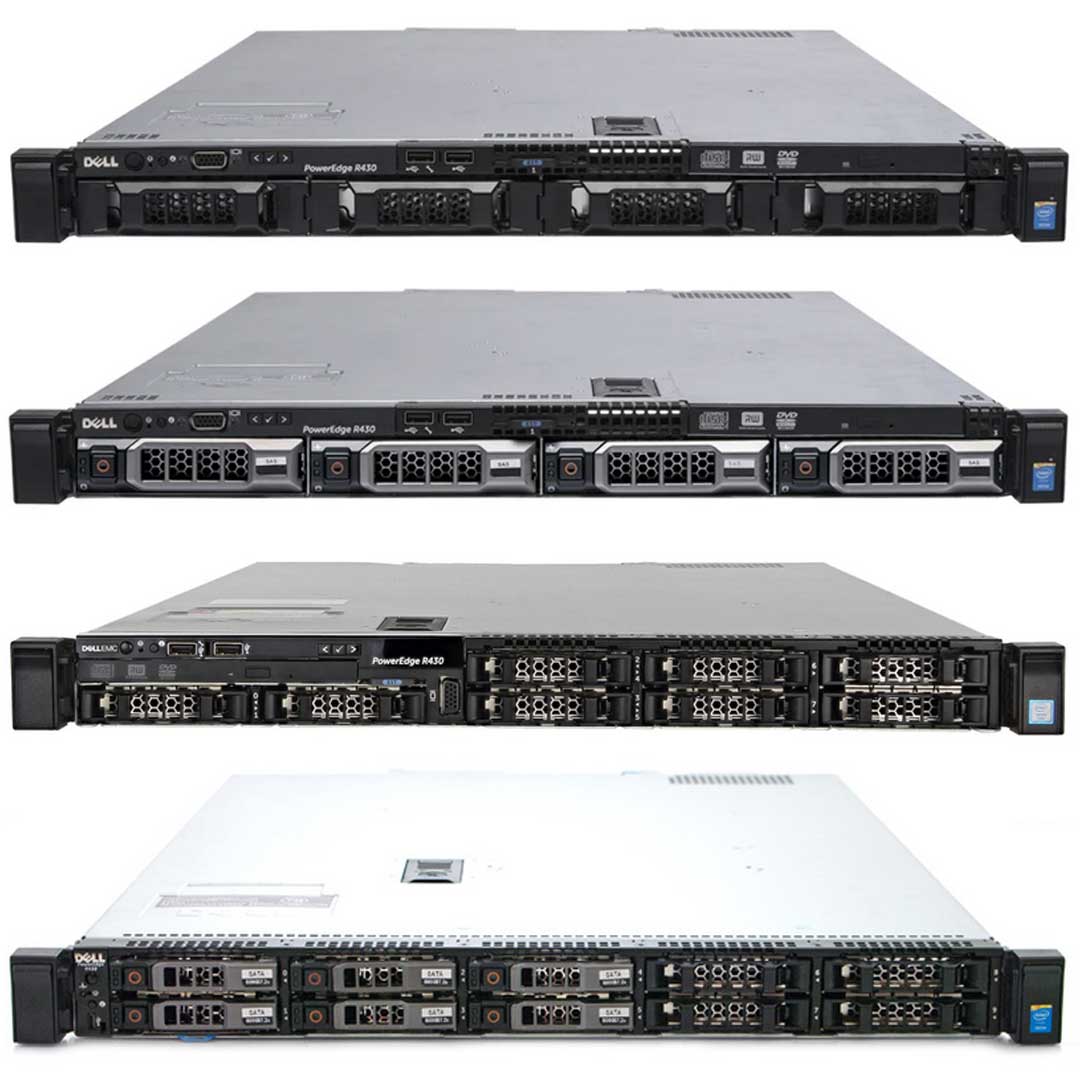

PowerEdge R430 Supported Drive Configuration
- Short-height, short-depth chassis
- Up to 4 x 3.5" Cabled HDD
- Up to 4 x 3.5" Hot Swap HDD/SSD
- Up to 8 x 2.5" Hot Swap HDD/SSD
- Up to 10 x 2.5" Hot Swap HDD/SSD
- NOTE - SSD/SAS/SATA hard drives cannot be mixed in a system.
Deliver peak performance
Equipped with the latest Intel Xeon E5-2600 v4 processors, the R430 delivers outstanding performance across a wide range of workloads, including high-performance computing (HPC), web tech and infrastructure scale-out, collaboration and productivity applications, surveillance and site security. It is also an excellent choice for dedicated backup or development server needs.
Maximize operational efficiency
The integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller automates deployment, making it easier and quicker to deploy servers. IT administrators can monitor and update servers with intuitive, automated tools, while the expandable platform is ready for virtualization and high-availability clustering, allowing for greater versatility and adaptability to changing workload conditions.
Discover greater versatility
Whether it's for HPC, web serving, infrastructure scale-out, surveillance, site security, or dedicated backup or development needs, the PowerEdge R430 delivers peak 2-socket performance in a compact package, making it an excellent fit for space-constrained data centers.
Storage Controllers
Your system includes a dedicated expansion card slot on the system board for an integrated storage controller card. Theintegrated storage controller card provides the integrated storage subsystem for the internal hard drives in your system.Thecontroller supports SAS and SATA hard drives and also enables you to set up the hard drives in RAID configurations. The RAIDconfigurations depend on the version of the storage controller included with your system. The controller supports SAS harddrives.
Boot & iDRAC options
iDRAC8

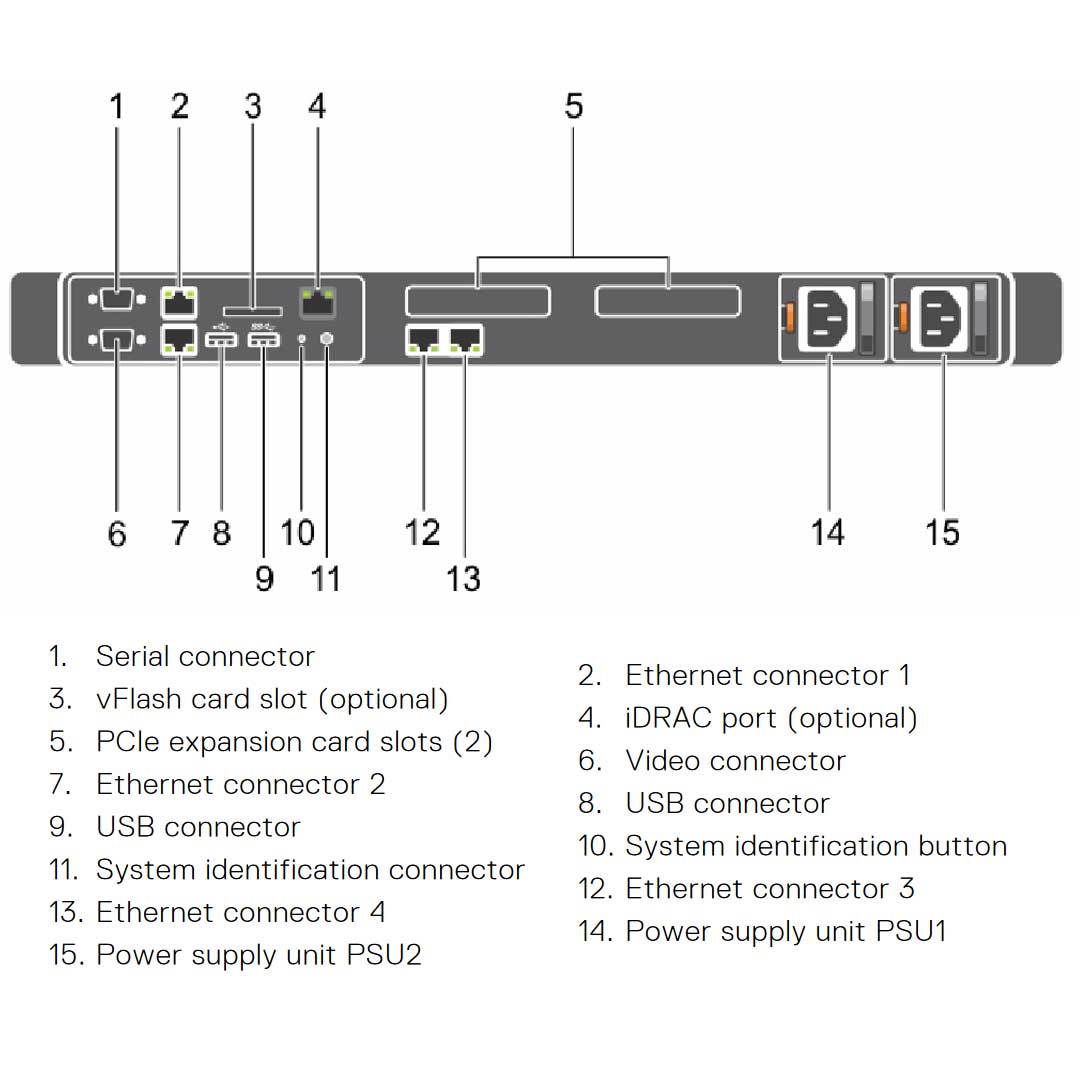

This iDRAC Port and Slot card provides the system with a 1GbE management port and the SD Slot for a vFlash SD card.
IDSDM
The Internal Dual SD module (IDSDM) provides you with a redundant SD card solution. You can configure the IDSDM for storageor as the OS boot partition.
Internal USB
An optional USB memory key installed inside your system can be used as a boot device, security key, or mass storage device.To boot from the USB memory key, configure the USB memory key with a boot image and then specify the USB memory key in the boot sequence in System Setup.
Expansion bus specifications
The PowerEdge R430 system supports PCI express (PCIe) Generation 2 and 3 expansion cards, which need to be installed on the system board using expansion card risers. This system supports two types of expansion card risers.
| Expansion card riser | PCIe slots on the riser | Height | Width | Link |
|---|---|---|---|---|
| PCIE_G3_X16 Left or Right riser | Slot 1 | low-profile | half-length | x16 |
| Slot 2 | low-profile | half-length | x16 | |
| PCIE_G3_X8 Butterfly riser | Slot 1 | full-height | half-length | x8 |
| Slot 2 | low-profile | half-length | x8 |
Power Supply Units (PSU)

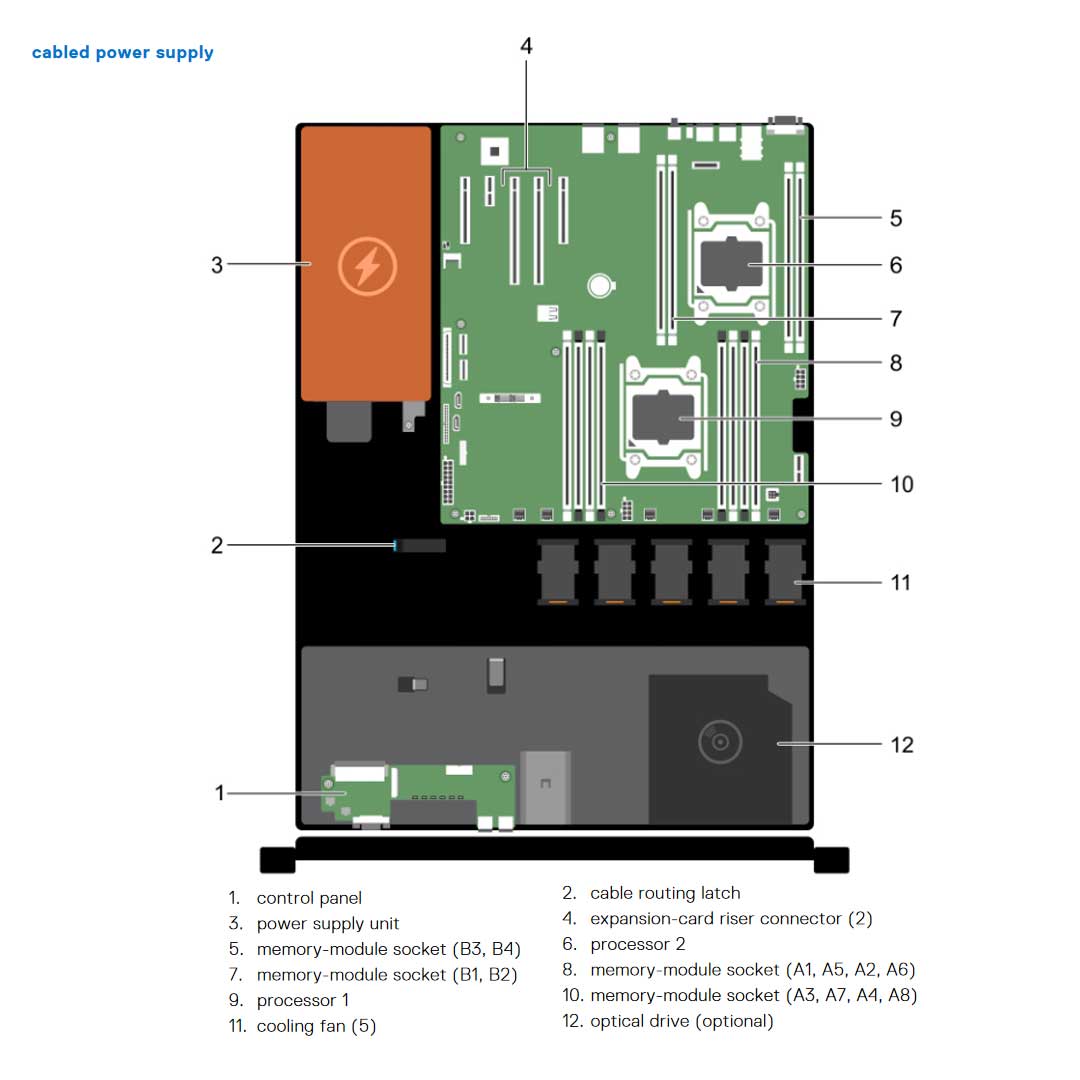

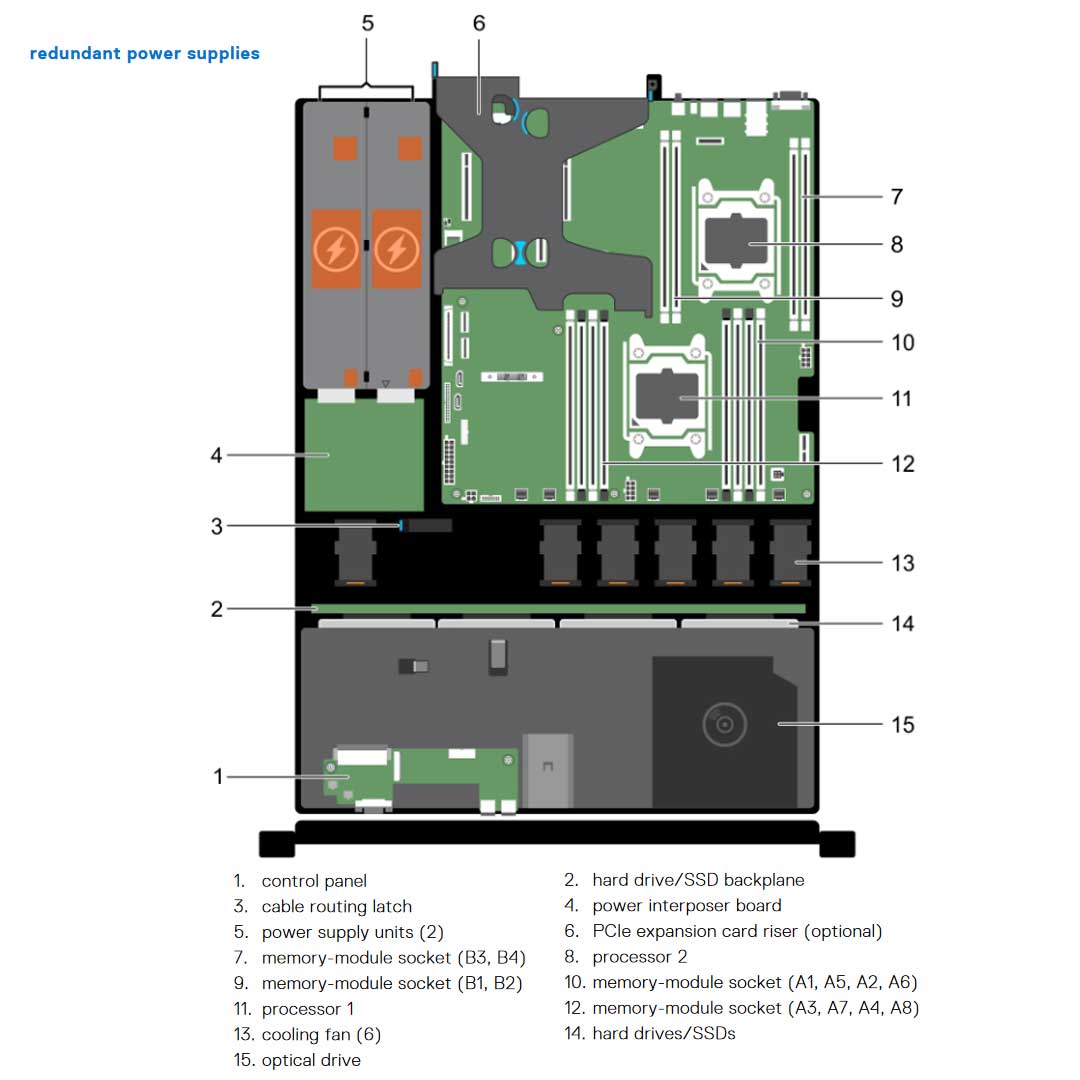

The PowerEdge R430 system supports up to two AC redundant power supply units (PSUs) and a single AC cabled PSU. The non-redundant configuration has One cabled 450W PSU. The second supported option is the redundant 550W 60MM PSUs. These PSUs can not be mixed, in the redundant configuration both PSUs must have the same max output. A cabled PSU is supported in systems with cabled hard drives and systems with x4 backplane.
| PSU | Class | Heat dissipation (maximum) |
Frequency | Voltage | Current |
|---|---|---|---|---|---|
| 550 W AC | Platinum | 2107 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging |
7.4 A-3.7 A |
| 450 W AC | Bronze | 1871 BTU/hr | 50/60 Hz | 100–240 V AC, autoranging |
6.5 A-3.5 A |
