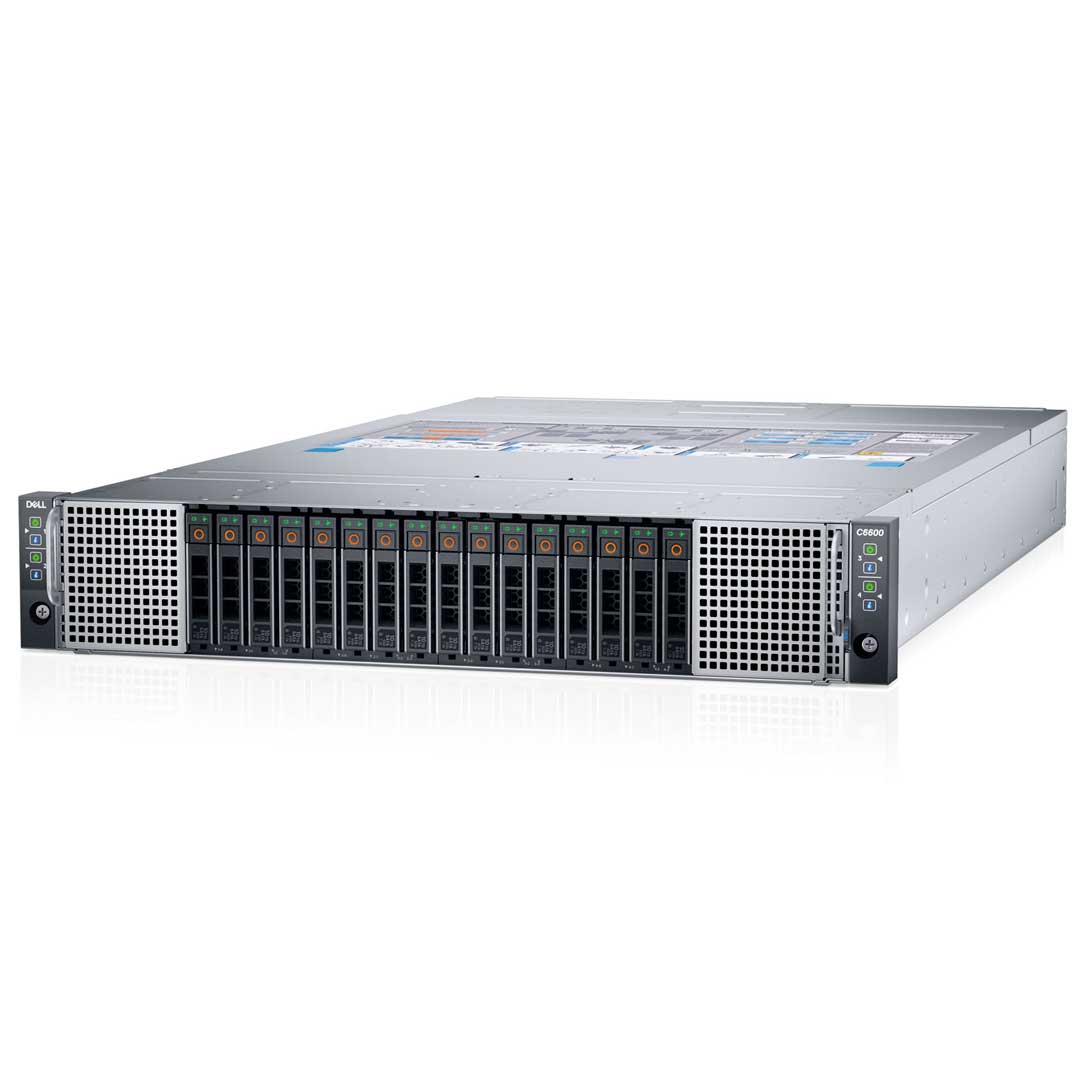

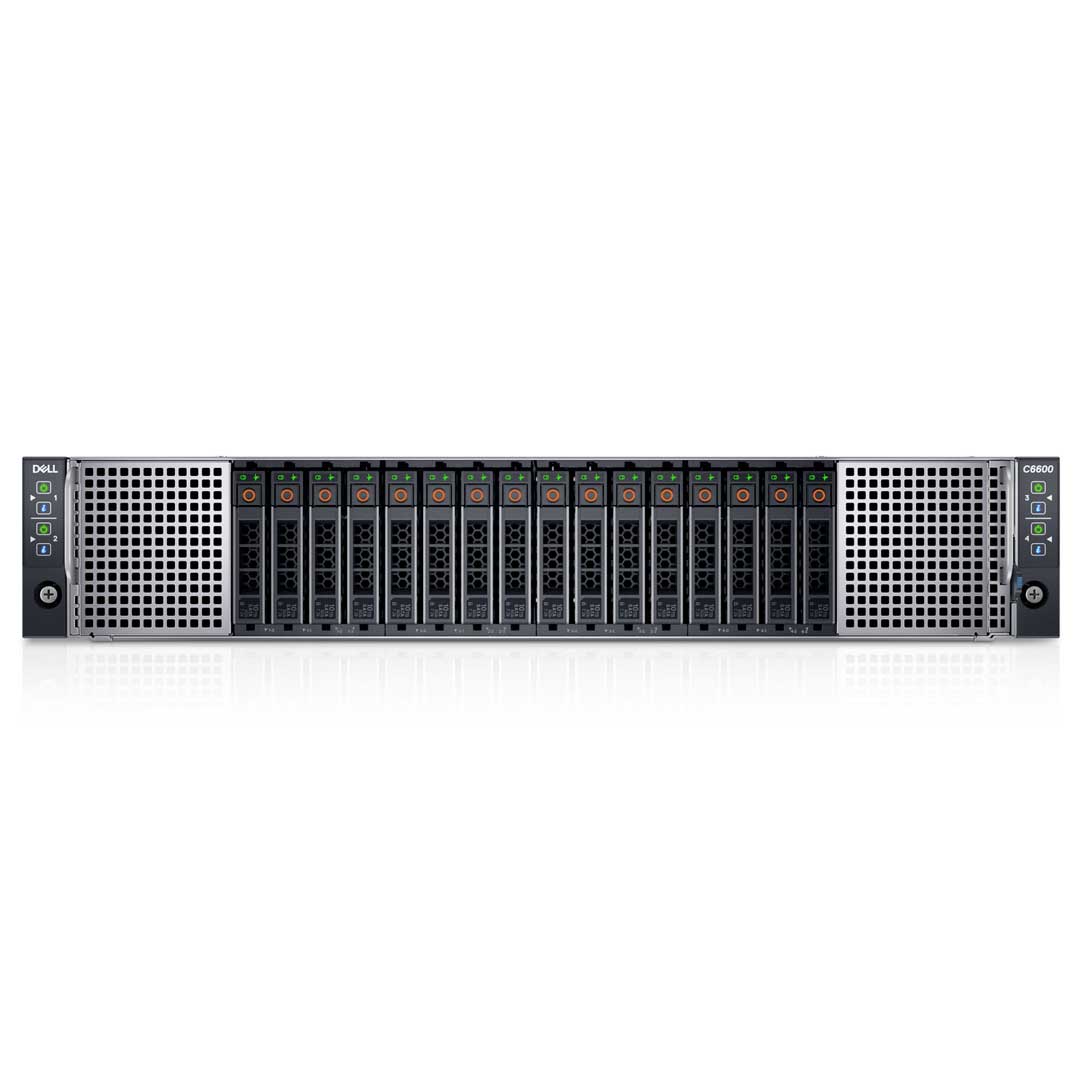

Dell PowerEdge C6600 16SFF Universal Rack Enclosure Chassis

SKU: DPE-C6600-16-UNI-Chassis

Dell PowerEdge C6600 16SFF Universal Rack Enclosure Chassis

Name: Dell PowerEdge C6600 16SFF Universal Rack Enclosure Chassis
Brand: Dell
SKU: DPE-C6600-16-UNI-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Processor:

(PER NODE)

Memory:

(PER NODE)

Storage | Max: 61TB

16x 2.5" SAS/SATA/NVMe (HDD/SSD)

Rear Storage:

None

PCIe Slots:

(PER NODE)

GPU:

(PER NODE)

Other Versions:

Ideal for:

High-Performance Computing

This is just the enclosure, each Node is a separate CTO you must configure.

The Dell C6600 holds 4 Nodes. Either the AMD C6615 or the Intel C6620 Node Server.
You can not mix nodes.

Supported Options

AMD C6615 Node Server Click to view Server View Node CTO

Node Option:

AMD C6615

Form Factor:

1U rack server

Processor | Max: 64 Cores

1 x AMD EPYC

Memory | Max: 384GB

6 DDR5 RDIMM 4800Mhz

Storage | Max: 61TB

(Enclosure) 16 SFF SAS/SATA/NVMe HDD/SSD

Rear Storage:

None

PCIe Slots:

2x PCIe 5.0

GPU:

None

Intel C6620 Node Server Click to view Server View Node CTO

Node Options:

Intel C6620

Form Factor:

1U rack server

Processor | Max: 56 Core

2 x 4th Gen Intel Xeon

Memory | Max: 4TB

16 DDR5 RDIMM 4800Mhz

Storage | Max: 288TB

(Enclosure) 16 SFF or 8 EDFF SAS/SATA/NVMe

Rear Storage:

None

PCIe Slots:

2x PCIe 5.0

GPU:

Up to 2 x 75W low-profile, half-len

Experience more container density to support the most demanding applications

Deploy more containers per physical host using increased core count and higher memory footprint than previous generations.
6 or 16 channels of DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 enable faster access and transport of data, optimizing application output.
Reduce noisy neighbor problems by physically separating containers using single-socket multi-node infrastructure.

Scale more efficiently within your existing datacenter

Increase core density in existing racks and maintain core datacenter ambient temperature.
53% increase in air cooling configuration support over previous generation.
Faster, low-latency storage with Gen5 E3.S.

Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	Technical Specifications
Chassis	Dell PowerEdge C6600 chassis
Nodes	Up to 4 hot-swappable 1-socket C6615 sleds in a 2U C6600 chassis
Processor	One AMD EPYC processor, with up to 64 cores
Memory	• 6 DDR5 DIMM slots, supports RDIMM of 384 GB (6 x 64 GB) max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal controllers (RAID): PERC H755N, PERC H355 • Internal Boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs • Internal 12 Gbps SAS HBAs (non-RAID): HBA355i • Software RAID: S160
Availability	Hot-plug redundant drives and PSUs
Drive Bays	Front bays: • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives max 61 TB • Up to 16 x 2.5-inch SATA/NVMe drives max 15.36 TB on Universal Backplane configuration
Hot swap, Redundant Power Supplies	• 3200W 277 VAC or 336 VDC • 2800W Titanium 200-240 VAC or 240 VDC	• 2400W Platinum 100-240 VAC or 240 VDC • 1800W Titanium 200-240 VAC or 240 VDC
Cooling Options	Air cooling
Fans	Up to 4 cold swap fans
Dimensions	• Height – 40.0 mm (1.57 inches) • Width – 174.4 mm (6.86 inches) • Depth – 549.7 mm (21.64 inches), 561.3 mm (22.10 inches) - SAS/SATA or NVMe or E3.S or Universal configuration
Weight	3.7 kg (8.15 pounds)
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module
OpenManage Software	• CloudIQ for PowerEdge plugin • OpenManage Enterprise • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center	• OpenManage Integration with Windows Admin Center • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin
Mobility	OpenManage Mobile
Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow	• RedHat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• AMD Secure Encrypted Virtualization (SEV) • AMD Secure Memory Encryption (SME) • Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot	• Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	1 x 1 GbE

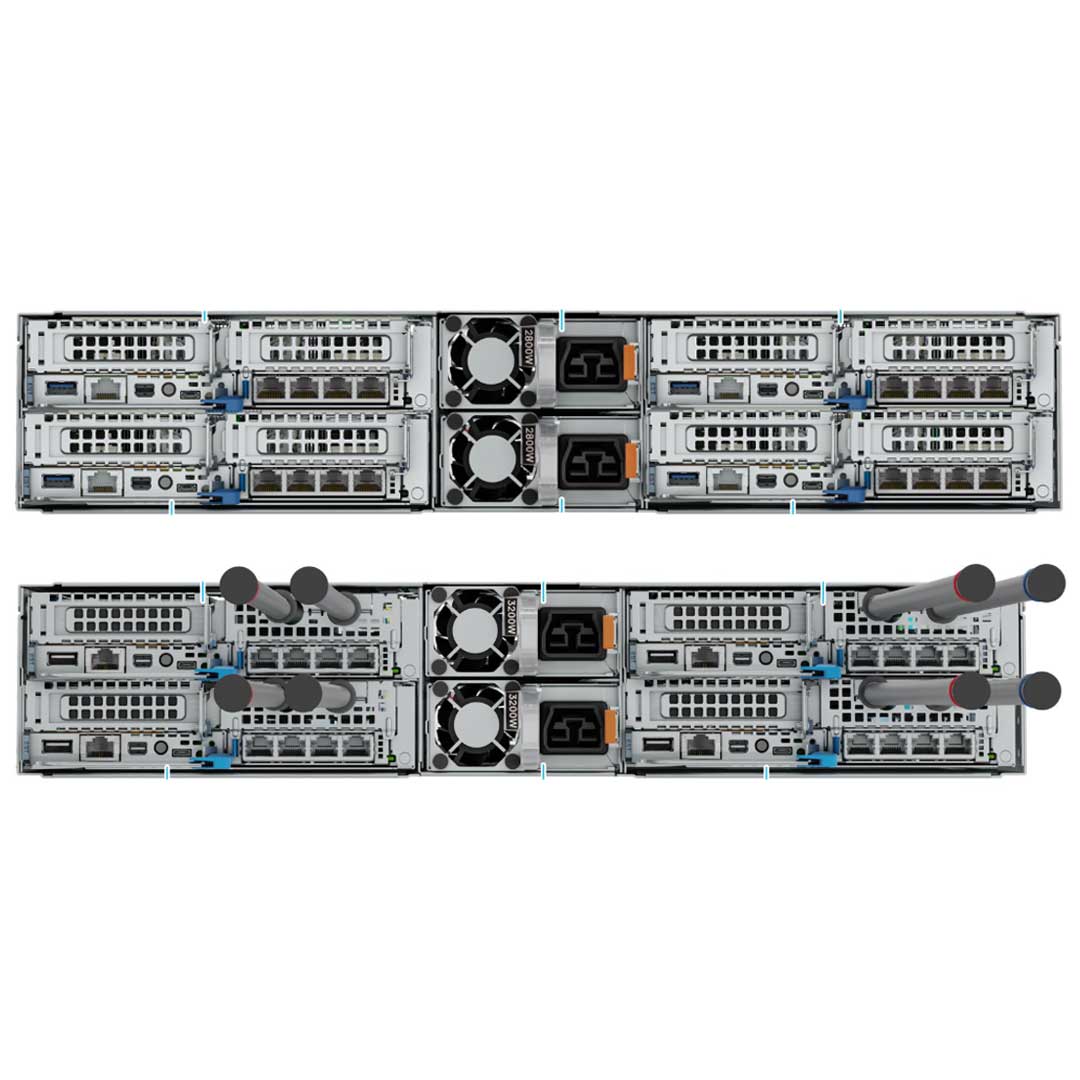

Rear Ports	• 1 x USB 3.0 • 1 x iDRAC ethernet port • 1 x iDRAC Direct (Micro-AB USB) port • 1 x Mini-DisplayPort
PCIe slots	• Up to 2 x PCIe x16 Gen5 Low-Profile slots • 1 x OCP 3.0 x16 Gen5
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi/vSAN
