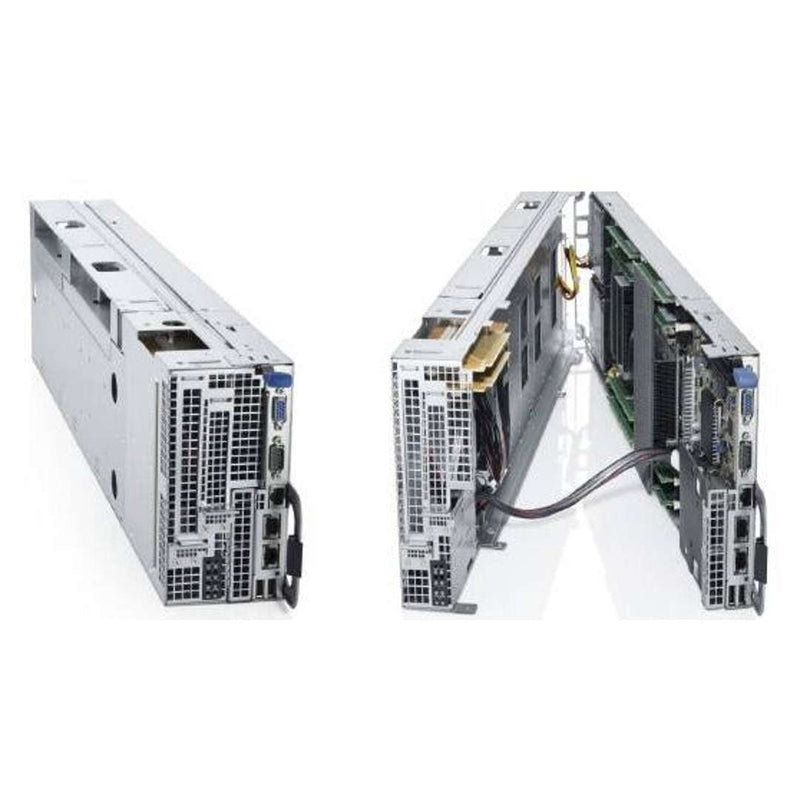

Dell PowerEdge C8220X Compute/GPU Sled CTO
Quick Specs
2U rack server
Processor | Max: 8 Cores2x Intel Xeon E5-2600 or E5-2600v2
Memory | Max: 256GB16x DDR3 LV RDIMM, LR RDIMM, or RDIMM Up to 1600Mhz
PCIe Slots:2x PCIe 3.0
GPU:2 GPU slots, Must install the Front and Rear GPU Risers
Storage | Max: 12TB- 2x 2.5” hot-plug + 8x 2.5” non-hot-plug
- 2x 2.5” hot-plug hard drives + 4 x 3.5” non-hot-plug
- 2x GPUs + 2 x 2.5" non-hot-plug rear drive
Note: 2x 2.5” non-hot-plug rear hard drives only supported with GPUs
(Click to View)
Ideal for:
- Big Data Analytics
- High-Performance Computing (HPC)
This C8220 Compute sled goes into the C8000 Enclosure. Click here to view the C8000 Rack Enclosures CTO.
Each system board supports different items. The correct Interposer board will come with the system you choose.
- CPU: Intel Xeon E5-2600 series processor
- Interposer: V1.0
- NVIDIA Tesla M2090 GPGPU card
- NVIDIA Tesla K20 GPGPU card
- Intel Xeon Phi 5110P card
- CPU: Intel Xeon E5-2600 series processor
- Interposer: V1.1
- NVIDIA Tesla M2090 GPGPU card
- NVIDIA Tesla K20 GPGPU card
- Intel Xeon Phi 5110P card
- CPU: Intel Xeon E5-2600V2 series processor
- Interposer: V1.1
- NVIDIA Tesla K10 GPGPU card
- Intel Xeon Phi 7120P card
Get results up to 10x faster with GPUs1 , delivered with up to 24 cores, 512GB memory, and three PCIe 3.0 expansion slots in a compact double-wide sled designed for the 4U PowerEdge C8000 chassis.
PowerEdge C8220X- Up to 10x faster performance with NVIDIA Tesla K20 GPUs
- Boost performance by up to 80% with Intel Xeon E5‑2600 v2 processors
- More options than the Super Micro 6047R
Make high-impact breakthroughs
Scientists need to simulate increasingly complex problems and visualize larger amounts of data with greater accuracy to achieve high-impact scientific and engineering breakthroughs. These resource-intensive workloads are pushing infrastructure limits, requiring more performance, bandwidth, memory and adaptability than ever before.
The PowerEdge C8220X double-wide compute sled can be configured with storage or graphics processing unit (GPU) expansion. Each sled, regardless of whether it is configured with GPU or additional storage, has two Intel Xeon E5‑2600 v2 processors with up to 12 cores each and 16 DIMM slots.

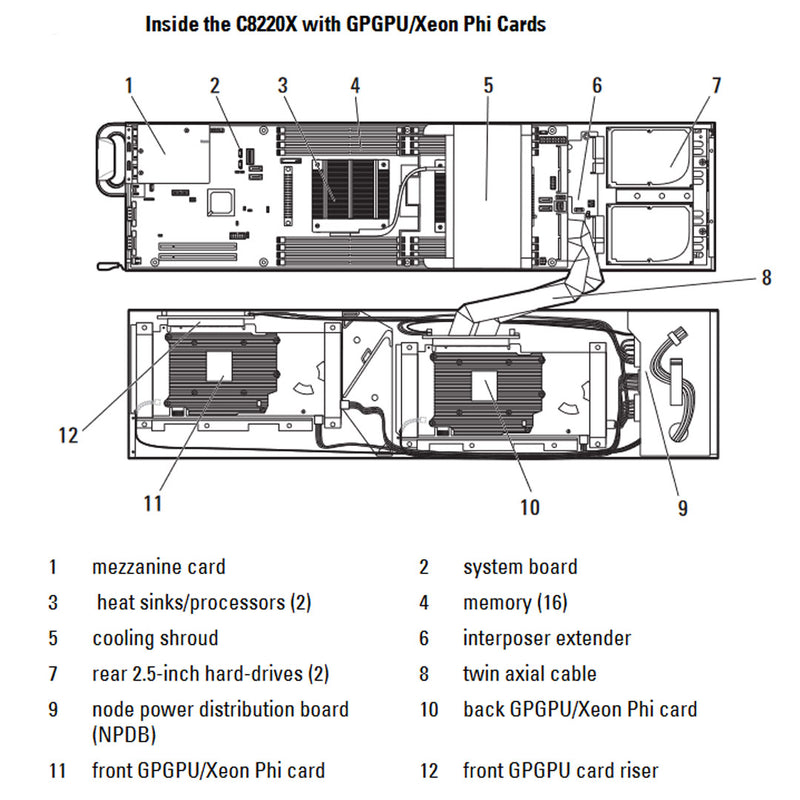

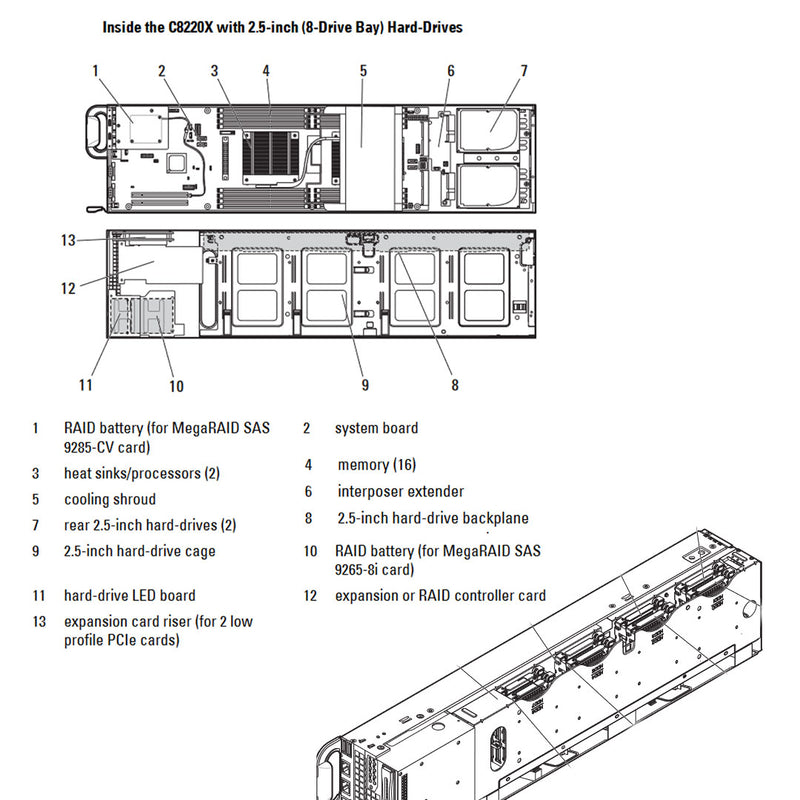

The GPU sled can help you make those breakthroughs quickly by housing up to two NVIDIA Tesla K20 GPUs. The storage sled adds another four 3.5-inch SAS/SATA HDDs or eight 2.5-inch SAS/SATA HDDs or SSDs and another two 2.5‑inch SAS/SATA HDDs or SSDs in addition to the two 2.5‑inch internal SATA HDDs or SSDs (for up to 12 2.5” SAS/SATA HDDs or SSDs).
See results fast
With two of the fastest processors available, and up to two of the most advanced GPUs available in one sled, you can speed processing by an order of magnitude to see results faster.
The Intel Xeon processor E5 product family can boost server performance by up to 80% over previous generation processors, accelerate data availability to the processing cores, while delivering up to 70% more performance per watt.
Add up to two NVIDIA Tesla K20 GPU Computing Modules and accelerate parallel processing applications by up to 10x, with up to 665 gigaflops of double precision performance and one teraflop of single-precision performance.
When it comes to memory, 16 DIMM slots provide up to 512GB3 of memory per sled, and 1866MT/s memory is available to help improve bandwidth per processor. The Intel Xeon E5-2600 v2 processors have 2.3x the memory bandwidth of the previous generation, with four memory channels, and the integrated I/O helps reduce latency up to 30%.
Reach peak efficiency

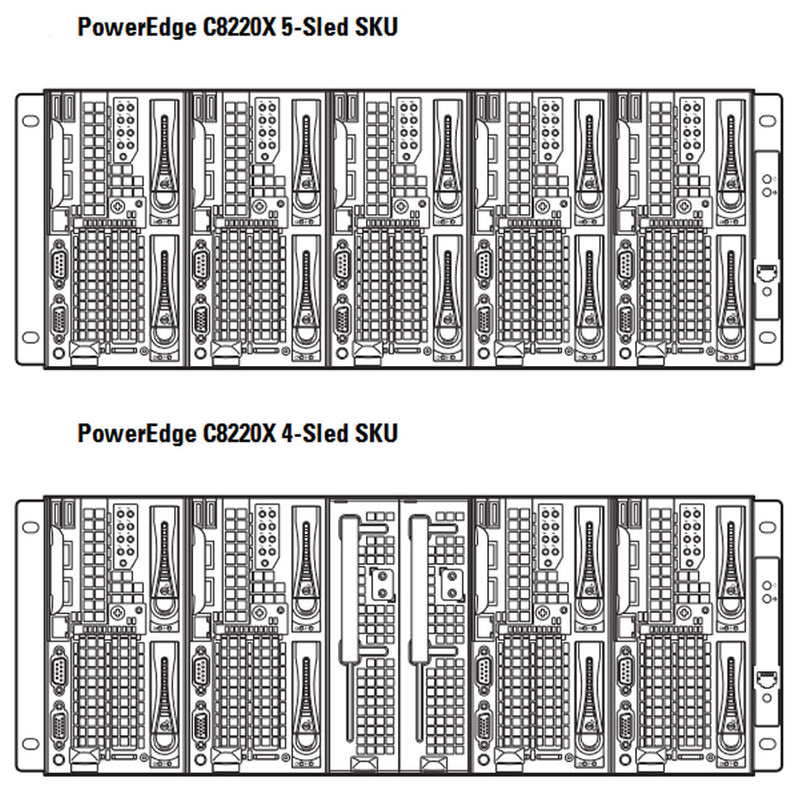

Pack more compute power in the same space, with up to four PowerEdge C8220X double-wide compute/GPU sleds in one 4U PowerEdge C8000 chassis. The C8000 4U shared infrastructure chassis is designed for efficiency, using 94% platinum-certified power supplies, and fewer, high-efficiency fans than more traditional servers. Compute, GPU and storage sleds all share chassis, power and cooling, helping save on the total cost of ownership. Help save even more by refreshing components, without having to replace the entire chassis.
