Adapter Specs QLE2662
- Type: Host Bus Adapter (HBA)
- Ports: 1 x SFP+
- Plug Type: PCI Express 2.0 x8
- Max Data Rate: 8Gbps FC
- Protocols: FCP (SCSI-FCP), FC-Tape
- Form Factor: Full-height PCIe card
- Virtualization Support: NPIV, T10 PI
Part Number:
- R1N53

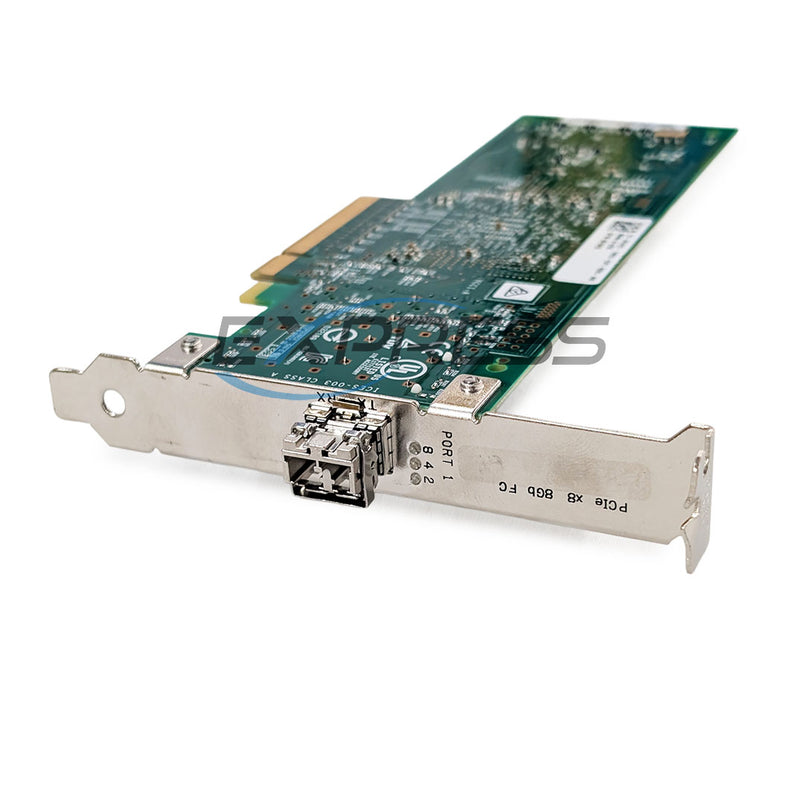

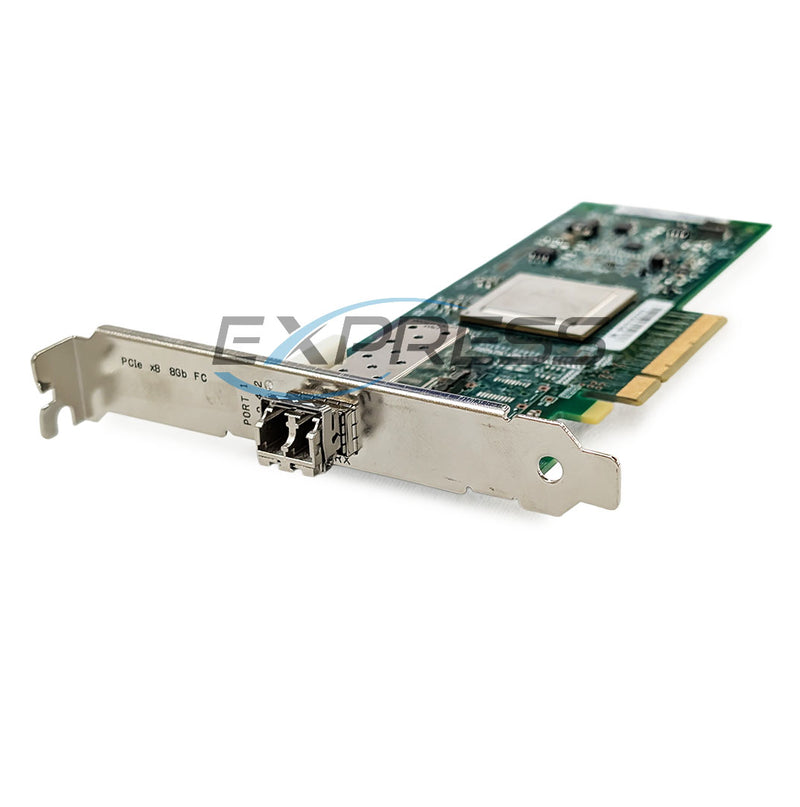

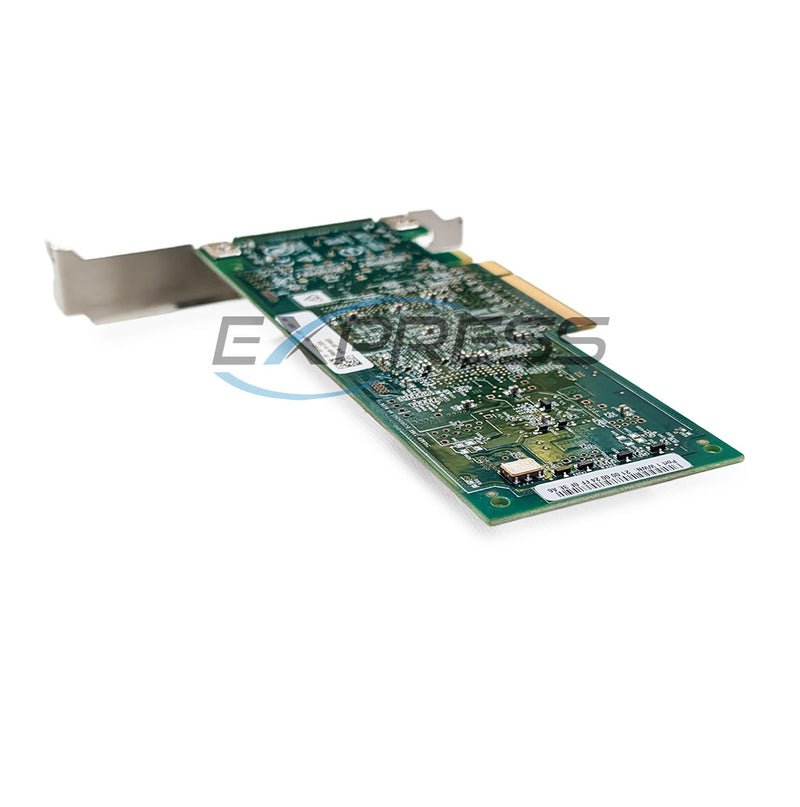

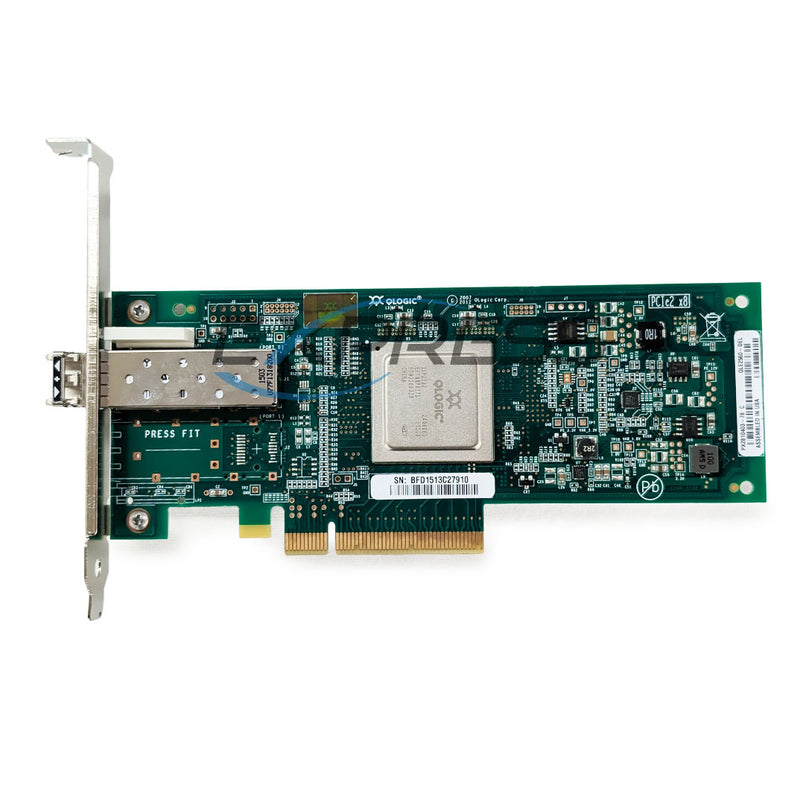

The Dell QLogic QLE2560 Single Port 8Gb Fibre Channel Host Bus Adapter (HBA), part number R1N53, is a high-performance PCI Express 2.0 x8 adapter designed to provide robust and efficient Fibre Channel connectivity for enterprise storage networks. Featuring a single 8Gbps Fibre Channel port, it supports high-throughput, low-latency data transfer, making it ideal for mission-critical applications and virtualized environments. The adapter is equipped with an SFP+ connector, allowing for flexible connectivity options with compatible transceivers.
Built on QLogic's 2500 Series architecture, the QLE2560 supports advanced features such as N_Port ID Virtualization (NPIV), T10 Protection Information (T10 PI), and QLogic's StarPower™ technology, which enhances power efficiency and performance optimization. These capabilities make it well-suited for modern data centers requiring high availability and scalability. The full-height form factor ensures compatibility with a wide range of Dell PowerEdge servers.
- Dell R220
- Dell R320
- Dell R420
- Dell R520
- Dell R620
- Dell R720
- Dell R720xd
- Dell R730
- Dell R820
- Dell T320
- Dell T420
- Dell T620
