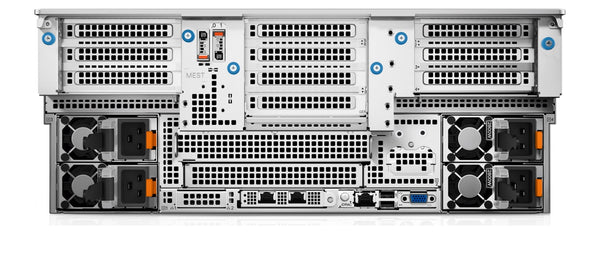

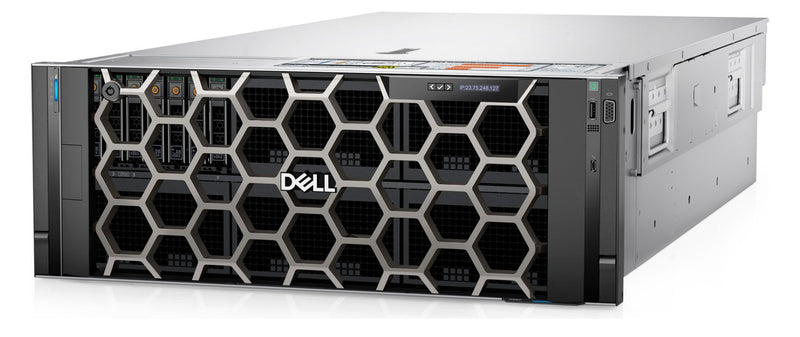

Dell PowerEdge R960

The Dell PowerEdge R960 is a 4U four-socket rack server running up to four 4th Gen Intel Xeon Scalable processors with up to 60 cores each and optional Intel QuickAssist Technology. It offers 64 DDR5 DIMM slots (up to 16TB at up to 4800 MT/s), up to twelve PCIe Gen5 slots, up to four 400W double-width GPUs, and up to 32x 2.5" SAS/SATA or 24x NVMe front drives. Managed by iDRAC9, with air cooling or optional Direct Liquid Cooling, it is a scale-up foundation for the largest in-memory databases and compute-intensive core workloads. Fully configurable.

Looking to compare generations? See the two-socket Gen 16 Dell PowerEdge R760, or compare Gen 16 models: Dell PowerEdge R860 and Dell PowerEdge R7625.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 4U Rack
  • Processors: Up to 4x 4th Gen Intel Xeon Scalable
  • Memory: 64x DDR5 DIMM slots, up to 16TB
  • Memory Speed: Up to 4800 MT/s
  • Storage: Up to 32x 2.5" (up to 24x NVMe)
  • Expansion: Up to 12x PCIe Gen5 slots
  • GPU Support: Up to 4x 400W double-width
  • Networking: Optional 2x 1GbE LOM, 1x OCP 3.0
  • Management: iDRAC9
  • Cooling: Air or Direct Liquid Cooling
  • Power: Redundant PSUs, 1100W to 2800W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R960 →

Customize & Get Pricing

Configure your Dell PowerEdge R960 with the exact specs you need

Configure This Server

Dell PowerEdge R960 vs R940xa: Specs & Key Differences

Feature PowerEdge R960 PowerEdge R940xa
Processors Up to 4x 4th Gen Intel Xeon Scalable (up to 60 cores) Up to 4x 2nd Gen Intel Xeon Scalable
Memory 64x DDR5 DIMM slots, up to 16TB
Up to 4800 MT/s		 48x DDR4 DIMM slots
Up to 24x Intel Optane PMem
PCIe Up to 12x PCIe Gen5 slots Up to 12x PCIe Gen3 slots
GPU Support Up to 4x 400W DW Up to 2x 300W DW or 8x 75W SW
Storage Up to 32x 2.5" SAS/SATA or 24x NVMe 2.5" SAS, SATA and Gen3 NVMe
Networking Optional 2x 1GbE LOM + 1x OCP 3.0 Optional 4x 1GbE NDC
Management iDRAC9 iDRAC9
Cooling Air or optional DLC Air
Power 1100W to 2800W 750W to 2600W
Form Factor 4U Rack 4U Rack

Frequently Asked Questions

Up to four 4th Generation Intel Xeon Scalable processors with up to 60 cores each, for up to 240 cores, with optional Intel QuickAssist Technology.

It has 64 DDR5 RDIMM slots for up to 16TB of memory, running at up to 4800 MT/s with one DIMM per channel and 4400 MT/s with two. Only registered ECC DDR5 DIMMs are supported.

Up to four 400W double-width GPUs, installed in full-length PCIe Gen5 slots. The R960 offers up to twelve PCIe Gen5 x16 slots in total.

Front options include 8, 16 or 32x 2.5-inch SAS/SATA drives, up to 24x 2.5-inch NVMe drives, or 16x SAS/SATA plus 8x NVMe, with PERC 11 and PERC 12 controllers and BOSS-N1 M.2 NVMe boot. Please specify your capacity needs when you submit your quote configuration.

Dell positions the R960 against the R940xa. It moves from 2nd Gen to 4th Gen Xeon Scalable processors, from 48 DDR4 slots to 64 DDR5 slots (up to 16TB), and from PCIe Gen3 to twelve Gen5 slots. GPU support goes to four 400W double-width cards, and it adds an OCP 3.0 slot and optional liquid cooling.
