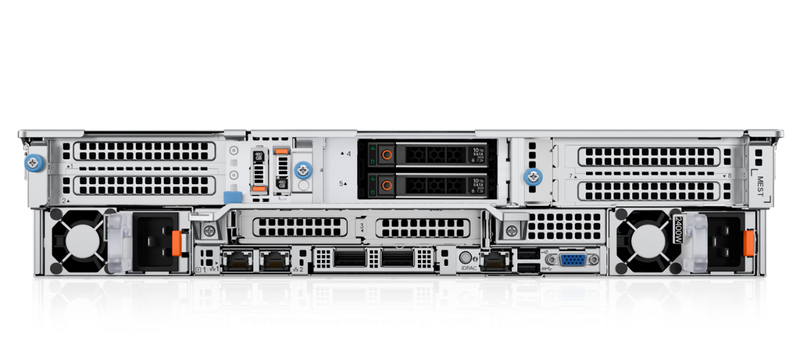

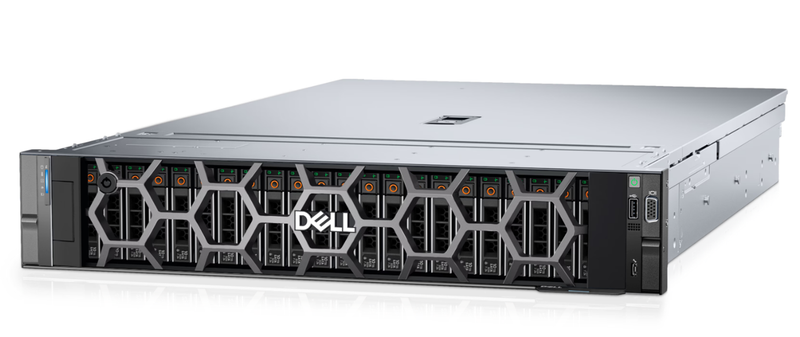

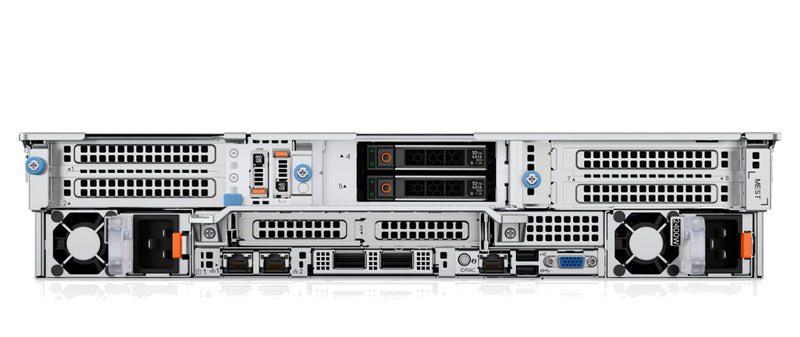

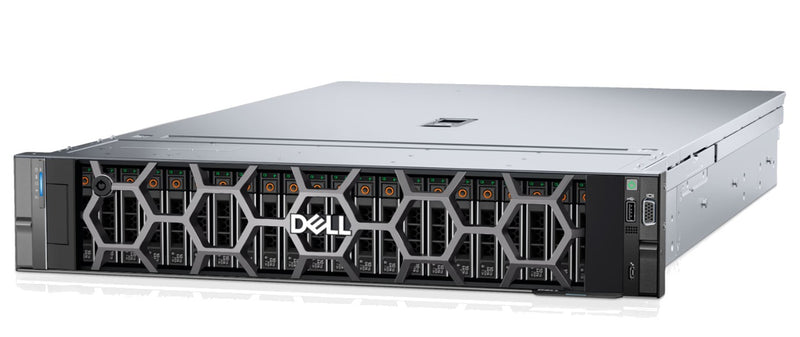

Dell PowerEdge R760

The Dell PowerEdge R760 brings 4th and 5th Gen Intel Xeon Scalable processors into a flexible 2U dual-socket design. With support for up to 64 cores per CPU, 32 DDR5 DIMM slots reaching 8TB, and PCIe Gen5 expansion, it handles demanding virtualization, AI inference, and data-intensive workloads efficiently. Optional Direct Liquid Cooling and dense storage configurations make it a strong mid-generation platform between the R750 and newer R770.

Looking to compare generations? See the previous Dell PowerEdge R750 or move up to the Dell PowerEdge R770.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 2U Rack
  • Processors: Up to 2x 4th Gen Intel Xeon Scalable (56 cores) or 5th Gen (64 cores)
  • Memory: 32x DDR5 DIMM slots, up to 8TB (RDIMM)
  • Memory Speed: Up to 4800 MT/s (4th Gen) / 5600 MT/s (5th Gen)
  • Storage: Up to 24x 2.5" SAS/SATA/NVMe, 12x 3.5", or EDSFF E3.S options
  • Expansion: Up to 8x PCIe slots with Gen5 support
  • GPU Support: Up to 2x 350W double-width or 6x 75W single-width
  • Networking: Optional OCP 3.0 + 1GbE LOM options
  • Management: iDRAC9
  • Cooling: Air or optional Direct Liquid Cooling
  • Power: Hot-swap redundant PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R760 →

Customize & Get Pricing

Configure your Dell PowerEdge R760 with the exact specs you need

Configure This Server

Dell PowerEdge R760 vs R750: Specs & Key Differences

Feature PowerEdge R760 PowerEdge R750
Processors 4th Gen (up to 56 cores) or 5th Gen Intel Xeon Scalable (up to 64 cores) 3rd Gen Intel Xeon Scalable (up to 40 cores)
Memory 32x DDR5 DIMM slots, up to 8TB
Up to 5600 MT/s		 32x DDR4 DIMM slots, up to 8TB
Up to 3200 MT/s
PCIe Up to 8 slots with PCIe Gen5 support Up to 8x PCIe Gen4 slots
GPU Support Up to 2x 350W DW or 6x 75W SW Up to 2x 300W DW or 6x 75W SW
Storage Up to 24x 2.5", 12x 3.5", EDSFF E3.S options Up to 24x 2.5" or 12x 3.5"
Management iDRAC9 iDRAC9
Form Factor 2U Rack 2U Rack

Frequently Asked Questions

The R760 supports up to two 4th Gen Intel Xeon Scalable processors (max 56 cores) or 5th Gen Intel Xeon Scalable processors (max 64 cores per CPU).

It offers 32 DDR5 DIMM slots with a maximum capacity of 8TB using registered ECC RDIMMs, reaching speeds up to 5600 MT/s with 5th Gen processors.

Yes. It supports up to two 350W double-width GPUs or six 75W single-width accelerators, along with optional Direct Liquid Cooling for higher-power configurations.

Configurations include up to 24x 2.5-inch SAS/SATA/NVMe drives, 12x 3.5-inch drives, and EDSFF E3.S options, plus rear drive bays on select chassis.

The R760 upgrades to DDR5 memory, higher core counts (up to 64 vs 40), PCIe Gen5 support, and stronger GPU options while keeping the same 2U dual-socket form factor.
