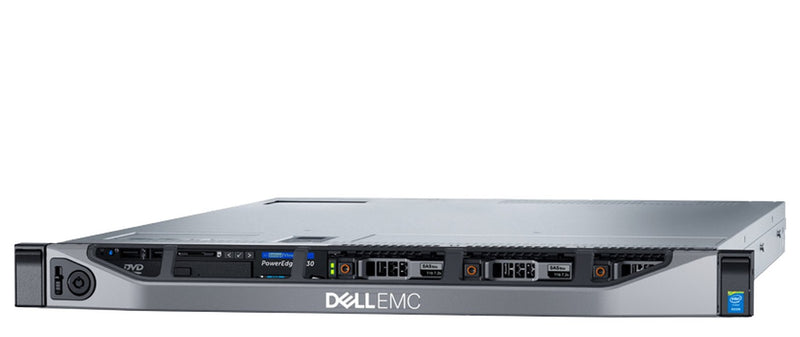

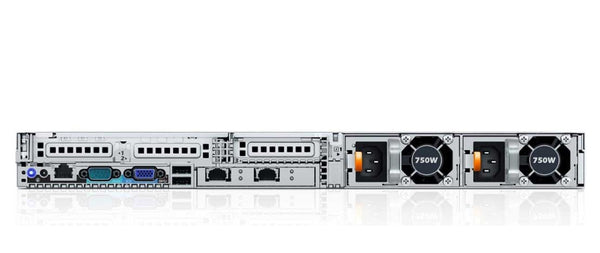

Dell PowerEdge R630

The Dell PowerEdge R630 is a dense 1U two-socket rack server running up to two Intel Xeon E5-2600 v3 or v4 processors with up to 22 cores each. It provides 24 DDR4 DIMM slots for up to 1.5TB at 2400 MT/s, front storage of up to 10x 2.5" drives or 24x 1.8" SSDs, up to three PCIe 3.0 slots plus a dedicated PERC slot, and a network daughter card with 1GbE or 10GbE ports. Seven hot-swap fans, redundant PSUs and iDRAC8 support uptime. Fully configurable.

Looking to compare generations? See its Gen 14 successor, the Dell PowerEdge R640, or compare Gen 13 models: Dell PowerEdge R430 and Dell PowerEdge R730xd.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: Up to 2x Intel Xeon E5-2600 v3/v4 (up to 22 cores)
  • Memory: 24x DDR4 DIMM slots, up to 1.5TB
  • Memory Speed: Up to 2400 MT/s
  • Storage: Up to 10x 2.5", 8x 2.5" or 24x 1.8" SSD
  • Expansion: Up to 3x PCIe 3.0 + dedicated PERC slot
  • GPU Support: 1x 75W single-width (selected configurations)
  • Networking: NDC: 4x 1GbE, 2x 1GbE + 2x 10GbE or 4x 10GbE
  • Management: iDRAC8 with Lifecycle Controller
  • Cooling: Air, 7 hot-swap fans
  • Power: Redundant PSUs, 495W to 1100W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R630 →

Customize & Get Pricing

Configure your Dell PowerEdge R630 with the exact specs you need

Configure This Server

Dell PowerEdge R630 vs R640: Specs & Key Differences

Feature PowerEdge R630 PowerEdge R640
Processors Up to 2x Intel Xeon E5-2600 v3/v4 (up to 22 cores) Up to 2x 2nd Gen Intel Xeon Scalable
Memory 24x DDR4 DIMM slots, up to 1.5TB
Up to 2400 MT/s		 24x DDR4 DIMM slots, up to 3TB
Up to 2933 MT/s
Storage Up to 10x 2.5" or 24x 1.8" SSD Up to 10x 2.5" or 4x 3.5"
PCIe Up to 3x PCIe 3.0 3x PCIe Gen3 x16
GPU Support 1x 75W single-width Up to 3x single-width (NVIDIA T4)
Networking NDC: 4x 1GbE, 2x 1GbE + 2x 10GbE or 4x 10GbE rNDC: 4x 1GbE, 4x 10GbE or 2x 25GbE
Management iDRAC8 with Lifecycle Controller iDRAC9
Cooling 7 hot-swap fans Up to 8 hot-plug fans
Power 495W to 1100W 495W to 1600W
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

Up to two Intel Xeon E5-2600 v3 or v4 processors, with core counts of up to 22 per socket, on the C610 chipset.

Its 24 DDR4 DIMM sockets accept up to 1.5TB with 64GB LRDIMMs, running at up to 2400 MT/s.

Chassis choices include eight or ten 2.5-inch hot-plug bays, or a 24-bay 1.8-inch SATA SSD configuration, with PERC S130, H330, H730 or H730P controllers. Please specify your capacity needs when you submit your quote configuration.

Yes, in a limited way. The owner's manual describes support for a 75W single-width active GPU in certain configurations, and installing a GPU rules out the 10GbE network daughter card.

The Gen 14 R640 moves to Xeon Scalable processors, doubles maximum memory to 3TB at 2933 MT/s, adds a 4x 3.5-inch option and 25GbE networking, and uses iDRAC9. Both are 1U dual-socket servers with 24 DIMM slots and three PCIe slots.
