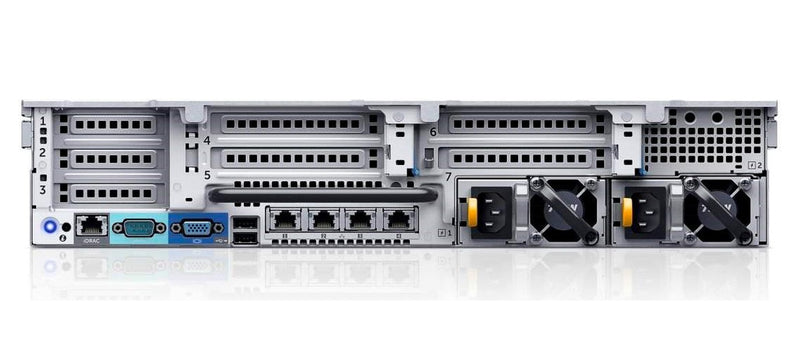

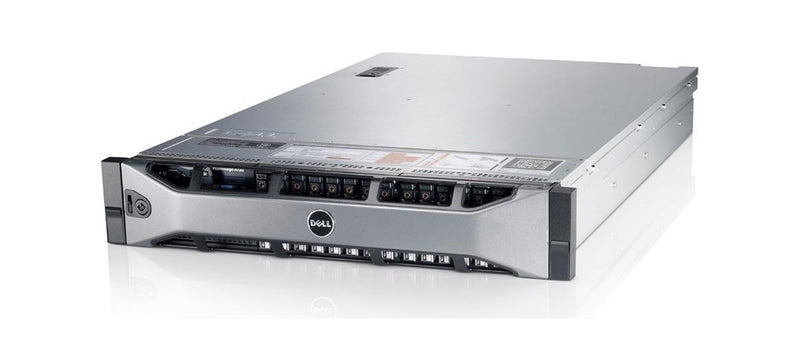

Dell PowerEdge R730xd

The Dell PowerEdge R730xd is a 2U two-socket rack server designed for large internal storage. It runs up to two Intel Xeon E5-2600 v3 or v4 processors and 24 DDR4 DIMM slots (up to 3TB with LRDIMMs, at up to 2400 MT/s). Storage options reach 26x 2.5" drives including PCIe SSDs, 16x 3.5" plus 2x 2.5", or 18x 1.8" SSDs plus 8x 3.5". It adds up to six PCIe 3.0 slots plus a PERC slot, a network daughter card and six hot-swap fans, managed by iDRAC8. Fully configurable.

Looking to compare generations? See the Gen 14 Dell PowerEdge R740, or compare Gen 13 models: Dell PowerEdge R730 and Dell PowerEdge R530.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 2U Rack
  • Processors: Up to 2x Intel Xeon E5-2600 v3/v4
  • Memory: 24x DDR4 DIMM slots, up to 3TB (LRDIMM)
  • Memory Speed: Up to 2400 MT/s
  • Storage: Up to 26x 2.5", 16x 3.5" + 2x 2.5", or 18x 1.8" + 8x 3.5"
  • Expansion: Up to 6x PCIe 3.0 + dedicated PERC slot
  • GPU Support: Not listed by Dell
  • Networking: NDC: 4x 1GbE, 2x 10GbE + 2x 1GbE or 4x 10GbE
  • Management: iDRAC8 with Lifecycle Controller
  • Cooling: Air, 6 hot-swap fans
  • Power: Redundant PSUs, 495W to 1100W

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R730XD →

Customize & Get Pricing

Configure your Dell PowerEdge R730xd with the exact specs you need

Configure This Server

Dell PowerEdge R730xd vs R740xd: Specs & Key Differences

Feature PowerEdge R730xd PowerEdge R740xd
Processors Up to 2x Intel Xeon E5-2600 v3/v4 Up to 2x 2nd Gen Intel Xeon Scalable (up to 28 cores)
Memory 24x DDR4 DIMM slots, up to 3TB
Up to 2400 MT/s		 24x DDR4 DIMM slots, up to 3TB
Up to 2933 MT/s
Persistent Memory Not supported Up to 12x NVDIMM or Intel Optane DC PMem
Storage Up to 26x 2.5", 16x 3.5" + 2x 2.5", or 18x 1.8" + 8x 3.5" Up to 24x 2.5" or 12x 3.5" front, plus mid and rear bays
PCIe Up to 6x PCIe 3.0 + PERC slot Up to 8x PCIe Gen3 (max 4 x16)
GPU Support Not listed by Dell Up to 3x 300W DW or 6x 150W SW (24x 2.5" chassis)
Networking NDC: 4x 1GbE, 2x 10GbE + 2x 1GbE or 4x 10GbE NDC: 4x 1GbE, 2x 10GbE + 2x 1GbE, 4x 10GbE or 2x 25GbE
Management iDRAC8 with Lifecycle Controller iDRAC9
Power 495W to 1100W 495W to 1100W
Form Factor 2U Rack 2U Rack

Frequently Asked Questions

Up to two Intel Xeon E5-2600 v3 or v4 processors, linked by two Intel QPI links.

It has 24 DDR4 DIMM sockets for up to 768GB with RDIMMs or up to 3TB with LRDIMMs, running at up to 2400 MT/s depending on processor and population.

Configurations include up to 24 front plus 2 rear 2.5-inch drives (with PCIe SSD support), 12 front 3.5-inch plus a 4x 3.5-inch mid tray and 2 rear 2.5-inch bays, or 18 front 1.8-inch SSDs with 8x 3.5-inch drives. Please specify your capacity needs when you submit your quote configuration.

Both share the same dual E5-2600 v3/v4 platform and 24 DIMM slots, but the xd variant trades a PCIe slot for much denser storage: up to 26 SFF or 18 LFF-class drives versus 16x 2.5-inch or 8x 3.5-inch on the R730.

The Gen 14 R740xd moves to Xeon Scalable with faster 2933 MT/s memory, adds NVDIMM and Optane persistent memory, NVMe across front, mid and rear bays, GPU and FPGA options, up to 8 PCIe slots, 25GbE and iDRAC9. Dell's R740xd spec sheet was used for the R740xd column.
