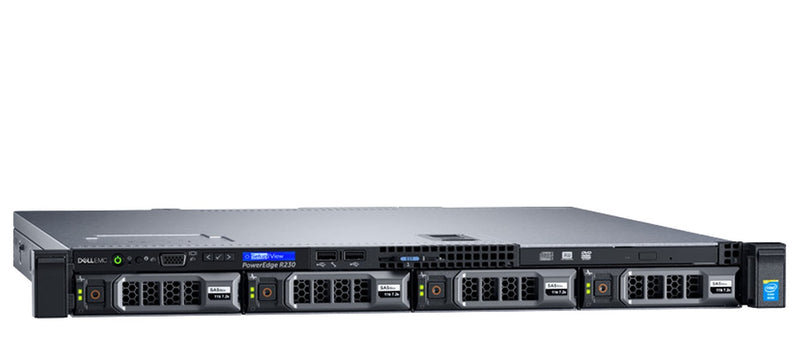

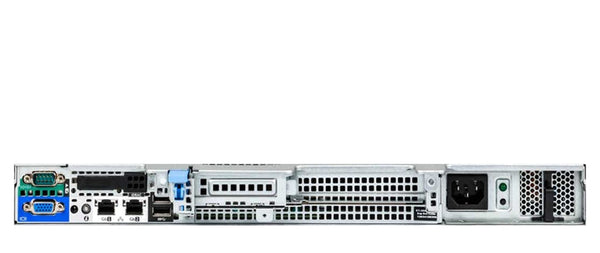

Dell PowerEdge R230

The Dell PowerEdge R230 is a 1U single-socket rack server that makes a solid first or replacement server for small businesses and branch offices. It runs one Intel Xeon E3-1200 v5 or v6 processor (or a Pentium, Core i3 or Celeron chip), four DDR4 UDIMM slots for up to 64GB at 2400 MT/s, and up to four 3.5" cabled or hot-swap drives. Two PCIe 3.0 slots, dual 1GbE ports and iDRAC8 with Lifecycle Controller round it out. Fully configurable.

Looking to compare generations? See its Gen 14 successor, the Dell PowerEdge R240, or compare Gen 13 models: Dell PowerEdge R330 and Dell PowerEdge R430.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: 1x Intel Xeon E3-1200 v5/v6, Pentium, Core i3 or Celeron
  • Memory: 4x DDR4 UDIMM slots, up to 64GB
  • Memory Speed: Up to 2400 MT/s
  • Storage: Up to 4x 3.5" cabled or hot-swap
  • Expansion: 2x PCIe 3.0 slots
  • GPU Support: Not listed by Dell
  • Networking: 2x 1GbE LOM
  • Management: iDRAC8 with Lifecycle Controller
  • Cooling: Air, non-hot-swap fans
  • Power: Single 250W cabled PSU

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R230 →

Customize & Get Pricing

Configure your Dell PowerEdge R230 with the exact specs you need

Configure This Server

Dell PowerEdge R230 vs R240: Specs & Key Differences

Feature PowerEdge R230 PowerEdge R240
Processors 1x Intel Xeon E3-1200 v5/v6, Pentium, Core i3 or Celeron 1x Intel Xeon E-2200, Pentium, Core i3 or Celeron
Memory 4x DDR4 UDIMM slots, up to 64GB 4x DDR4 ECC UDIMM slots, up to 64GB
Memory Speed Up to 2400 MT/s Up to 2666 MT/s
Storage Up to 4x 3.5" cabled or hot-swap Up to 4x 3.5" cabled or 4x 3.5"/2.5" hot-plug
Storage Controllers PERC S130, H330, H730
External H830		 PERC S140, H330, H730P, HBA330
PCIe 2x PCIe 3.0 2x PCIe Gen3
Networking 2x 1GbE LOM 2x 1GbE LOM
Management iDRAC8 with Lifecycle Controller iDRAC9
Power Single 250W cabled Single 250W or 450W cabled
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

One Intel Xeon E3-1200 v5 or v6 processor, or an entry Pentium, Core i3 or Celeron chip, on the Intel C236 chipset.

Four DDR4 unbuffered DIMM sockets support up to 64GB at speeds up to 2400 MT/s.

Chassis choices cover two or four 3.5-inch cabled drives, or four 3.5-inch hot-swap bays that also take 2.5-inch drives in hybrid carriers, with PERC S130, H330 or H730. Please specify your capacity needs when you submit your quote configuration.

Both use Xeon E3-1200 v5/v6 processors and 64GB of DDR4. The R330 adds an eight-drive 2.5-inch option and hot-plug redundant power, while the R230 is the simpler, lower-cost choice with a single cabled 250W supply.

The Gen 14 R240 moves to Xeon E-2200 processors with up to 8 cores, DDR4-2666 memory and iDRAC9, and adds a 450W PSU option. Both are 1U single-socket servers with four DIMM slots (64GB), up to four 3.5-inch drives and two PCIe slots.
