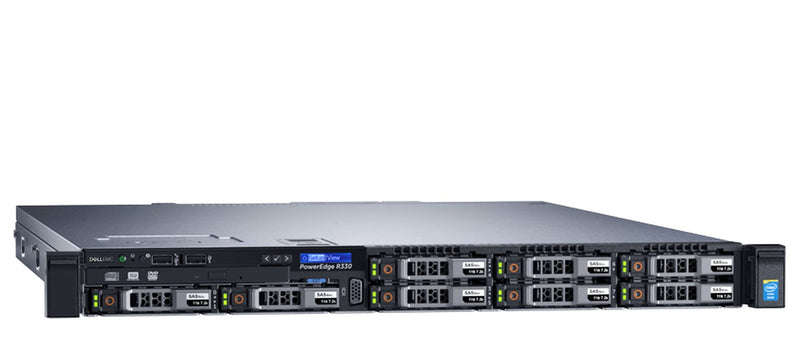

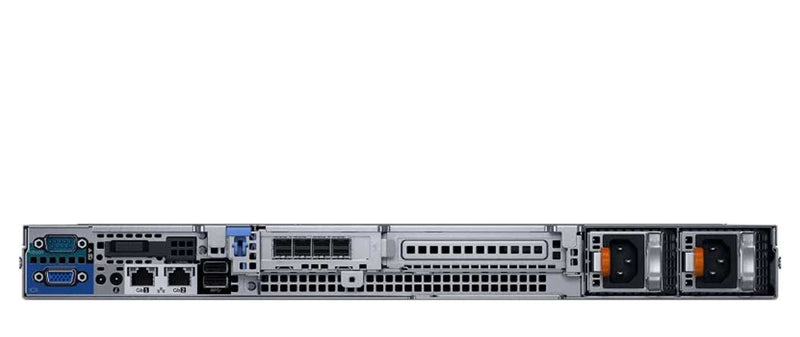

Dell PowerEdge R330

The Dell PowerEdge R330 is a compact 1U single-socket rack server for small businesses and branch offices. It takes one Intel Xeon E3-1200 v5 or v6 processor (or an entry Pentium or Core i3 chip), four DDR4 UDIMM slots for up to 64GB at 2400 MT/s, and either four 3.5" or eight 2.5" hot-swap drives, or four cabled 3.5" drives. Two PCIe 3.0 slots, two 1GbE ports, redundant 350W power and iDRAC8 with Lifecycle Controller round out the platform. Fully configurable.

Looking to compare generations? See its Gen 14 successor, the Dell PowerEdge R340, or compare Gen 13 models: Dell PowerEdge R430 and Dell PowerEdge R630.

Thanks for the request. We'll get back to you with in 24 hours.

  • Form Factor: 1U Rack
  • Processors: 1x Intel Xeon E3-1200 v5/v6, Pentium or Core i3
  • Memory: 4x DDR4 UDIMM slots, up to 64GB
  • Memory Speed: Up to 2400 MT/s
  • Storage: Up to 8x 2.5" or 4x 3.5" hot-swap, or 4x 3.5" cabled
  • Expansion: 2x PCIe 3.0 slots + internal storage slot
  • GPU Support: Not listed by Dell
  • Networking: 2x 1GbE LOM
  • Management: iDRAC8 with Lifecycle Controller
  • Cooling: Air, up to 4 non-hot-swap fans
  • Power: Up to 2x 350W hot-plug redundant PSUs

Thanks for the request. We'll get back to you with in 24 hours.

Configure this  R330 →

Customize & Get Pricing

Configure your Dell PowerEdge R330 with the exact specs you need

Configure This Server

Dell PowerEdge R330 vs R340: Specs & Key Differences

Feature PowerEdge R330 PowerEdge R340
Processors 1x Intel Xeon E3-1200 v5/v6, Pentium or Core i3 1x Intel Xeon E-2200, Pentium, Core i3 or Celeron
Memory 4x DDR4 UDIMM slots, up to 64GB 4x DDR4 ECC UDIMM slots, up to 64GB
Memory Speed Up to 2400 MT/s Up to 2666 MT/s
Storage Up to 8x 2.5" or 4x 3.5" hot-swap, or 4x 3.5" cabled Up to 8x 2.5" or 4x 3.5" hot-plug
Storage Controllers PERC S130, H330, H730, H830 PERC H730P, H330, HBA330, S140
PCIe 2x PCIe 3.0 2x PCIe Gen3
Networking 2x 1GbE LOM 2x 1GbE LOM
Management iDRAC8 with Lifecycle Controller iDRAC9
Power Up to 2x 350W hot-plug redundant 350W or 550W Platinum, single or dual hot-plug
Form Factor 1U Rack 1U Rack

Frequently Asked Questions

It is a single-socket server for one Intel Xeon E3-1200 v5 or v6 processor, with entry Pentium and Core i3 options also offered, on the Intel C236 chipset.

Four DDR4 unbuffered DIMM sockets accept up to 64GB in total, running at up to 2400 MT/s.

Chassis options cover four 3.5-inch cabled drives (with two optional cabled 1.8-inch SSDs), four 3.5-inch hot-swap drives, or eight 2.5-inch hot-swap drives, using PERC S130, H330 or H730. Please specify your capacity needs when you submit your quote configuration.

Yes. It can take two 350W Platinum hot-plug power supplies for redundancy. The cooling fans, however, are not hot-swappable.

The Gen 14 R340 steps up to Xeon E-2200 processors with up to 8 cores, DDR4-2666 memory and iDRAC9, and adds a 550W PSU choice. Both keep four UDIMM slots (64GB), two PCIe slots, two 1GbE ports and the same 8x 2.5-inch or 4x 3.5-inch hot-plug layouts.
