Home / Dell Server Equipment and more. / Dell PERC 11 HBA355e x8 PCI-e 12Gb SAS FH Non-RAID Controller
SKU: DPE-PERC-11-HBA355e-FH

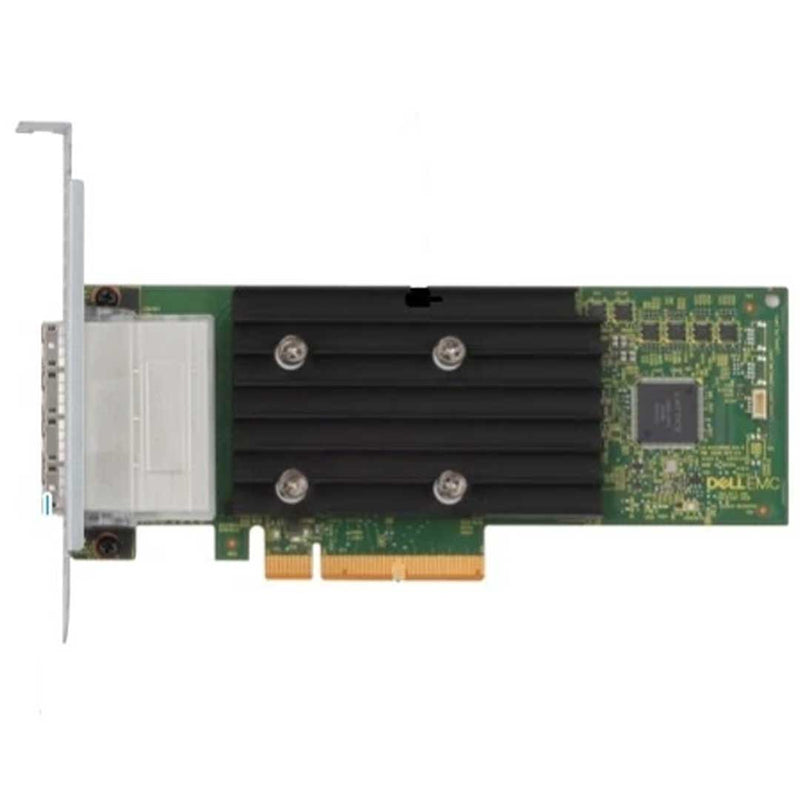

Dell PERC 11 HBA355e x8 PCI-e 12Gb SAS FH Non-RAID Controller

Dell

| Adapter
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Models

PCIe Host Bus Adapter

Drive Types

12 Gb/s SAS
6 Gb/s SAS/SATA
3Gb/s SAS/SATA

PCI Support

PCI-e 4.0

SAS Connectors

16 Port 4x4 External

Cache Memory

N/A

Write Back Cache

N/A

Boot Support

No

Max Drive Support

240

RAID Support

N/A

Part Numbers:

  • 6CDMK
HBA355 Series 11 Options

> HBA355i Adapter
View PERC

Enclosures per port

0

Cache:

N/A

RAID Level:

N/A

Non-RAID:

Yes

PCIe:

Gen 4

Supported Drives:
  • 12 Gb/s SAS
  • 6 Gb/s SAS/SATA
  • 3 Gbps SAS/SATA
Max SAS/SATA disks:
  • 16 drives per controller
  • w/ SAS Expander 50: Limited by platform offerings
Max NVMe drives:
  • Not Supported
Max physical disks:
  • 50 with SAS Expander
    *Platform limit

HBA355e Adapter
View PERC

Enclosures per port

2 (Single Path)

Ports:

16 Ports 4x4

RAID Level:

N/A

Non-RAID:

Yes

PCIe:

Gen 4

Supported Drives:
  • 12 Gb/s SAS
  • 6 Gb/s SAS/SATA
  • 3 Gbps SAS/SATA
Max SAS/SATA disks:
  • 240
Max NVMe drives:
  • Not Supported
Max physical disks:
  • 240

HBA355 Front
View PERC

Enclosures per port

0

Cache:

N/A

RAID Level:

N/A

Non-RAID:

Yes

PCIe:

Gen 4

Supported Drives:
  • 12 Gb/s SAS
  • 6 Gb/s SAS/SATA
  • 3 Gb/s SAS/SATA
Max SAS/SATA disks:
  • 16 drives per controller
  • w/ SAS Expander 50: Limited by platform offerings
Max NVMe drives:
  • Not Supported
Max physical disks:
  • 50 *Platform limit
Compatible With:
  • Dell R660
  • Dell R660xs
  • Dell R6615
  • Dell R6625
  • Dell R760
  • Dell R760xa
  • Dell R760xd2
  • Dell R760xs
  • Dell R7615
  • Dell R7625
  • Dell R860
  • Dell R960
  • Dell T150
  • Dell T350
  • Dell T440
  • Dell T550
  • Dell T560
  • Dell XR12

(Click to View)

Spec Sheet 4

Model & Form Factors Interface Support PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H755N Front (NVMe Only) Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/per controller Hardware
H755 Adapter FH 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0, 1, 5, 6, 10, 50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 Adapter LP
H755 Front (SAS/SATA Only) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 MX 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 1x8 Internal 8GB NV DDR4 2666MT/s Flash Backed Cache 0, 1, 5, 6, 10, 50,60 8, Limited by platform N/A
H750 Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA
*SAS/SATA ONLY		 PCIe Gen 4 1x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H750 Adapter LP
H355i Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H355i Adapter LP
H355 Front 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
>or 32 Non-RAID		 Hardware
HBA355 Front (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter LP
HBA355e Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 4x4 External N/A N/A N/A 240 N/A
HBA355e Adapter LP
H350 Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 1x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H350 Adapter LP
H350 Mini Mono 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x4 Internal N/A N/A 0, 1, 10 Without SAS Expander:
8 drives per controller

With SAS Expander:
Limited by platform offering 		N/A
HBA350i Adapter (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA350 MX (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 1x8 Internal N/A N/A N/A 8
*Platform limit		 N/A
