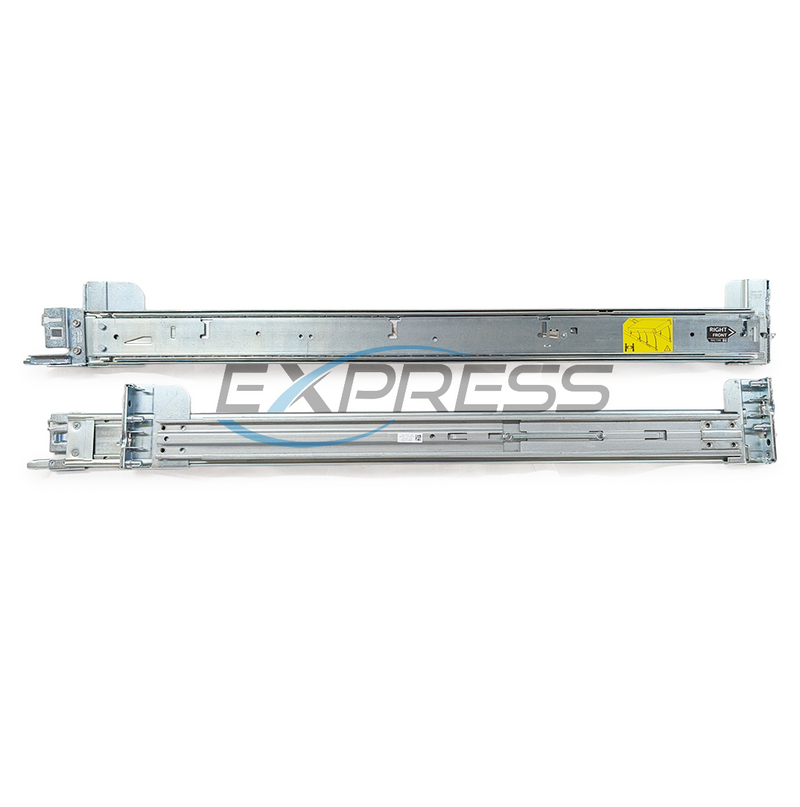

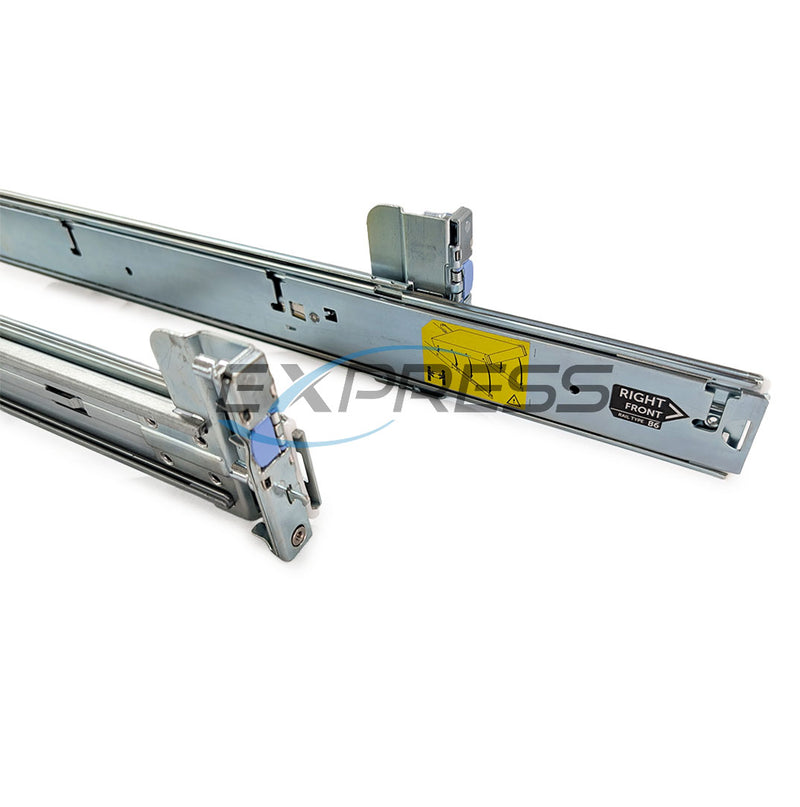

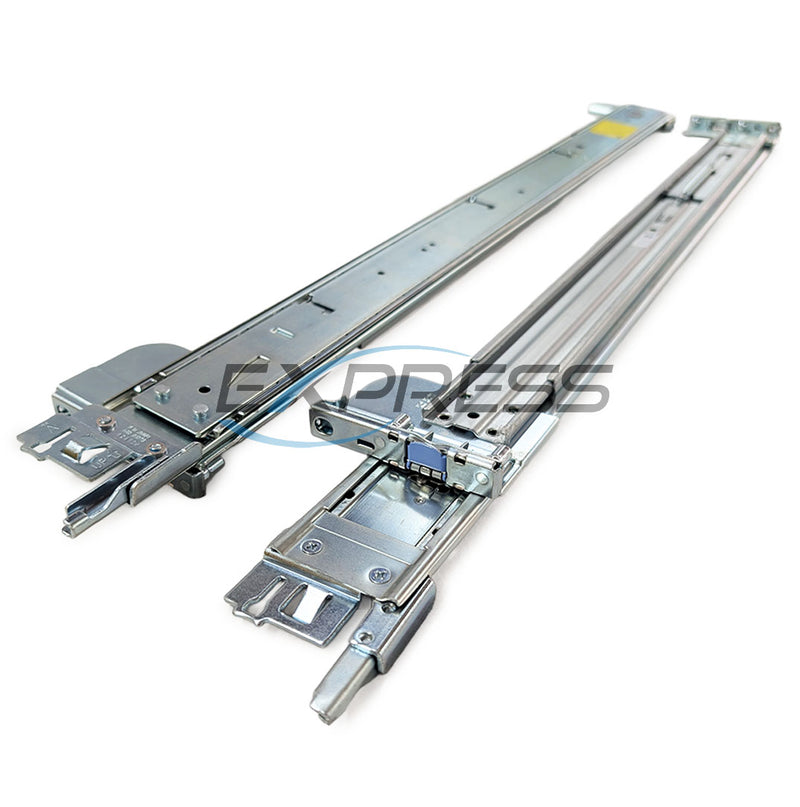

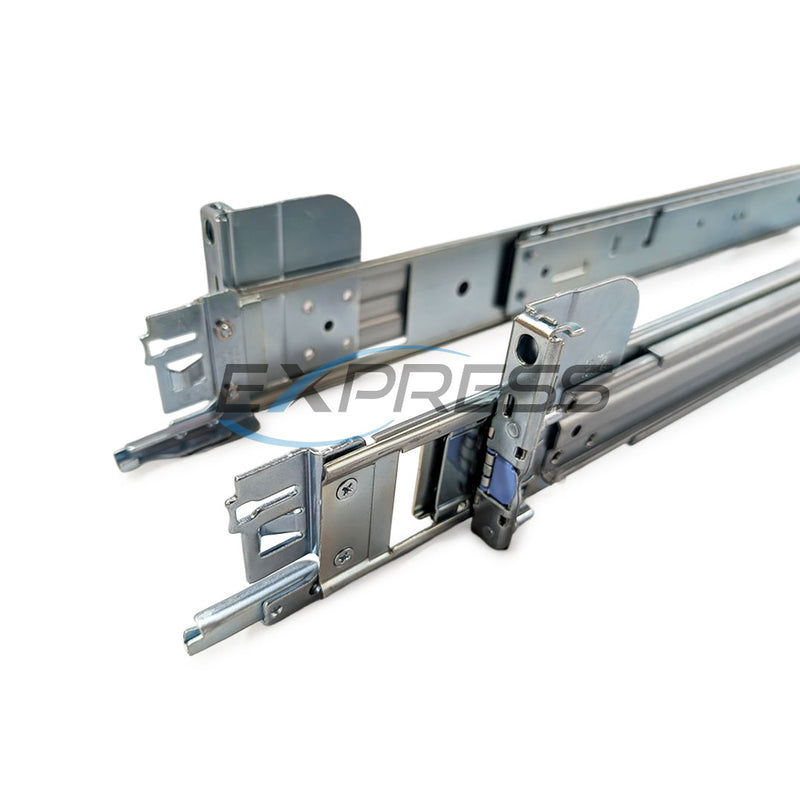

Quick Specs
Sliding rails allow a system to be fully extended out of the rack for service. Most sliding rails support Cable Management Arms (CMAs) which enable the system to be extended out of the rack without disconnecting data/power cables at the rear of the system. Unless otherwise indicated, all sliding rails are drop-in sliding rail design
Cable management arm (CMA) is a cable management accessory which connects to the rails behind the system. It allows a fully cabled system to be extended out of the rack into a service position.
Strain relief bar (SRB) is a cable management solution, which in most cases, attaches to the back of the rails via the strain relief bar brackets. Cables from the back of the chassis are placed across the top of the SRB and secured by straps.
Square-hole describes a 4-post rack mounting flange type where rails utilize Square holes sized according to EIA-310-D standard for mounting.
Round-hole describes a 4-post rack mounting flange type where rails utilize Unthreaded-Round holes sized according to EIA-310- D standard for mounting.
Threaded-hole describes a 4-post rack mounting flange type where rails utilize Threaded-round holes for mounting. Threaded round holes may require additional hardware for mounting and hardware may vary by thread type. See footnotes in table 2 for specific information on threaded-round hole mounting.
Part Number:
- H4X6X
- 61KCY
- XV104
- 0PWN3
| Rail identifier | Mounting interface | Rail type | Rack types supported | Rail adjustability range (mm) | Rail depth (mm) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4-Post | 2-Post | Square | Round | Threaded | without CMA/SRB | with CMA(SRB) | |||||||||||||
| Square | Round | Thread | Flush | Center | Min | Max | Min | Max | Min | Max | |||||||||
| B6 |
ReadyRails II | Sliding | X | X | X a,c,d | - | - | 631 | 868 | 617 | 861 | 631 | 883 | 714 b | 845 | ||||
|
a Minor conversion required |
|||||||||||||||||||
- Dell Nx3200
- Dell R520
- Dell R530
- Dell R540
- Dell R720
- Dell R720xd
- Dell R730
- Dell R730xd
- Dell R740
- Dell R740xd
- Dell R7415
- Dell R7425
- Dell R750
- Dell R7515
- Dell R7525
- Dell R7910
- Dell R7920
- Dell R820
- Dell R830
- Dell Sc8000
