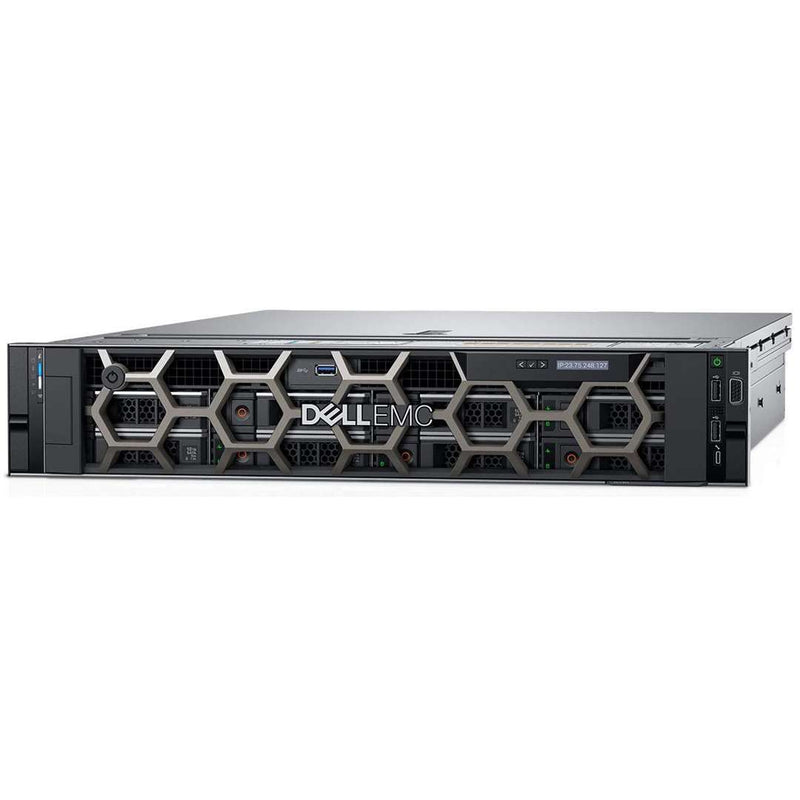

Dell PowerEdge R740 Rack Server CTO

Dell

| CTO Servers |

DPE-R740-CTO



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Supports up to two processors with up to 28 cores per processor.
Processors SKUs ending with M can support up to 1.5TB of memory

Intel Xeon 1nd Generation Processors

Supports up to (2) processors

Intel Xeon 2nd Generation Processors

Supports up to (2) processors

Bezel (Optional)

Optional LCD bezel or security bezel

Memory

12 DIMMs per processor (up to 24 DIMMs in a dual-processor configuration)
RDIMMs and LRDIMMs must not be mixed.
Mixing of more than two memory module capacities in a system is not supported.
A minimum of two CPUs are required for any configurations that support NVDIMM-N.
Maximum of 12 NVDIMM-Ns can be installed in a system.
GPU and FGPA cards are not supported with PMem
Front 12 x 3.5-inch drives are not supported with PMem.
Please read the Technical Guide for more DIMM Rules.

RAID Controllers (Optional)

Embedded S140 software RAID installed by default

Boot Optimized Storage Subsystem (BOSS) (Optional)

Supports up to (2) BOSS modules

HDD 3.5" Drives (Optional)

Supports up to (8) Drives

HDD 2.5" Drives (Optional)

If the (3.5") Backplane was installed. These will be installed in a 3.5" HD Carrier

SSD 2.5" Drives (Optional)

If the (3.5") Backplane was installed. These will be installed in a 3.5" HD Carrier
Mixing of 2.5 inch 10K or 15K SAS hard drives with 2.5 inch 7.2K SATA or Nearline SAS hard drives in the same backplane is not supported.

SSD 2.5" NVMe Drives (Optional)

PCIe Configurations (Optional)

Please read the "PCI Expansion Options" section below for more details.

GPU / FPGA (Optional)

You can install up to three double-wide or six single-wide GPUs.
If the NVDIMM-N battery is installed on the GPU shroud, FL GPUs are not supported on riser 2.
Please read the manual for requirements and limitations on GPU installations

Network Daughter Card LOM (rNDC) (Optional)

Select Network Adapter NDC:
4x 1GB, 4x 10GB, 2x 10GB + 2x 1GB, or 2x 25GB

Internal Dual SD Module (IDSDM) (Optional)

Optical Drive (Optional)

Rail Kits (Optional)

Trusted Platform Module (Optional)

iDRAC9 Remote Options (Optional)

Default iDRAC9 Express

Power Supplies

Supports up to (2) PSU's

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U rack server

Processor | Max: 28 Cores

2 x Intel Xeon Scalable

Memory | Max: 3TB, Pmem 6.14TB, 7.68TB Pmem + LRDIMM

24 ECC DDR4 RDIMM/LRDIMM 2933Mhz
Up to 12 NVDIMM, 192 GB Max
Up to 12 Intel® Optane™ DC persistent memory PMem

Storage | Max: 122.88TB, 128TB

8x LFF SFF SAS/SATA (HDD/SSD)
8x or 16x SFF SAS/SATA (HDD/SSD)

Boot Options

Boot Optimized Server Storage (BOSS-S1)
Internal Dual SD module (IDSDM)
(16/32/64 GB) and vFlash card (16 GB)

RAID Controller:

S140 (software RAID)
H330, H730P, H740P, HBA330, H840, 12Gbps SAS HBA

NIC/LOM:

4x 1GbE, 2x 10GbE + 2x 1GbE, 4x 10GbE, 2x 25GbE NDC
(Many Options to choose from)

Remote Management:

iDRAC9 Express (default) with Lifecycle Controller

PCIe Slots:

Up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots

GPU:
  • Up to (3) 300W GPUs
  • Up to (6) 150W GPUs
  • Up to (3) double-width FPGAs
  • Up to (4) single-width FPGAs
Other Versions

Ideal for:

  • Database
  • High-Performance Computing (HPC)
  • Virtual Desktop Interface (VDI)
Expand and optimize application performance

Dell PowerEdge R740 Rack Server Persistent Memory NVDIMM-N can increase database performance by 10x

The scalable business architecture of the Dell EMC PowerEdge R740 can scale up to three 300W or six 150W GPUs, or up to four FPGAs. With up to 16 2.5” drives or 8 3.5” drives the Dell EMC PowerEdge R740 provides the versatility to adapt to virtually any application and provides the perfect platform for VDI deployments.

  • Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to Dell EMC PowerEdge R730.
  • Free up storage space using internal M.2 SSDs optimized for boot.
  • Scale compute resources with Intel Xeon Scalable delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors
Automate systems management with OpenManage

The Dell EMC OpenManage portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the Dell EMC PowerEdge R740 is simply managed, freeing up time for high profile projects.

  • Simplify management with the New OpenManage Enterprise console, with customized reporting and automatic discovery.
  • Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Rely on PowerEdge with built-in security

Every Dell PowerEdge R740 Rack Server is designed as part of a cyber resilient architecture, integrating security into the full server lifecycle. The R740 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.

  • Rely on a secure component supply chain to ensure protection from factory to the data center.
  • Maintain data safety with cryptographically signed firmware packages and Secure Boot.
  • Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise or Datacenter license)
  • Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
General-purpose workhorse optimized for workload acceleration

Maximize your application performance with the Dell PowerEdge R740 Rack Server, which brings you the perfect balance of accelerator cards, storage and compute resources in a 2U, 2-socket platform. With a wide range of GPU and FPGA options, the R740 has the versatility to adapt to virtually any application and provides the optimum platform for VDI deployments. The Dell EMC PowerEdge R740 offers up to 16 x 2.5” or 8 x 3.5” drives and iDRAC9, so you can scale to meet demands and simplify the entire IT lifecycle.

Achieve IT transformation with the Dell EMC PowerEdge portfolio

The Dell PowerEdge R740 Rack Server is a general-purpose workhorse optimized for workload acceleration. With its versatility, the Dell EMC PowerEdge R740 can help you transform your data center for VDI, artificial intelligence and software-defined storage (SDS).

  • Simplify and accelerate VMware vSAN deployments with validated, pre-bundled and tailored Ready Nodes.
  • Drive demanding workloads with 2nd Generation Intel Xeon Scalable processors and Intel Optane DC Persistent Memory.
  • Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to Dell PowerEdge R740 Rack Server.
  • Free up storage space using internal M.2 SSDs optimized for boot.
Memory Options
DIMM type DIMM rank DIMM capacity Single processor Dual processors
Min RAM Max RAM Min RAM Max RAM
lRDIMM Quad rank 64 GB 64 GB 768 GB 128 GB 1536 GB
RDIMM Single rank 8 GB 8 GB 96 GB 16 GB 192 GB
RDIMM Dual rank /td> 16 GB 16 GB 192 GB 32 GB 384 GB
RDIMM Dual rank 32 GB 32 GB 384 GB 64 GB 768 GB
NV-DIMM Single rank 16GB Not supported with single processor Not supported with single processor RDIMM: 192 GB
NVDIMM-N: 16 GB		 RDIMM: 384 GB
NVDIMM-N: 192 GB
Networking Options

The Dell PowerEdge R740 Rack system supports up to four Network Interface Controller (NIC) ports that are integrated on the network daughter card (NDC), and are available in the following congurations:

  • Four RJ-45 ports that support 10, 100 and 1000 Mbps
  • Four RJ-45 ports that support 100 M, 1 G and 10 Gbps
  • Four RJ-45 ports, where two ports support maximum of 10 G and the other two ports maximum of 1 G
  • Two RJ-45 ports that support up to 1 Gbps and 2 SFP+ ports that support up to 10 Gbps
  • Four SFP+ ports that support up to 10 Gbps
  • Two SFP28 ports that support up to 25 Gbps
  • NOTE: You can install up to eight PCIe add-on NIC cards.
Image of the Network mezzanine card slot for the Dell R730xd Rack Server from Dell.
Dell PowerEdge R740 Rack Server - Storage Controller Options
Class PERC
Internal S140 (SW RAID)
PERC H330, H730P, H740P, HBA330
External PERC H840
12Gbps SAS HBA
Image of the Storage Controller Mini-PERC on the Dell R740 Rack Server.
GPU Kit Options
The Dell PowerEdge R740 Rack Server GPU Rules:
  • Ensure that both the processors are installed.
  • The processor must use a GPU kit low-profile heat sink module
  • All GPUs must be of the same type and model.
  • You can install up to three double-wide or six single-wide GPUs.
  • The filler bracket on the GPU air shroud must be removed before installing the GPU.
  • Ensure that high-performance fans, and GPU air shroud are installed.
  • When using systems with GPU, ensure that you install PSUs with 1100 W or higher, and set the PSU configuration to non-redundant mode.
  • Generally, any GPU that is greater than 75 W requires a power cable. GPUs with 75 W or less does not require a power cable.
The GPU enablement kit includes:
  • GPU air shroud
  • Mylar
  • Riser 3A or 3B
  • GPU cable for riser 3A or 3B
  • GPU cable for riser 2A or 2E
  • Riser 2A or 2E
  • Riser 1A or 1D
  • GPU cable for riser 1A or 1D
  • Two 1U processor and heat sink modules and two CPU clips
  • Six high performance cooling fans

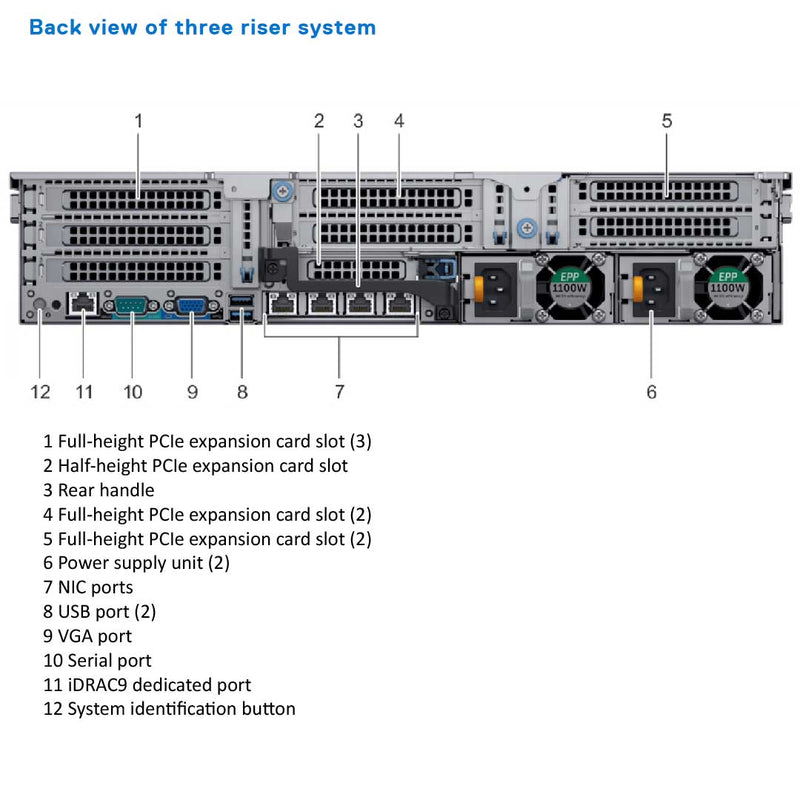

PCI Expansion Options

Riser configuration and supported risers Slot description PCIe slots on riser 1 (Height and length) Processor connection PCIe slots on riser 2 (Height and length) Processor connection PCIe slots on riser 3 (Height and length) Processor connection
Riser configuration 0 (No riser) No PCIe slots (only rear storage) N/A N/A N/A N/A N/A N/A
Riser configuration 1 (1B+2 B) Four x8 slots Slot 1: x8 full-height, full length Processor 1 Slot 4: x8 low profile, half length Processor 1 N/A N/A
Slot 2: x8 full-height, full length Processor 1
Slot 3: x8 full-height, half length Processor 1
Riser configuration 2 (1B+2C) Three x8 and one x16 slots Slot 1: x8 full-height, full length Processor 1 Slot 4: x16 low profile, half length Processor 2 N/A N/A
Slot 2: x8 full-height, full length Processor 1
Slot 3: x8 full-height, half length Processor 1
Riser configuration 3 (1A+2A) Two x8 and three x16 slots Slot 1: x16 full-height, full length Processor 1 Slot 4: x16 full-height, full length Processor 2 N/A N/A
N/A N/A Slot 5: x8 full-height, full length Processor 2
Slot 3: x16 full-height, half length Processor 1 Slot 6: x8 low profile, half length Processor 1
Riser configuration 4 (1A+2A+3A) Three x8 and four x16 slots Slot 1: x16 full-height, full length Processor 1 Slot 4: x16 full-height, full length Processor 2 Slot 7: x8 full-height, full length Processor 2
N/A N/A Slot 5: x8 full-height, full length Processor 2 Slot 8: x16 full-height, full length Processor 2
Slot 3: x16 full-height, half length Processor 1 Slot 6: x8 low profile, half length Processor 1
Riser configuration 15 (1A+2E+3B) Three x8 and four x16 slots Slot 1: x16 full-height, full length Processor 1 Slot 4: x16 full-height, full length Processor 2 Slot 7: x8 full-height, full length Processor 2
N/A N/A Slot 5: x8 full-height, full length Processor 2 Slot 8: x16 full-height, full length Processor 2
Slot 3: x16 full-height, half length Processor 1 Slot 6: x8 low profile, half length Processor 1
Riser configuration 5 (1B+2A+3A) Six x8 and two x16 slots Slot 1: x8 full-height, full length Processor 1 Slot 4: x16 full-height, full length Processor 2 Slot 7: x8 full-height, full length Processor 2
Slot 2: x8 full-height, full length Processor 1 Slot 5: x8 full-height, full length Processor 2 Slot 8: x16 full-height, full length Processor 2
Slot 3: x8 full-height, half length Processor 1 Slot 6: x8 low profile, half length Processor 1
Riser configuration 6 (1D+2A+3A) Five x8 and three x16 slots Slot1: x16 full-height, full length Processor 1 Slot 4: x16 full-height, full length Processor 2 Slot 7: x8 full-height, full length Processor 2
Slot 2: x8 full-height, full length Processor 1 Slot 5: x8 full-height, full length Processor 2 Slot 8: x16 full-height, full length Processor 2
Slot 3: x8 full-height, half length Processor 1 Slot 6: x8 low profile, half length Processor 1
Riser configuration 16 (1D+2E+3B) Five x8 and three x16 slots Slot1: x16 full-height, full length Processor 1 Slot 4: x16 full-height, full length Processor 2 Slot 7: x8 full-height, full length Processor 2
Slot 2: x8 full-height, full length Processor 1 Slot 5: x8 full-height, full length Processor 2 Slot 8: x16 full-height, full length Processor 2
Slot 3: x8 full-height, half length Processor 1 Slot 6: x8 low profile, half length Processor 1
Boot Options

The BOSS is recommended for non-virtualized operating systems. Virtualized operating systems are best supported by the IDSDM

Image of the Dell PowerEdge R440 IDSDM Card

IDSDM or vFlash card

The IDSDM with vFlash module has a dedicated slot at the back of the system chassis. This is a Dell EMC-proprietary PCIe x1 slot that uses a USB 3.0 interface to host. In the PowerEdge R440 systems, the IDSDM and vFlash card size changes from SD to microSD and the supported capacity for IDSDM microSD cards are 16 GB, 32 GB, or 64 GB, while for vFlash the capacity is 16 GB only. The write-protect switch is built onboard on the IDSDM module.

Image of the Dell PowerEdge R440 BOSS Card

Boot Optimized Storage Subsystem (BOSS)

The Boot Optimized Storage Subsystem (BOSS) is an alternative, high speed location to install the operating system. This ensures that the drive based storage is not used by the operating system. BOSS is a simple RAID solution card designed specifically for booting the system's operating system, which supports up to two 6 Gbps M.2 SATA drives. This card has a x8 connector using PCIe gen 2.0 x2 lanes, available only in the low-profile and half-height form factor

Dell PowerEdge R740 Rack Server - Power & Dimensions
Power
PSU Class Frequency
495 W AC Platinum 50/60 Hz
750 W AC Platinum 50/60 Hz
750 W AC Titanium 50/60 Hz
1100 W AC Platinum 50/60 Hz
1100 W DC N/A N/A
1600 W AC Platinum 50/60 Hz
2000 W AC Platinum 50/60 Hz
2400 W AC Platinum 50/60 Hz
Dimensions & Weight
  • Length: 741.34 mm (29.58")
  • Width: 482.0 mm (18.98")
  • Height: 86.8 mm (3.42")
  • Weight:
    • 2.5" | 26.3 kg (57.98 lb)
    • 3.5" | 28.6 kg (63.05 lb)

Current Configuration

(List below serves as quick links to each section)

Server Chassis

Processors

Bezel

Memory

RAID Controllers

Boot Optimized Storage Subsystem (BOSS)

HDD 3.5" Drives

HDD 2.5" Drives

SSD 2.5" Drives

SSD 2.5" NVMe Drives

PCIe Configurations

GPU / FPGA

Network Daughter Card LOM (rNDC)

Internal Dual SD Module (IDSDM)

Optical Drive

Rail Kits

Trusted Platform Module

iDRAC9 Remote Options

Power Supplies

ECS Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

You may also like
