HPE ProLiant DL360 Rack Server (G10) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What’s New
- Supporting the second generation Intel Xeon Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
- HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage featuring Intel Optane DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.
- 800GB 1.6/3.2/6.4TB NVMe Mixed Use SFF SSDs
- 960GB 1.92/3.84/7.68TB NVMe Read Intensive SFF SSDs
- 480GB/1.92/3.84TB SATA Mixed Use SFF SSDs
- HPE StoreFabric SN1610Q 32Gb 1 port Fibre Channel Host Bus Adapter
- HPE StoreFacbric SN1610Q 32Gb 2 port Fibre Channel Host Bus Adapter
- Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
- Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
Ideal for:
- Cloud Servers
- Corporate IT
- Data Analytics
- Database
- High-Performance Computing (HPC)
- Hyper-Converged infrastructure (HCI)
- Virtual Desktop Interface (VDI)
- Virtualization
- Virtual Machines (VM)
Industry-leading Performance with Versatile Compute
The refurbished HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain and 27% increase in cores, along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 82%.
Achieve greater capacity with flexible drive configurations with up to 10 SFF and four LFF drives along with an option to support up to 10 NVMe PCIe SSDs delivering enhanced performance, capacity, and reliability to meet various customer segments and workload requirements at the right price.

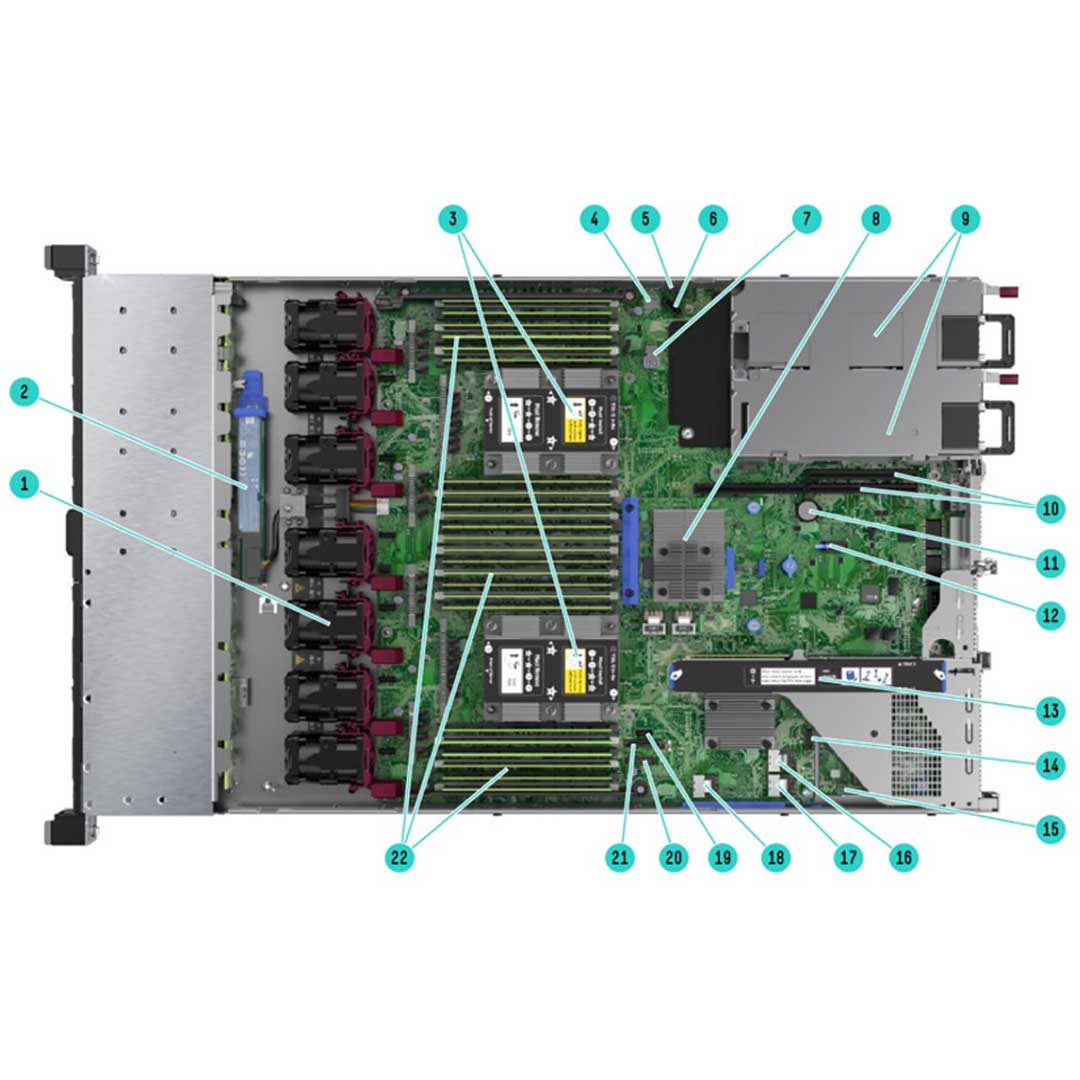

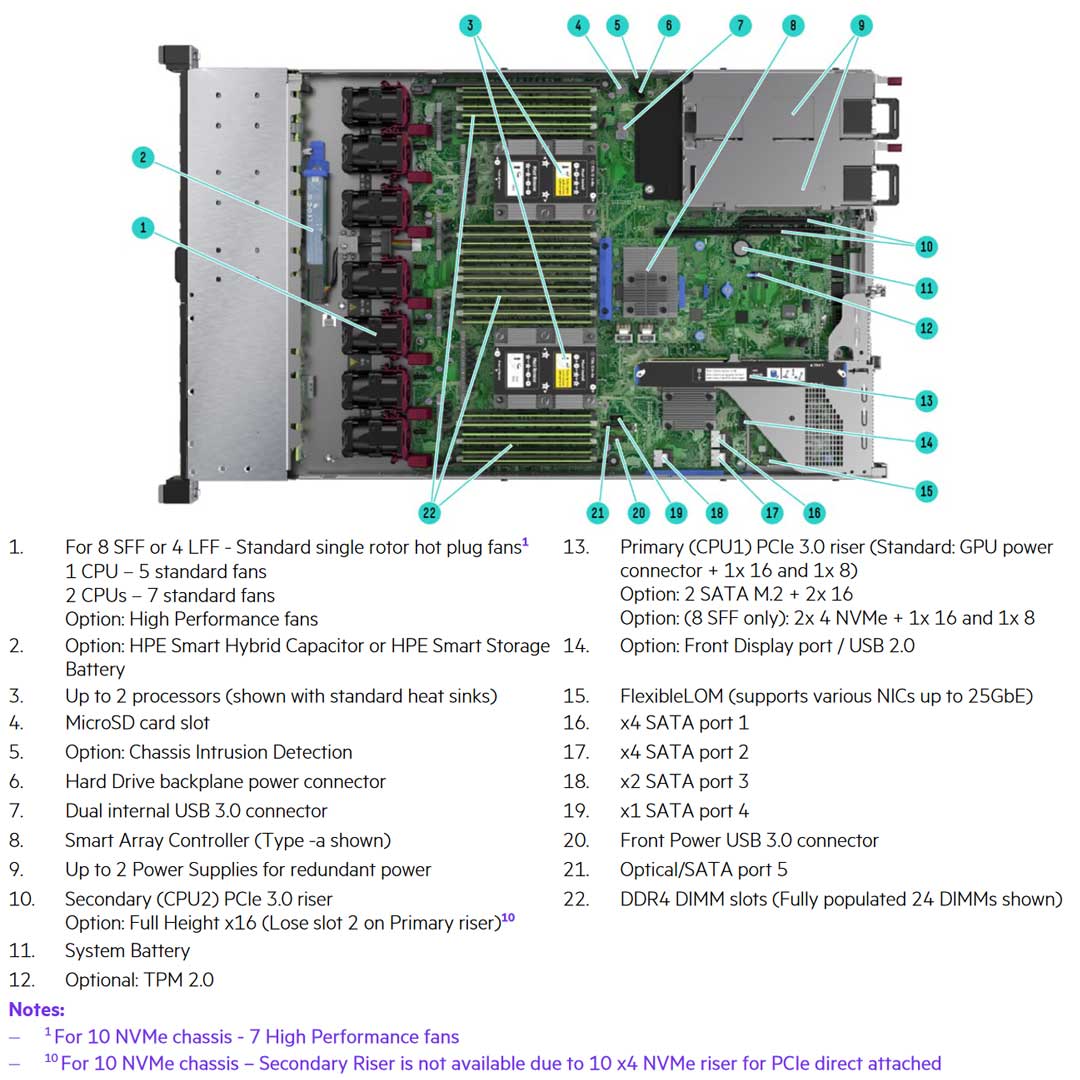

HPE DL360 Gen10 Base Knowledge
The HPE ProLiant DL360 Gen10 Rack Server is a very powerful 1U 2 Socket server supporting 24 DIMMs on a 2-socket configuration. This server has many different types of upgrades and support for many options. These options have rules that need to be followed. Like the ability to install NVDIMM or Persistent Memory. Each of these types of memory is only supported by certain Processors.
The DL360 Gen10 Rack Server can support 2 Intel Scalable Processors. Either Gen1 or Gen 2 are supported but processors can’t be mixed and any processor with a TPD 130W or over will get the Performance Heatsink (871246-B21).
HPE DL360 Gen10 Maximum Internal Storage
Chassis Options

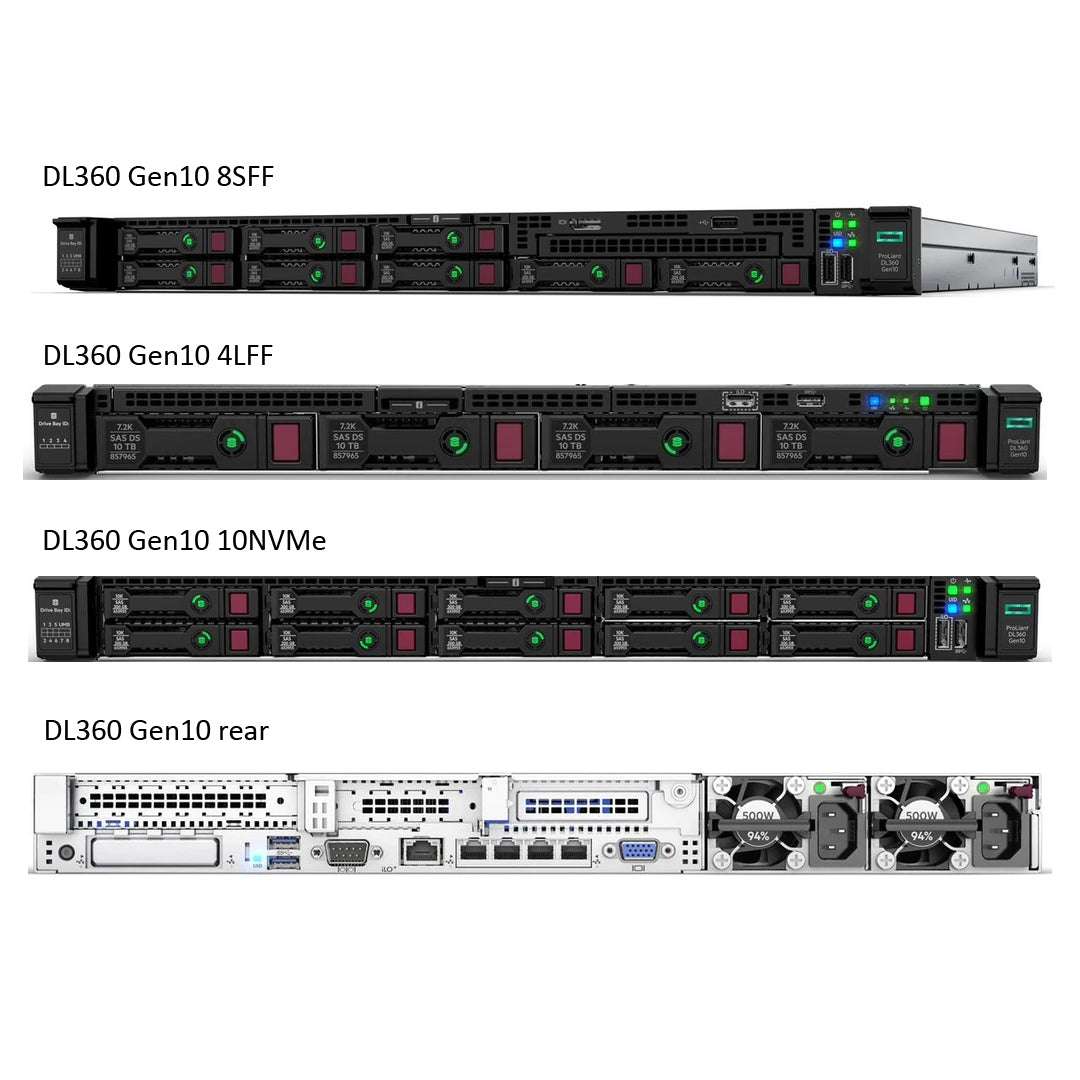

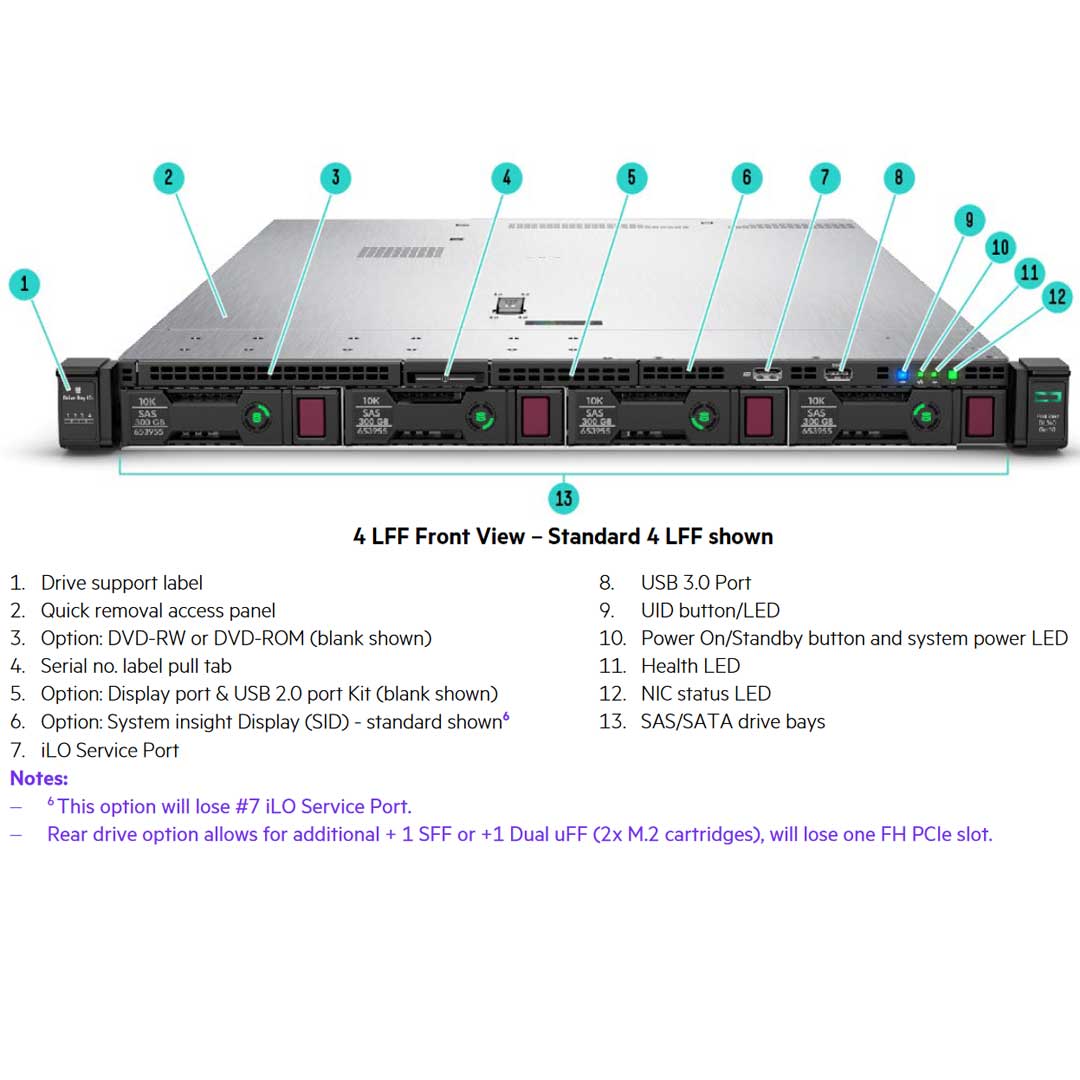

4x3.5" LFF

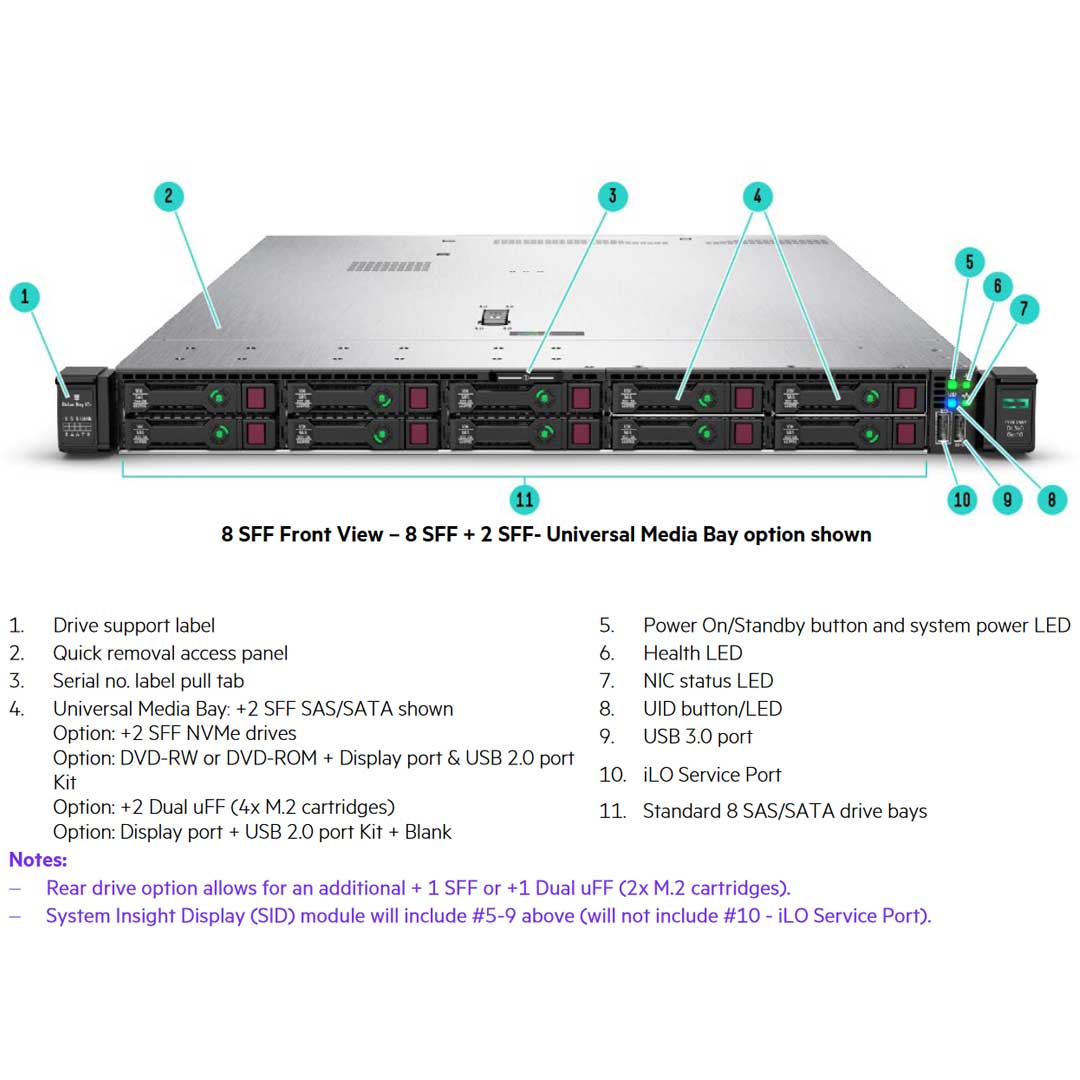

8x2.5" SFF
8 SFF + 2 SFF

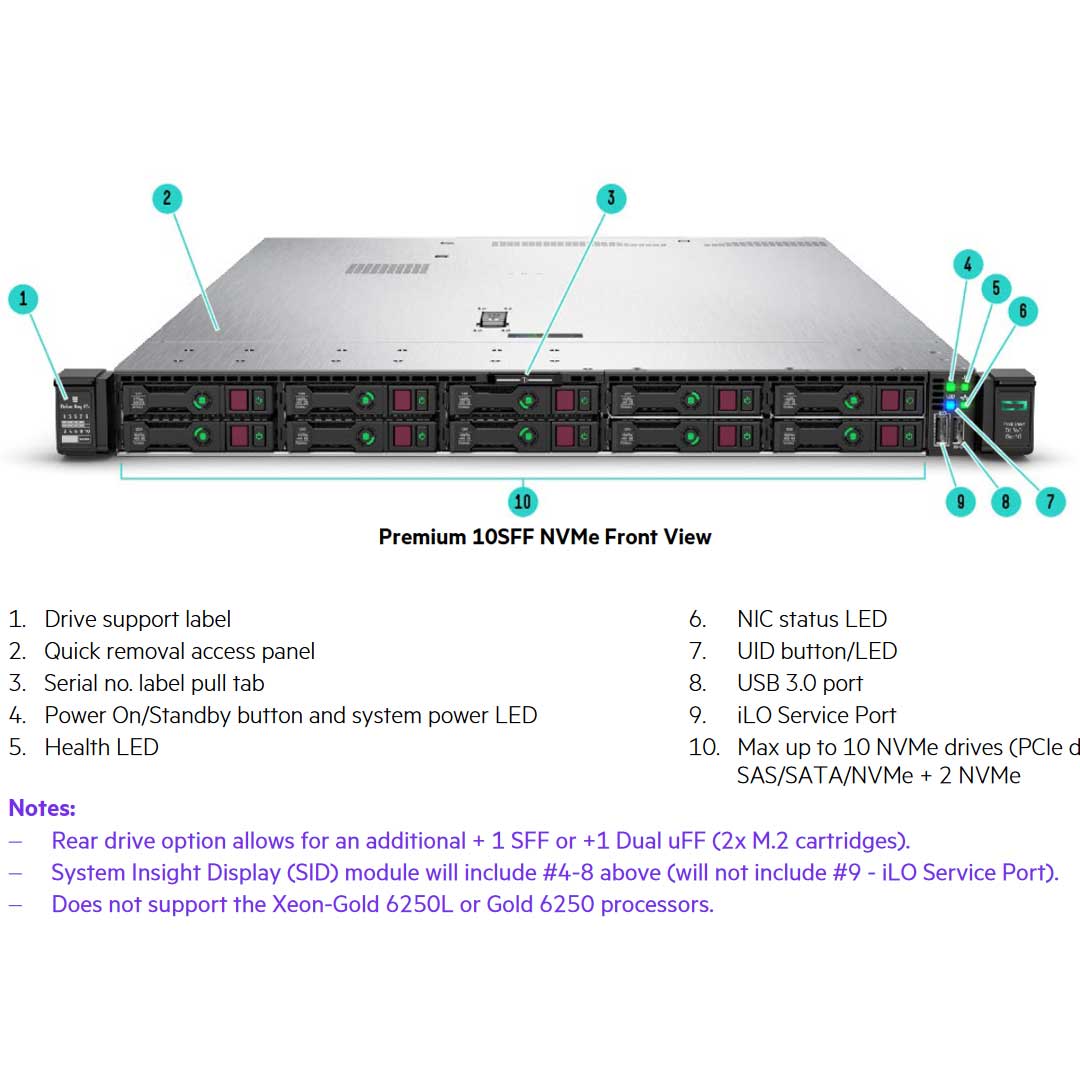

10x2.5" SFF Universal
Rear Drive 1 SFF
Chassis Specs
| CTO Server [Chassis] | HPE DL360 Gen10 4LFF | HPE DL360 Gen10 8SFF | HPE DL360 Gen10 10NVMe | HPE DL360 Gen10 4LFF NC | HPE DL360 Gen10 8SFF NC | HPE DL360 Gen10 10NVMe NC | HPE DL360 Gen10 8SFF BC NC | HPE DL360 Gen10 8SFF BC |
|---|---|---|---|---|---|---|---|---|
| SKU Number | 867958-B21 | 867959-B21 | 867960-B21 | P19765-B21 | P19766-B21 | P19767-B21 | P56949-B21 | P56950-B21 |
| Processor | Not included as standard | |||||||
| DIMM Slots | 24-DIMM slots DDR4 (Max 12 NVDIMMs with Gen 1 Processor) (Max 12 HPE Persistent Memory with Gen 2 Processors) |
|||||||
| Storage Controller | Embedded SW RAID (S100i) with 14 SATA ports Optional: Choice of HPE modular Smart Array and PCIe plug-in controller |
|||||||
| PCIe | 2 PCIe slots (1 x16 FH / 1 x8 LP) Optional: 1 x16 FH or LP |
|||||||
| Drives Cage - included | 4 LFF - SAS/SATA | 8 SFF - SAS/SATA Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges) |
10 NVMe - SAS/SATA/NVME Optional: 1 Dual uFF (2x M.2 cartridges) |
4 LFF - SAS/SATA | 8 SFF - SAS/SATA Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges) |
10 NVMe - SAS/SATA/NVME Optional: 1 Dual uFF (2x M.2 cartridges) |
8 SFF - SAS/SATA Basic Carrier (BC) Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges) |
8 SFF - SAS/SATA Basic Carrier (BC) Optional: up to 2 NVMe or 2 Dual uFF (4x M.2 cartridges) |
| Network Controller | Embedded 1Gb Ethernet 4-Port 331i Adapter or Choice of HPE FlexibleLOM and stand-up card for additional NICs. | Choice of HPE FlexibleLOM and stand-up card for additional NICs. | Embedded 1Gb Ethernet 4-Port 331i Adapter or Choice of HPE FlexibleLOM and stand-up card for additional NICs. | |||||
| Fans | 1 CPU – 5 Standard Fans 2 CPU – 7 Standard Fans Optional: High Performance Fans |
2 CPU – 7 High Performance Fans | 1 CPU – 5 Standard Fans 2 CPU – 7 Standard Fans Optional: High Performance Fans |
2 CPU – 7 High Performance Fans | 1 CPU – 5 Standard Fans 2 CPU – 7 Standard Fans Optional: High Performance Fans |
|||
| Management | HPE iLO with Intelligent Provisioning (standard) Optional: iLO Advanced and OneView |
|||||||
| USB | Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 2 USB 3.0 Optional: 1 USB 2.0 (lose iLO serv. Port) |
Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 2 USB 3.0 |
Front: 1 USB 3.0 + iLO service port Rear: 2 USB 3.0 Internal: 2 USB 3.0 Optional: 1 USB 2.0 (lose iLO serv. Port) |
|||||
Network Choice (NC) Models
- 4 LFF NC CTO Server (P19765-B21)
- 8 SFF NC CTO Server (P19766-B21)
- 8 SFF BC NC CTO Server (P56949-B21)
- 10 NVMe NC CTO Server (P19767-B21 )
Basic Carrier (BC) Models
- 8 SFF BC NC CTO Server (P56949-B21)
- 8 SFF BC CTO Server (P56950 -B21)
CTO with embedded LOM
- 4 LFF CTO Server (867958-B21)
- 8 SFF CTO Server (867959-B21)
- 10 NVMe CTO Server (867960-B21)
- 8 SFF BC CTO Server (P56950 -B21)
When you install the 2 SFF NVMe Backplane Kit (871242-B21), it comes with a special Primary Riser that has 1 NVMe connection to support up to 2 SFF NVMe drives. This NVMe Riser also comes with both default PCI slots, x16 in slot 1 and x8 in slot 2.
For 10 NVMe chassis – A secondary Riser is not available due to the 10 x4 NVMe riser. When the 10 SFF NVMe/SAS backplane ( 867974 -B21) option is installed, NVMe drives must be installed in bays 9 and 10. The other bays support a mix of NVMe and SAS drives.
MegaRAID TRI-MODE Controller
DL360 Gen10 with Broadcom MegaRAID controllers only supports Basic Carrier (BC) SFF SAS/SATA storage devices. Do not attempt to use Smart Carrier storage devices in these DL360 models with MegaRAID controllers. Mixing of BC and SC carrier types is not allowed. NVMe is not supported with DL360 Gen10 with MegaRAID storage controllers. This CTO Server contains default SAS/SATA drive cage/backplane and tri-mode to SAS/SATA cables. There is also a 8SFF SAS/SATA PCIe Slot2 Tri-Mode Cable Kit (P55884-B21).
If you install the 2SFF SAS/SATA 12G BC Drive Cage Kit (P26435-B21). It is mandatory you install the 2SFF SAS/SATA Tri-Mode Cable Kit (P55883-B21).
HPE DL360 Gen10 M.2 Drives
The DL360 Gen10 has the normal Stand-up PCIe card that holds two M.2 Drives. But it also has a unique option of adding the M.2 2280 Primary Riser kit ( 867978 -B21). This Riser kit not only has the x16 PCIe slot but also has 2x M.2 2280 Drive slots. You can only install the 2280 Type M.2 drives with this PCIe riser. This PCIe riser is a great way to save a PCIe slot but still has the M.2 drives installed. For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option.
Want more M.2 drives, the DL360 supports the uFF Drive type as a 1xDual uFF (2x M.2) rear drive or as the optional 2xDual uFF (4x M.2) drives in the front of the chassis. If you install the Rear Drive cage you will lose an FH PCIe slot in the primary riser Slot 1.

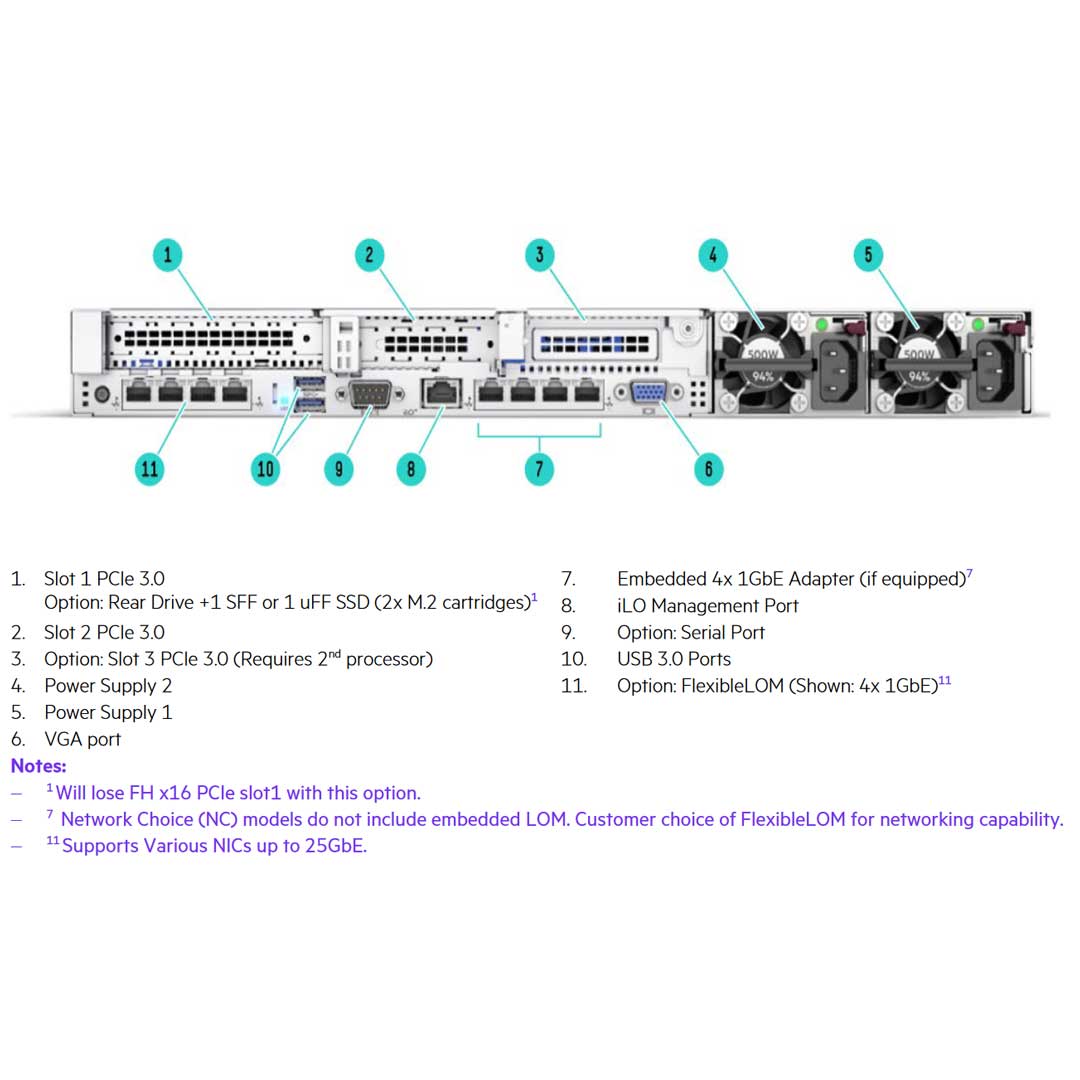

HPE DL360 Gen10 PCIe Risers
The DL360 Gen10 Rack Server has 3 PCIe slots over two Riser Cages. The Secondary Riser has 1 Slot. The Primary Riser Cage is a butterfly riser and holds 2 Slots.
M.2 Primary Riser
The Primary Riser has a unique option to save a PCIe slot when installing M.2 Drives. If you install the Primary SATA M.2 Riser (867978-B21), you will have two M.2 Slots on the riser card. This card only supports the 2280 M.2 Type drives.
GPU Primary Riser
The GPU primary riser is the GPU Riser which has a power source on the riser card to make cabling easier for the GPU.
NVMe Drives
When you install the 2 SFF NVMe Backplane Kit (871242-B21), it comes with a special Primary Riser that has 1 NVMe connection to support up to 2 SFF NVMe drives. This NVMe Riser also comes with both default PCI slots, x16 in slot 1 and x8 in slot 2.
Rear Drives Primary Riser
Installation of the rear drive takes away the FH slot 1 from the riser to allow a single drive cage to be installed in the rear while also providing an x8 PCIe slot 2.
If a secondary full-height kit is installed, then primary PCIe Slot #2 cannot be used. Only 2 full height slots are supported. If you install a Rear drive, you will lose the Primary Riser FH Slot 1.
If you install the 10SFF Premium backplane kit (867974-B21). This kit comes with a secondary riser that has 5 NVMe ports.
| Expansion Slot # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor | |
|---|---|---|---|---|---|---|
| Primary GPU Riser (875545-001) | 1 | PCIe 3.0 | x16 | x16 | CPU1 | Full-Height, 3/4 Length (up to 9.5in) |
| 2 | x8 | x8 | CPU1 | Low Profile | ||
| Primary SATA M.2 Riser (867978-B21) | 1 | x16 | x16 | CPU1 | F ull-Height, 3/4 Length (up to 9.5in) | |
| 2 | x16 | x16 | CPU1 | Low Profile | ||
| Primary 2SFF NVMe Riser (871242-B21) | 1 | x16 | x16 | CPU1 | F ull-Height, 3/4 Length (up to 9.5in) | |
| 2 | x8 | x8 | CPU1 | Low Profile | ||
| Secondary 5-port 10SFF NVMe/SAS Premium backplane kit (867974-B21) | 3 | CPU2 | Low Profile | |||
| Secondary LP Riser (867982 - B21) | 3 | x16 | x16 | CPU2 | Low Profile | |
| Secondary FH Riser (P23271-B21) | 3 | x16 | x16 | CPU2 | F ull-Height, 3/4 Length (up to 9.5in) |
HPE DL360 Gen10 Cooling
The DL360 Gen10 Rack Server has Fan Redundance for each model. When you select the first CPU, 5 fans will come with it. When you select the second processor, 2 Fans will come with it. If you need to upgrade to the Performance Fans, this kit (871244-B21) will come with 7 fans. If you choose to install the 2 NVMe front drive on the 8SFF Chassis or install the HPE DL360 Gen10 10SFF Premium Backplane Kit (867974 -B21). You will need to upgrade the fans. If you install Computation or Graphics Accelerators, you will also need to upgrade the fans.
For 4 LFF and 8 SFF chassis:
- 1 CPU – Includes 5 standard fans
- 2 CPUs – Includes 7 standard fans
- 2 CPUs – Includes 7 high-performance fans as standard
HPE DL360 Gen10 GPU / Workload Accelerator
When installing the GPU FH Primary Riser (P23271-B21) option the GPU sits in Slot1. If you want to install a second GPU or if Slot 1 is taken. You can install the FH Secondary Riser and install the GPU in Slot 3. You will need two Processors for this and upgrade the fans.
There is one small adjustment that needs to be made if you have a Type-A Smart Array card installed. You will need to install the LH controller (869083-B21) to allow the GPU to fit in slot 3. This GPU Enablement v2 Kit (P23271-B21) is not available on the 10 NVMe model. Slot 3 is taken up by the NVMe riser for direct attached drives.
HPE DL360 Gen10 Flex Slot your power!
Mixing of 2 different power supplies is NOT supported.
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
More Info
Rear drive option available on all DL360 Gen10 chassis types for additional boot/storage: +1SFF or 1 Dual uFF (2x M.2 cartridges).
NC Chassis don’t have the Embedded 1Gb Ethernet 4-Port 331i Adapter.
BC Chassis can use the Broadcom MegaRAID and is not compatible with SC (smart carrier) Drives.
When the 10SFF NVMe/SAS backplane option is installed, bays 9 and 10 ONLY support NVMe Drives. The other bays support a mix of NVMe and SAS drives
“U” processors (i.e. 6212U) only supported in single socket configurations
A maximum of 12 NVDIMMs are supported with 1st generation Intel Xeon Scalable processors.
A maximum of 12 HPE Persistent Memory supported with 2nd generation Intel Xeon Scalable Processor series (Platinum 8200, Gold 6200, Gold 5200, Silver 4215 and 4215R)
HPE DL360 Gen10 Lights Out! iLO
Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.
UEFI
Configure and boot your servers securely with industry-standard Unified Extensible
Firmware Interface (UEFI).
RESTful API
iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards..
Intelligent Provisioning
Hassle-free server and OS provisioning for 1 or few servers with Intelligent Provisioning.
